NOTE: Using Toyota hand-held tester or scan tool, read FREEZE FRAME data. Freeze frame data records engine conditions when malfunction is detected.

For diagnosis and repair procedure, see Fig 2-Fig 4 .

For circuit wiring diagram, see Fig 1. For location of emission related components, see Figure.

For ECM location, see Figure. For ECM connector terminal view, see Figure.

To identify circuits referenced in testing, see ENGINE PERFORMANCE in SYSTEM WIRING DIAGRAMS article in ELECTRICAL. For vacuum or EVAP hose routing, see VACUUM DIAGRAMS article. For testing of systems or components, see BASIC DIAGNOSTIC PROCEDURES - 4-CYLINDER article or SYSTEM & COMPONENT TESTING - 4-CYLINDER article. For adjustments, see ON-VEHICLE ADJUSTMENTS - 4-CYLINDER article. For removal and installation of components, see REMOVAL & INSTALLATION - 4-CYLINDER article.

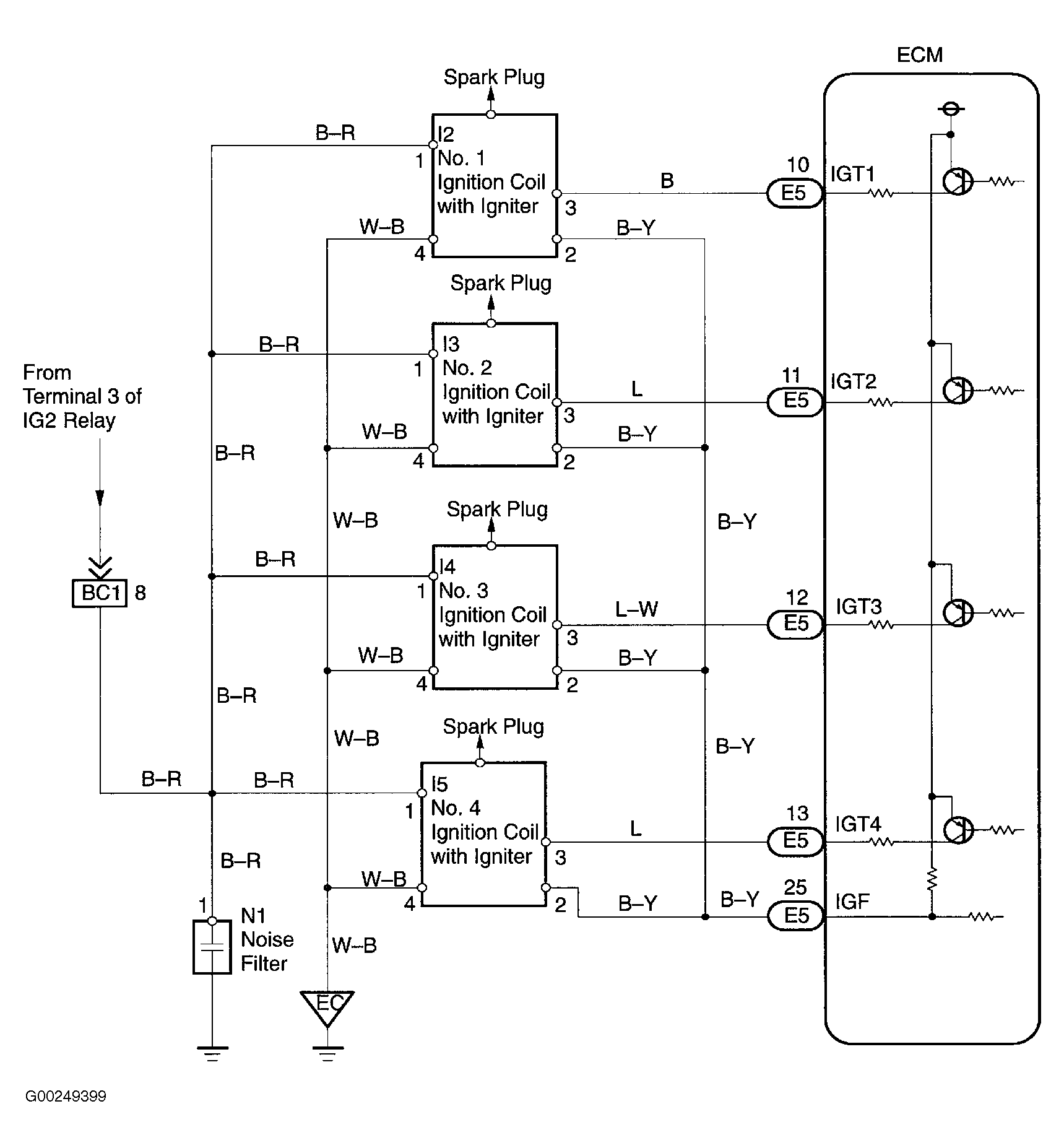

Fig 1: Ignition Coil With Ignitor Circuit Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

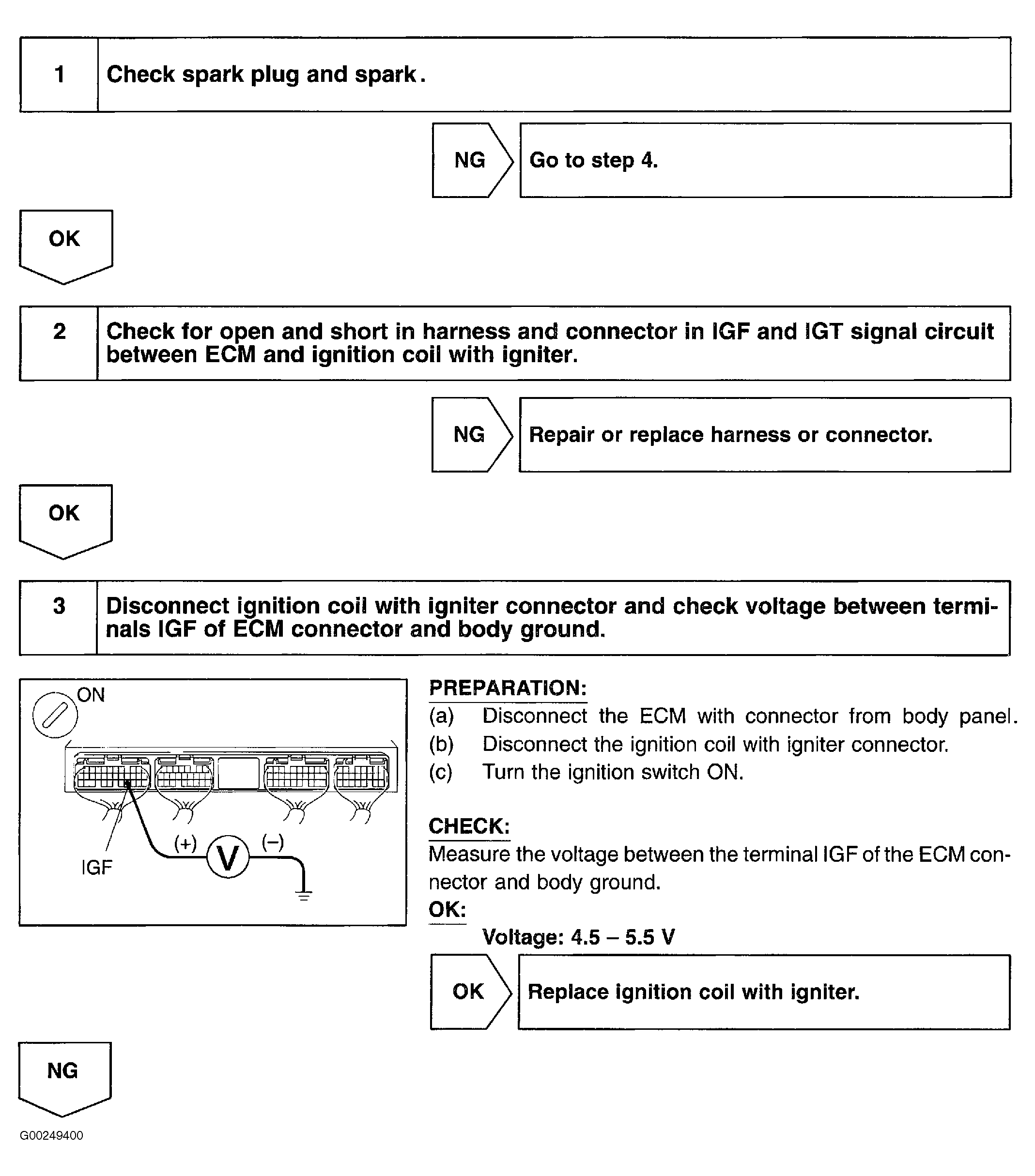

Fig 2: DTCs P0351-P0354 Diagnostic Procedure (Steps 1-3)

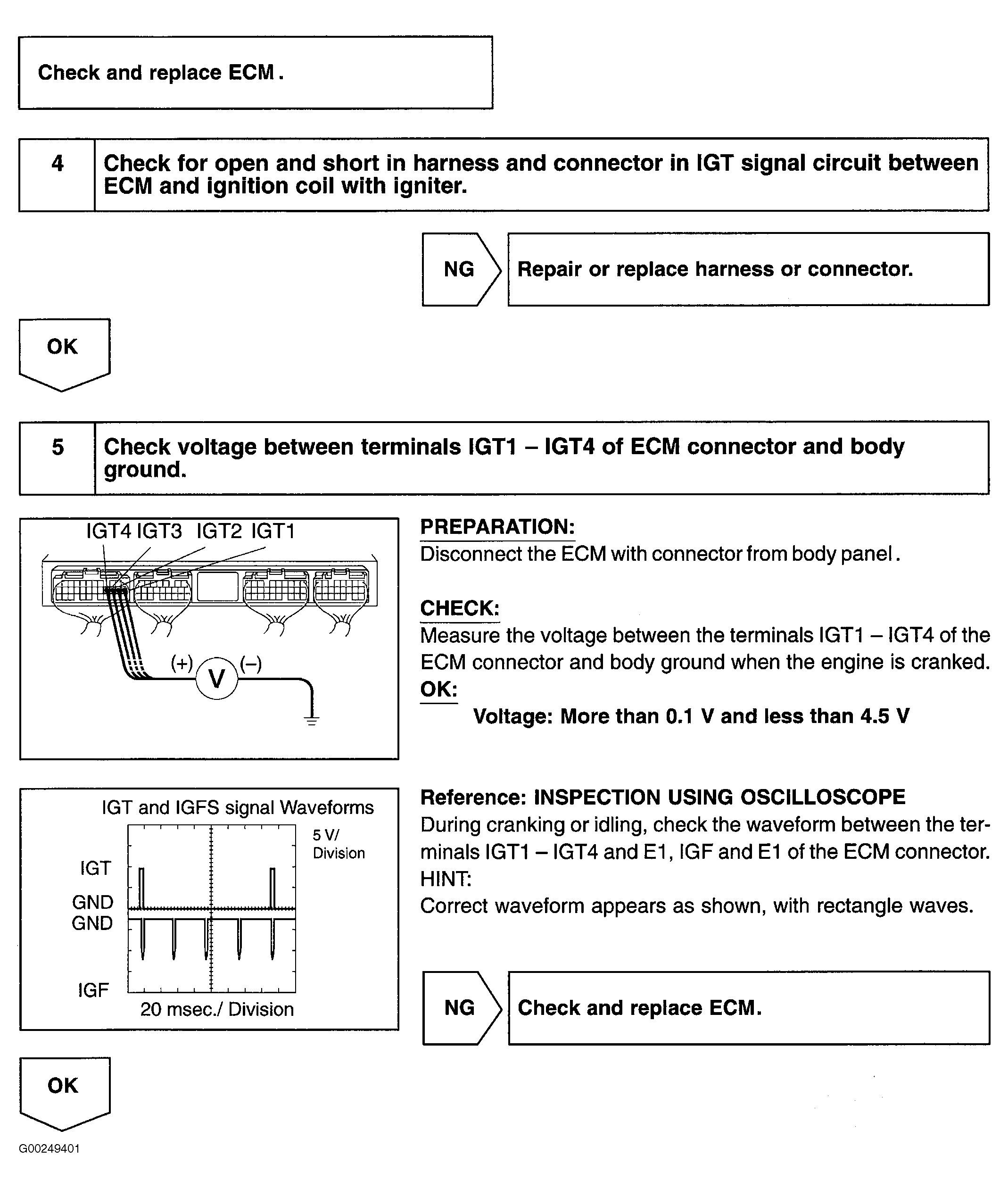

Fig 3: DTCs P0351-P0354 Diagnostic Procedure (Steps 4-5)

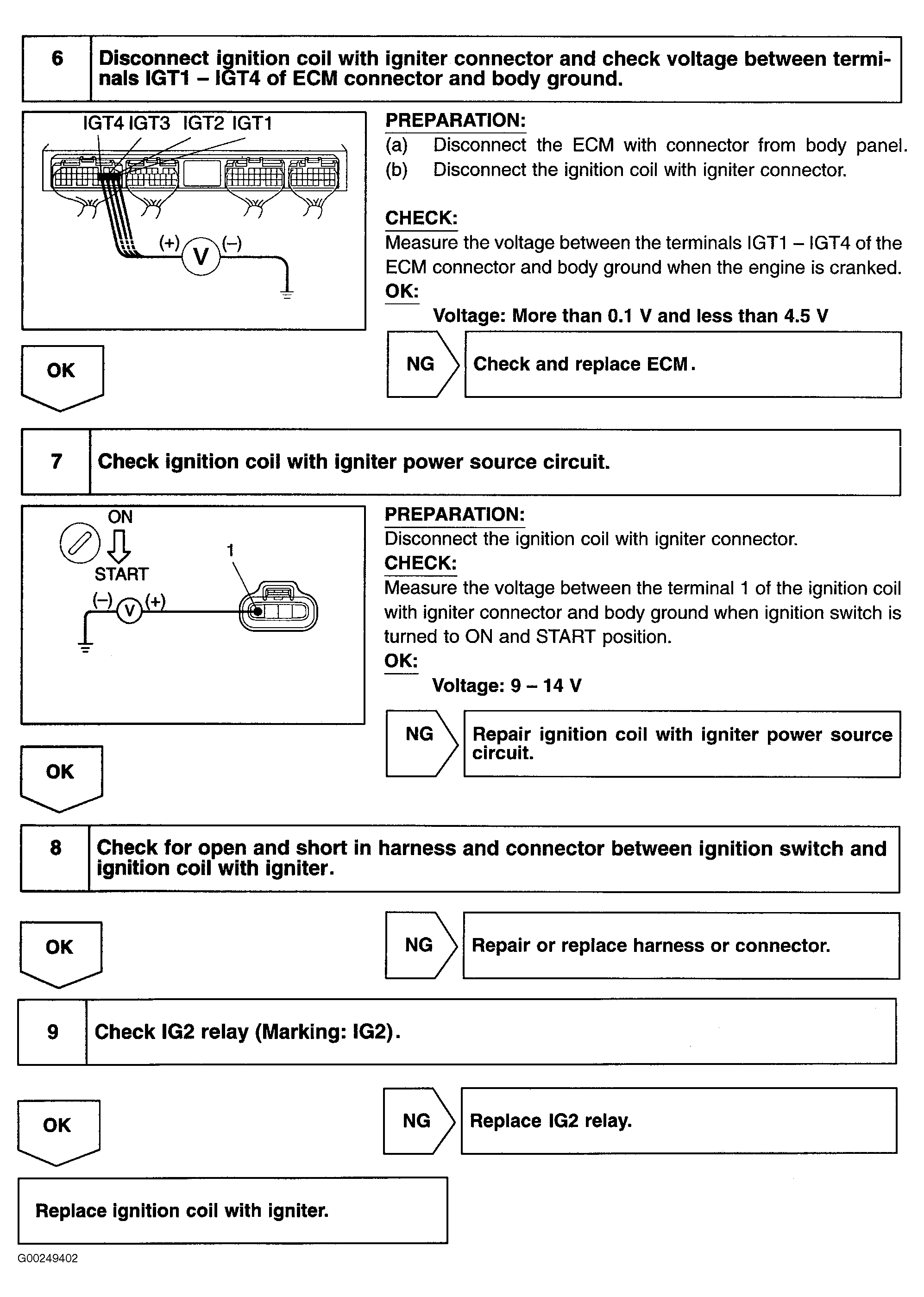

Fig 4: DTCs P0351-P0354 Diagnostic Procedure (Steps 6-9)
