Diagnosis & Repair

WARNING: This page is about a different car, the 2003 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Using Toyota hand-held tester or scan tool, read FREEZE FRAME data. Freeze frame data records engine conditions when malfunction is detected.

For diagnosis and repair procedure, see Fig 1-Fig 3 .

For ECM location, see Figure. For ECM connector terminal view, see Figure. For ignition coil with ignitor circuit wiring diagram, see Fig 4. For location of emission related components, see Figure.

For testing of systems or components, see BASIC DIAGNOSTIC PROCEDURES - V6 & V8 article or SYSTEM & COMPONENT TESTING - V6 & V8 article. For removal and installation of components, see REMOVAL & INSTALLATION - V6 & V8 article.

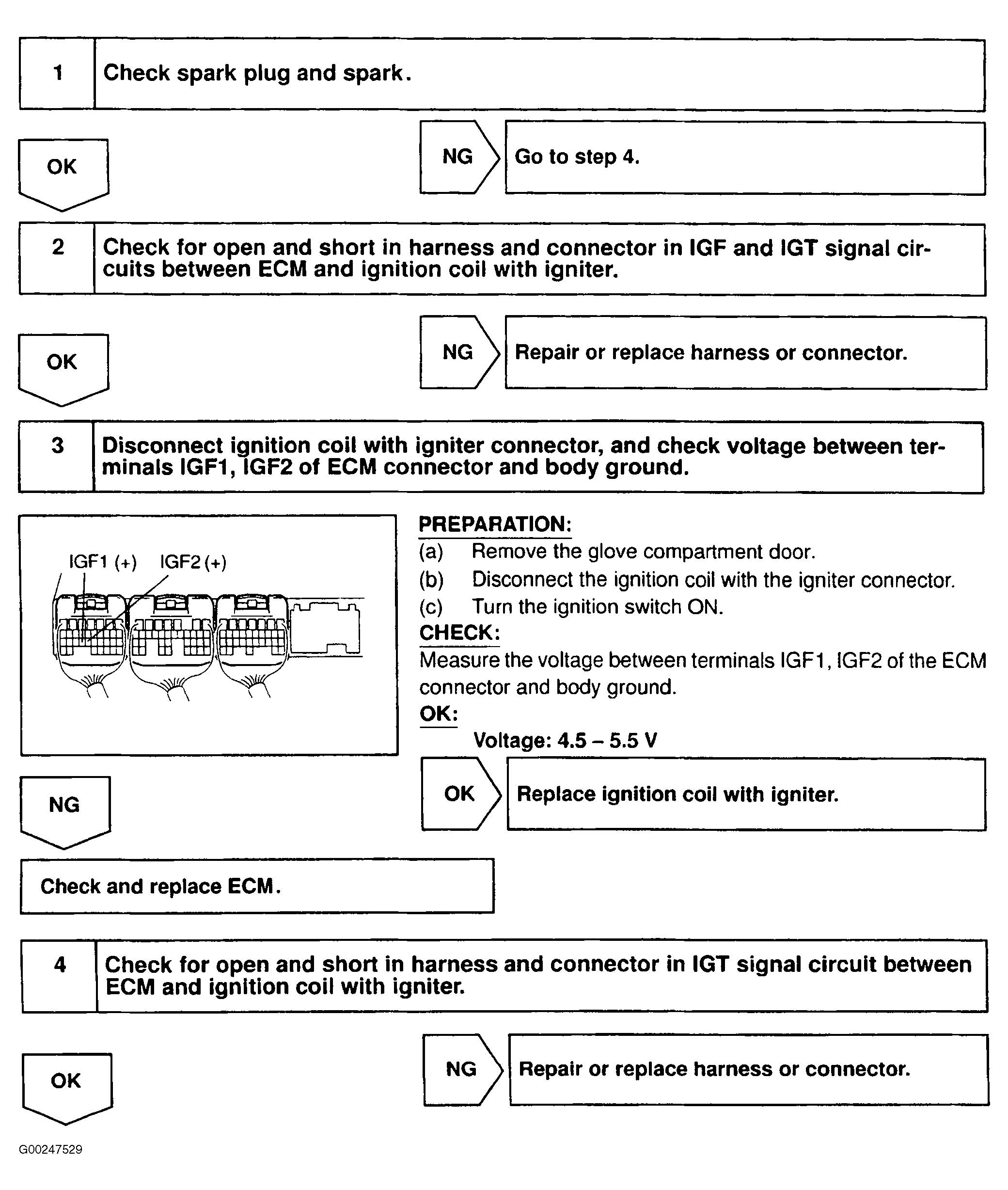

Fig 1: DTCs P0351-P0358 Diagnostic Procedure (Steps 1-4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

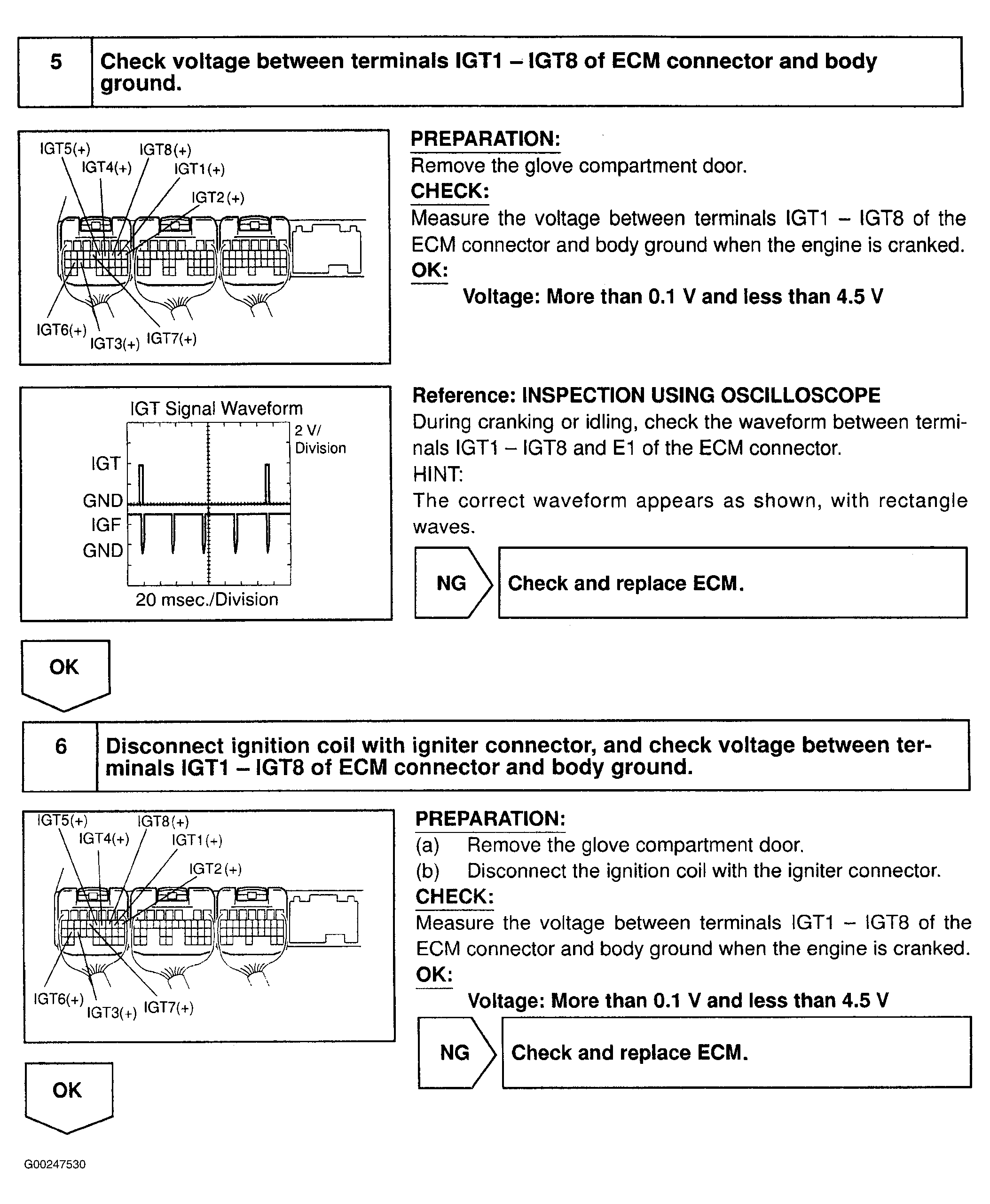

Fig 2: DTCs P0351-P0358 Diagnostic Procedure (Steps 5-6)

Fig 3: DTCs P0351-P0358 Diagnostic Procedure (Steps 7-8)

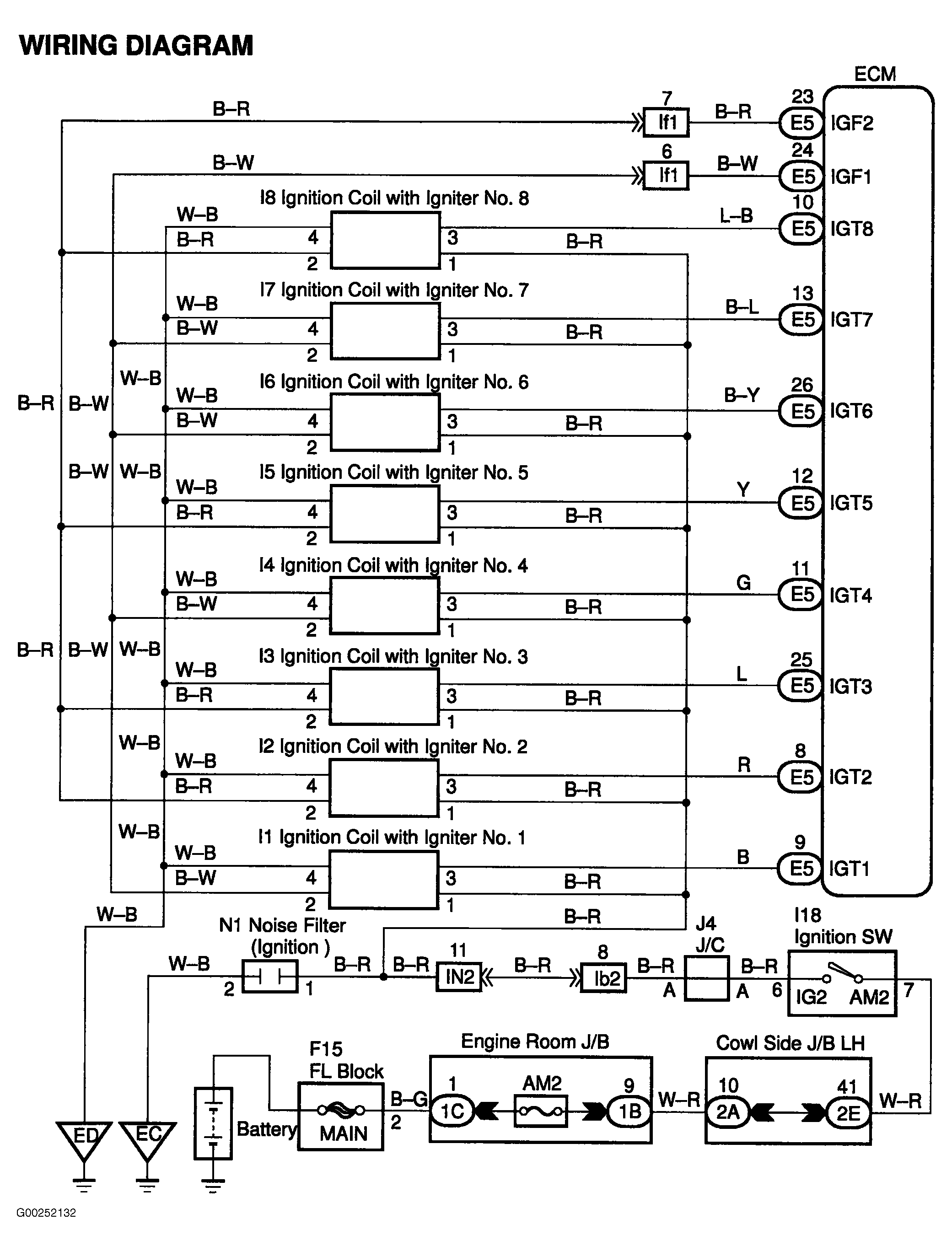

Fig 4: Ignition Coil With Ignitor Circuit Wiring Diagram
