Diagnosis & Repair

WARNING: This page is about a different car, the 2003 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Using Toyota hand-held tester or scan tool, read FREEZE FRAME data. Freeze frame data records engine conditions when malfunction is detected.

For diagnosis and repair procedure with Toyota hand-held tester or Enhanced OBD II scan tool, see Fig 1-Fig 7 .

For diagnosis and repair procedure with generic OBD II scan tool, see Fig 8-Fig 13 .

When prompted to perform confirmation driving pattern, see TEST DRIVE CONFIRMATION .

For ECM location, see Figure. For ECM connector terminal view, see Figure. For fuel injector driver circuit wiring diagram, see Fig 14. For location of emission related components, see Figure.

For vacuum or EVAP hose routing, see VACUUM DIAGRAMS article. For testing of systems or components, see BASIC DIAGNOSTIC PROCEDURES - V6 & V8 article or SYSTEM & COMPONENT TESTING - V6 & V8 article. For adjustments, see ON-VEHICLE ADJUSTMENTS - V6 & V8 article. For removal and installation of components, see REMOVAL & INSTALLATION - V6 & V8 article.

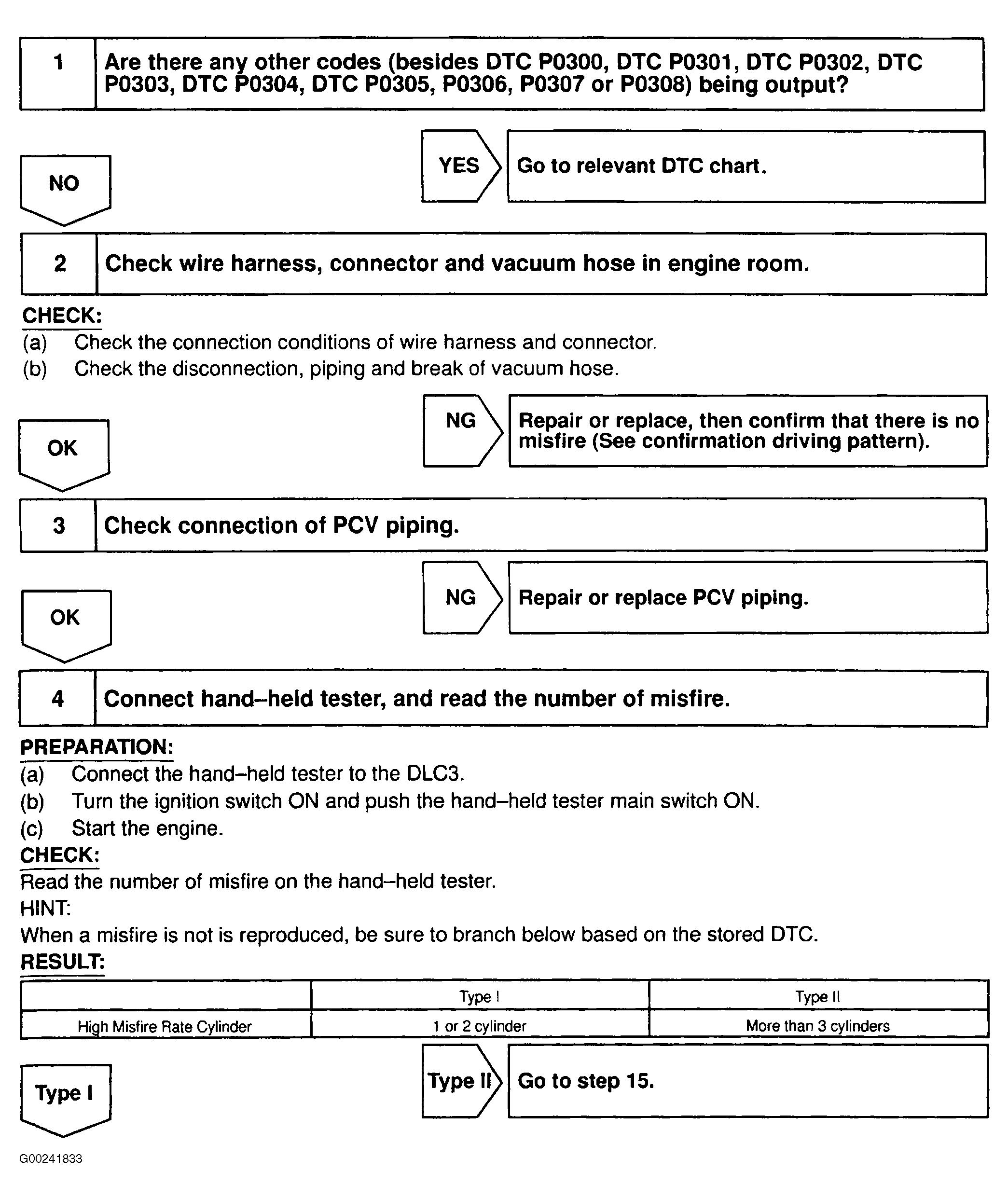

Fig 1: DTCs P0300 & P0301-P0308 Diagnostic Procedure Using Hand Held Tester (Steps 1-4)

G00241833

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

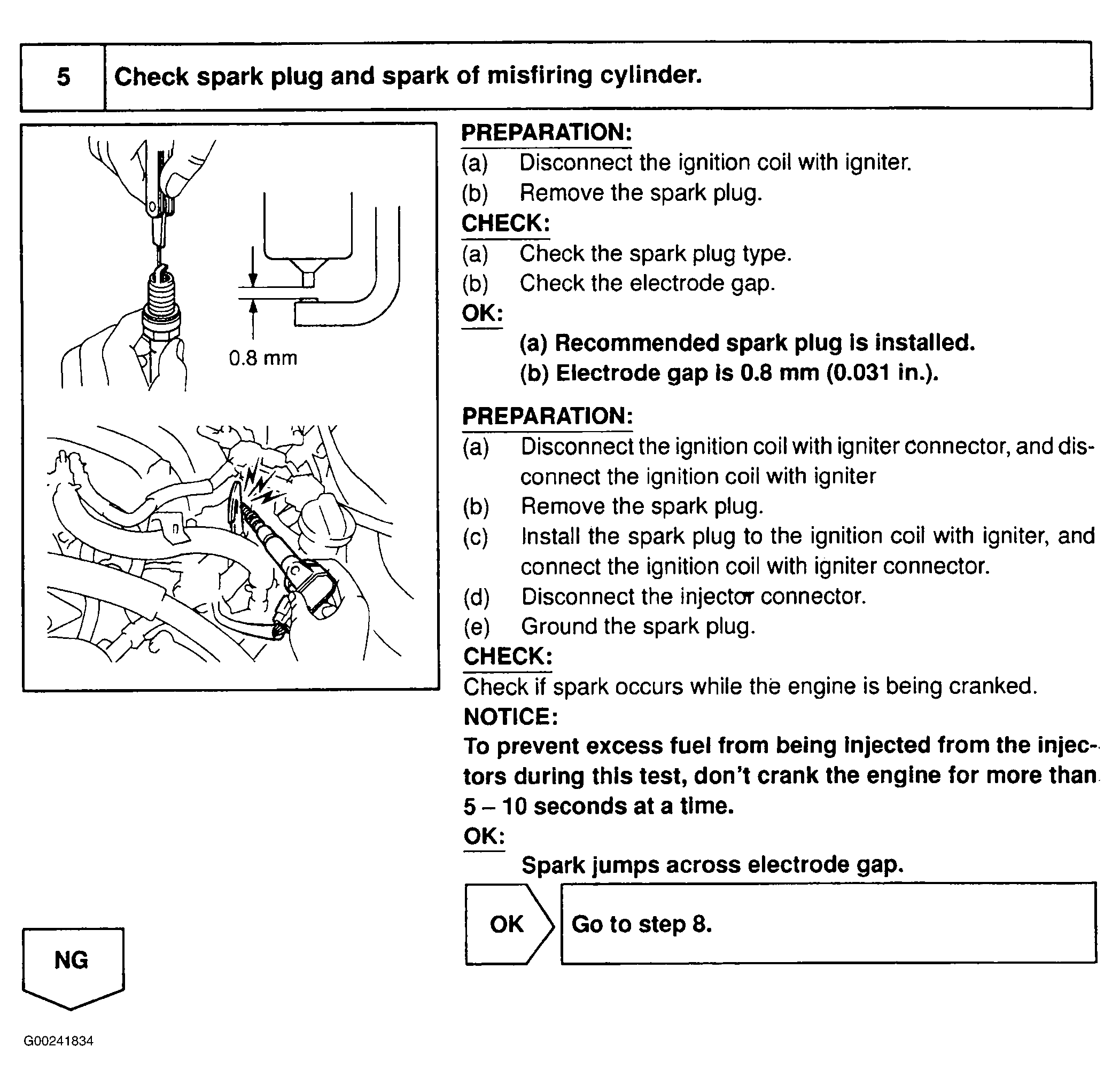

Fig 2: DTCs P0300 & P0301-P0308 Diagnostic Procedure Using Hand Held Tester (Step 5)

G00241834

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

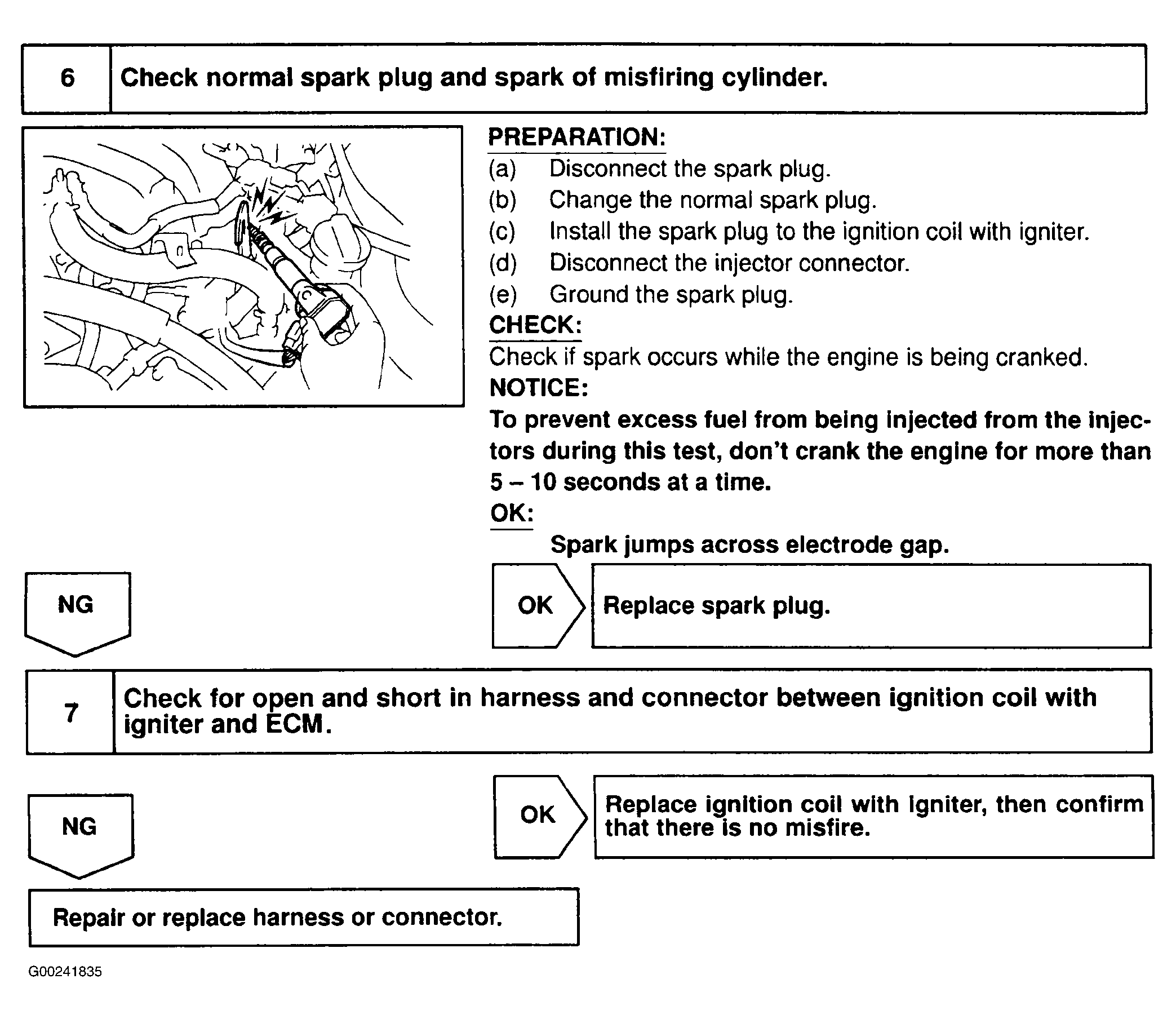

Fig 3: DTCs P0300 & P0301-P0308 Diagnostic Procedure Using Hand Held Tester (Steps 6-7)

G00241835

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

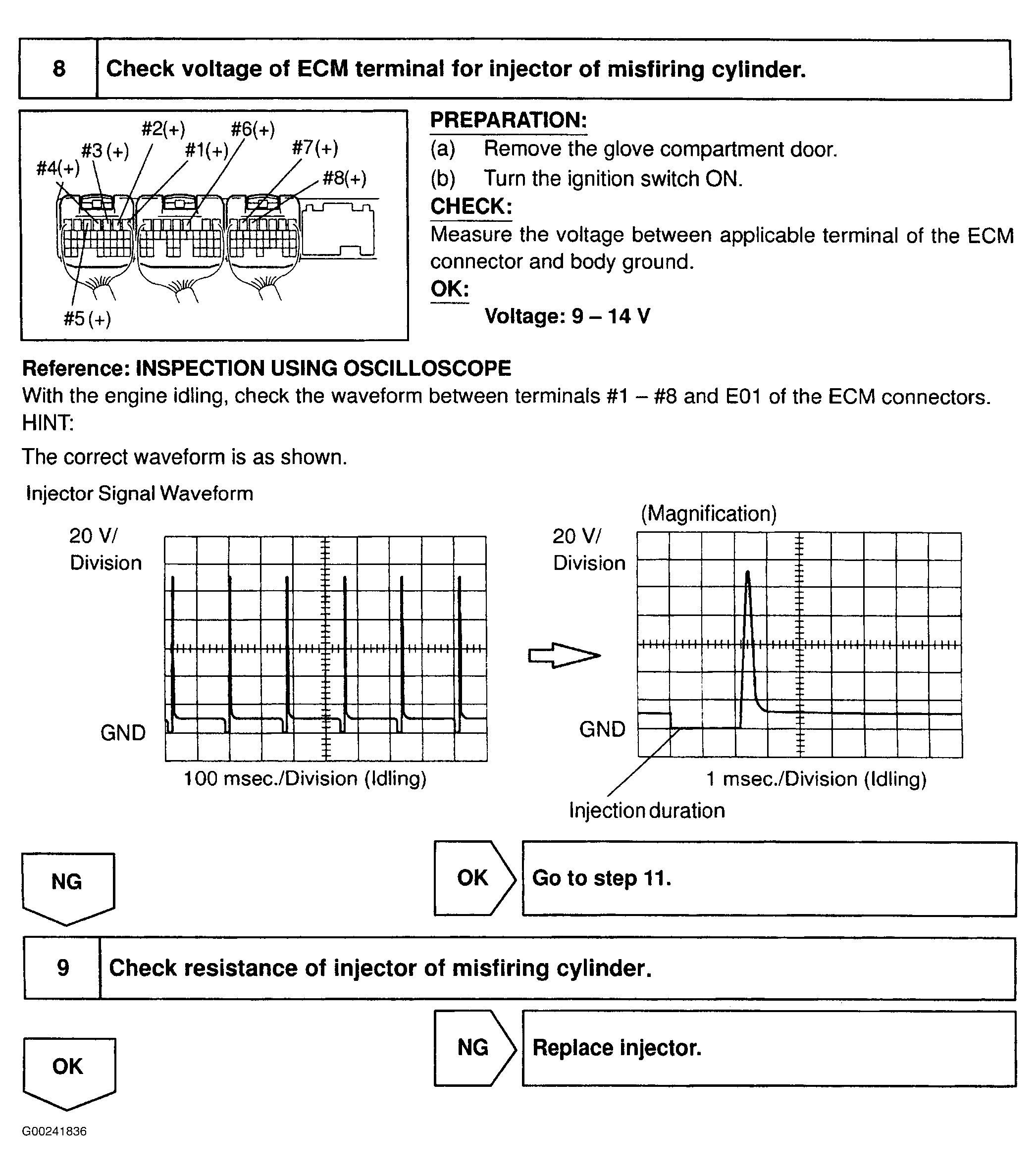

Fig 4: DTCs P0300 & P0301-P0308 Diagnostic Procedure Using Hand Held Tester (Steps 8-9)

G00241836

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

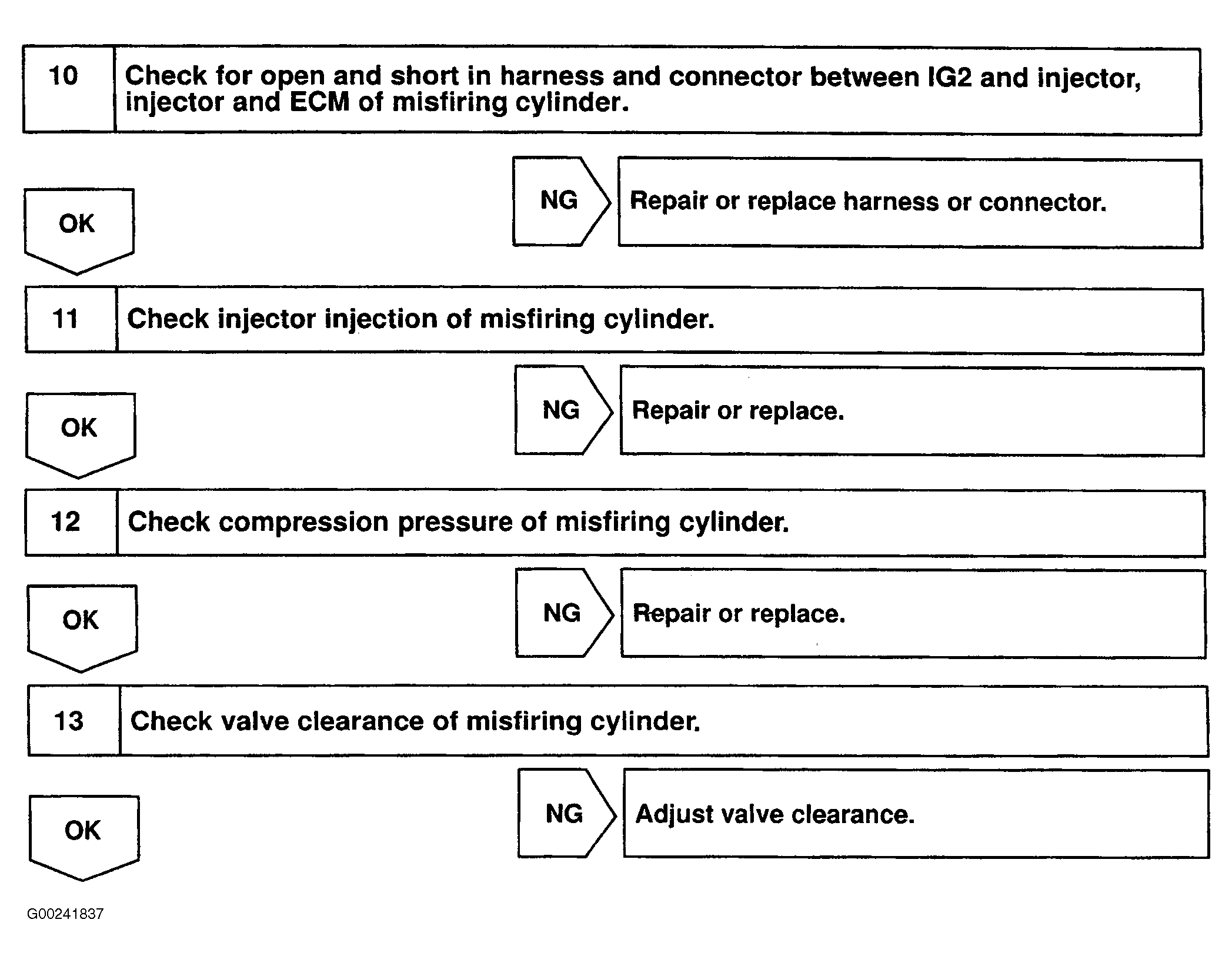

Fig 5: DTCs P0300 & P0301-P0308 Diagnostic Procedure Using Hand Held Tester (Steps 10-13)

G00241837

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

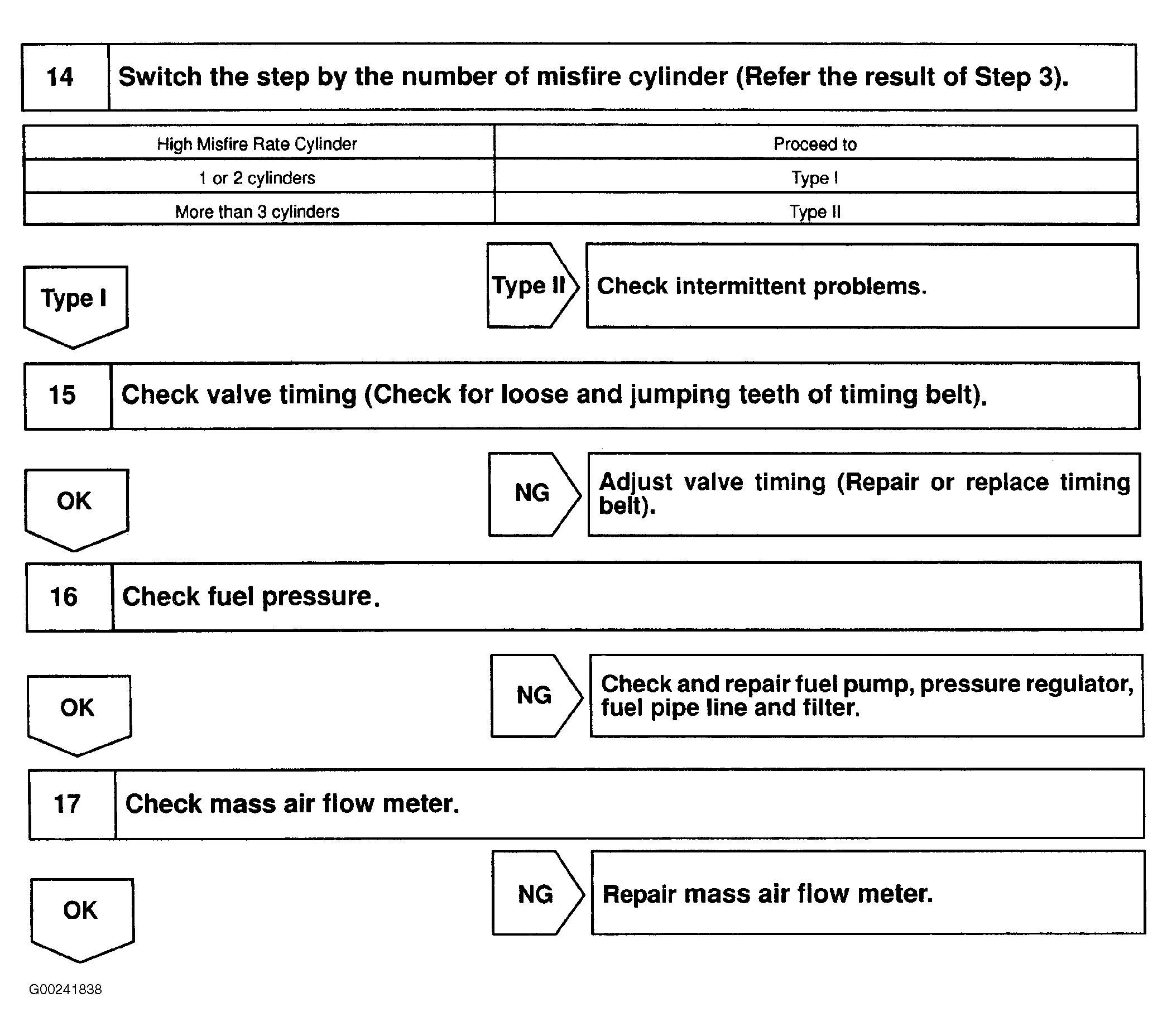

Fig 6: DTCs P0300 & P0301-P0308 Diagnostic Procedure Using Hand Held Tester (Steps 14-17)

G00241838

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

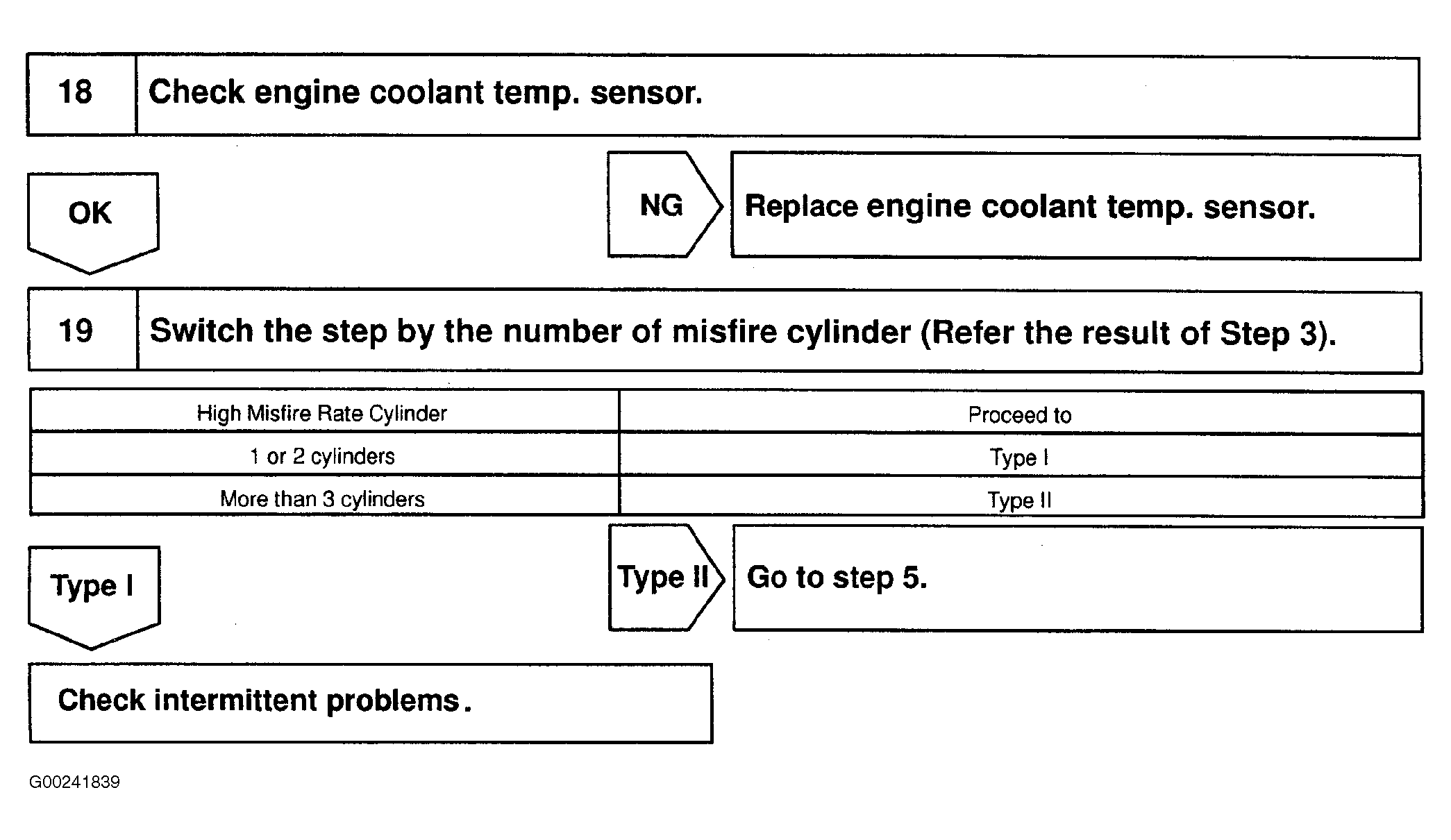

Fig 7: DTCs P0300 & P0301-P0308 Diagnostic Procedure Using Hand Held Tester (Steps 18-19)

G00241839

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

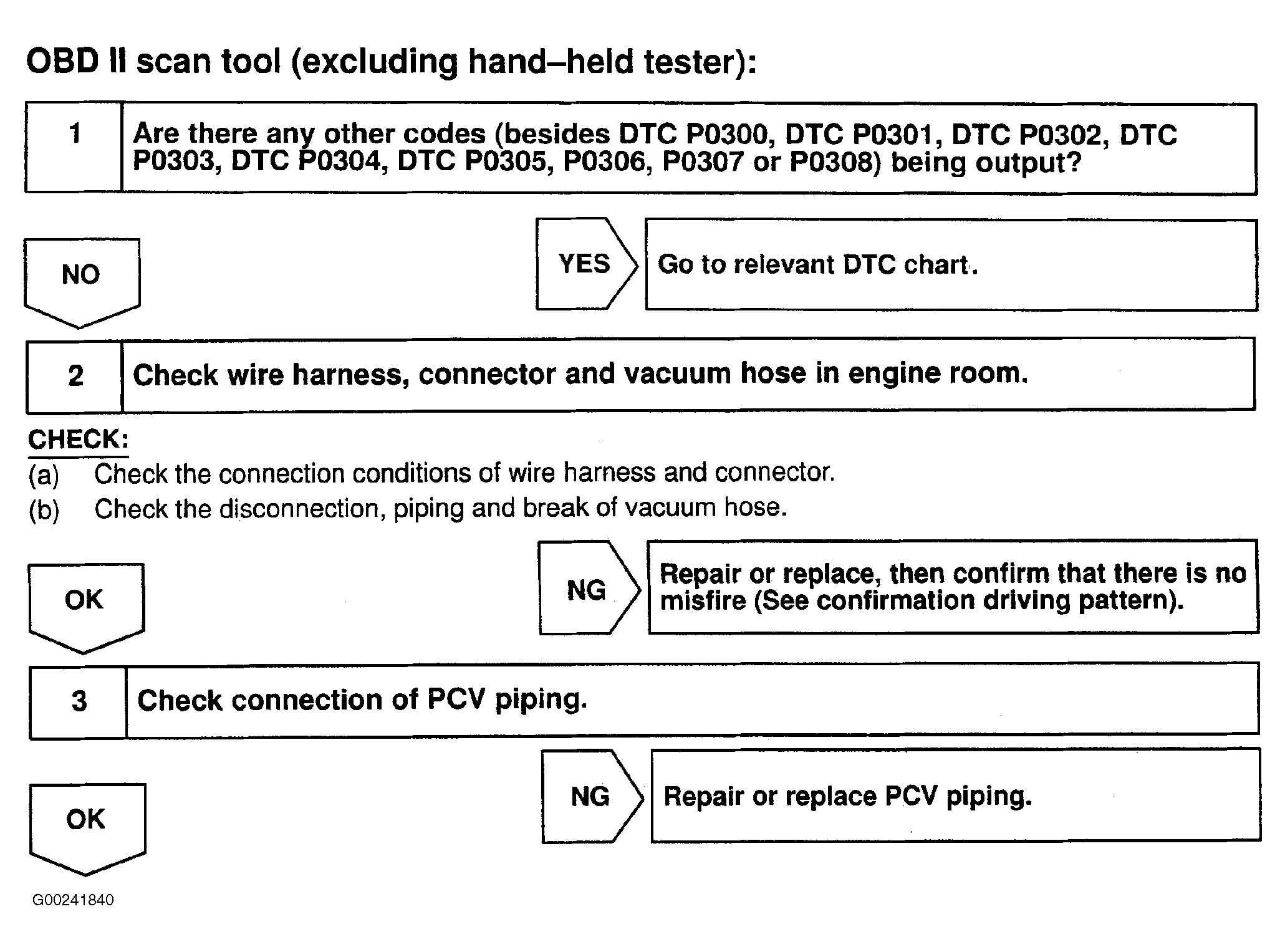

Fig 8: DTCs P0300 & P0301-P0308 Diagnostic Procedure Using OBD II Scan Tool (Steps 1-3)

G00241840

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

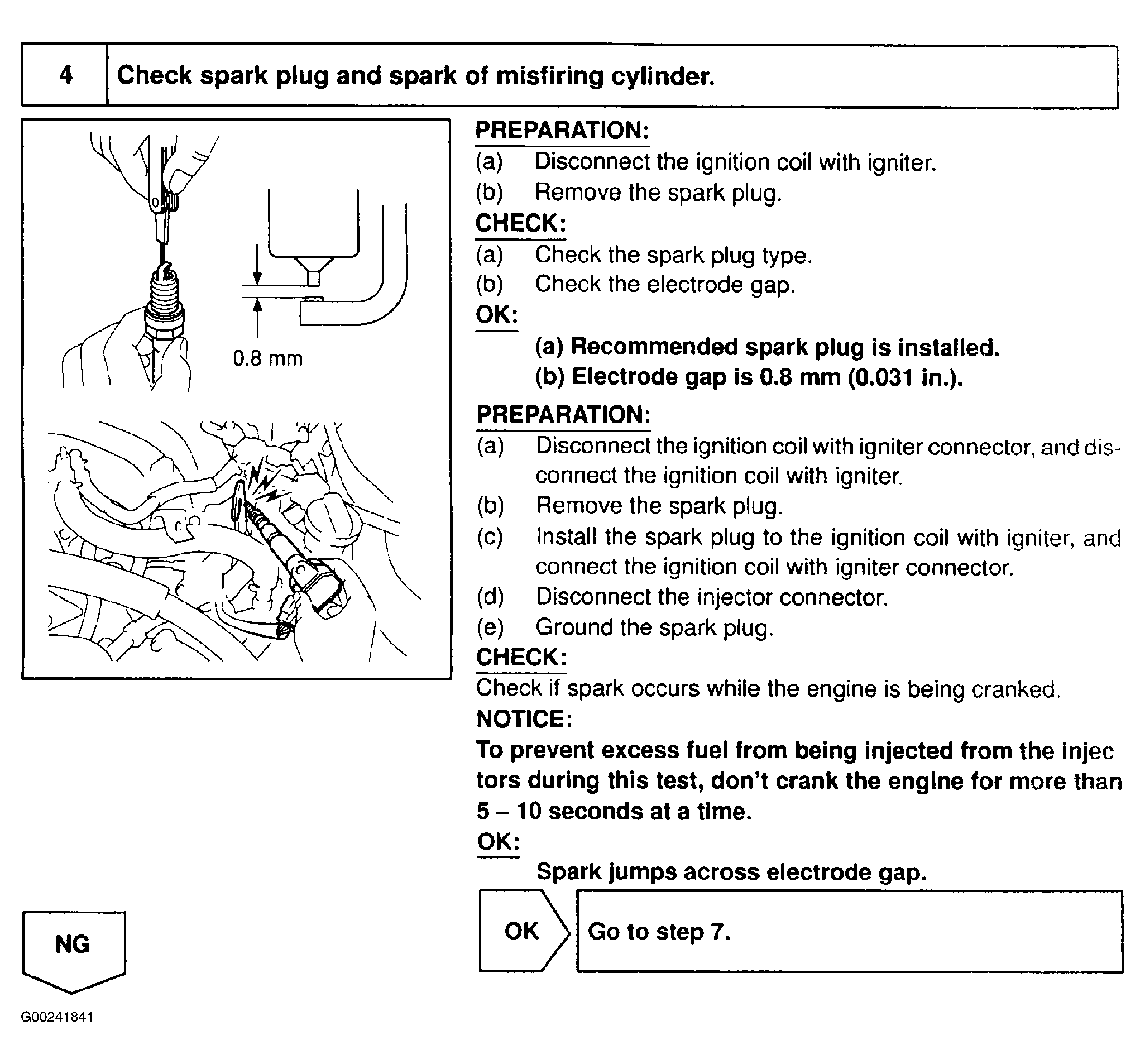

Fig 9: DTCs P0300 & P0301-P0308 Diagnostic Procedure Using OBD II Scan Tool (Step 4)

G00241841

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

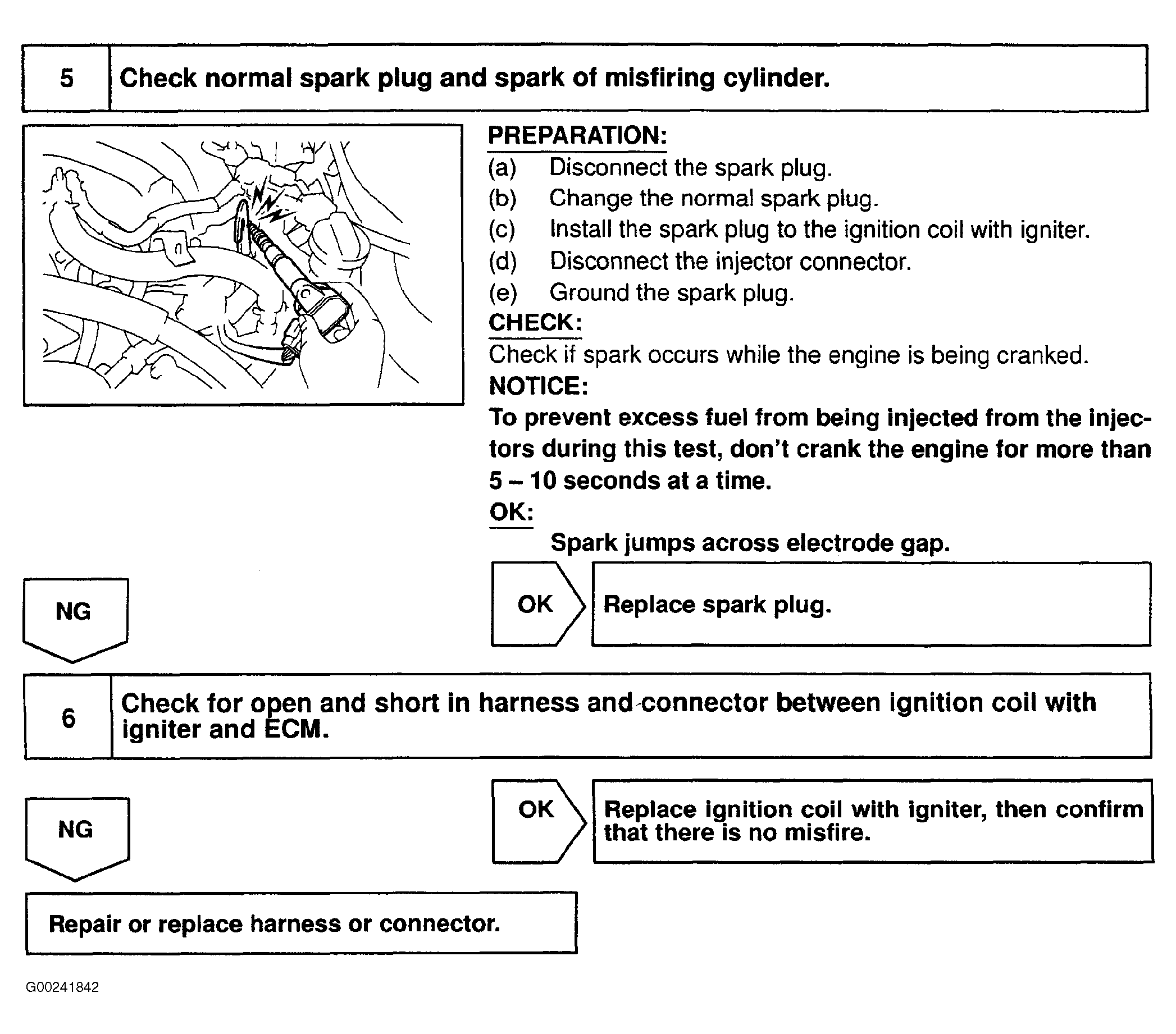

Fig 10: DTCs P0300 & P0301-P0308 Diagnostic Procedure Using OBD II Scan Tool (Steps 5-6)

G00241842

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

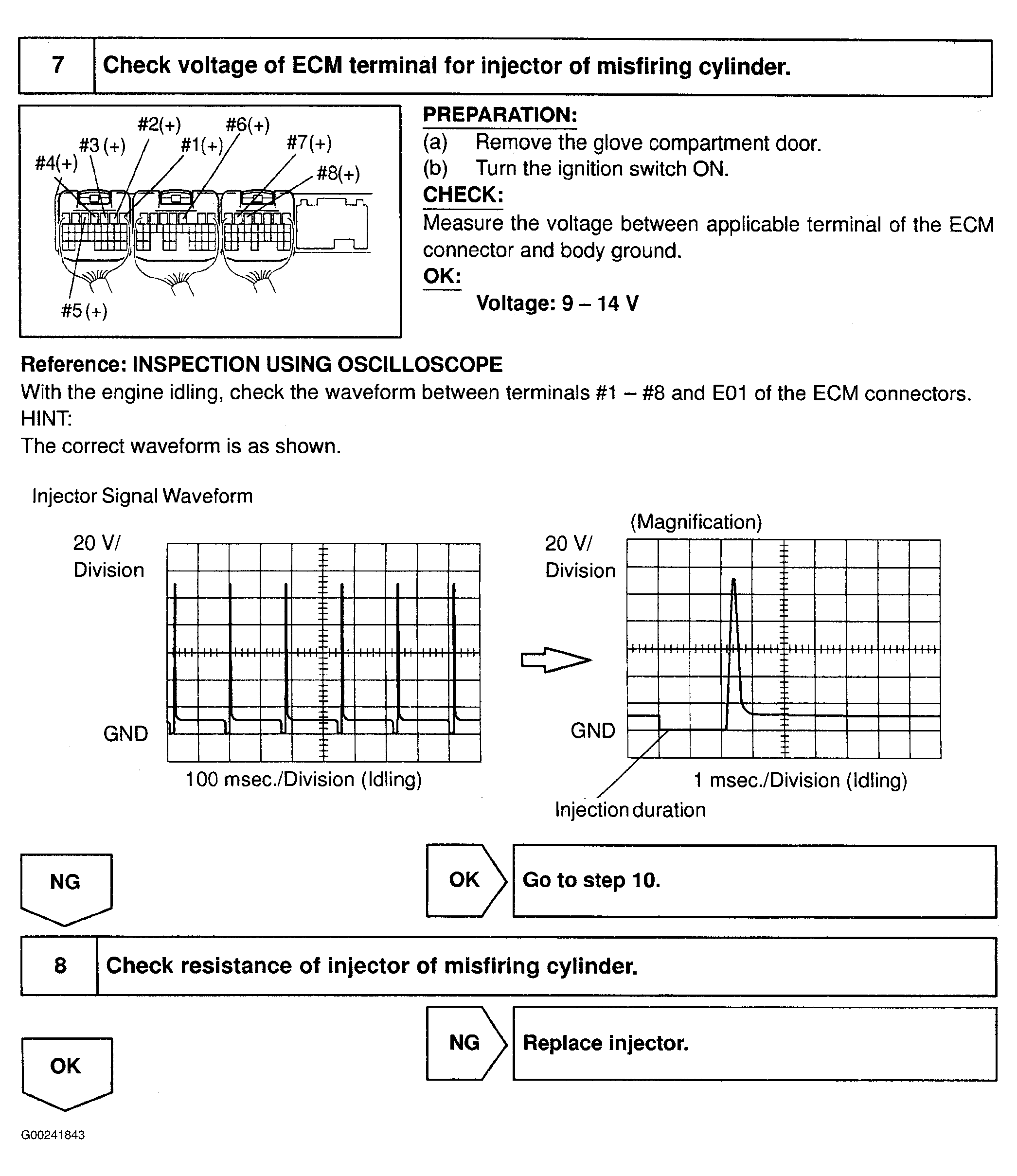

Fig 11: DTCs P0300 & P0301-P0308 Diagnostic Procedure Using OBD II Scan Tool (Steps 7-8)

G00241843

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

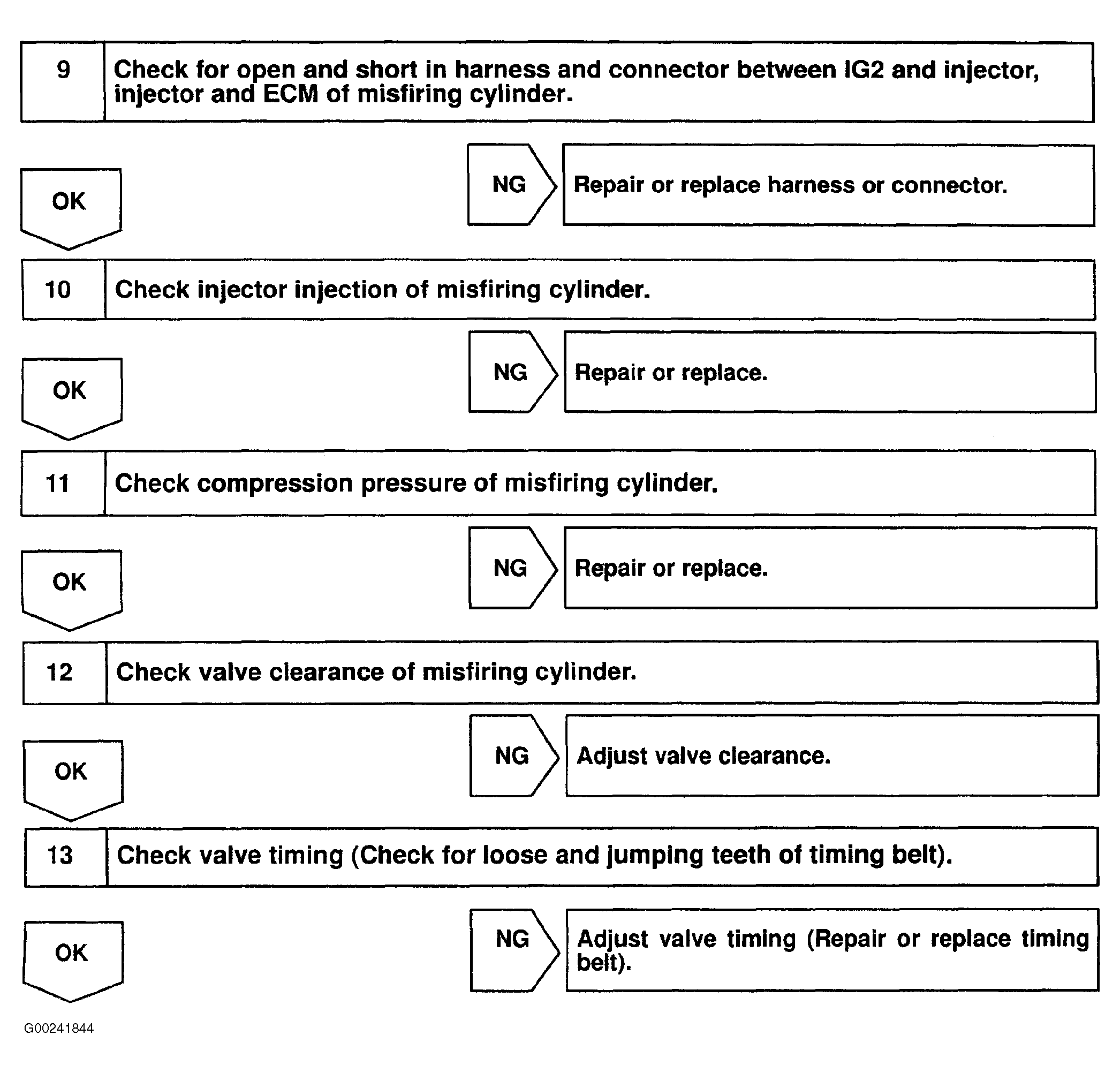

Fig 12: DTCs P0300 & P0301-P0308 Diagnostic Procedure Using OBD II Scan Tool (Steps 9-13)

G00241844

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

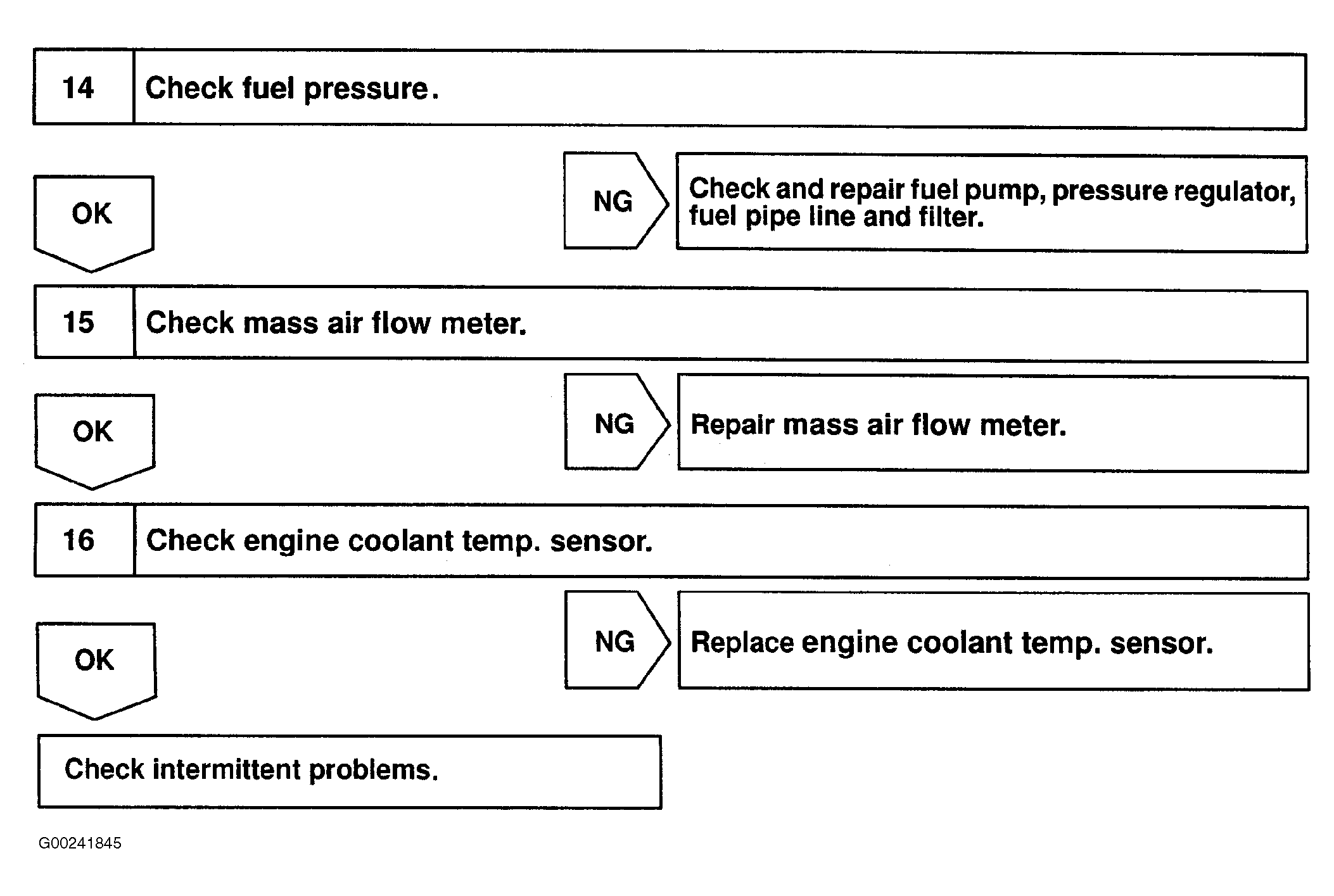

Fig 13: DTCs P0300 & P0301-P0308 Diagnostic Procedure Using OBD II Scan Tool (Steps 14-16)

G00241845

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

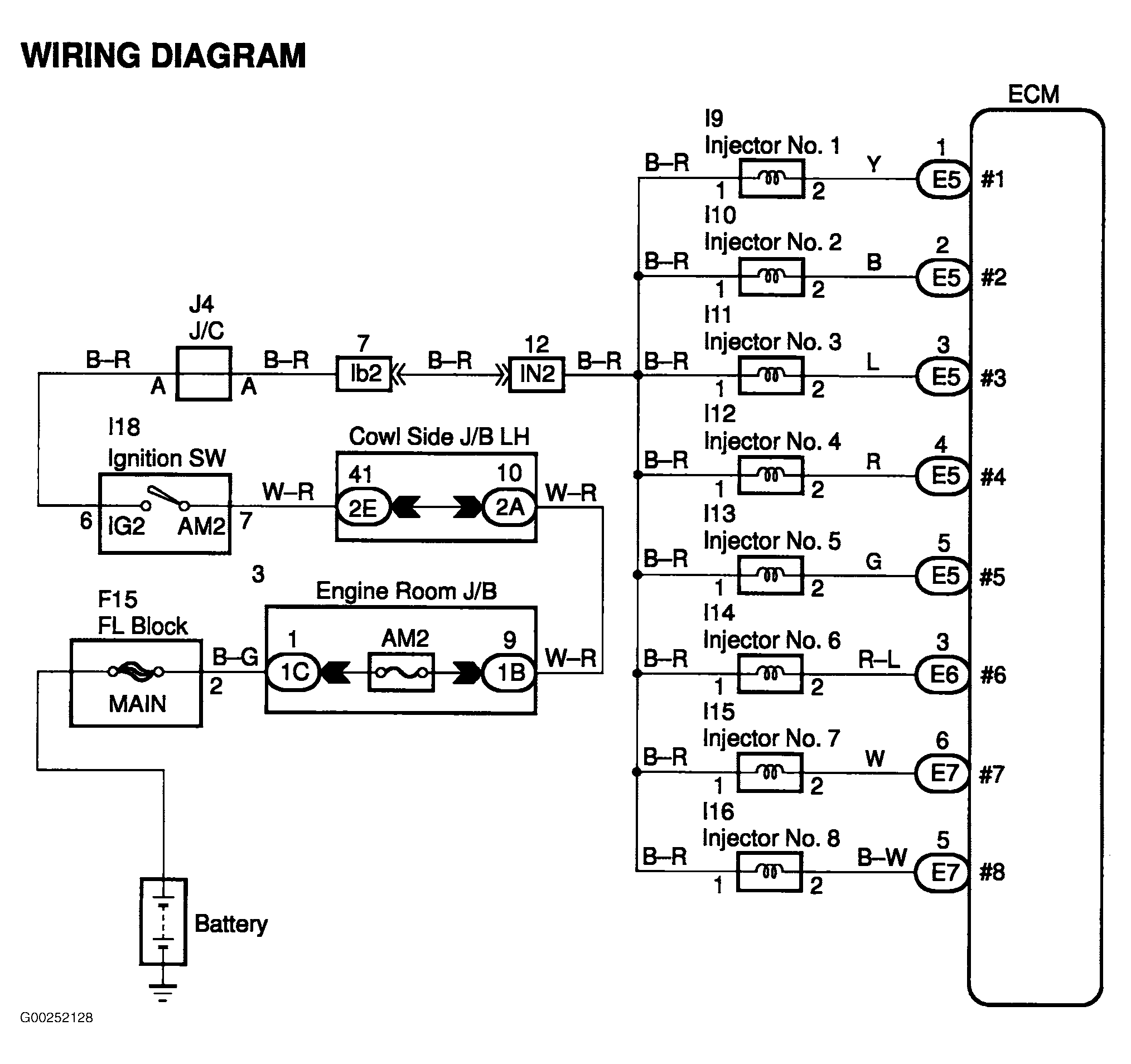

Fig 14: Fuel Injector Driver Circuit Wiring Diagram

G00252128

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
