Diagnosis & Repair

WARNING: This page is about a different car, the 2003 Toyota Matrix and 2003 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

For wiring diagram, see Fig 1. For diagnosis and repair, see Fig 2-Fig 5 . For testing of components, see BASIC DIAGNOSTIC PROCEDURES - 4-CYL article. To identify circuits referenced in testing, See ENGINE PERFORMANCE in SYSTEM WIRING DIAGRAMS article in ELECTRICAL. For removal and installation of components, see REMOVAL & INSTALLATION - 4-CYLINDER article. To check ECM inputs and outputs, see PIN VOLTAGE CHARTS article.

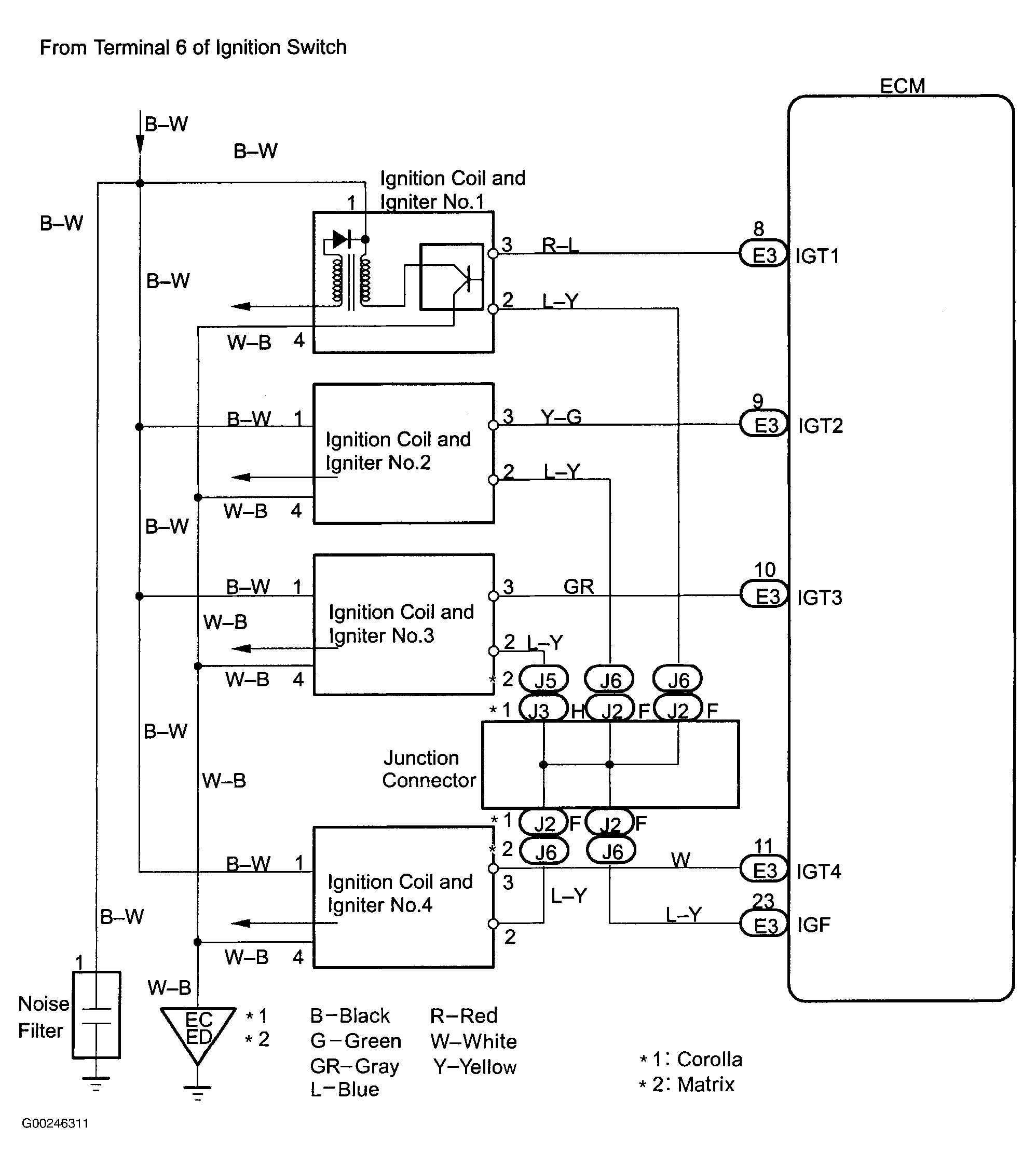

Fig 1: DTCs P1300, P1305, P1310 & P1315 Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

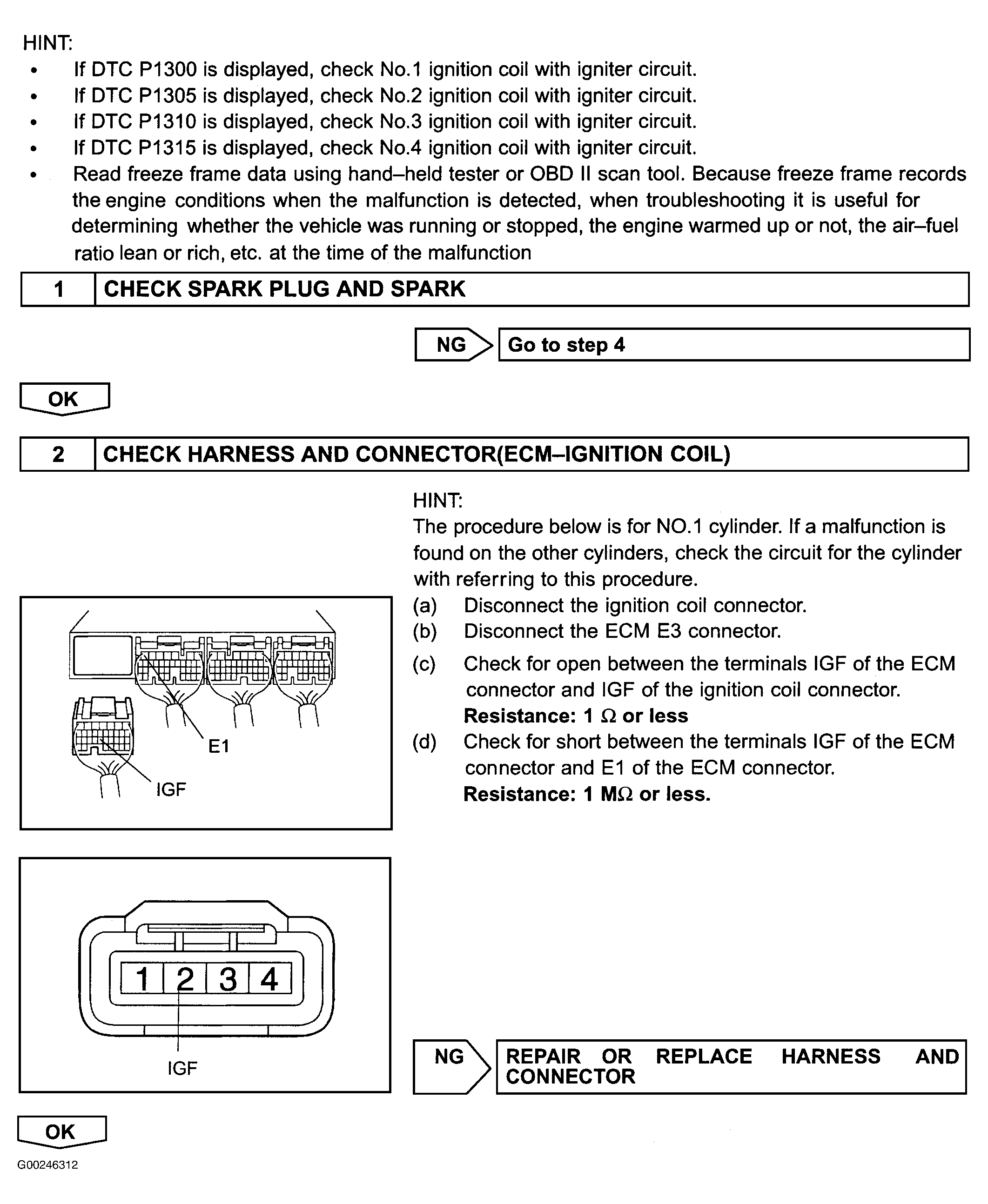

Fig 2: DTCs P1300, P1305, P1310 & P1315 Diagnostic Procedure (Steps 1-2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

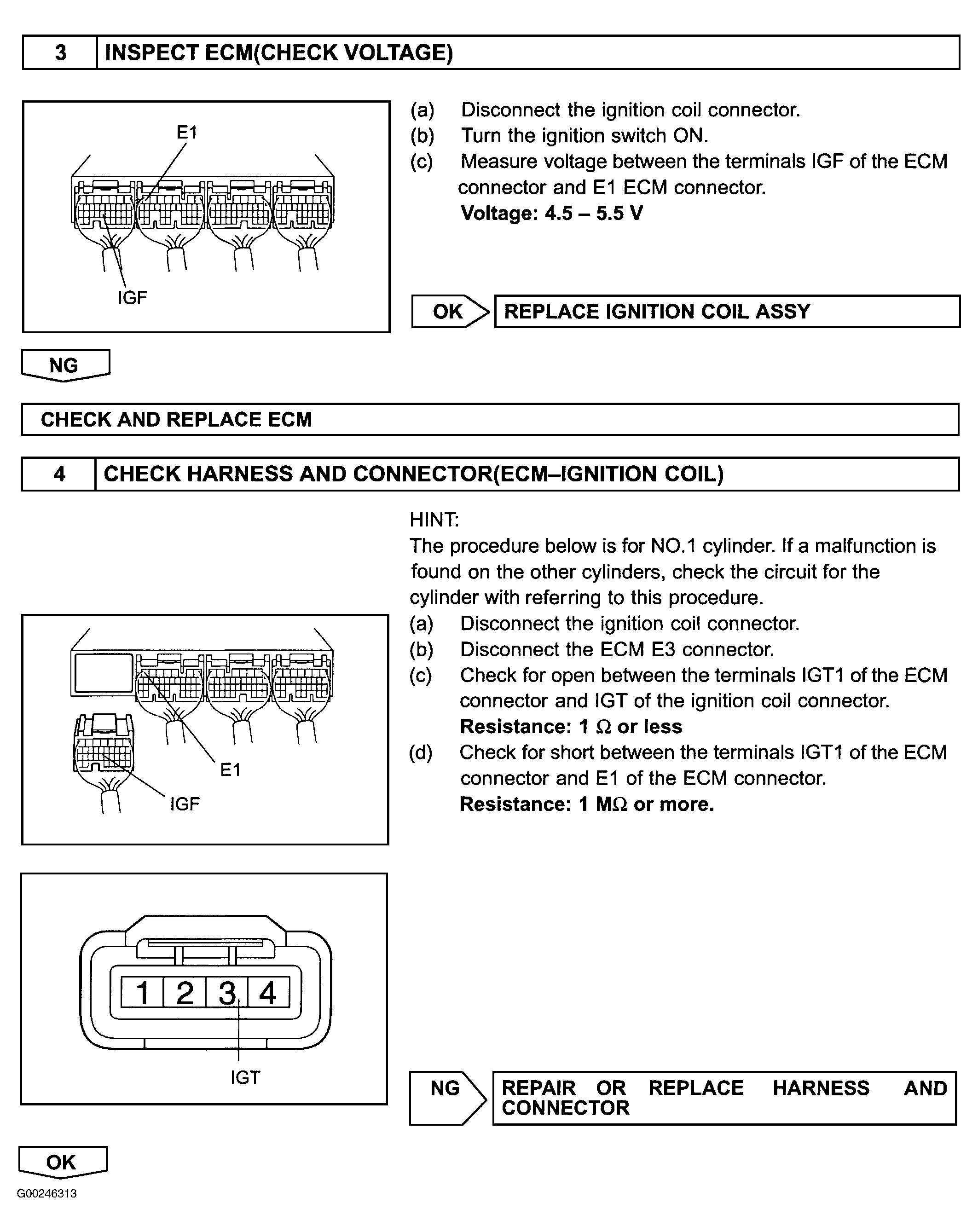

Fig 3: DTCs P1300, P1305, P1310 & P1315 Diagnostic Procedure (Steps 3-4)

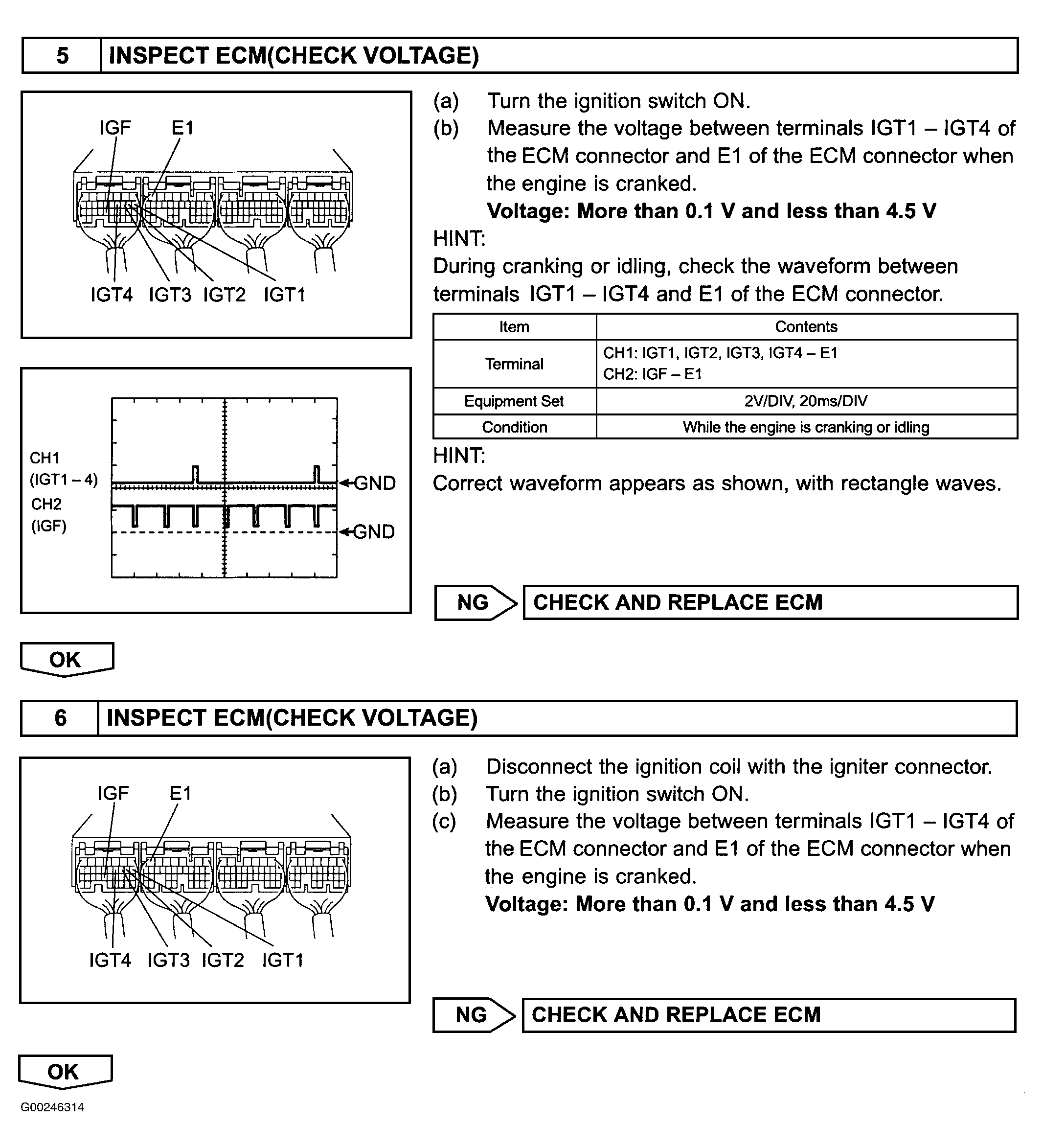

Fig 4: DTCs P1300, P1305, P1310 & P1315 Diagnostic Procedure (Steps 5-6)

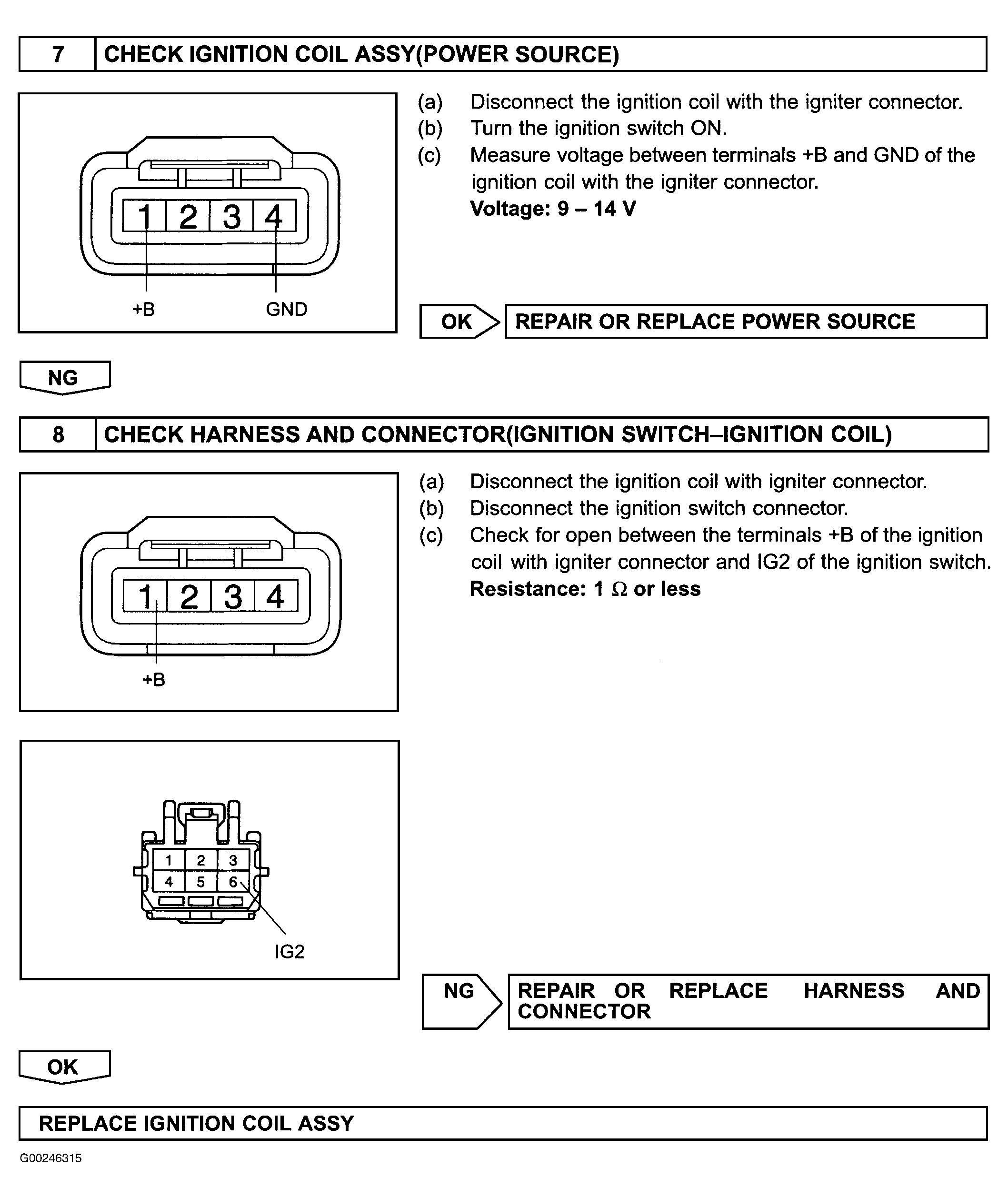

Fig 5: DTCs P1300, P1305, P1310 & P1315 Diagnostic Procedure (Steps 7-8)
