Diagnosis & Repair
WARNING: This page is about a different car, the 2003 Toyota Matrix and 2003 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

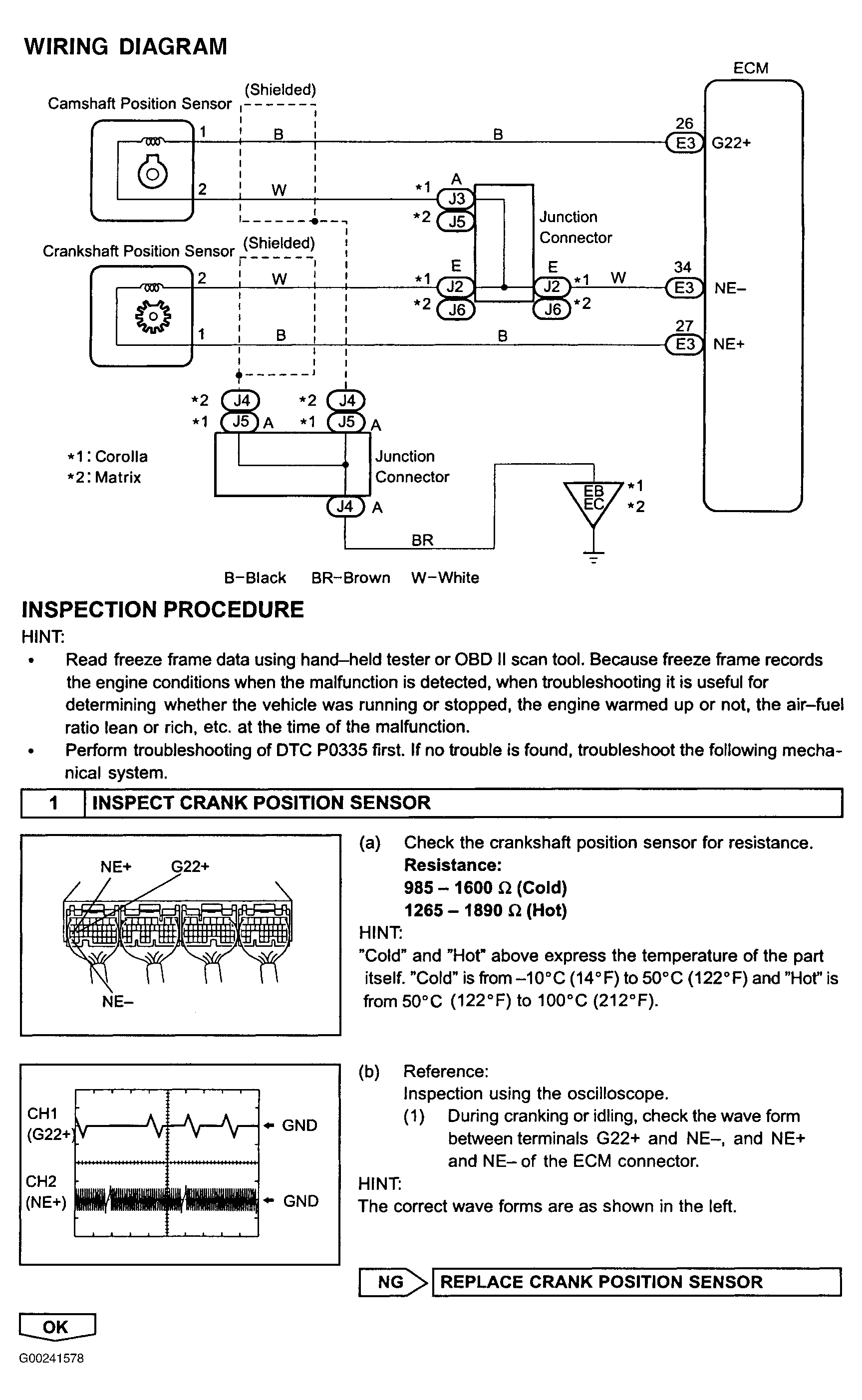

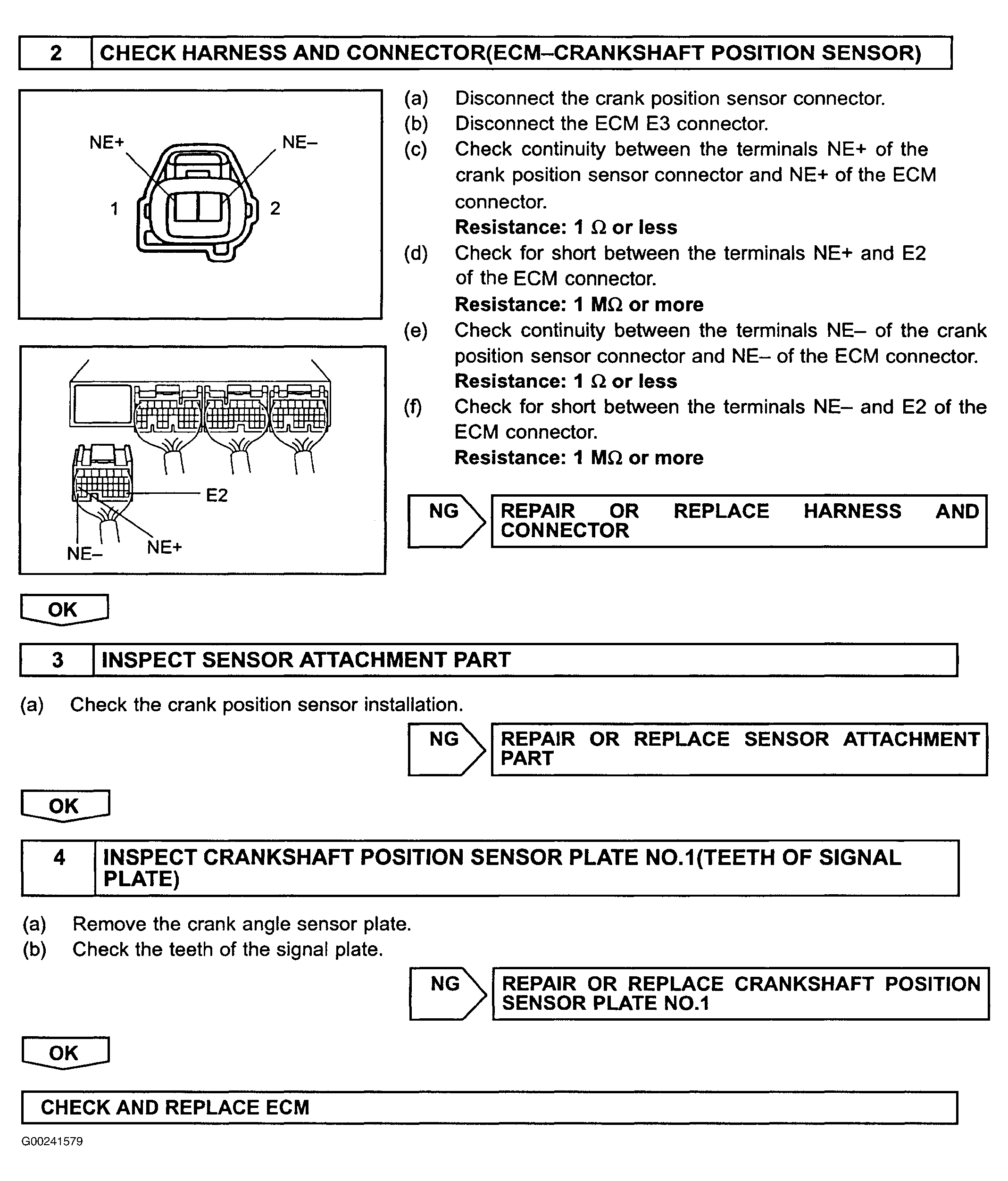

For diagnosis and repair, see Fig 1 and Fig 2 . For removal and installation of components, see REMOVAL & INSTALLATION - 4-CYLINDER article. To identify circuits referenced in testing, See ENGINE PERFORMANCE in SYSTEM WIRING DIAGRAMS article in ELECTRICAL. To check ECM inputs and outputs, see PIN VOLTAGE CHARTS article.
