Diagnosis & Repair

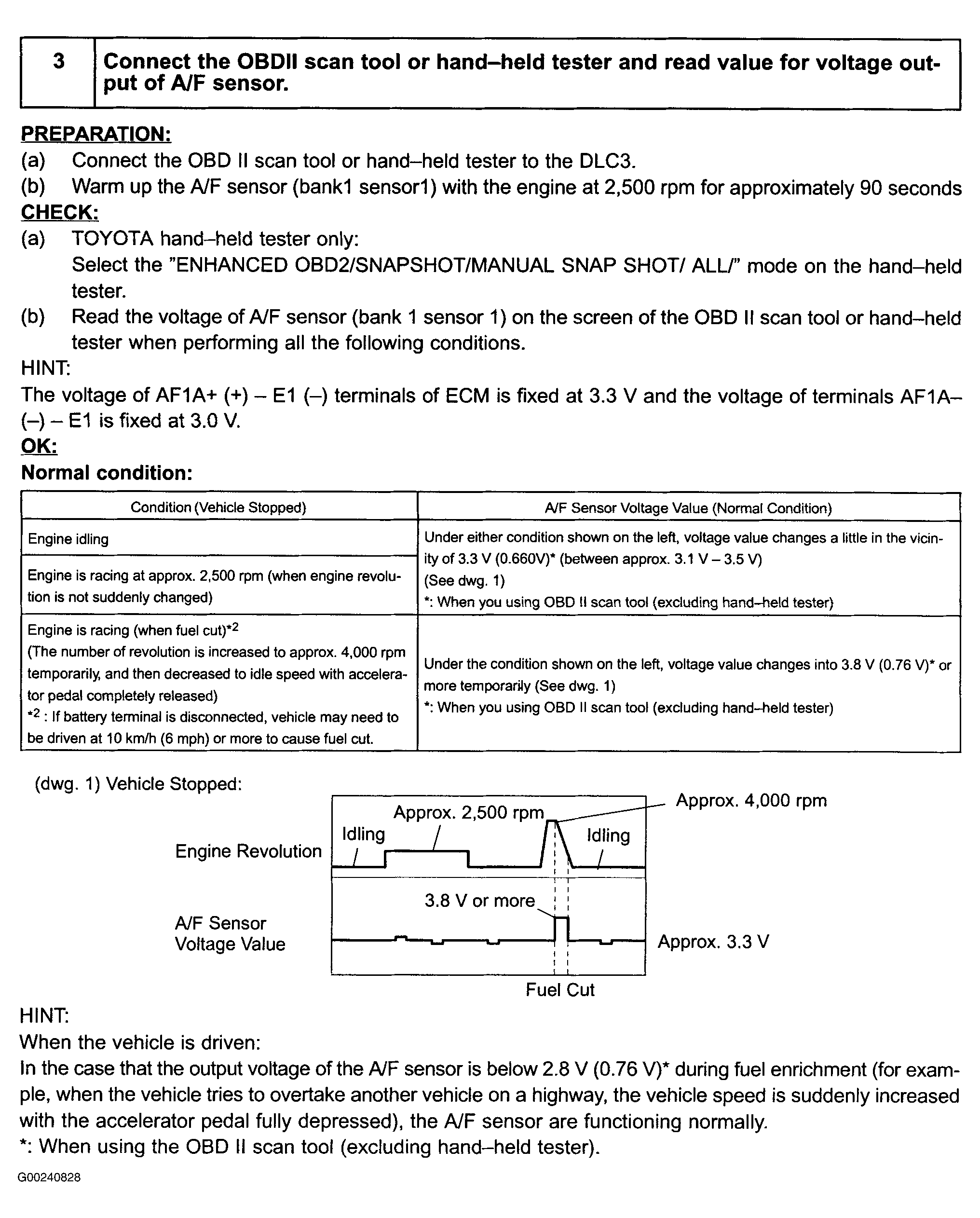

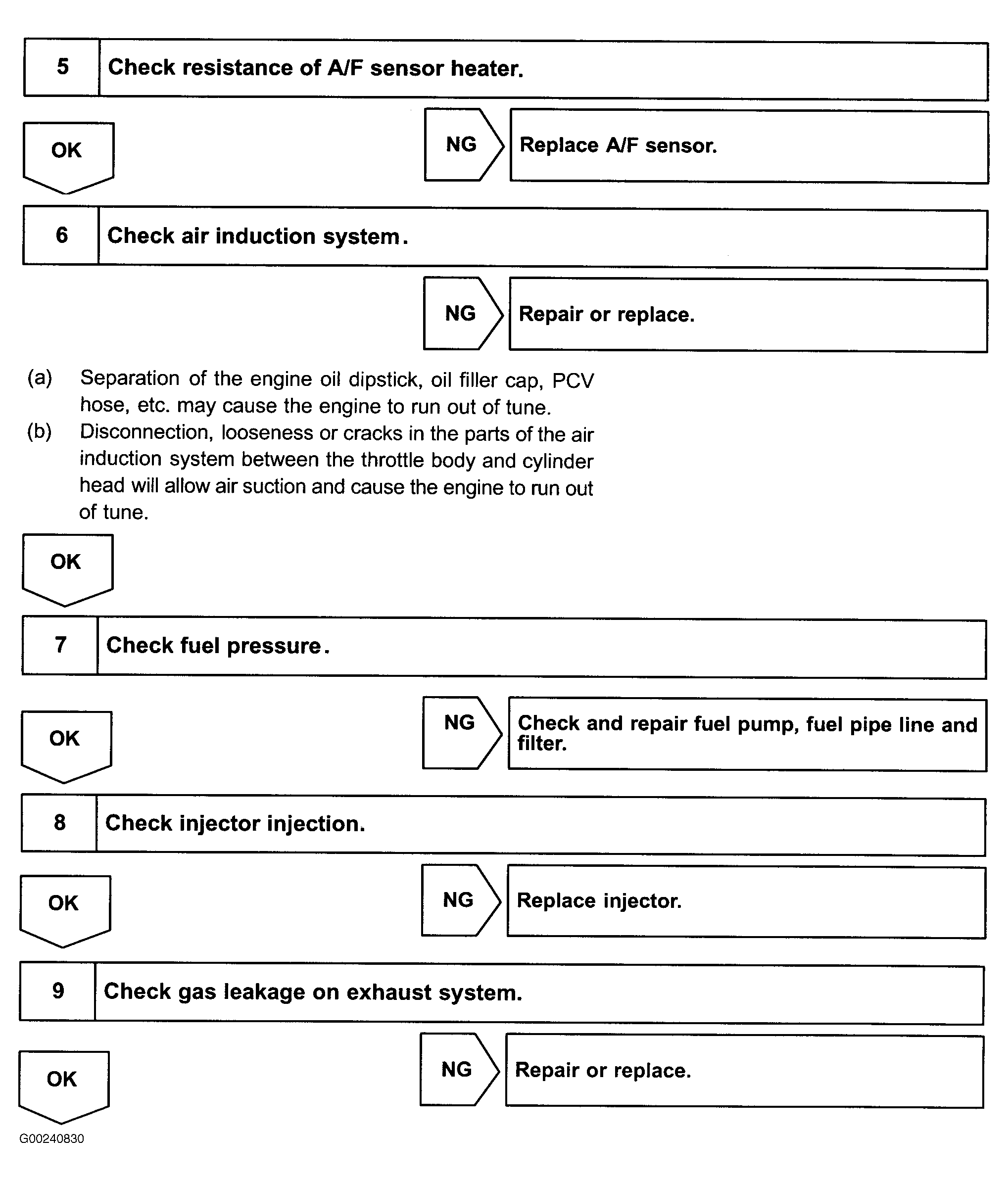

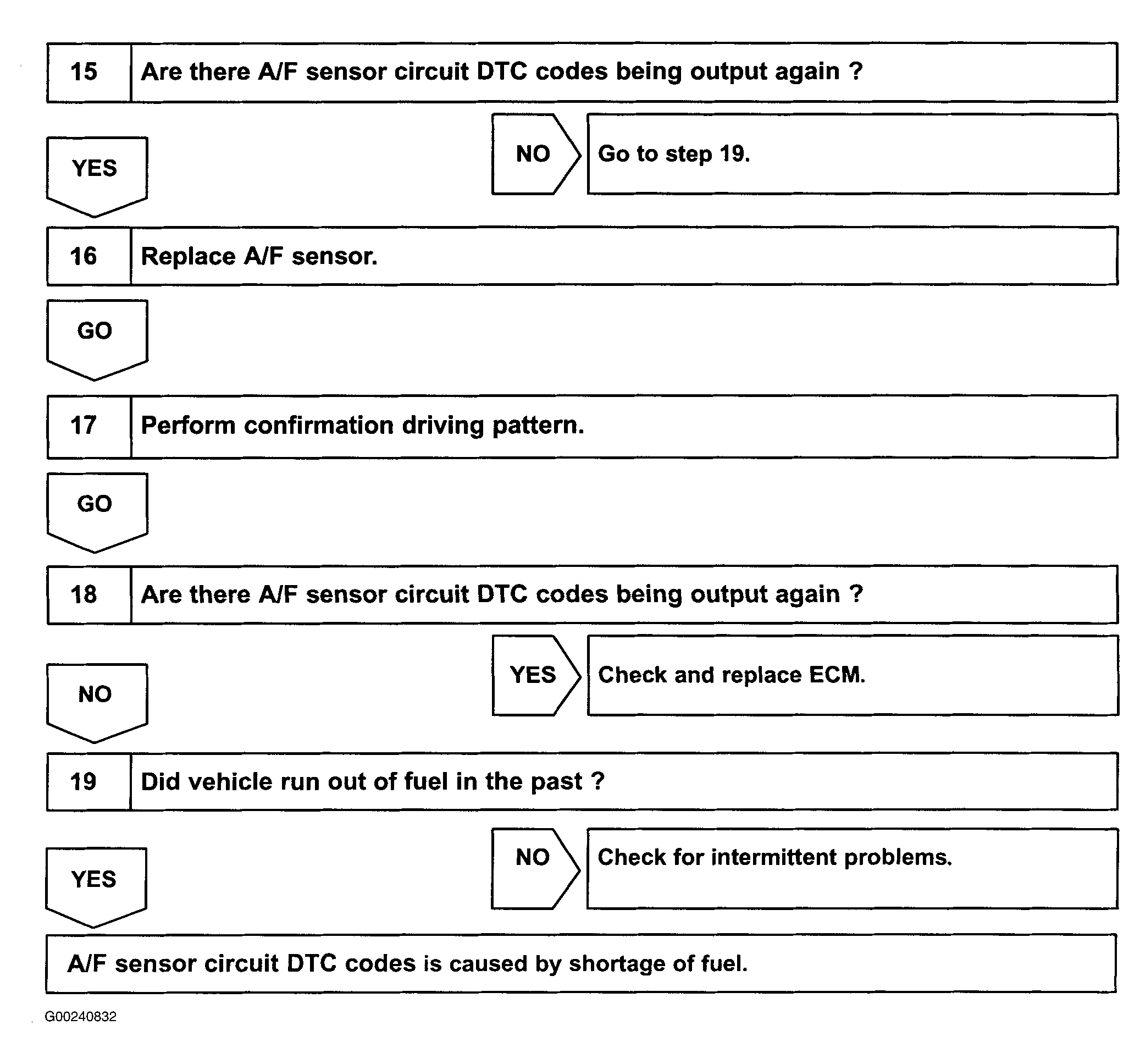

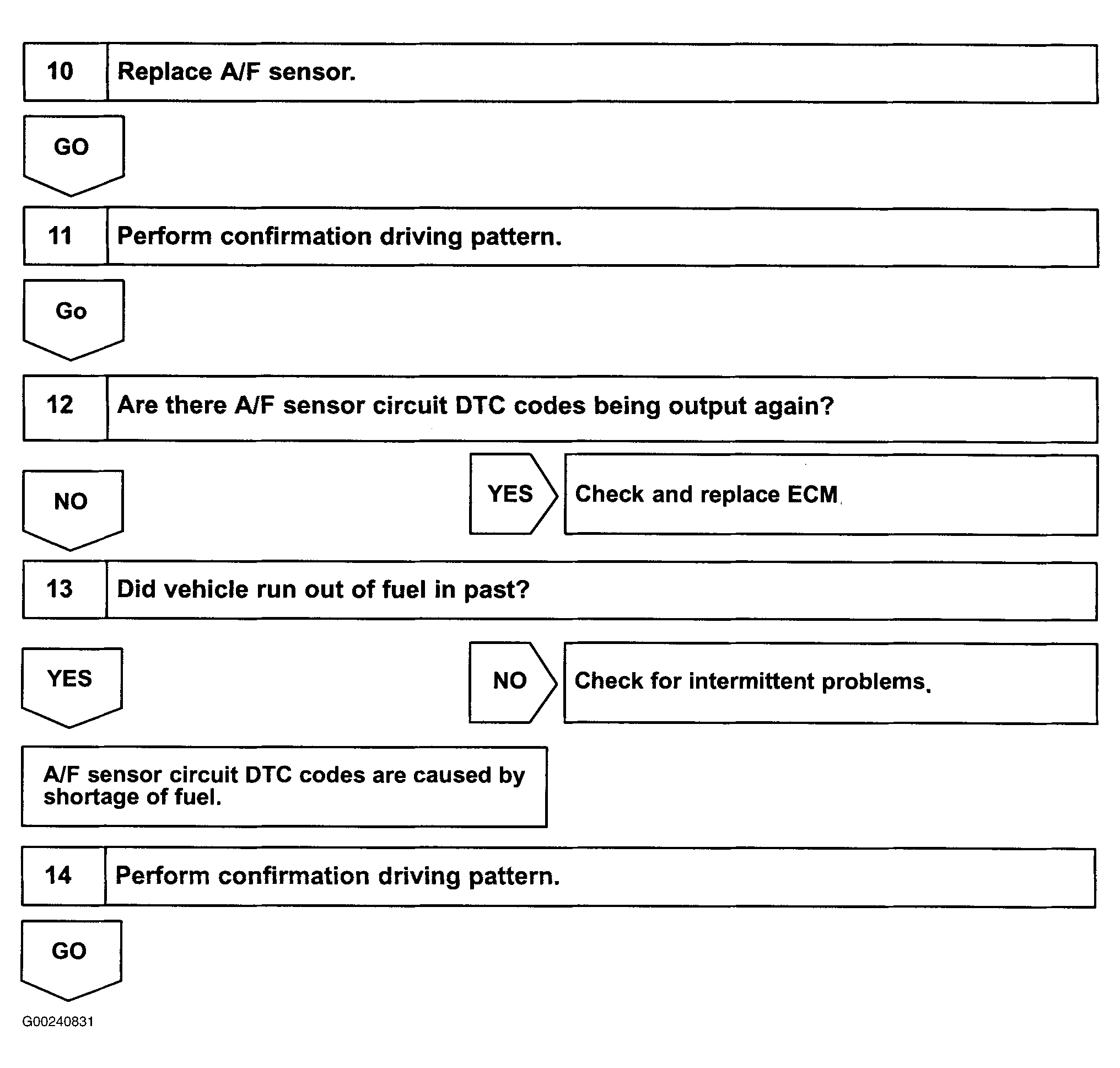

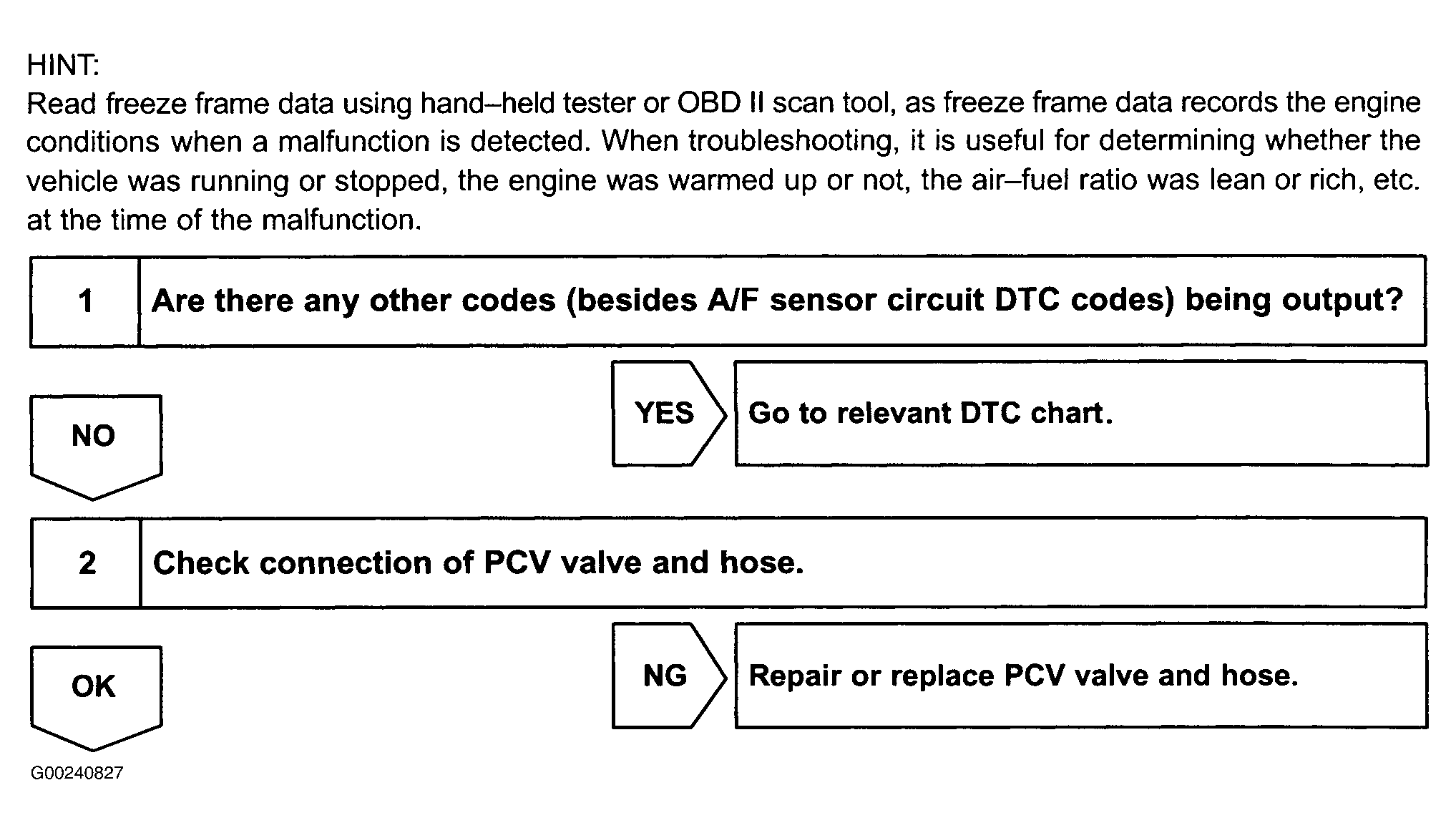

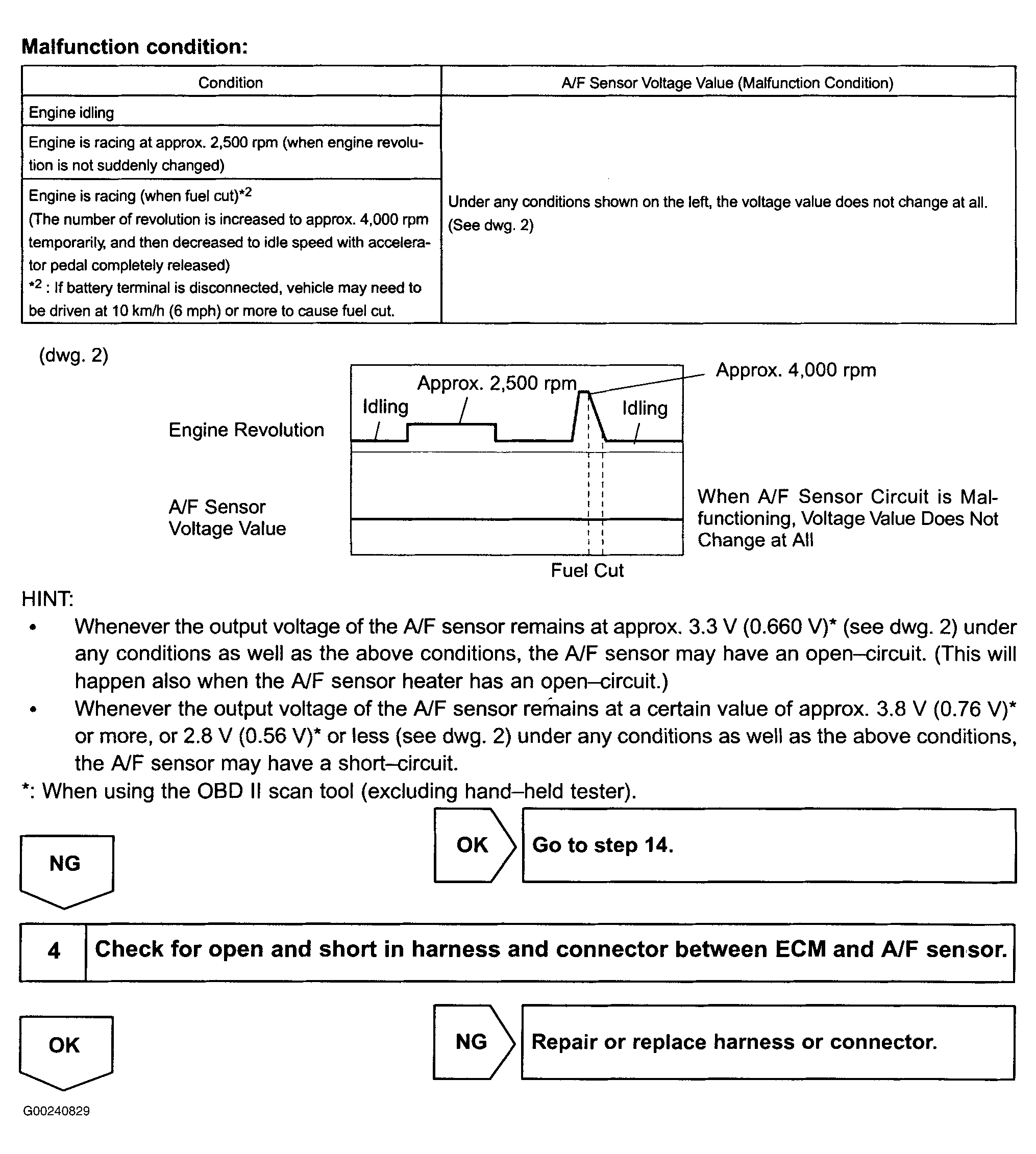

For wiring diagram, see DTC P0134: OXYGEN (A/F) SENSOR CIRCUIT NO ACTIVITY DETECTED (BANK NO. 1 SENSOR NO. 1) . For diagnosis and repair, see Fig 1-Fig 6 . To go to relevant DTC chart, see DIAGNOSTIC TROUBLE CODE DEFINITIONS . For vacuum hose routing, see VACUUM DIAGRAMS article. To identify circuits referenced in testing, see appropriate WIRING DIAGRAM under ENGINE PERFORMANCE in SYSTEM WIRING DIAGRAMS article. For testing of systems or components, see BASIC DIAGNOSTIC PROCEDURES - 4-CYL article or SYSTEM & COMPONENT TESTING - 4-CYLINDER article. For removal and installation of components, see REMOVAL, OVERHAUL & INSTALLATION - 4-CYLINDER article. To check ECM inputs and outputs, see PIN VOLTAGE CHARTS article. For ECM location, see ENGINE CONTROL MODULE LOCATION under SELF-DIAGNOSTIC SYSTEM. To check for intermittent problems, see INTERMITTENT PROBLEM CHECK under SELF-DIAGNOSTIC SYSTEM.
