Circuit Description & Possible Causes

WARNING: This page is about a different car, the 2003 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

For circuit description and possible causes, see Fig 1 and Fig 2 .

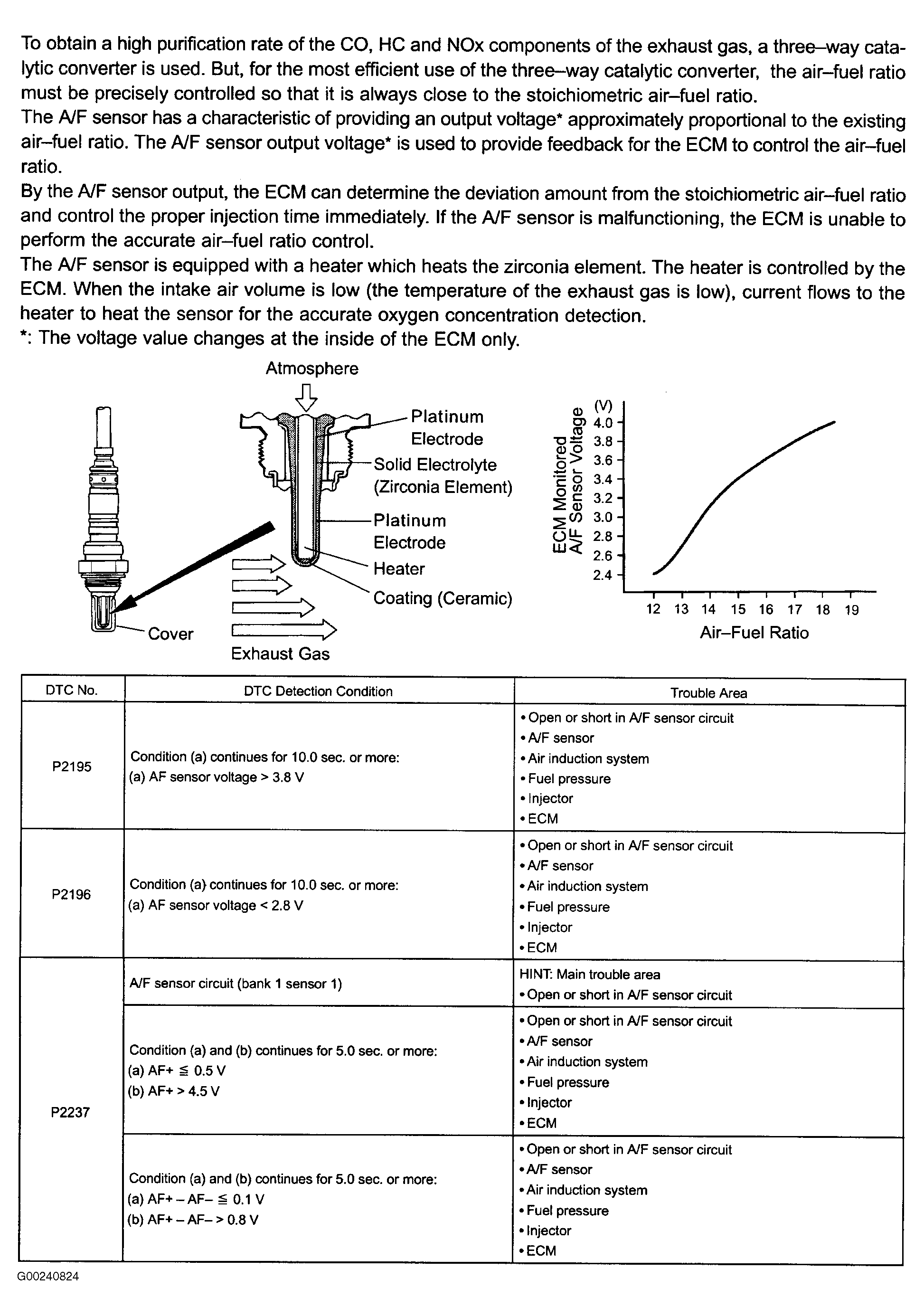

Fig 1: DTCs P2195, P2196, P2237-P2239 & P2251-P2253 Circuit Description (1 Of 2)
G00240824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

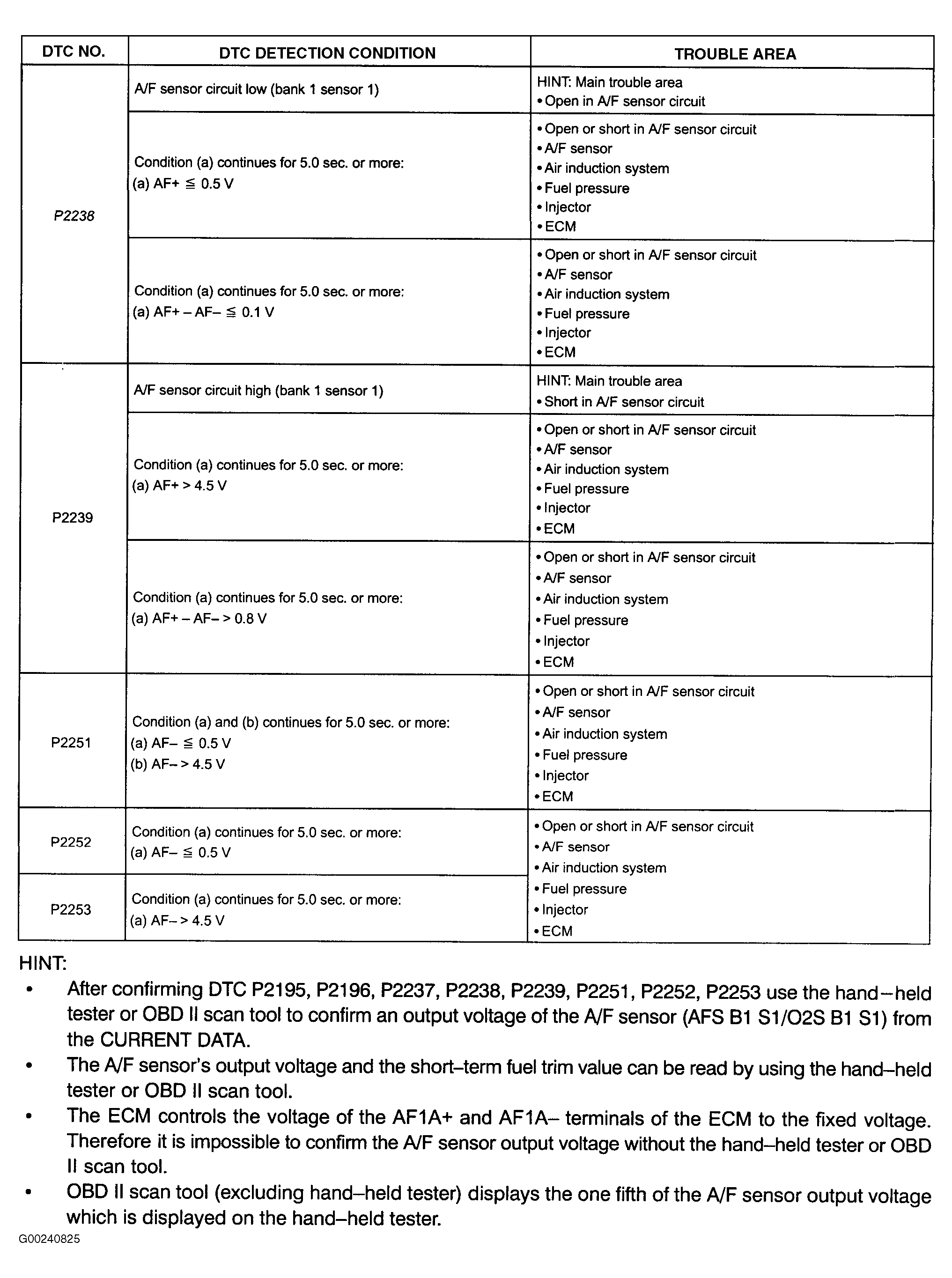

Fig 2: DTCs P2195, P2196, P2237-P2239 & P2251-P2253 Circuit Description (2 Of 2)
G00240825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
