Circuit Description & Possible Causes

WARNING: This page is about a different car, the 2003 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

For circuit description and possible causes, see Fig 1.

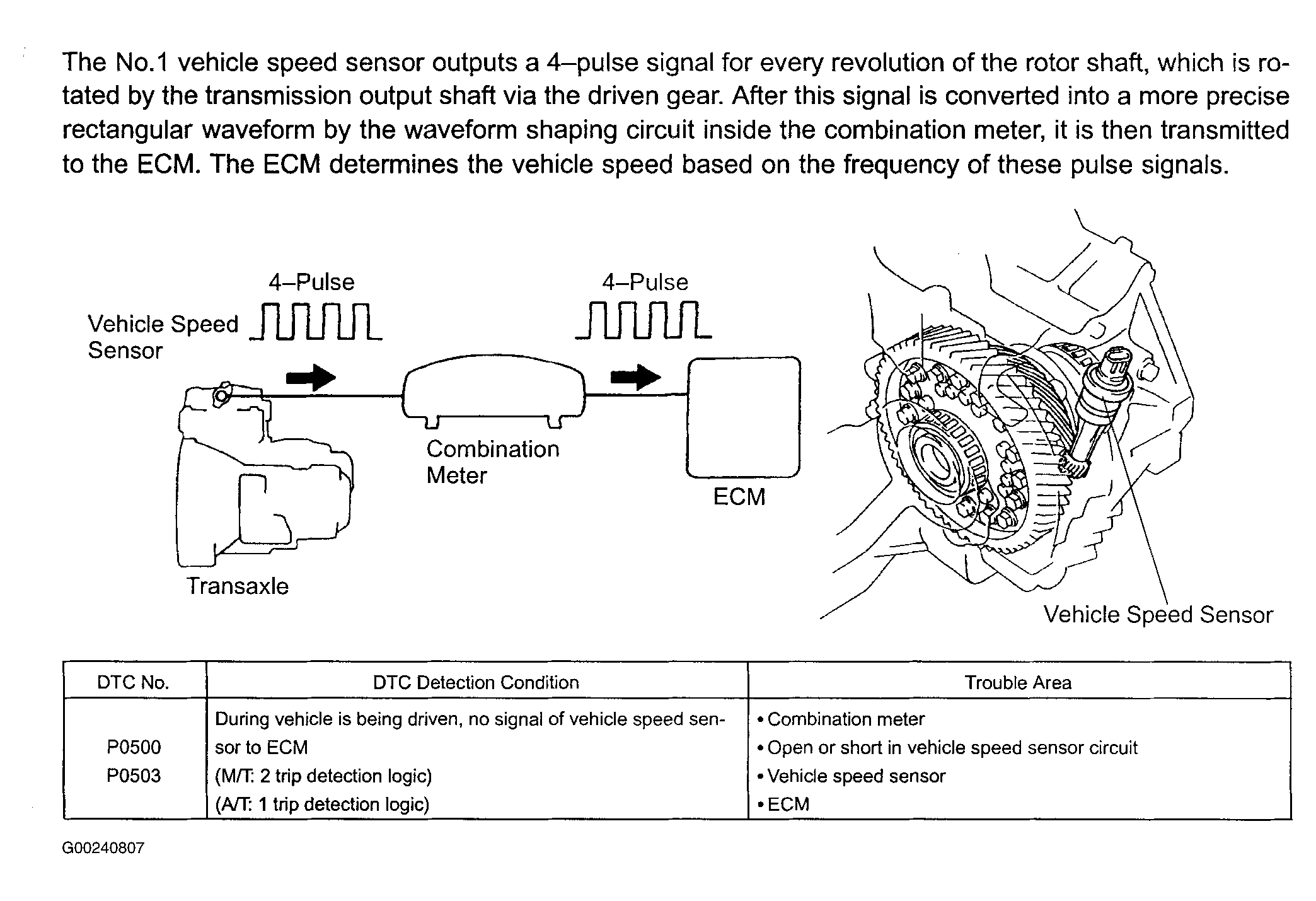

Fig 1: DTC P0500 & P0503 Circuit Description & Possible Causes
G00240807Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
