Circuit Description & Possible Causes

WARNING: This page is about a different car, the 2003 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

For circuit description and possible causes, see Fig 1.

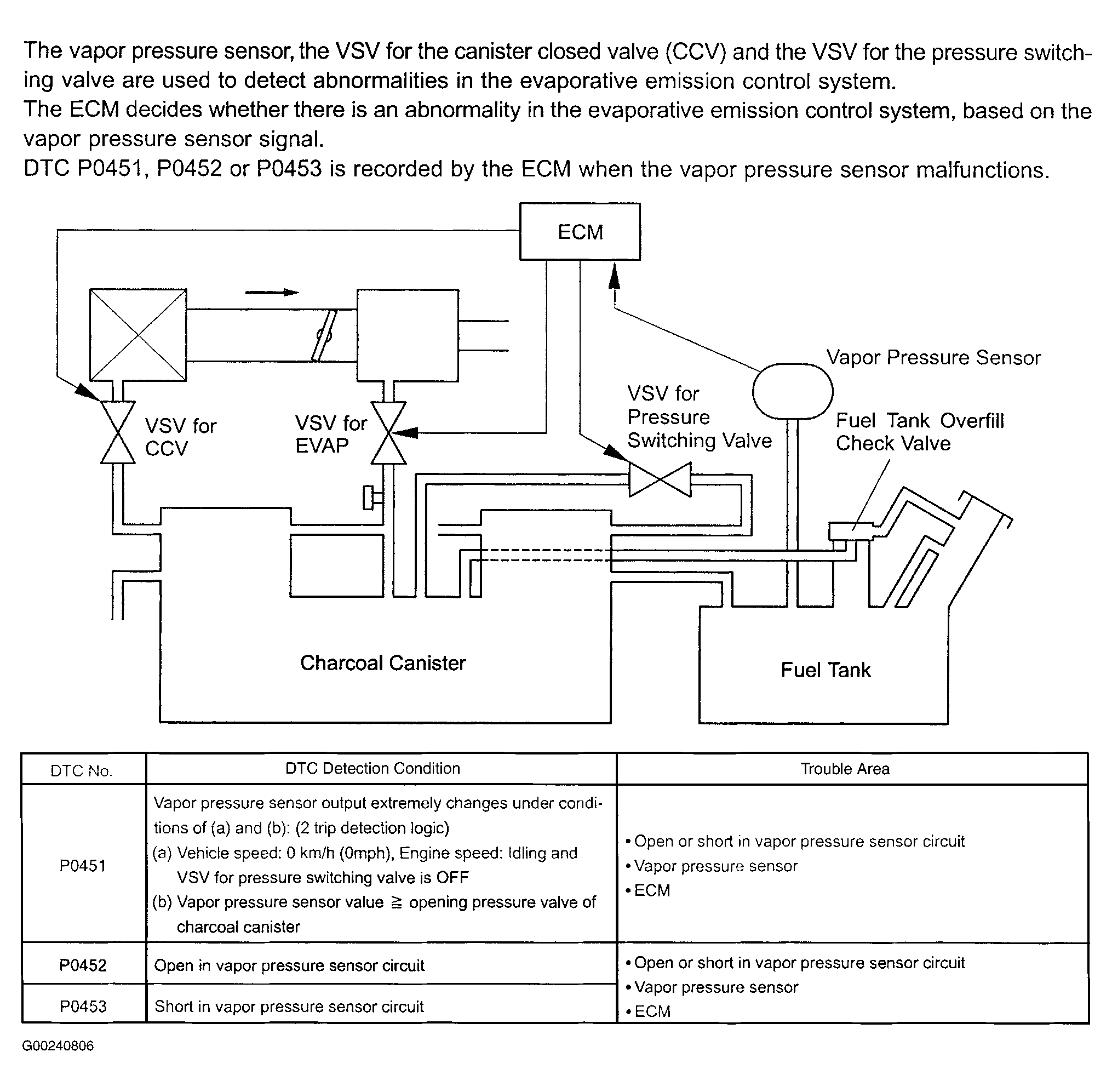

Fig 1: DTCs P0451-P0453 Circuit Description & Possible Causes
G00240806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
