Circuit Description & Possible Causes

WARNING: This page is about a different car, the 2003 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

For circuit description and possible causes, see Fig 1.

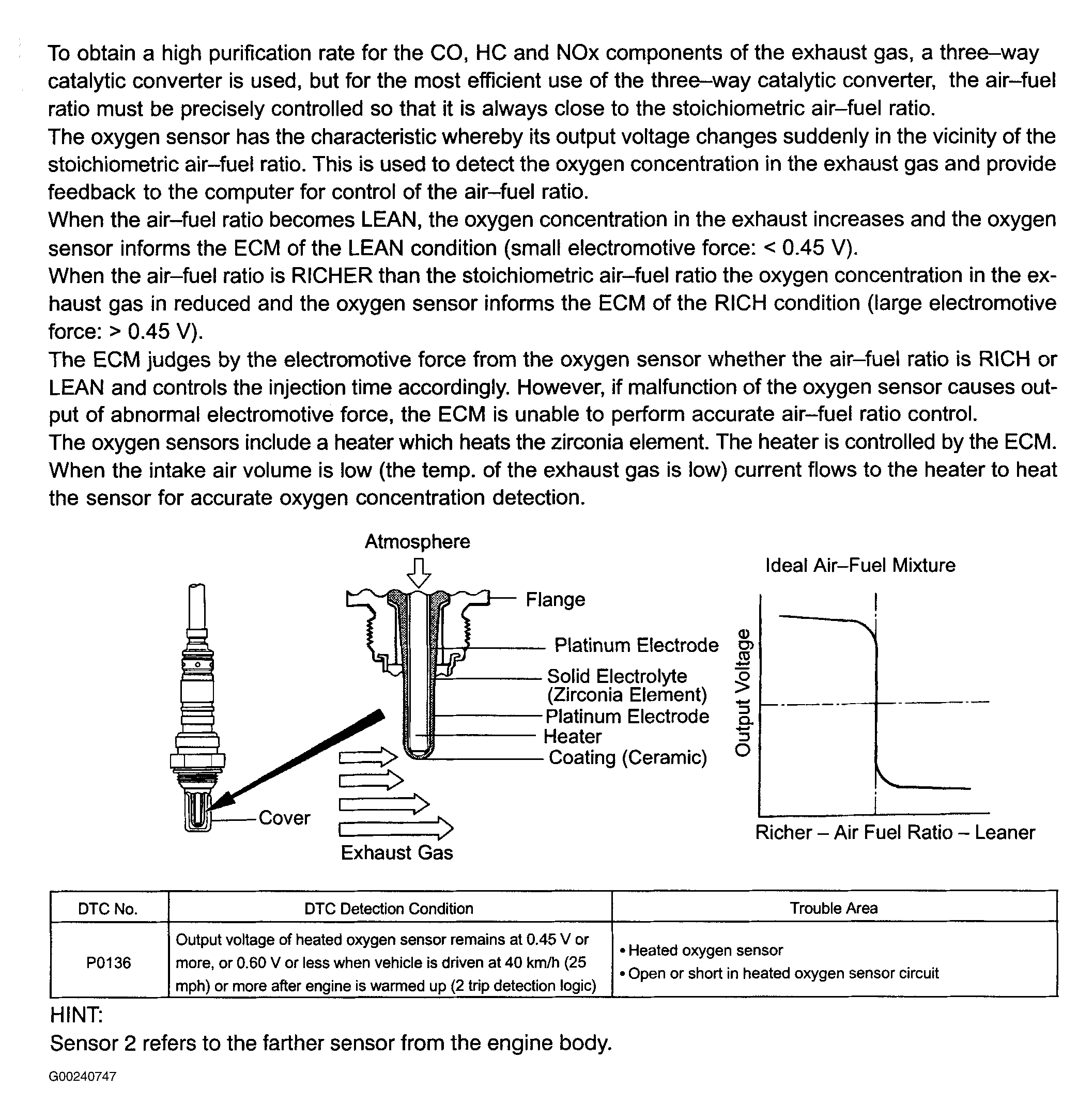

Fig 1: DTC P0136 Circuit Description
G00240747Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
