Diagnosis & Repair
WARNING: This page is about a different car, the 2003 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- If DTC P0011 or P0012 is displayed, check VVT system circuit.
- Read freeze frame data using the hand-held tester or OBD II scan tool, as freeze frame data records the engine conditions when a malfunction is detected. When trouble shooting, it is useful for determining whether the vehicle was running or stopped, the engine was warmed up or not, the air-fuel ratio was lean or rich, etc. at the time of the malfunction.

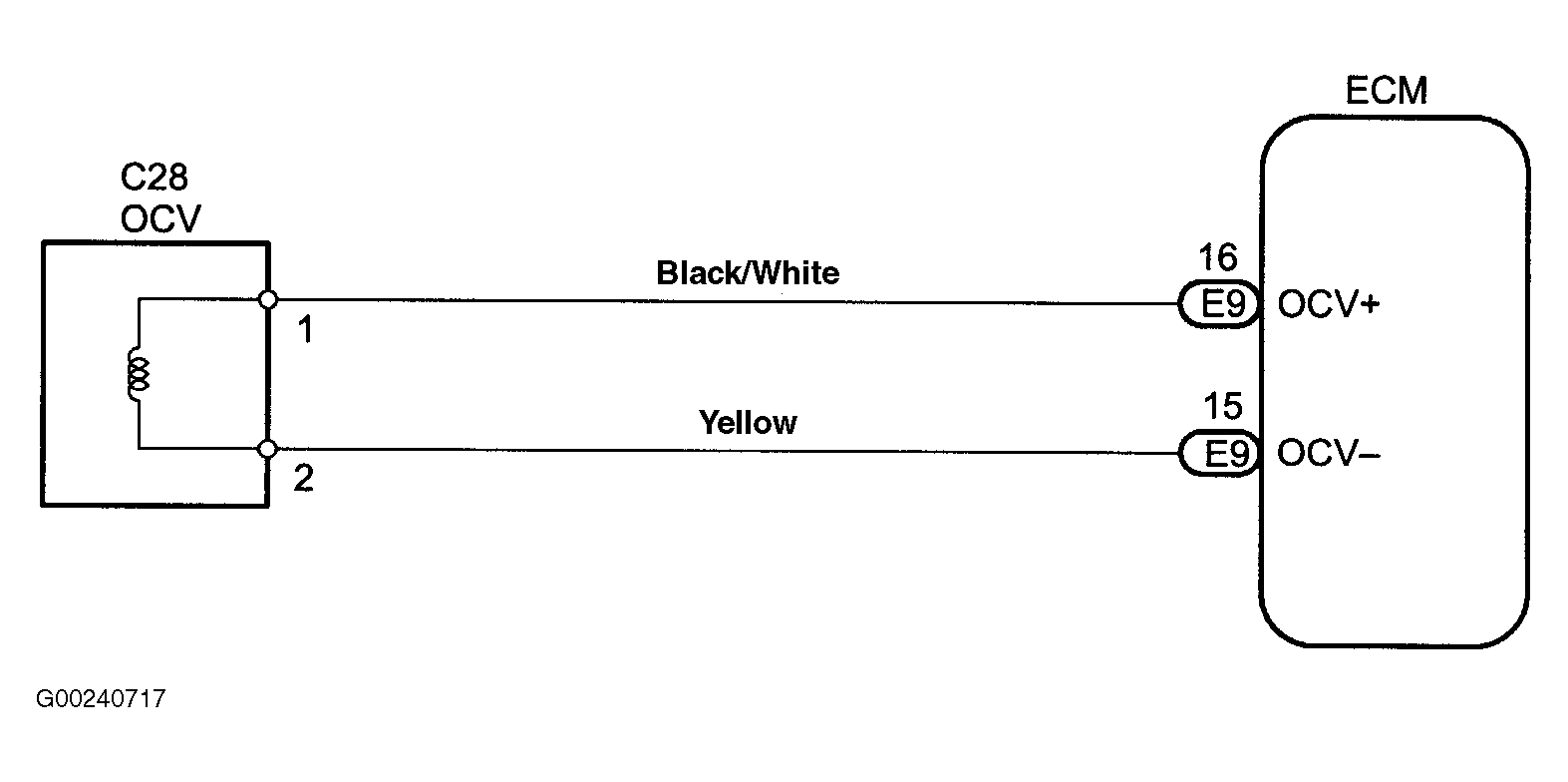

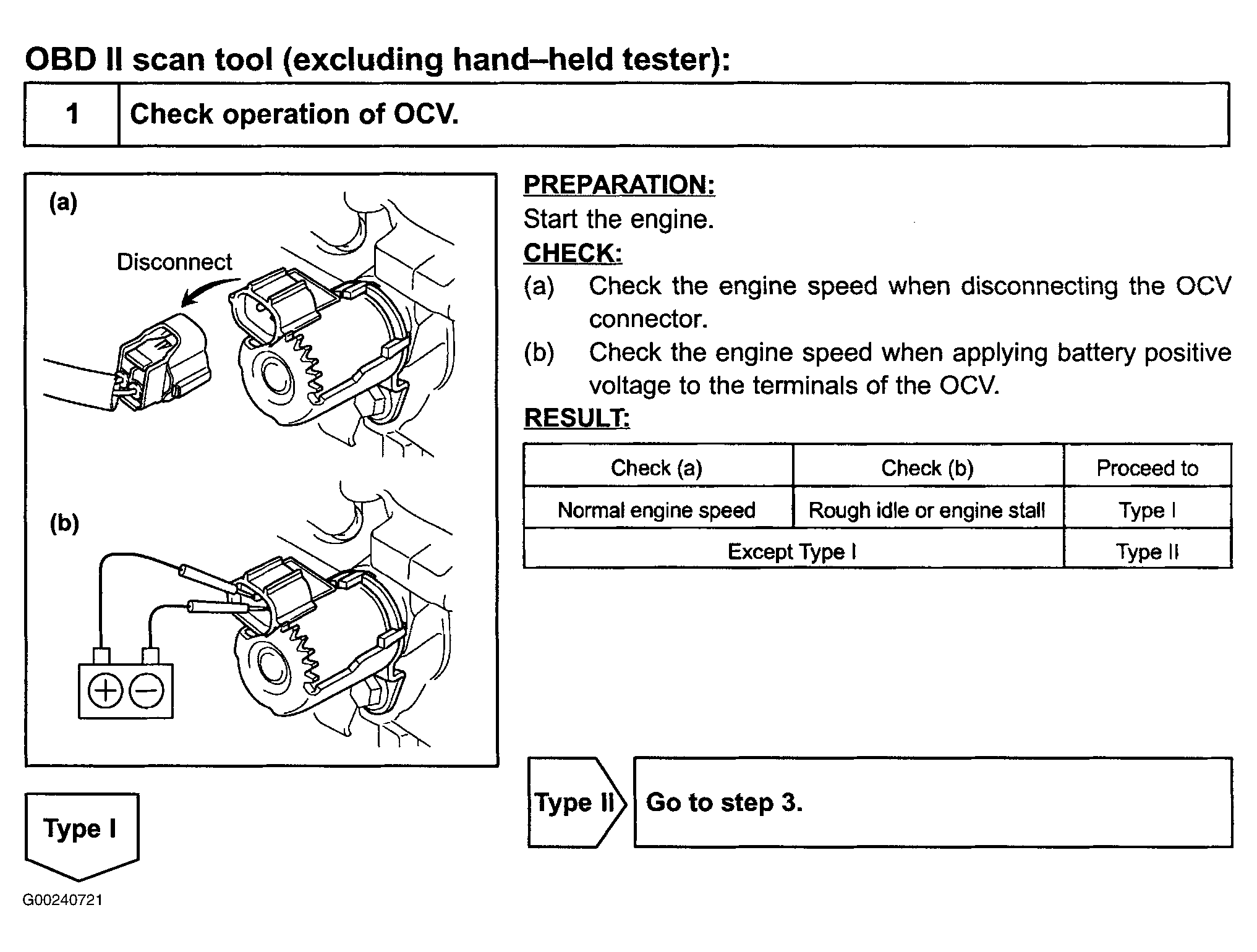

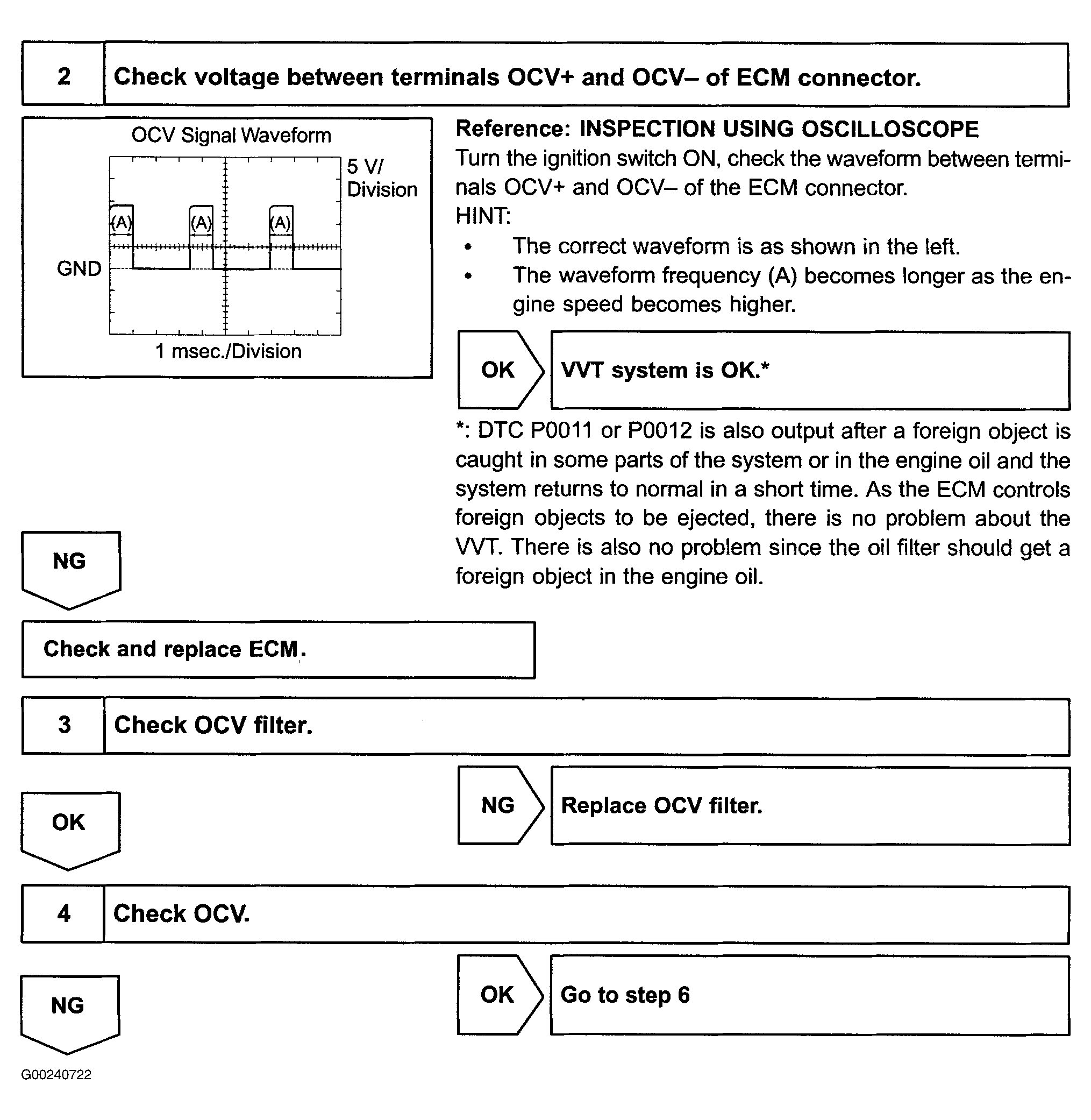

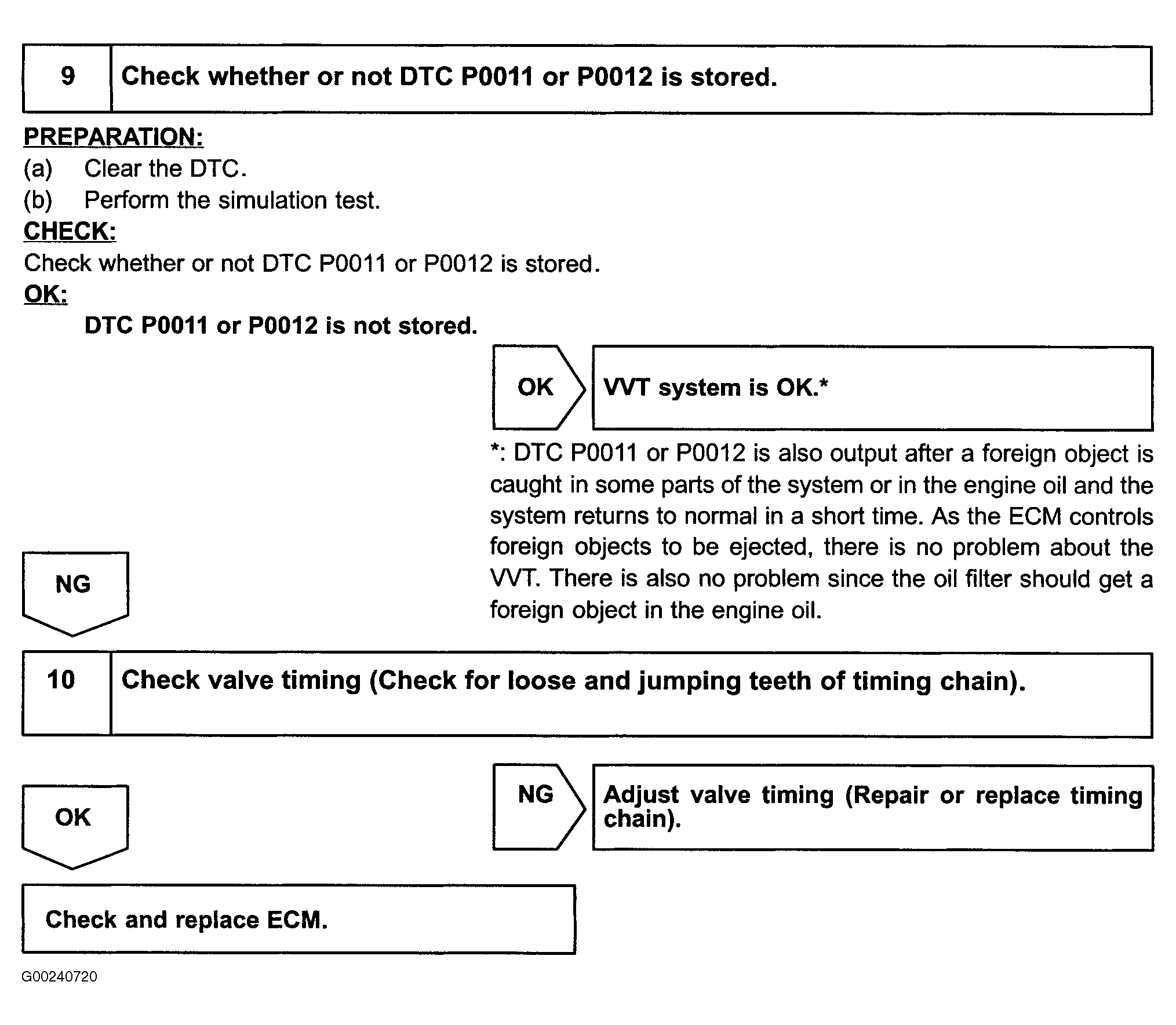

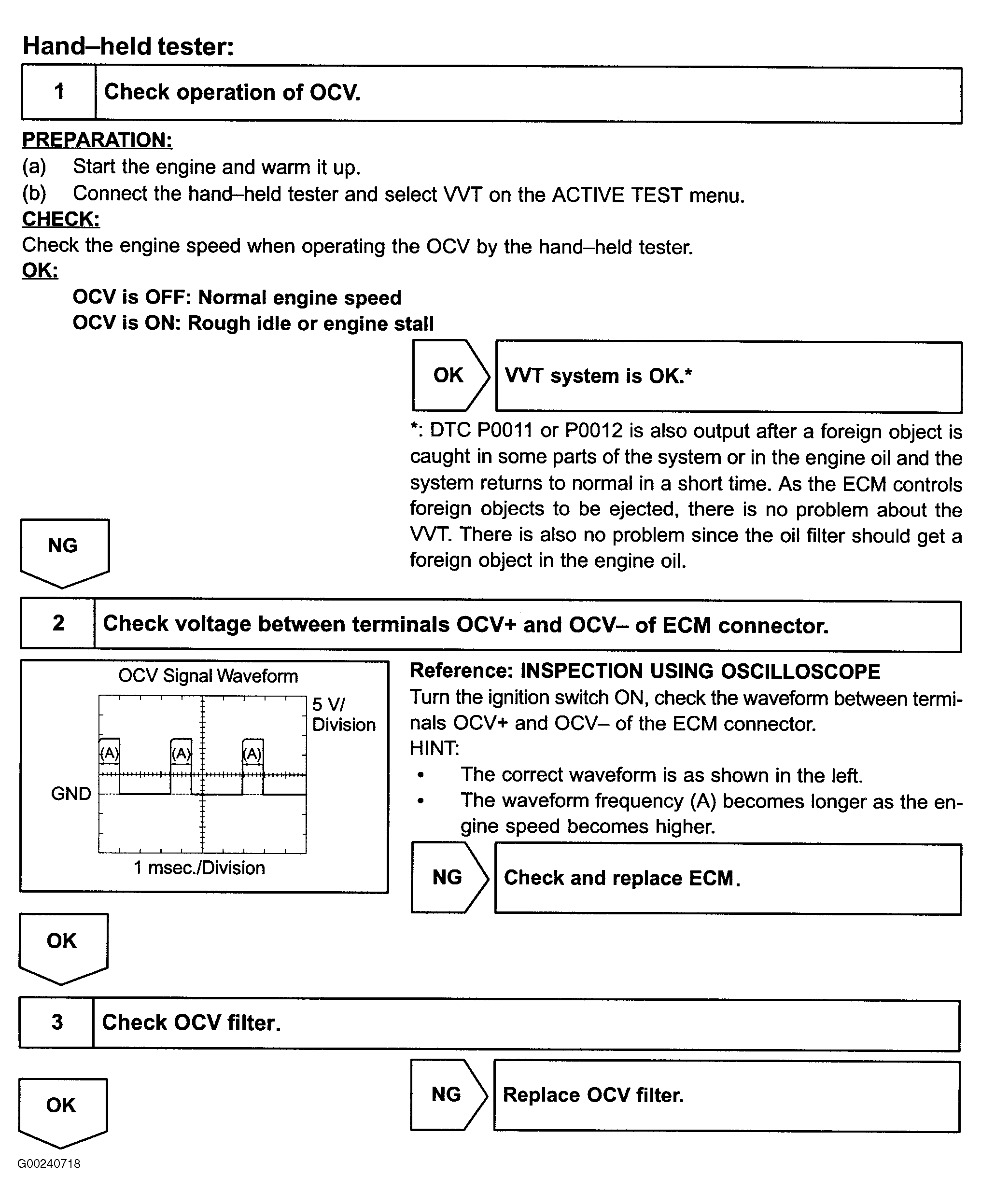

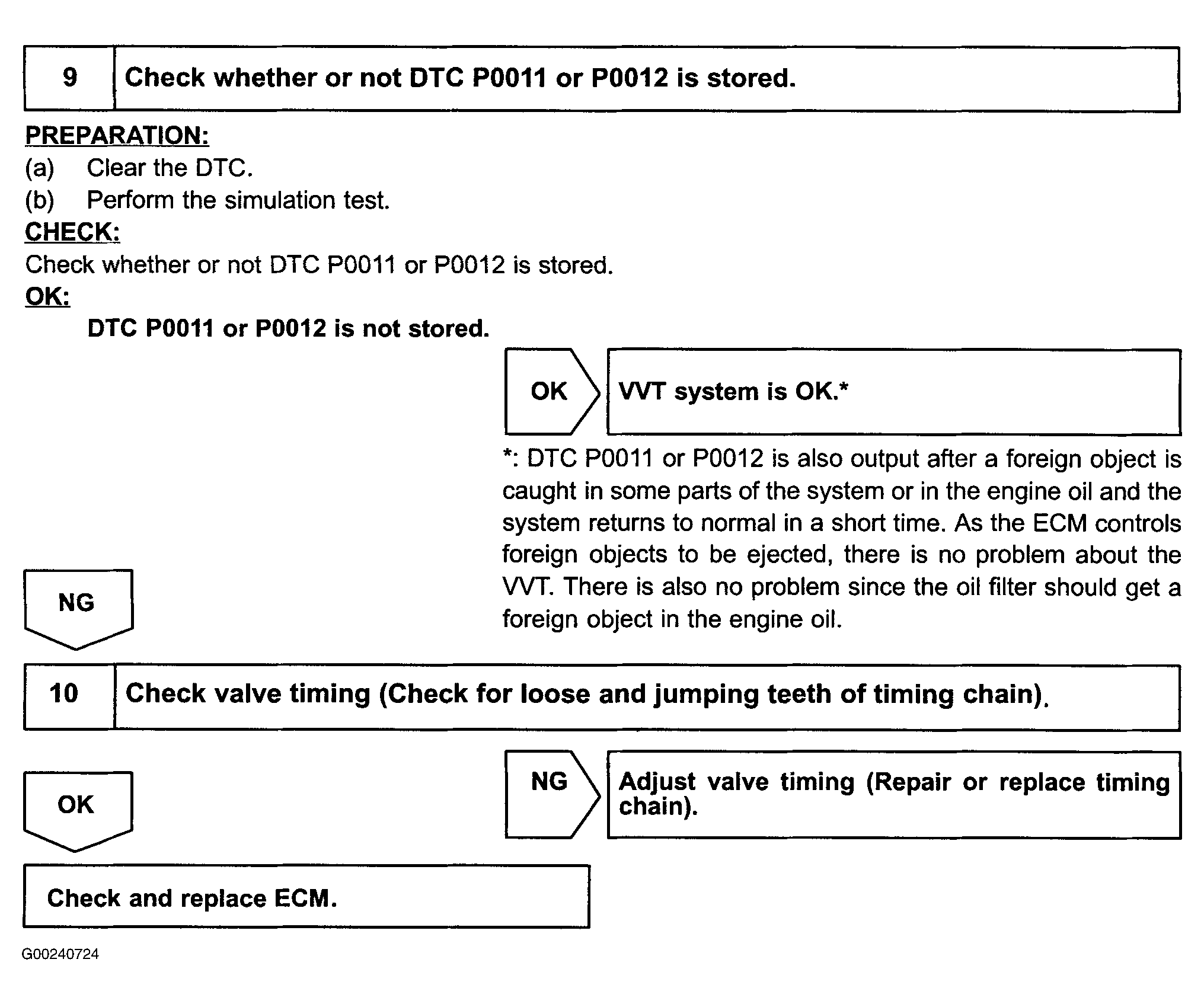

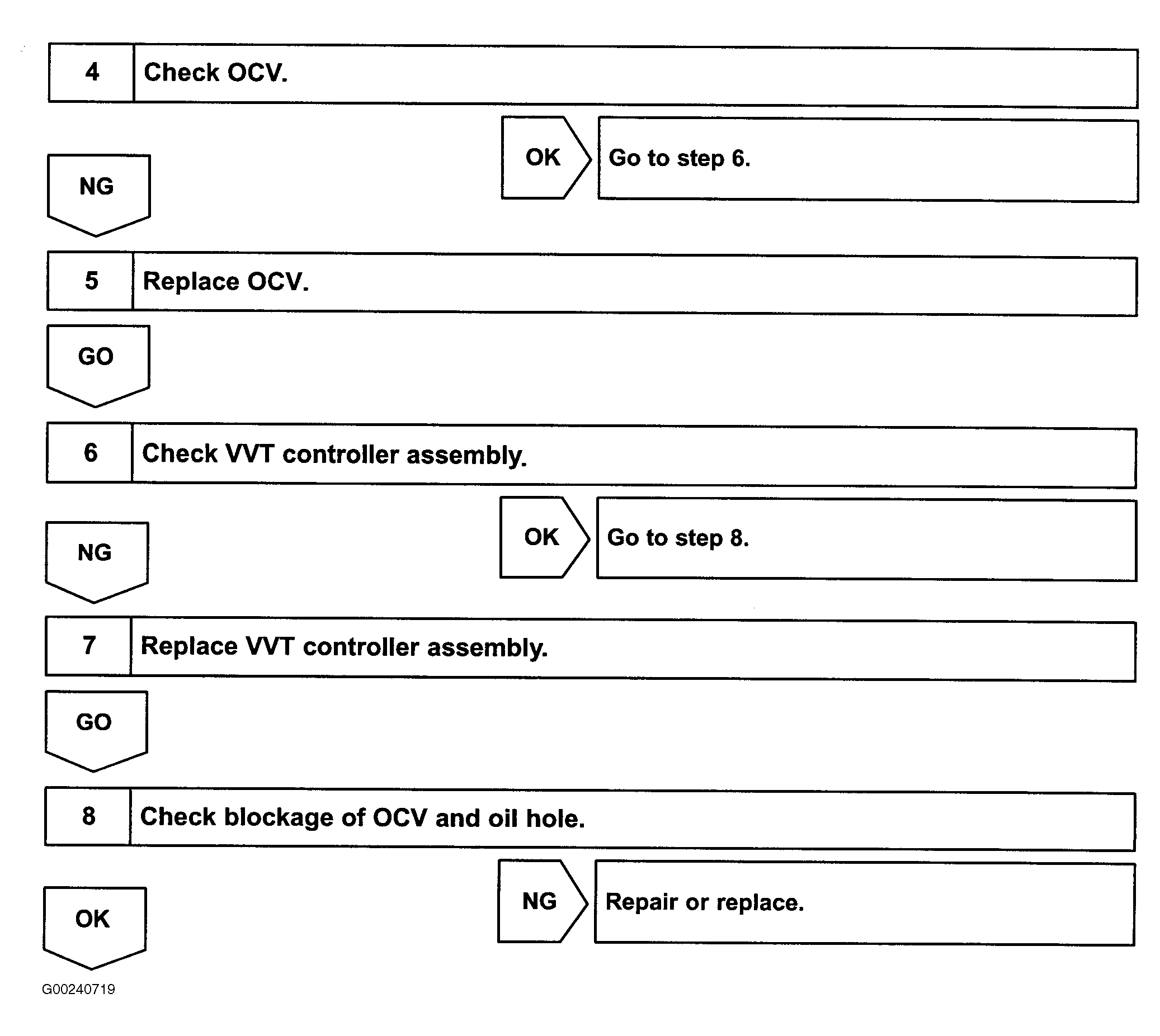

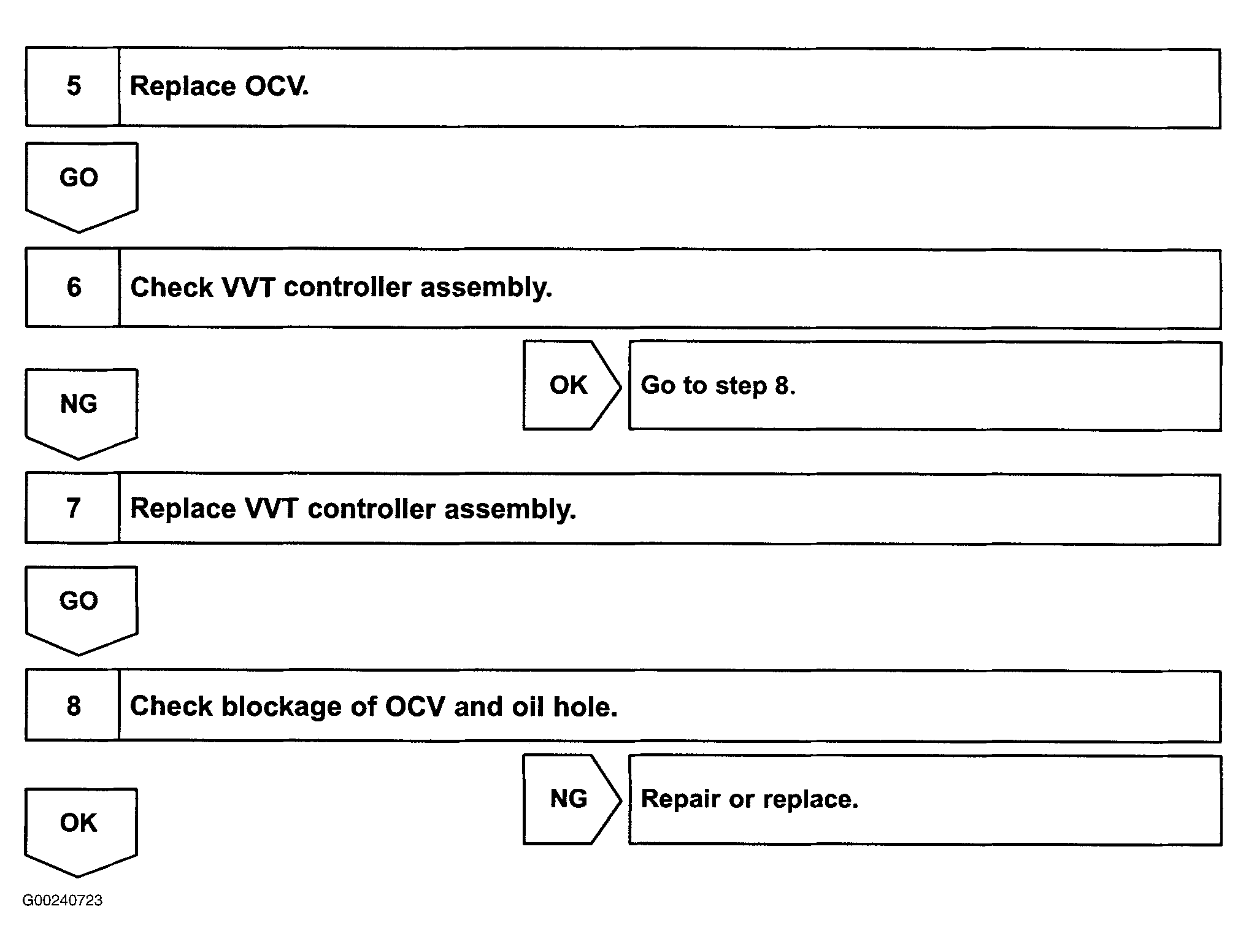

For wiring diagram, see Fig 1. For diagnosis and repair with hand-held tester, see Fig 2-Fig 4 . For diagnosis and repair with OBD II scan tool, see Fig 5-Fig 8 . To check ECM inputs and outputs, see PIN VOLTAGE CHARTS article. For ECM location, see ENGINE CONTROL MODULE LOCATION under SELF-DIAGNOSTIC SYSTEM. For testing of components, see SYSTEM & COMPONENT TESTING - 4-CYLINDER article. For removal and installation of components, see REMOVAL, OVERHAUL & INSTALLATION - 4-CYLINDER article. To check and adjust valve timing, see ON-VEHICLE ADJUSTMENTS - 4-CYLINDER article.
