Fail-Safe Chart

WARNING: This page is about a different car, the 2003 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

If any of the following codes is recorded, the engine control module (ECM) enters fail-safe mode. See Fig 1.

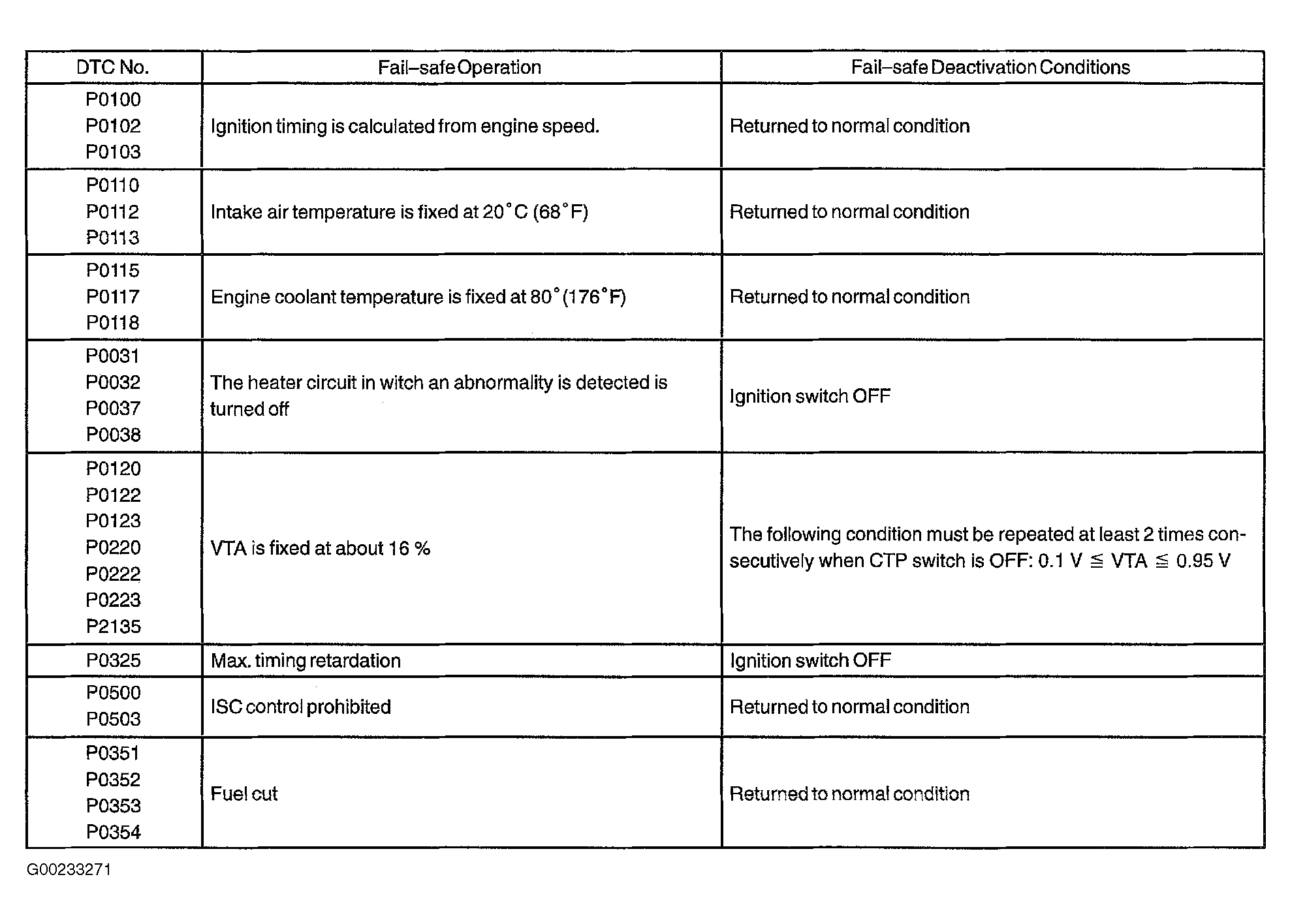

Fig 1: Identifying Fail-Safe Mode Chart
G00233271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
