Data List

WARNING: This page is about a different car, the 2003 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: According to the DATA LIST displayed by the OBD II scan tool or hand-held tester, you can read the value of the switch, sensor, actuator and so on without parts removal. Reading the DATA LIST as a first step of trouble shooting is one method to shorten the labor time.

NOTE: The values given below for normal condition are representative values. A vehicle may still be normal even if it's value differs from those listed here. So, do not solely depend on the normal condition here when deciding whether a part is faulty or not.

Warm up the engine and turn the ignition switch OFF.
Connect the OBD II scan tool or the hand-held tester to the DLC3 and turn the ignition switch ON.
According to the display on tester, read the DATA LIST. See Fig 1-Fig 3 .

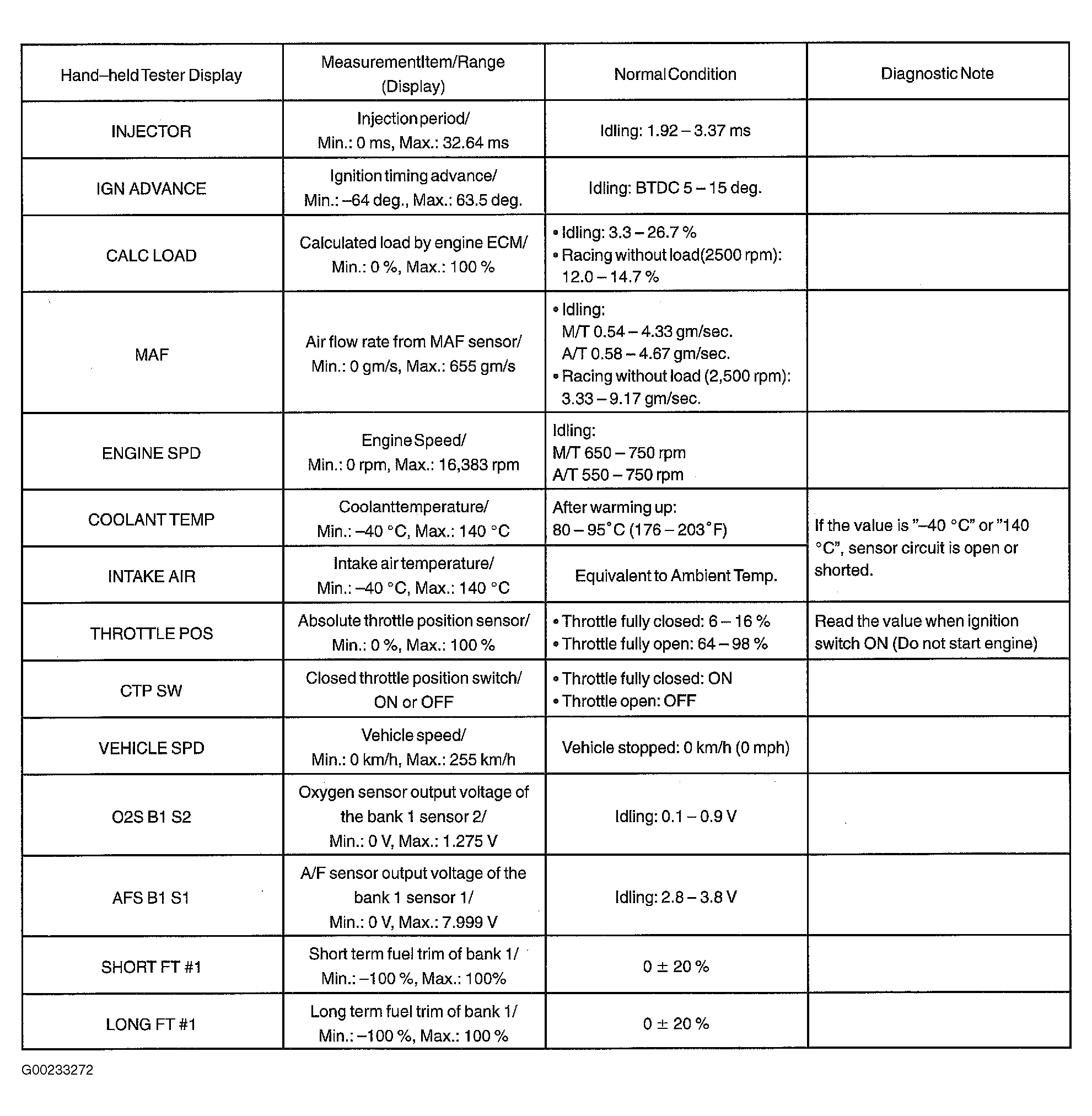

Fig 1: Identifying DATA LIST (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

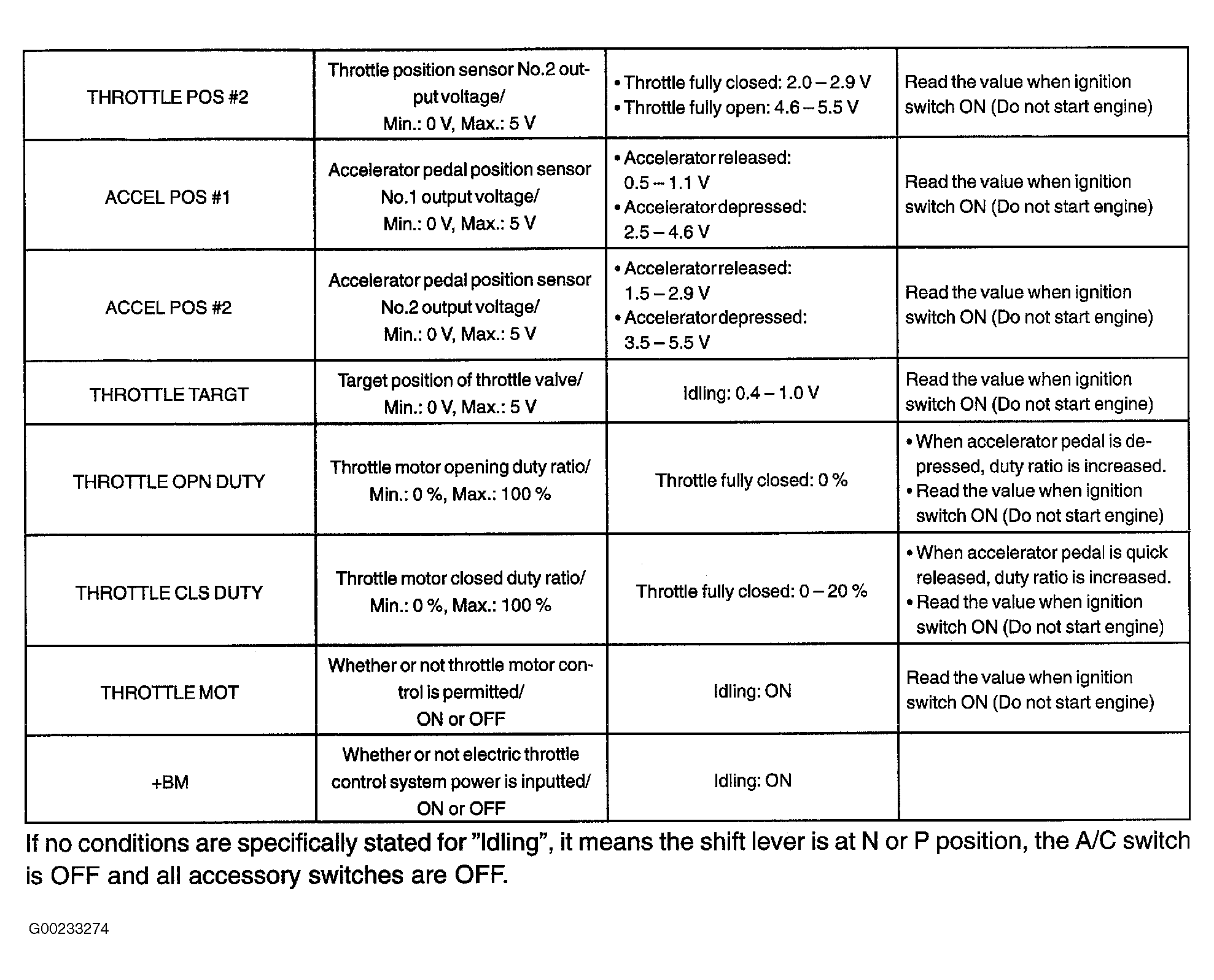

Fig 2: Identifying DATA LIST (2 Of 3)

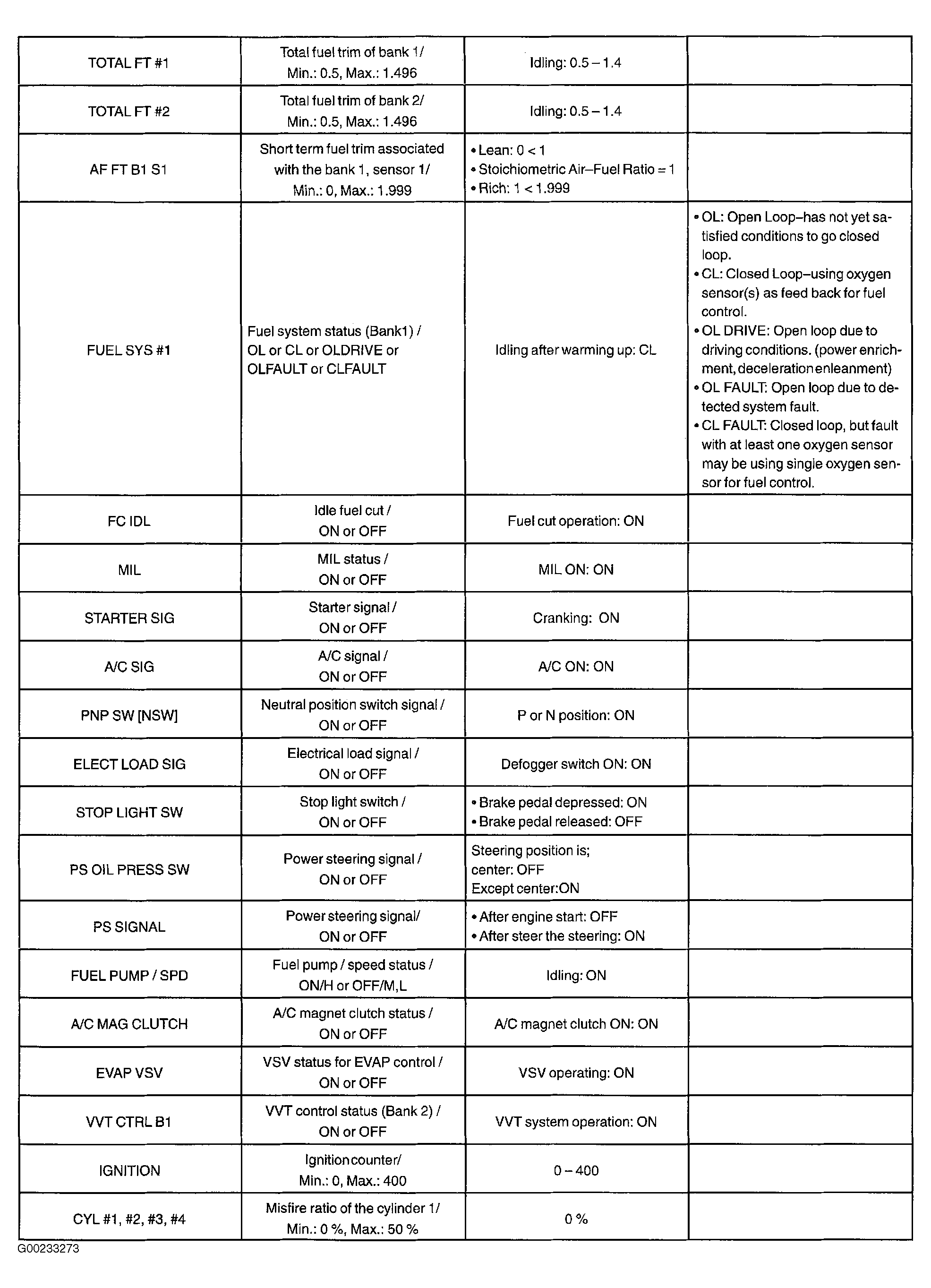

Fig 3: Identifying DATA LIST (3 Of 3)
