Basic Inspection

WARNING: This page is about a different car, the 2003 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

For basic inspection, see Fig 1 and Fig 2 . For adjustments, see ON-VEHICLE ADJUSTMENTS - 4-CYLINDER article. For symptom diagnosis, see TROUBLE SHOOTING - NO CODES article.

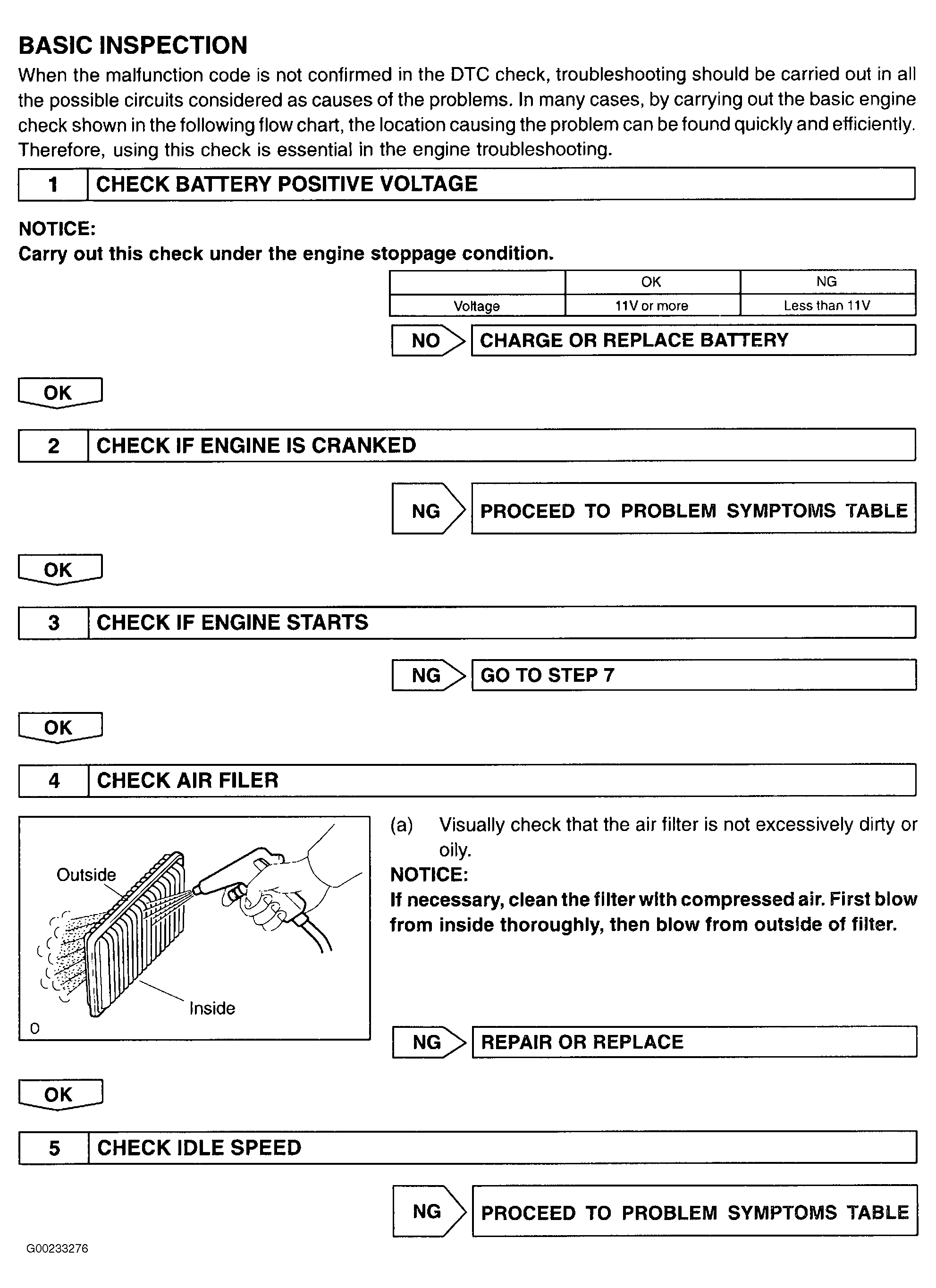

Fig 1: Basic Inspection (Steps 1-5)
G00233276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

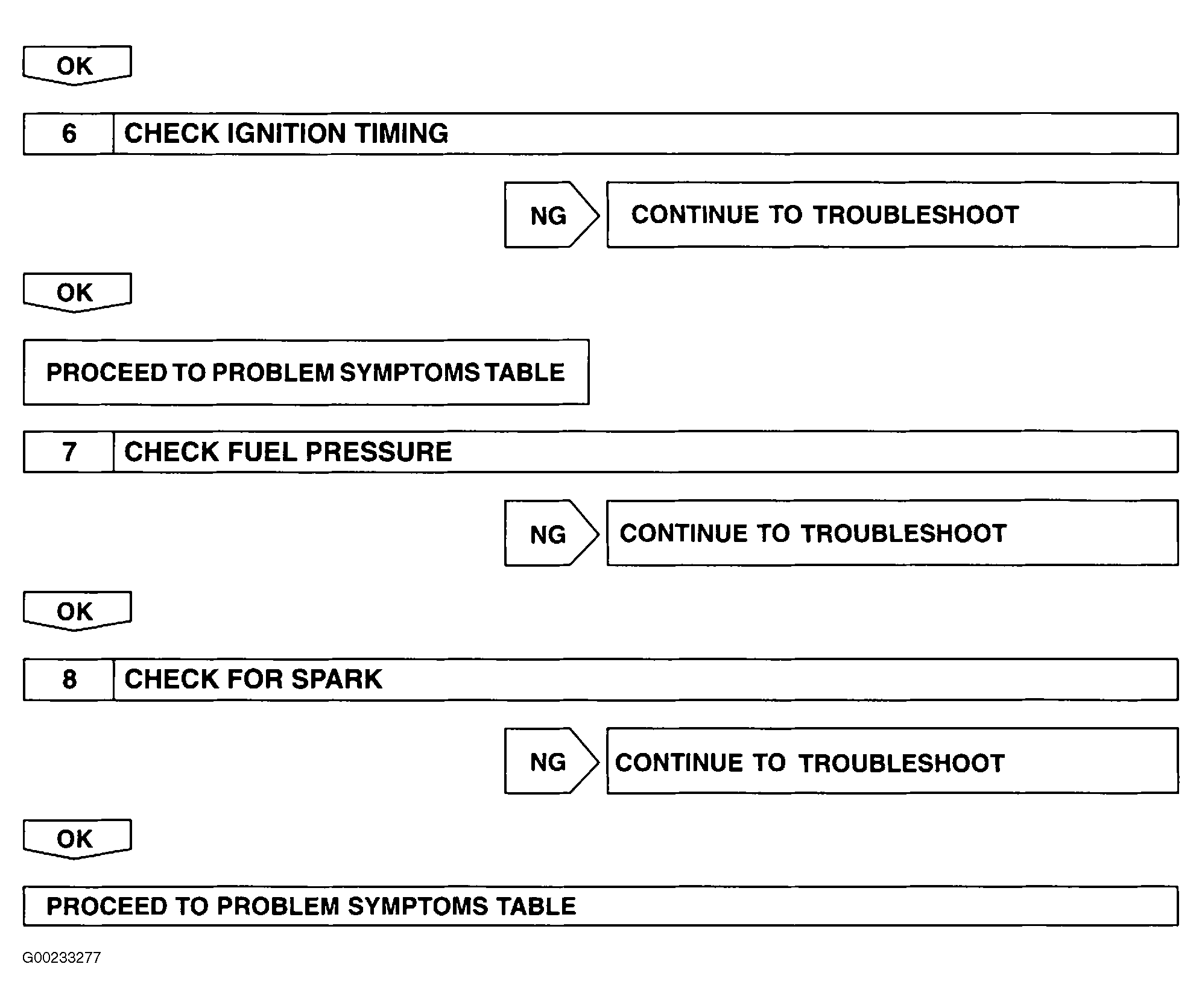

Fig 2: Basic Inspection (Steps 6-8)
G00233277Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
