Confirmation Driving Pattern

WARNING: This page is about a different car, the 2003 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

For confirmation driving pattern, see Fig 1.

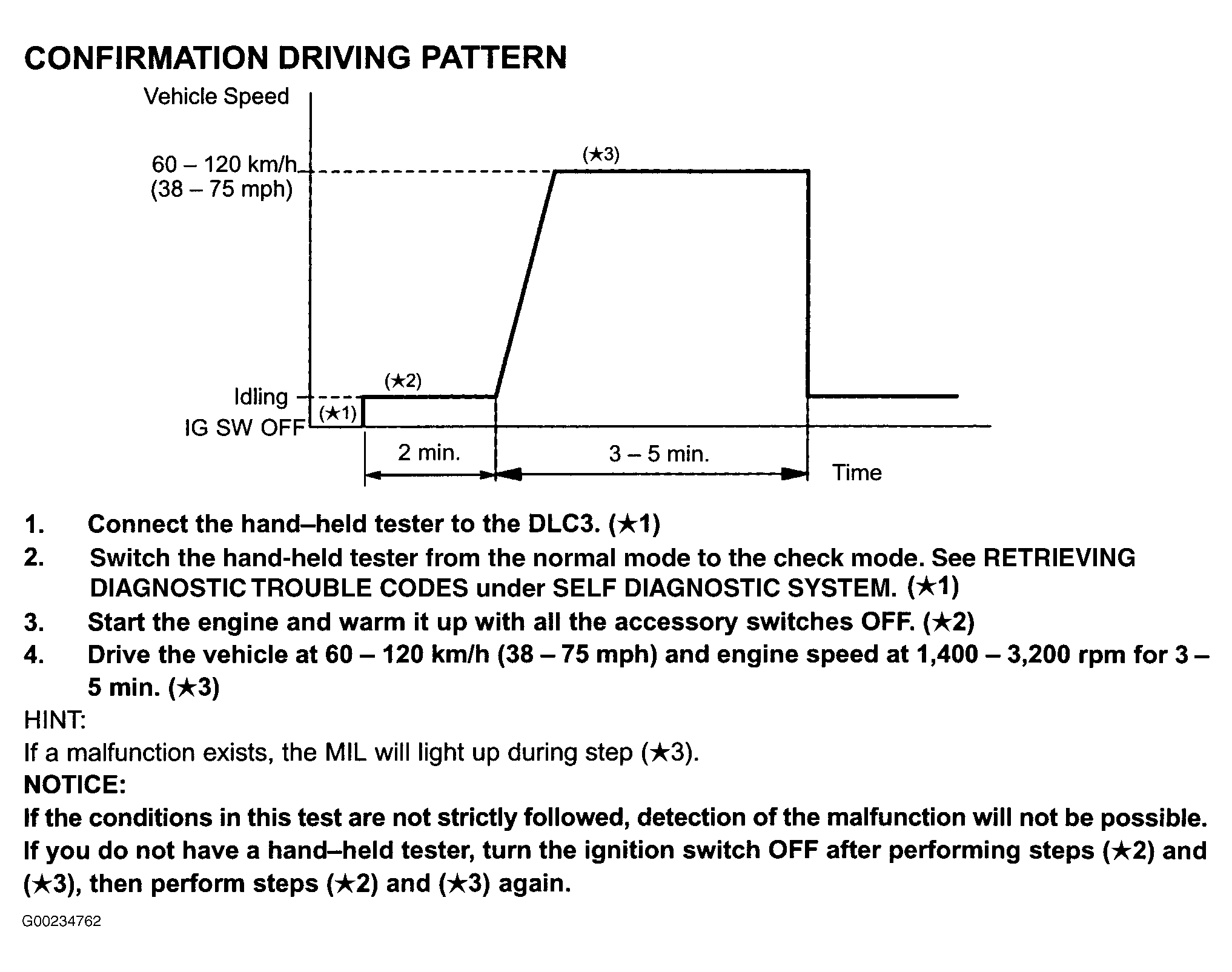

Fig 1: DTCs P2195 & P2196 Confirmation Driving Pattern
G00234762Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
