Circuit Description & Possible Causes

WARNING: This page is about a different car, the 2003 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

For circuit description possible causes, see Fig 1.

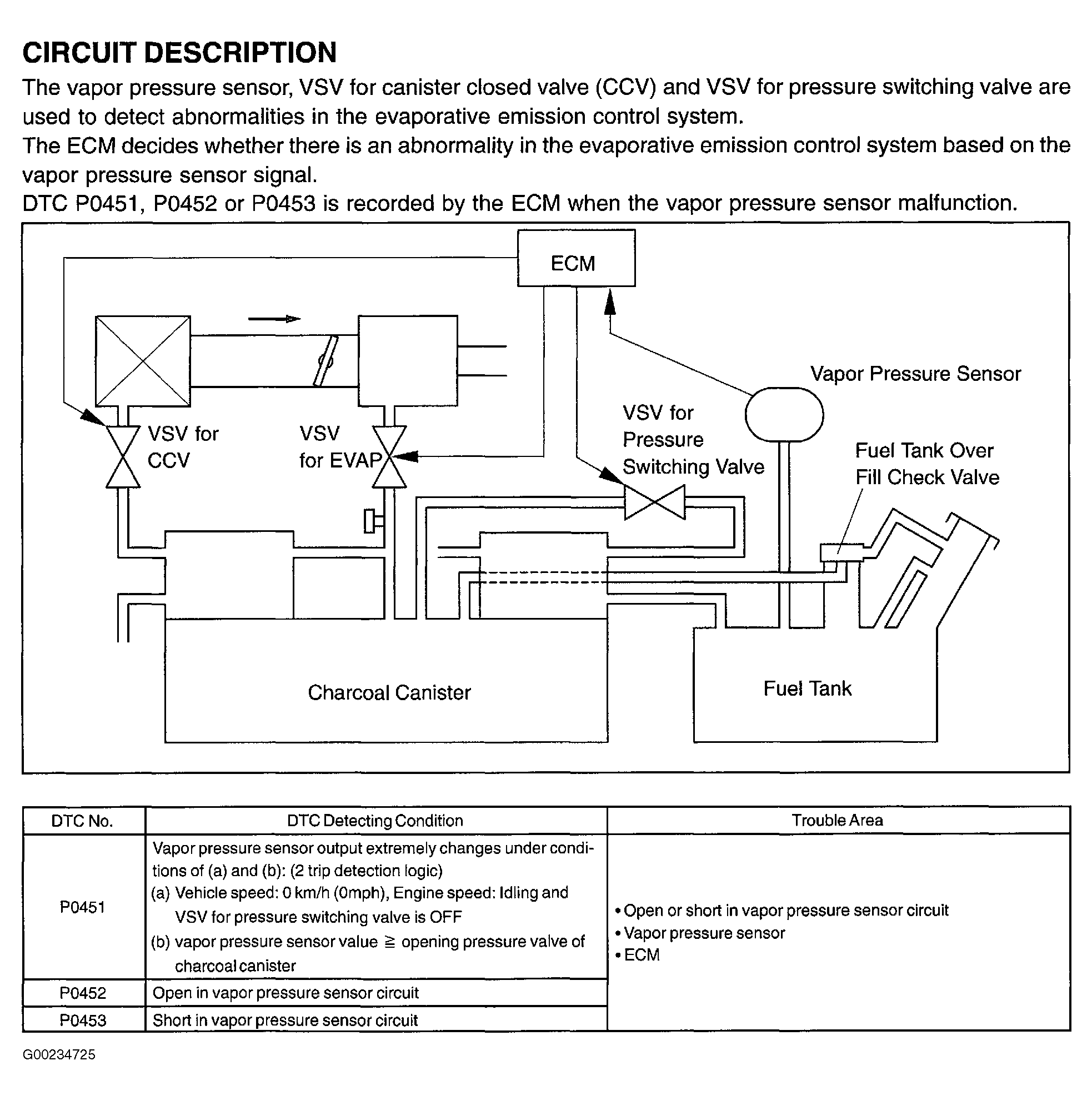

Fig 1: DTCs P0451-P0453 Circuit Description & Possible Causes
G00234725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
