Confirmation Readiness Test

WARNING: This page is about a different car, the 2003 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

For confirmation readiness test, see Fig 1 and Fig 2 .

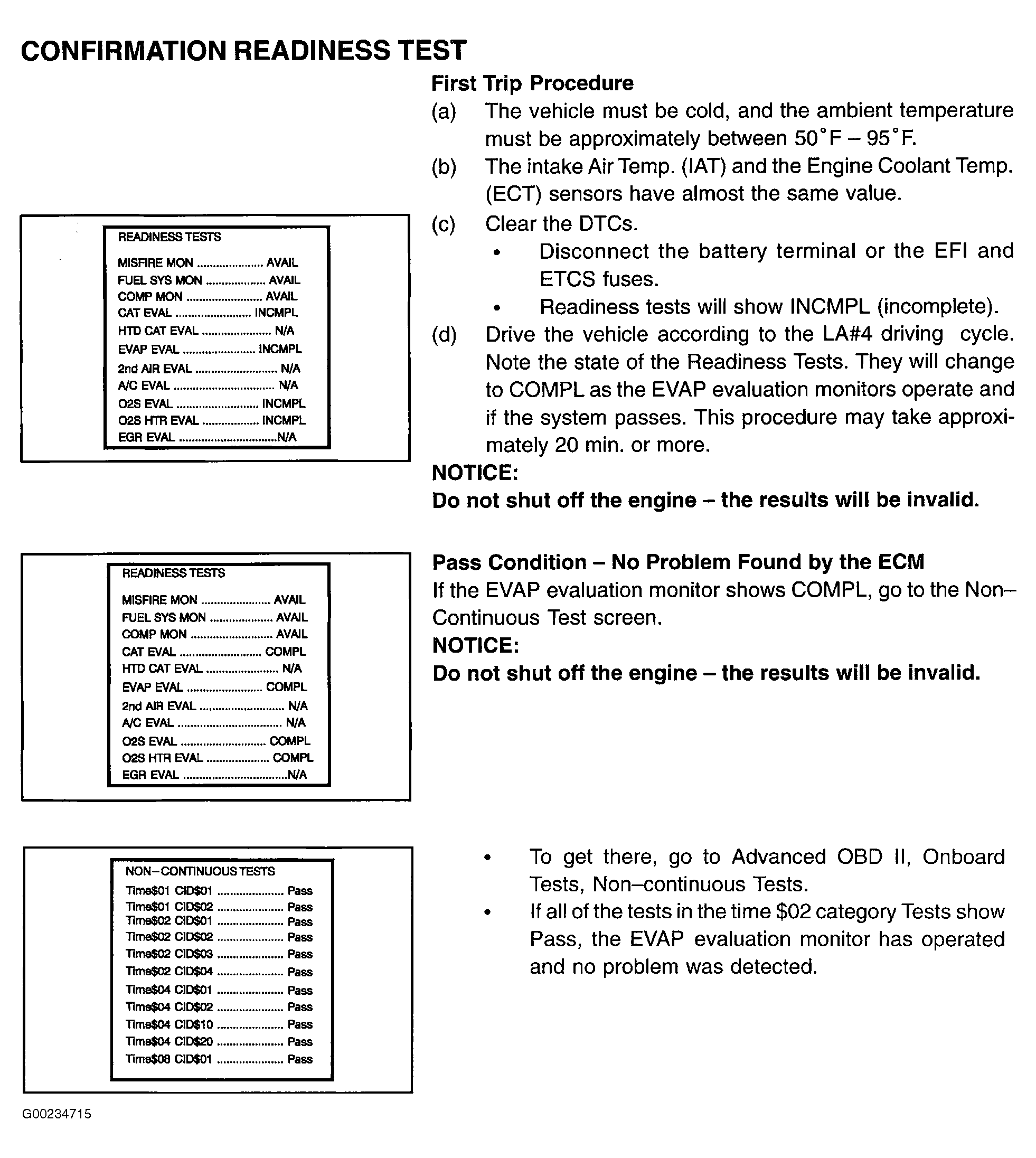

Fig 1: DTCs P0442 & P0456 Confirmation Readiness Test (1 Of 2)
G00234715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

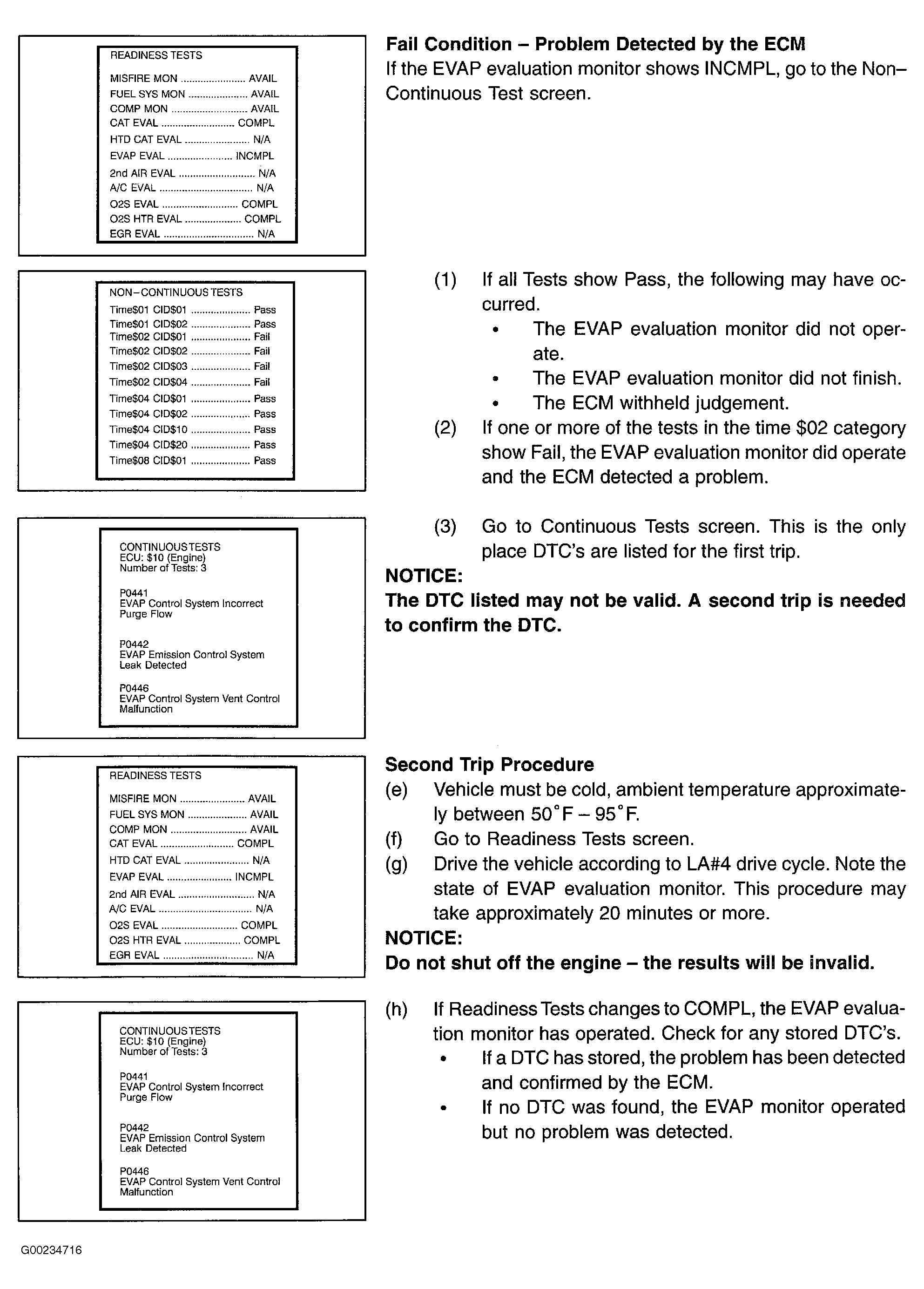

Fig 2: DTCs P0442 & P0456 Confirmation Readiness Test (2 Of 2)
G00234716Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
