Diagnosis & Repair

WARNING: This page is about a different car, the 2003 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

For diagnosis and repair, see Fig 1 and Fig 2 .

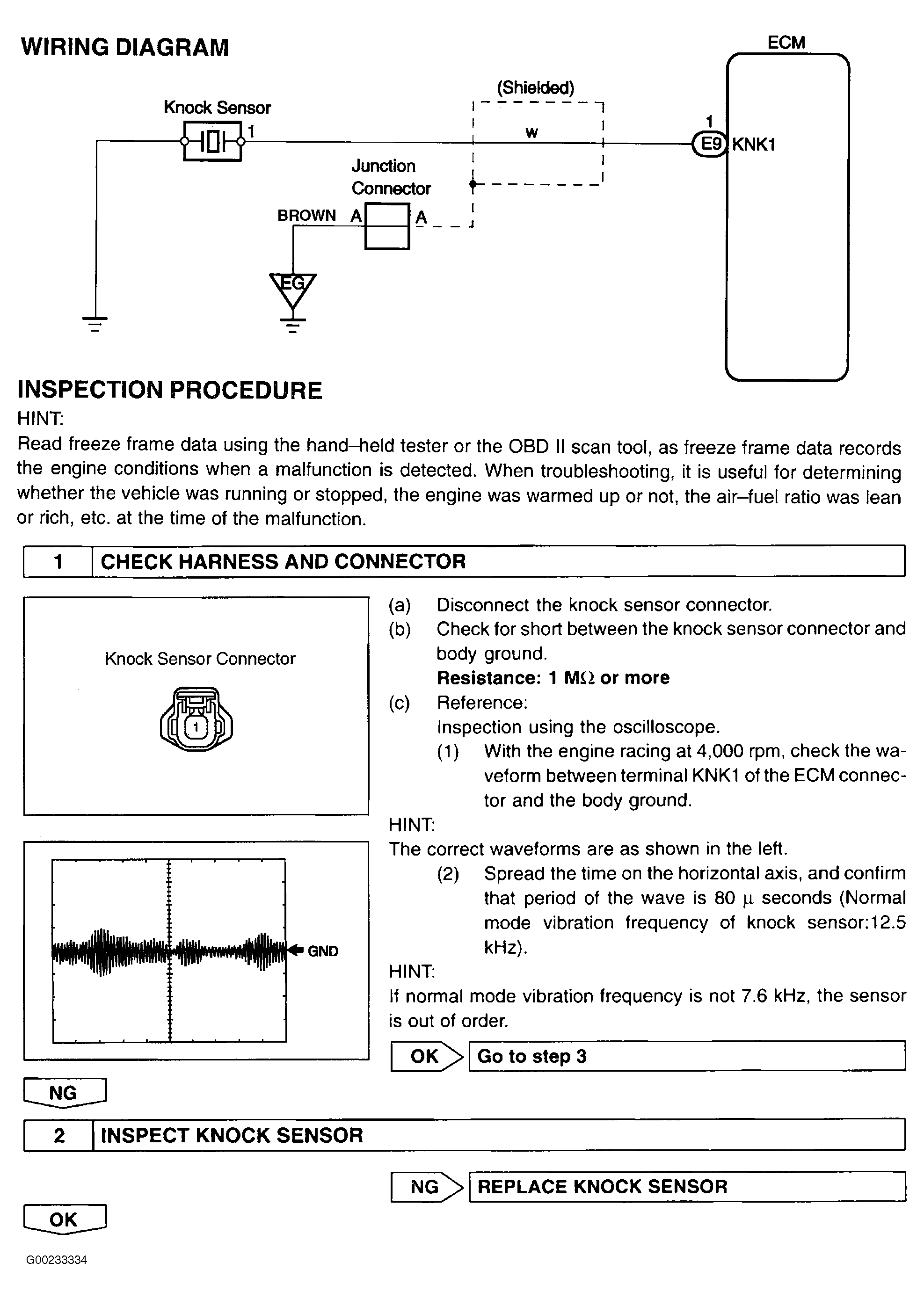

Fig 1: DTC P0325 Diagnostic Procedure (Steps 1-2)
G00233334Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

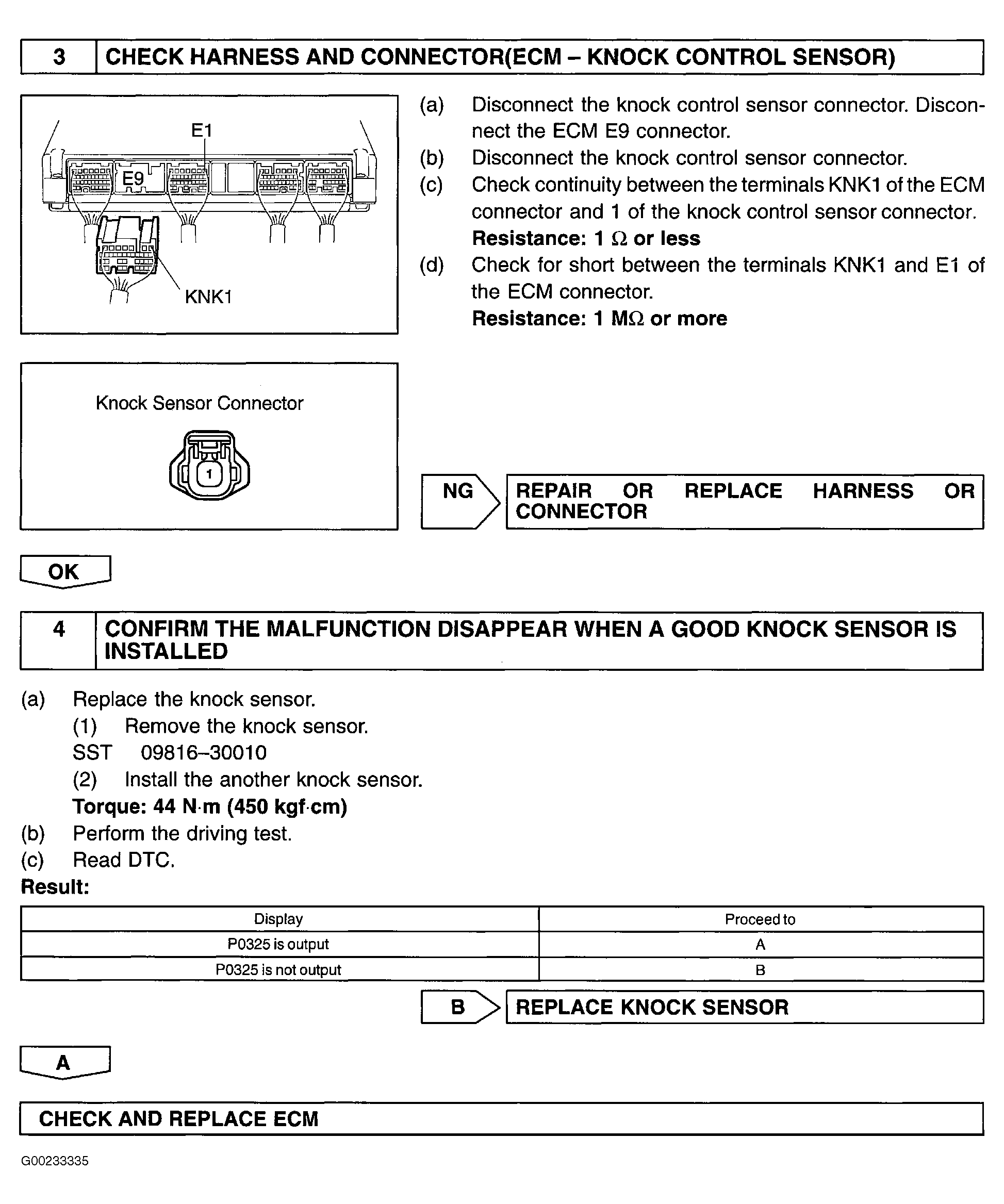

Fig 2: DTC P0325 Diagnostic Procedure (Steps 3-4)
G00233335Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
