Diagnosis & Repair

WARNING: This page is about a different car, the 2003 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

For diagnosis and repair, see Fig 1. To check ECM inputs and outputs, see PIN VOLTAGE CHARTS article. For removal and installation of components, see REMOVAL, OVERHAUL & INSTALLATION - 4-CYLINDER article.

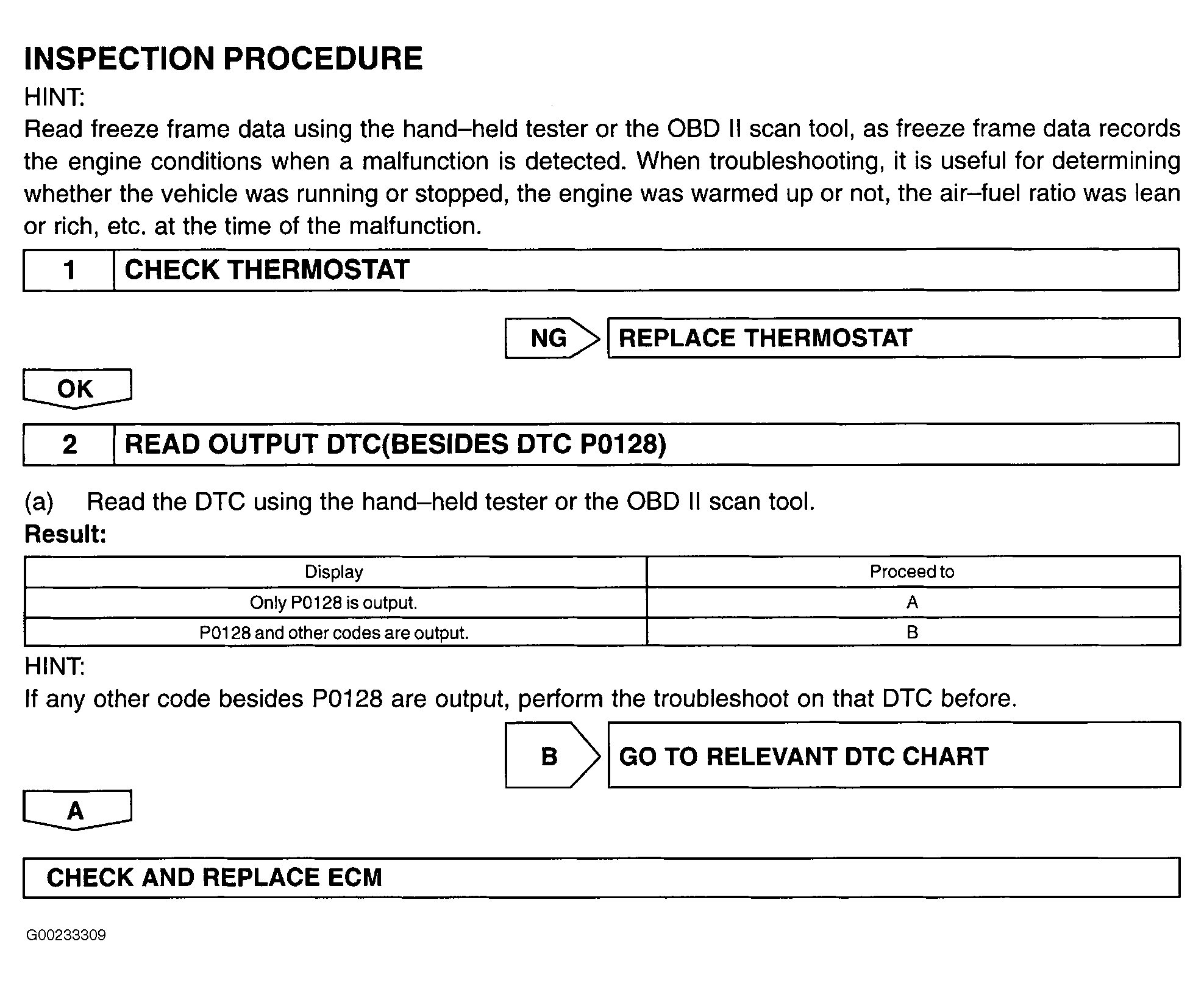

Fig 1: DTC P0128 Diagnostic Procedure
G00233309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
