Diagnosis & Repair

WARNING: This page is about a different car, the 2003 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

For diagnosis and repair, see Fig 1.

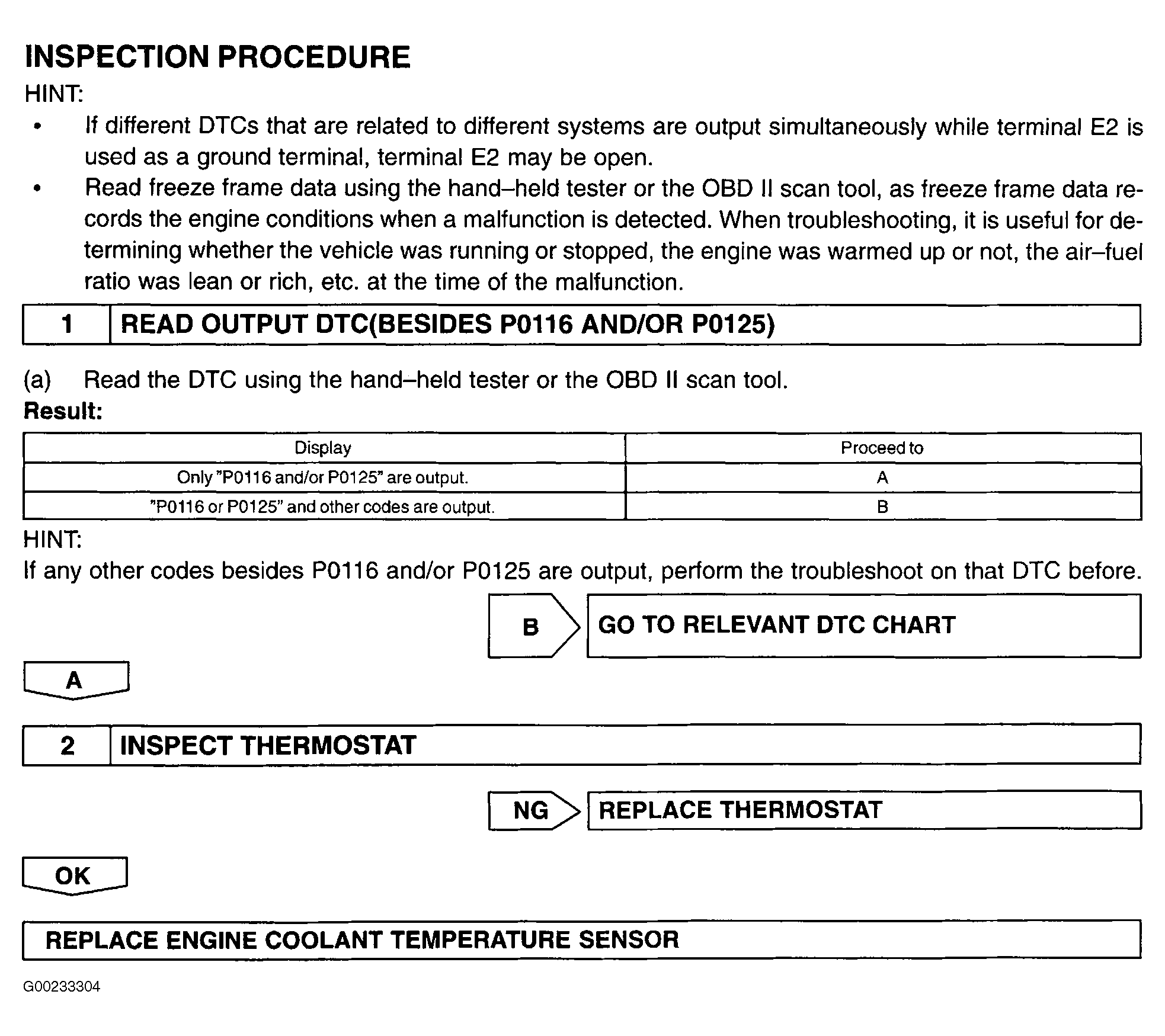

Fig 1: DTC P0116 & P0125 Diagnostic Procedure
G00233304Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
