Circuit Description & Possible Causes

WARNING: This page is about a different car, the 2003 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

For circuit description and possible causes, see Fig 1.

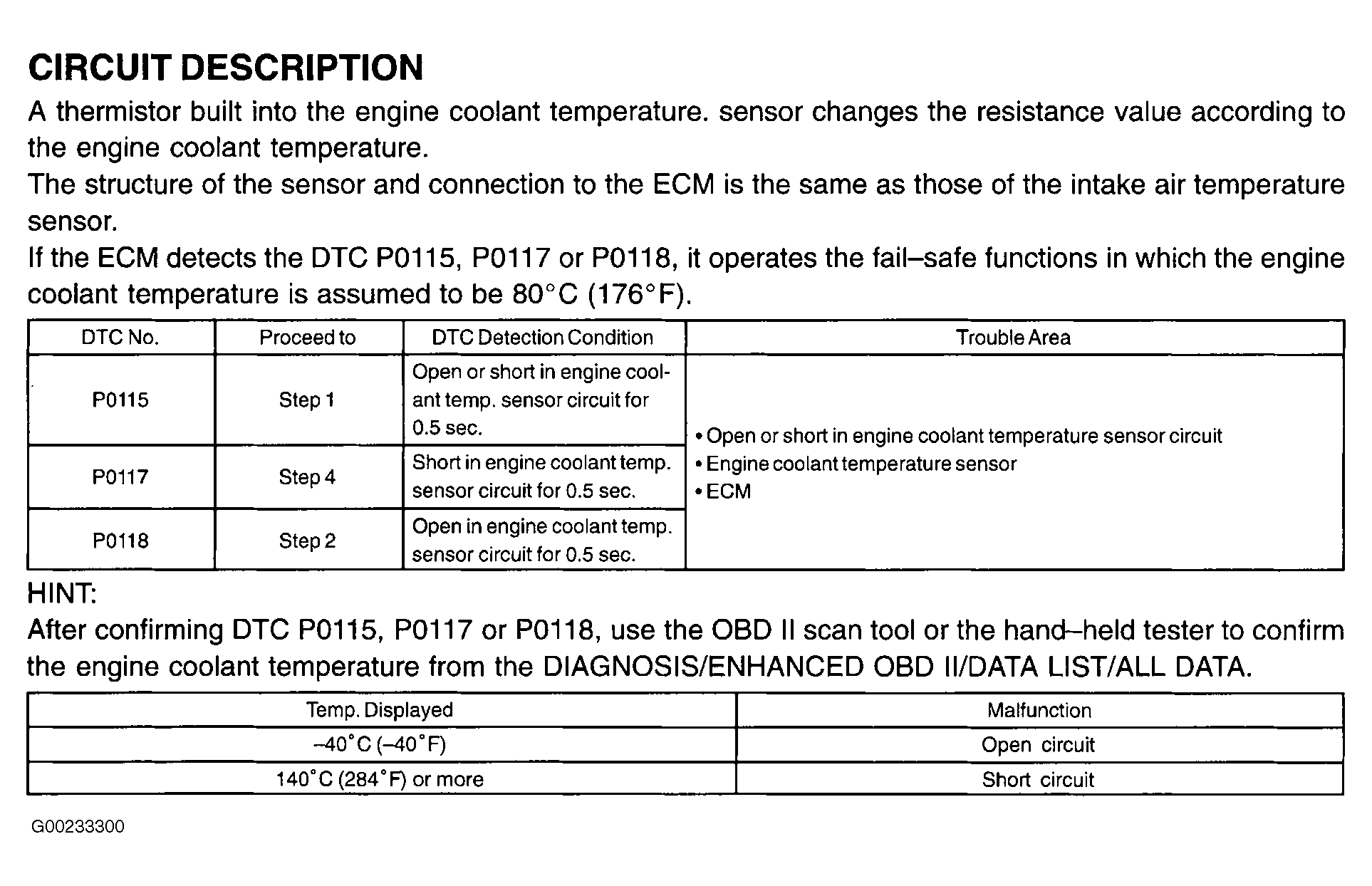

Fig 1: DTCs P0115, P0117 & P0118 Circuit Description & Possible Causes
G00233300Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
