Circuit Description & Possible Causes

WARNING: This page is about a different car, the 2003 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

For circuit description and possible causes, see Fig 1.

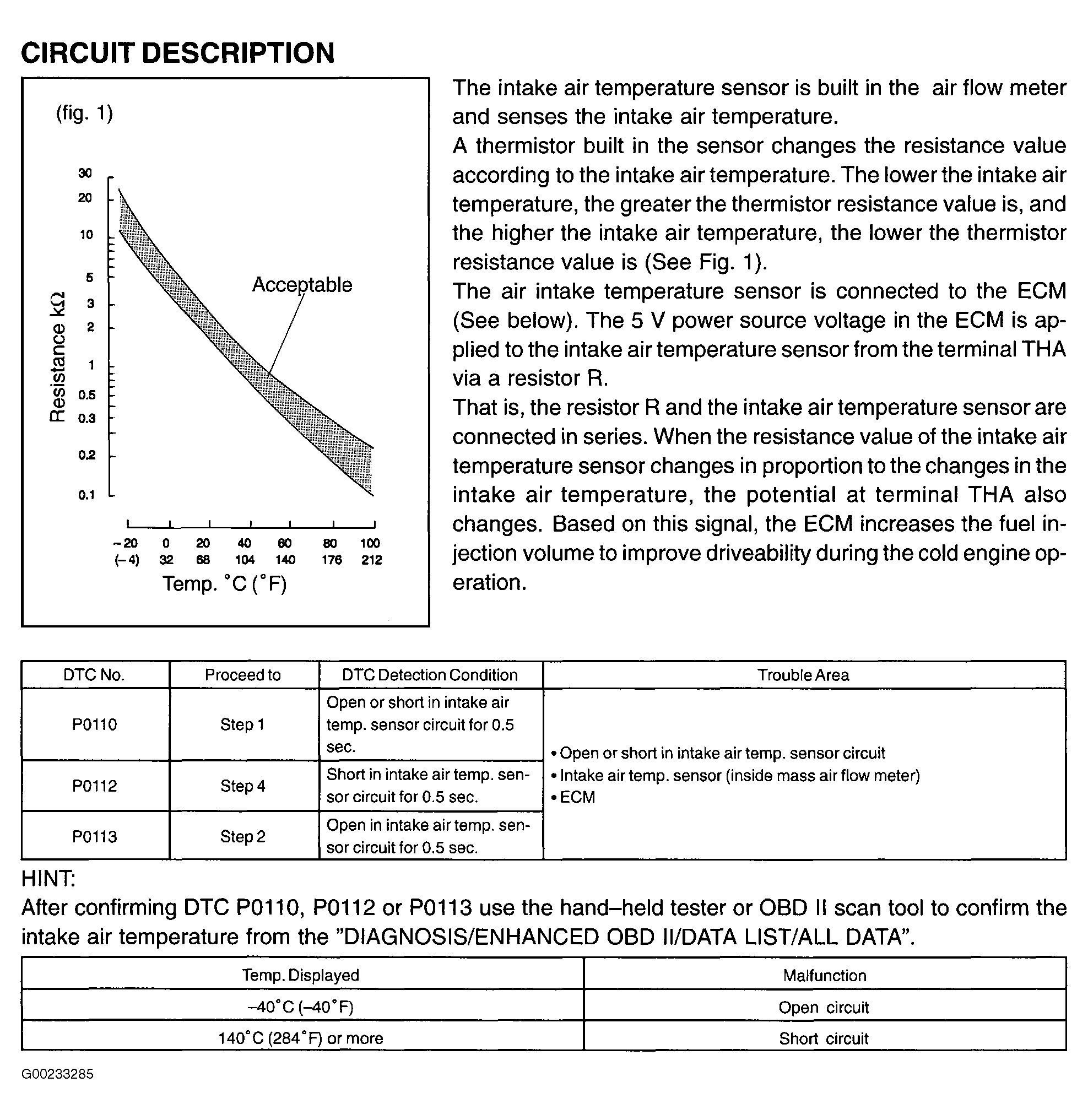

Fig 1: DTCs P0110, P0112 & P0113 Circuit Description & Possible Causes
G00233285Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
