Diagnostic Procedure

WARNING: This page is about a different car, the 2003 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Read freeze frame data using the hand-held tester or the OBD II scan tool, as freeze frame data records the engine conditions when a malfunction is detected. When trouble shooting, it is useful for determining whether the vehicle was running or stopped, the engine was warmed up or not, the air-fuel ratio was lean or rich, etc. at the time of the malfunction.

For wiring diagram, see DTC P0011: CAMSHAFT POSITION "A" - TIMING OVER - ADVANCED OR SYSTEM PERFORMANCE (BANK NO. 1) & DTC P0012: CAMSHAFT POSITION "A" - TIMING OVER - RETARDED (BANK NO. 1) . For diagnosis and repair with hand-held tester, see Fig 1. For diagnosis and repair with OBD II scan tool, see Fig 2. To identify circuits referenced in testing, see appropriate WIRING DIAGRAM under ENGINE PERFORMANCE in SYSTEM WIRING DIAGRAMS. For testing of systems or components, see BASIC DIAGNOSTIC PROCEDURES - 4-CYLINDER article or SYSTEM & COMPONENT TESTING - 4-CYLINDER article. For adjustments, see ON-VEHICLE ADJUSTMENTS - 4-CYLINDER article. To check ECM inputs and outputs, see PIN VOLTAGE CHARTS article. For removal and installation of components, see REMOVAL, OVERHAUL & INSTALLATION - 4-CYLINDER article.

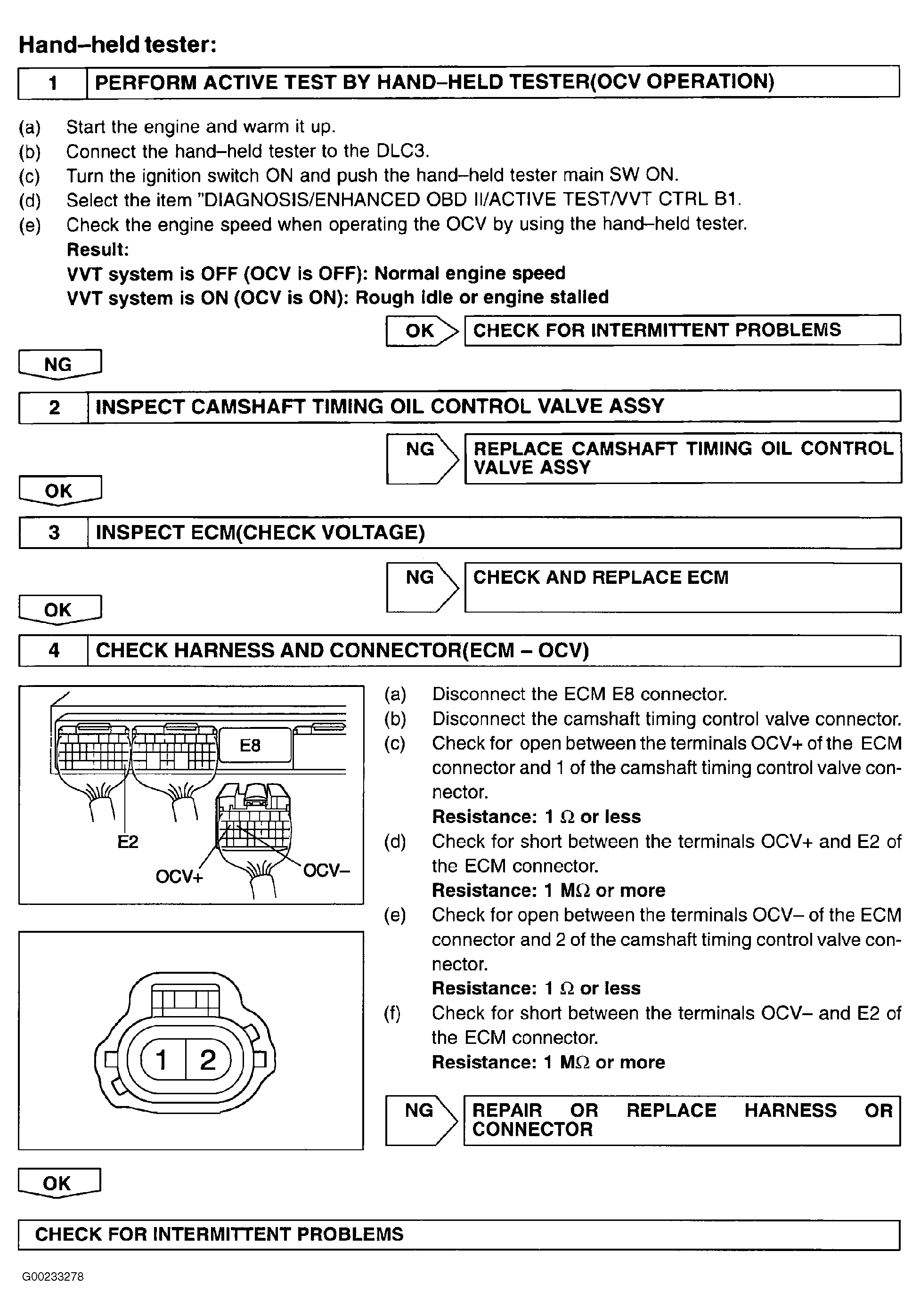

Fig 1: DTC P0010 Diagnostic Procedure (Using Hand-Held Tester)

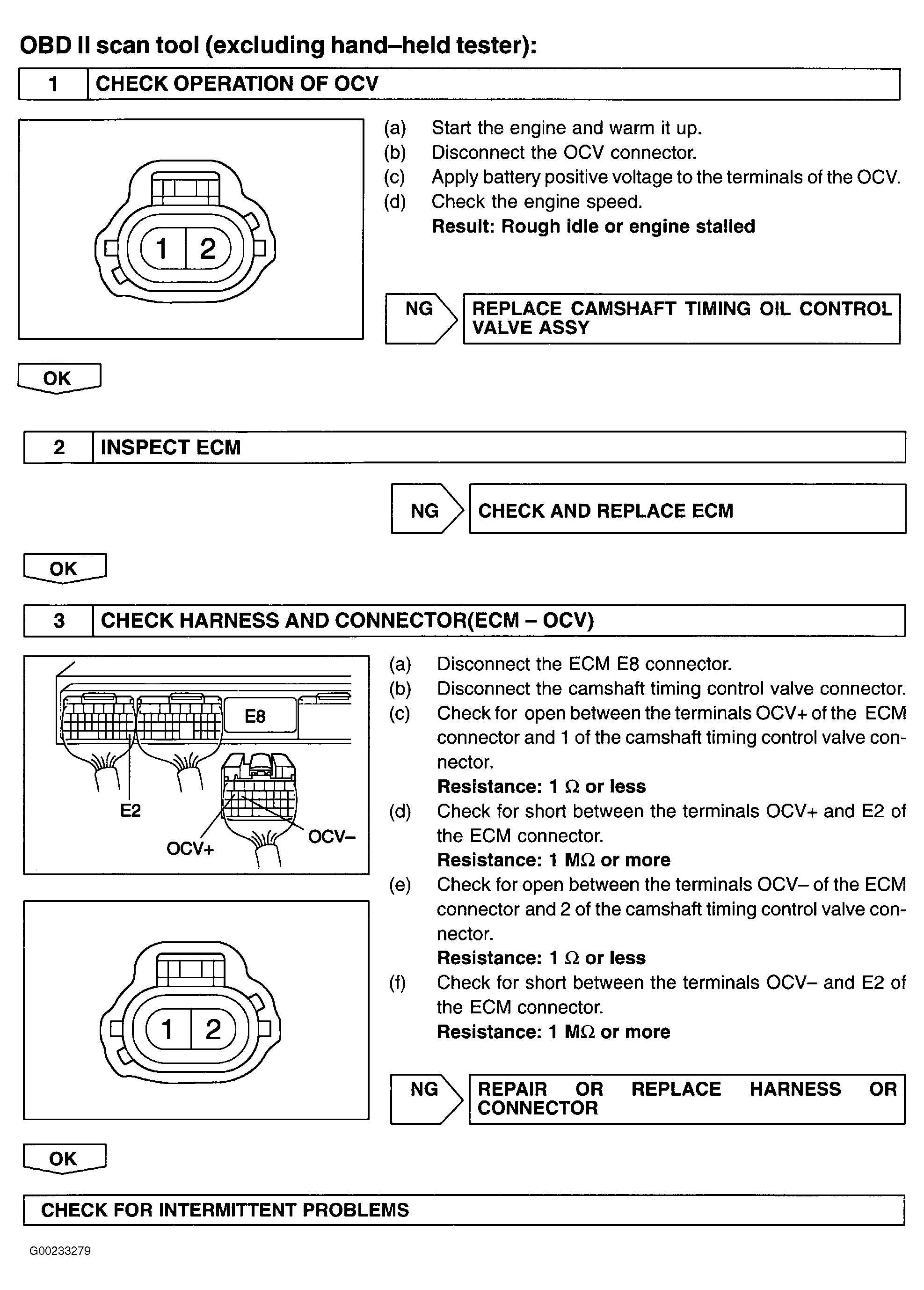

Fig 2: DTC P0010 Diagnostic Procedure (Using OBD II Scan Tool)
