Camry (PZEV)
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2003 Toyota Tundra, 2003 Toyota Tacoma, 2003 Toyota Sienna, 2003 Toyota Sequoia, and 2003 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

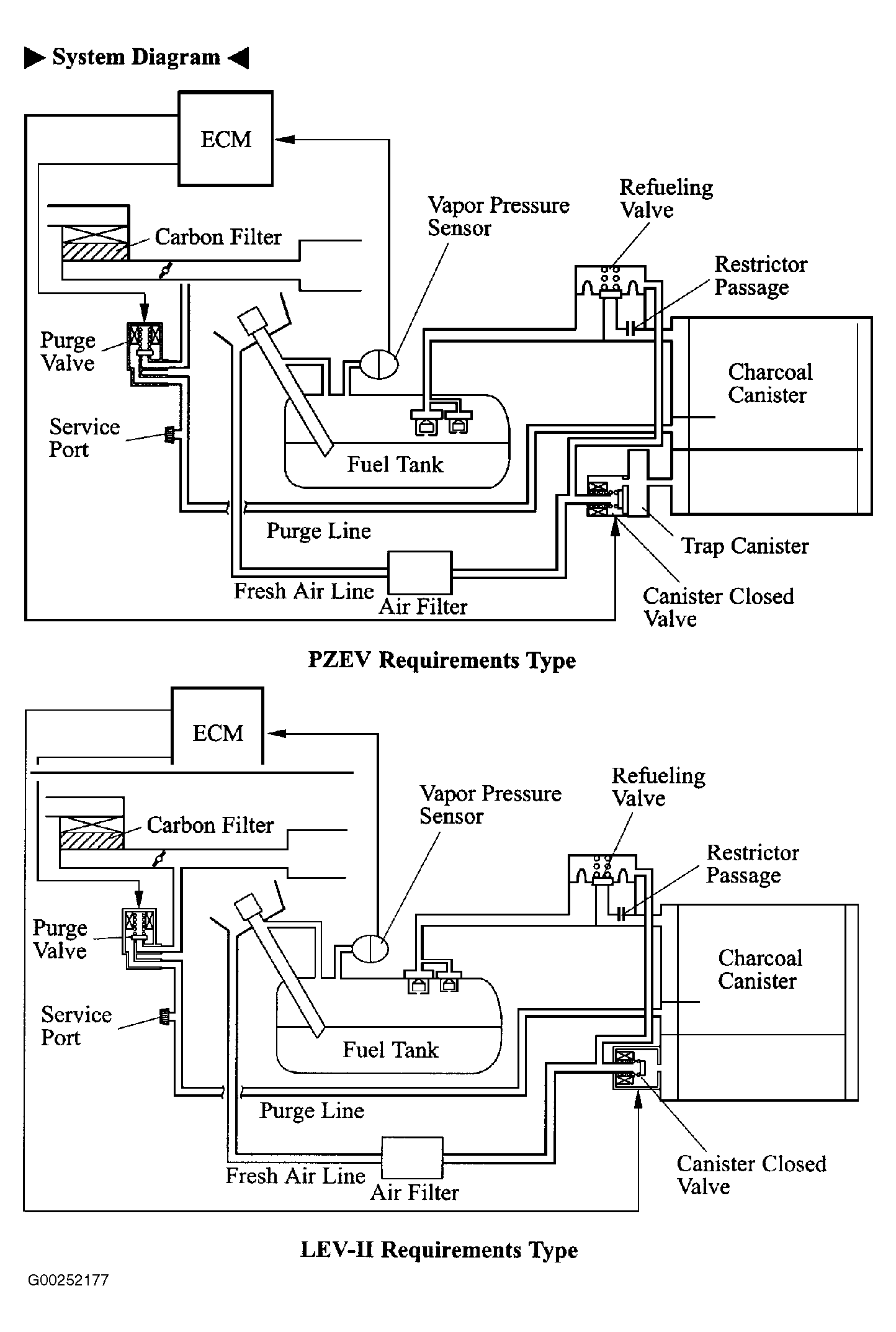

The evaporative emission control system, which is based on the LEV-II regulation requirements adopted on the 2003 4Runner, also includes the items to comply with the stricter standards prescribed by the PZEV (Partial Zero Emission Vehicle) regulations. The basic system control logic is the same as the system that complies with the LEV-II regulations. For system comparison, see Fig 1.

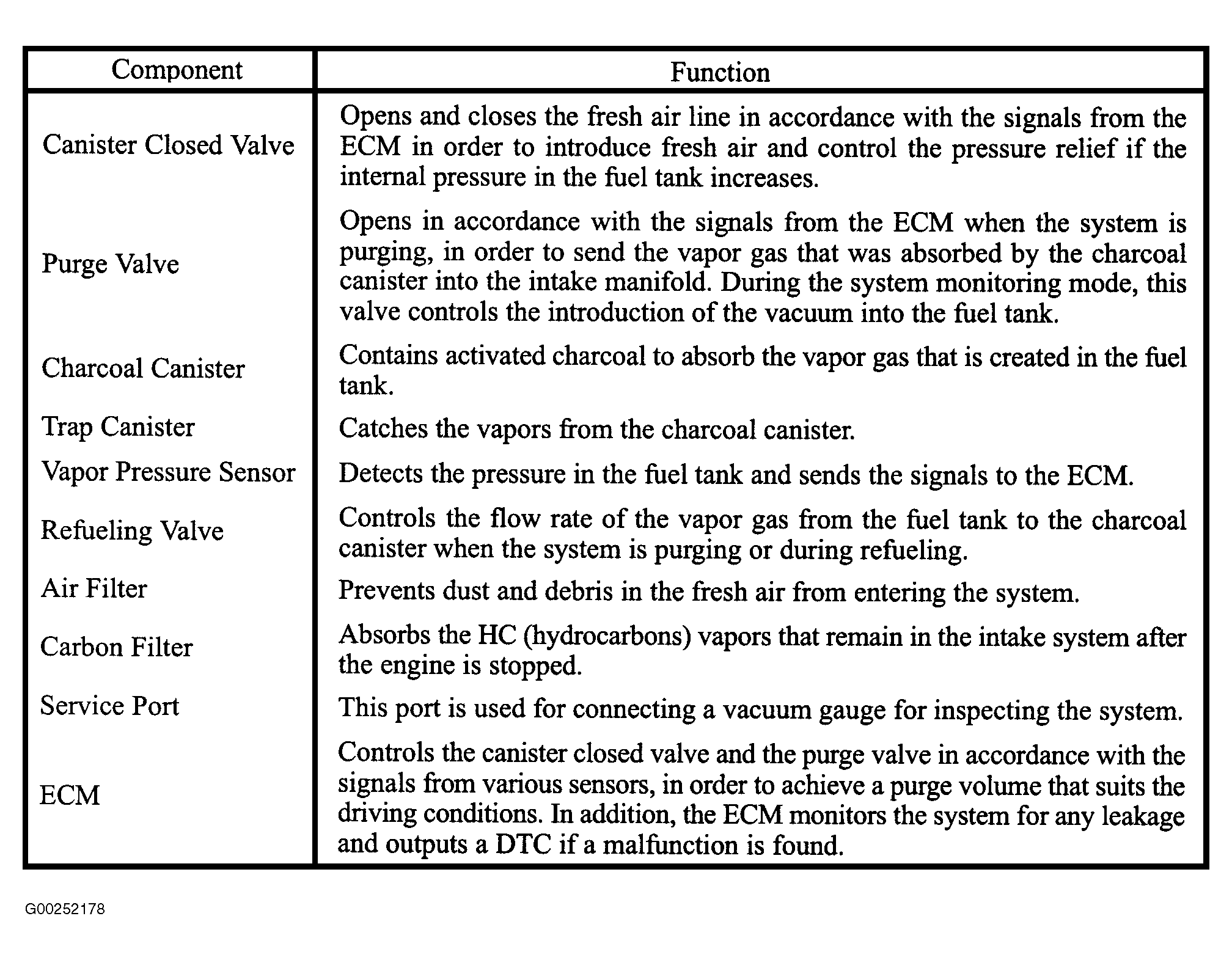

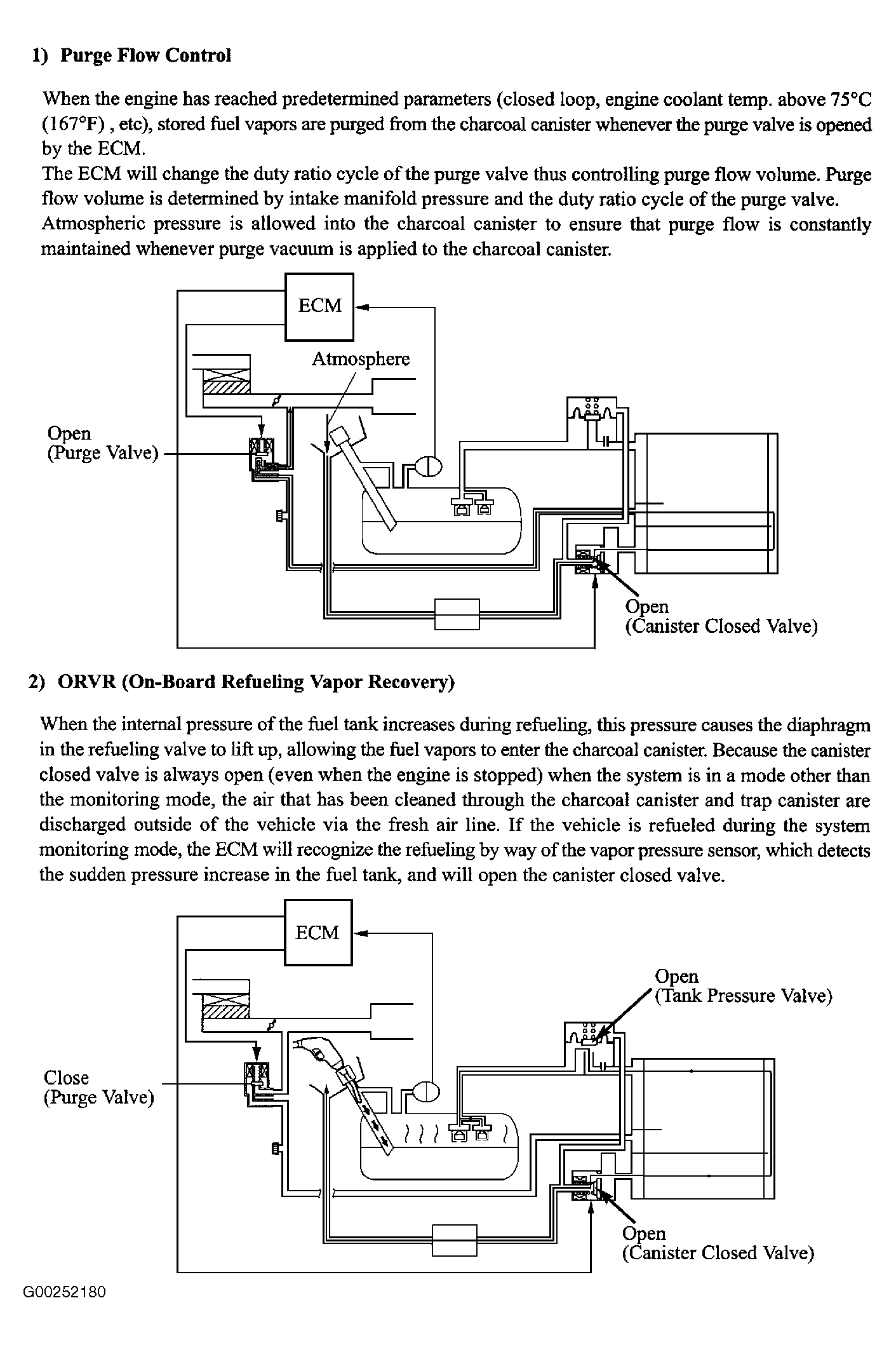

For main components and their functions, see Fig 2. For description and operation, see Fig 3-Fig 9 .
For EVAP system and component testing, see FUEL EVAPORATIVE SYSTEM under EMISSION SYSTEMS & SUB-SYSTEMS in appropriate SYSTEM & COMPONENT TESTING - 4-CYLINDER article.
