4Runner 4.0L V6
The construction of the evaporative emission control system has been changed to comply with the LEV-II (Low Emission Vehicle-II) evaporative emission regulation which is implemented by CARB (California Air Resources Board). Along with this change, the amount of vapor gas that is discharged outside of the vehicle while the vehicle is parked has been reduced considerably. Because of this construction, which is simpler than the previous, the reliability of the system has been improved.

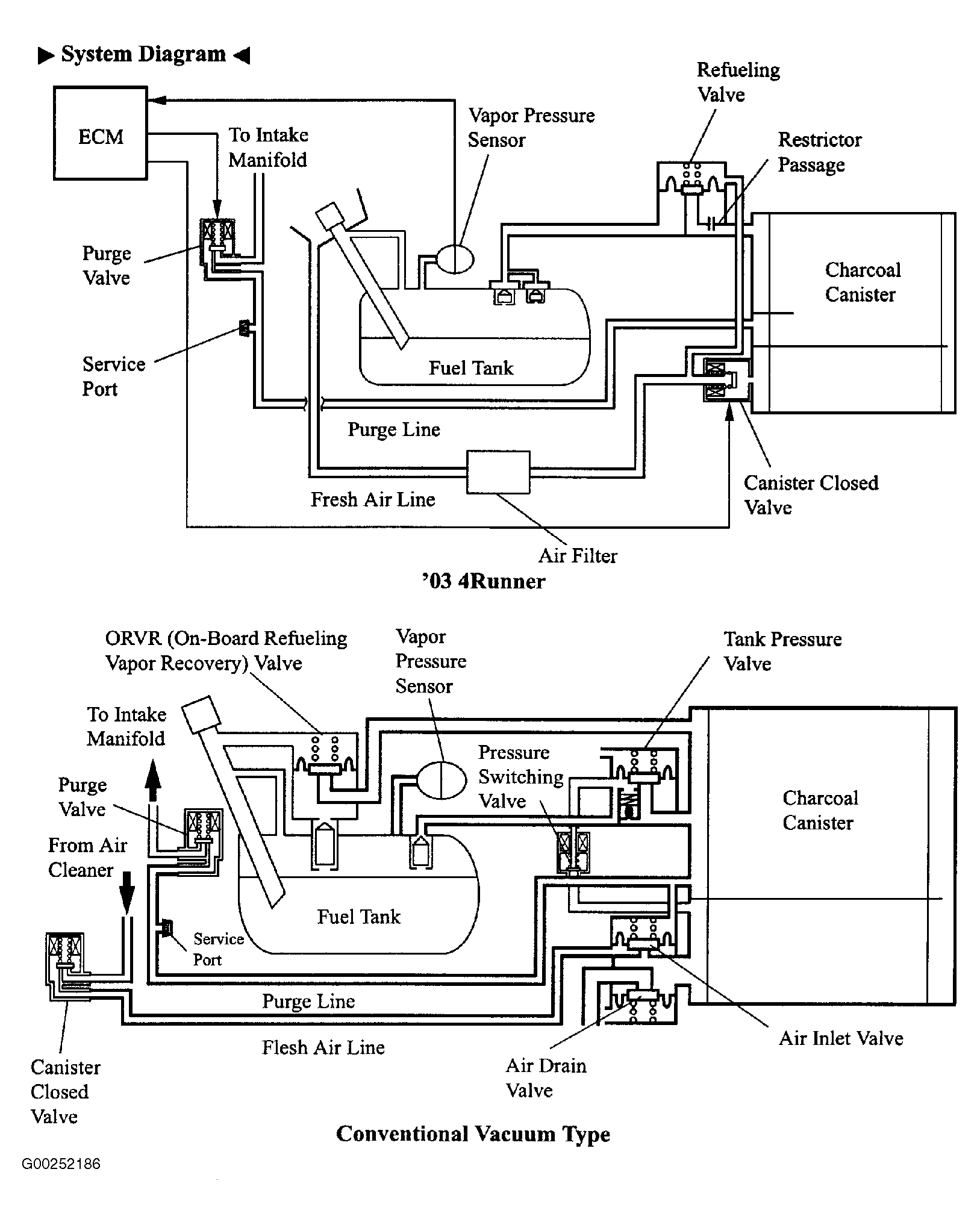

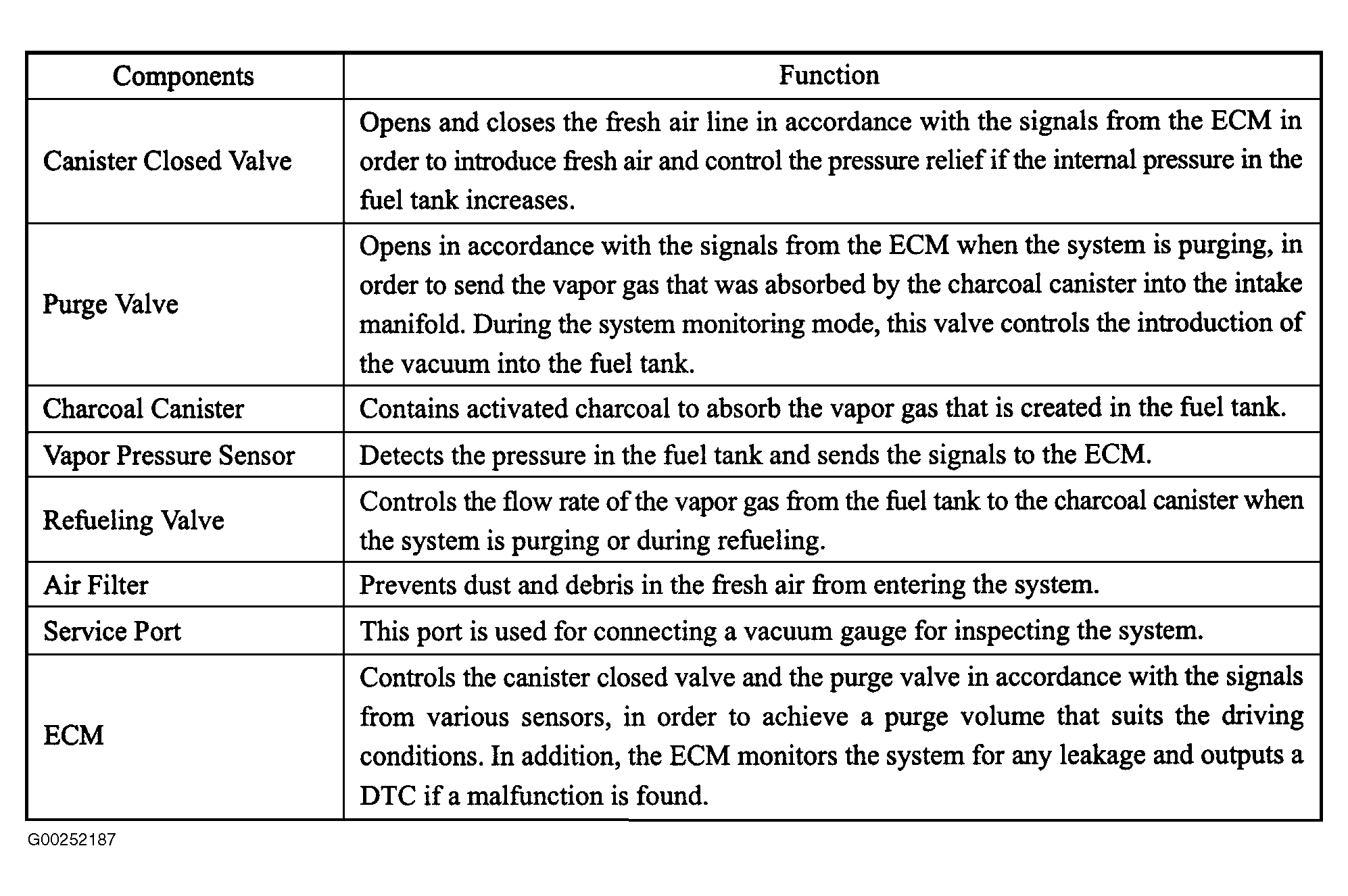

This system consists primarily of a canister closed valve, purge valve, charcoal canister, vapor pressure sensor, refueling valve, and ECM. See Fig 1-Fig 2 .

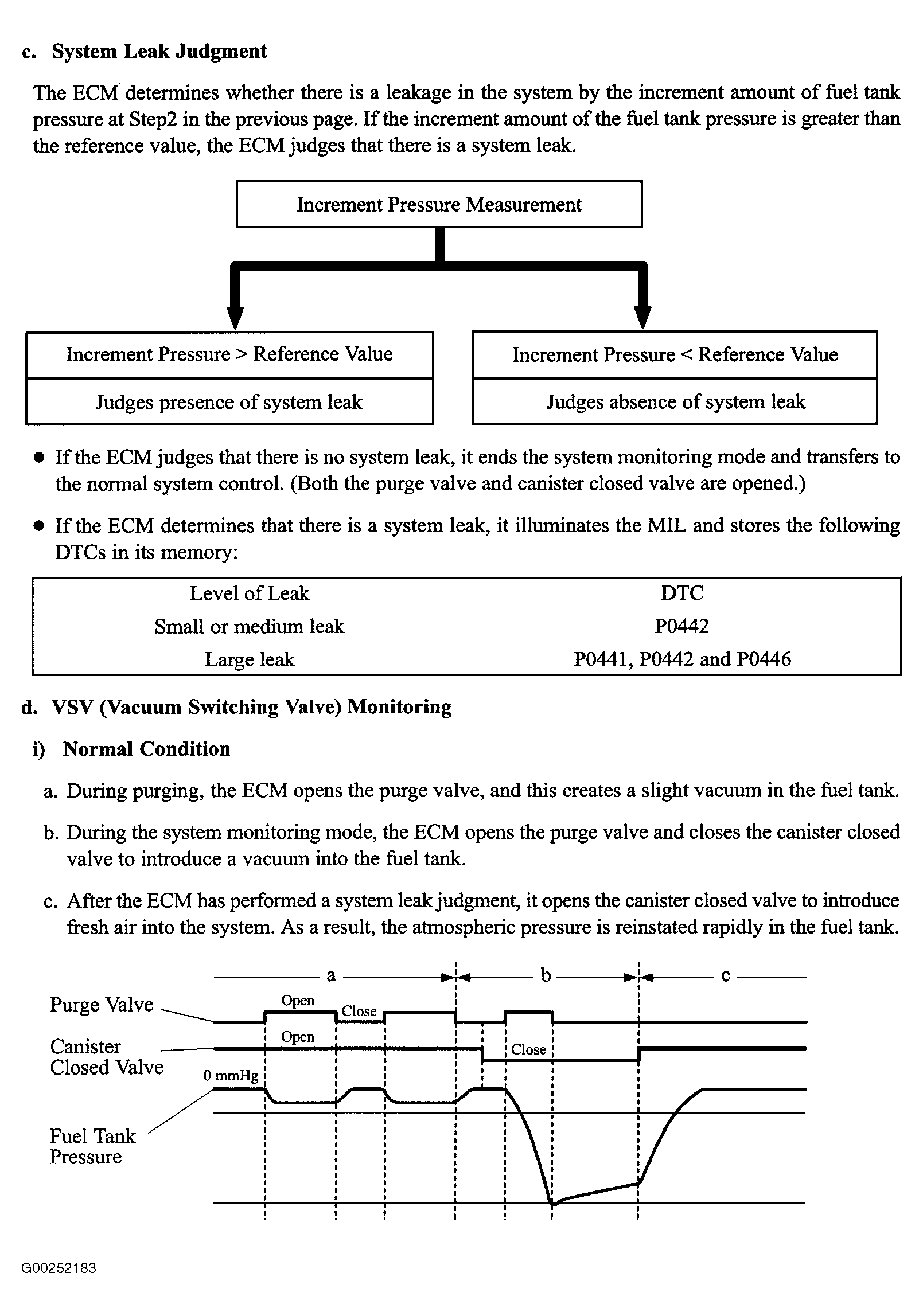

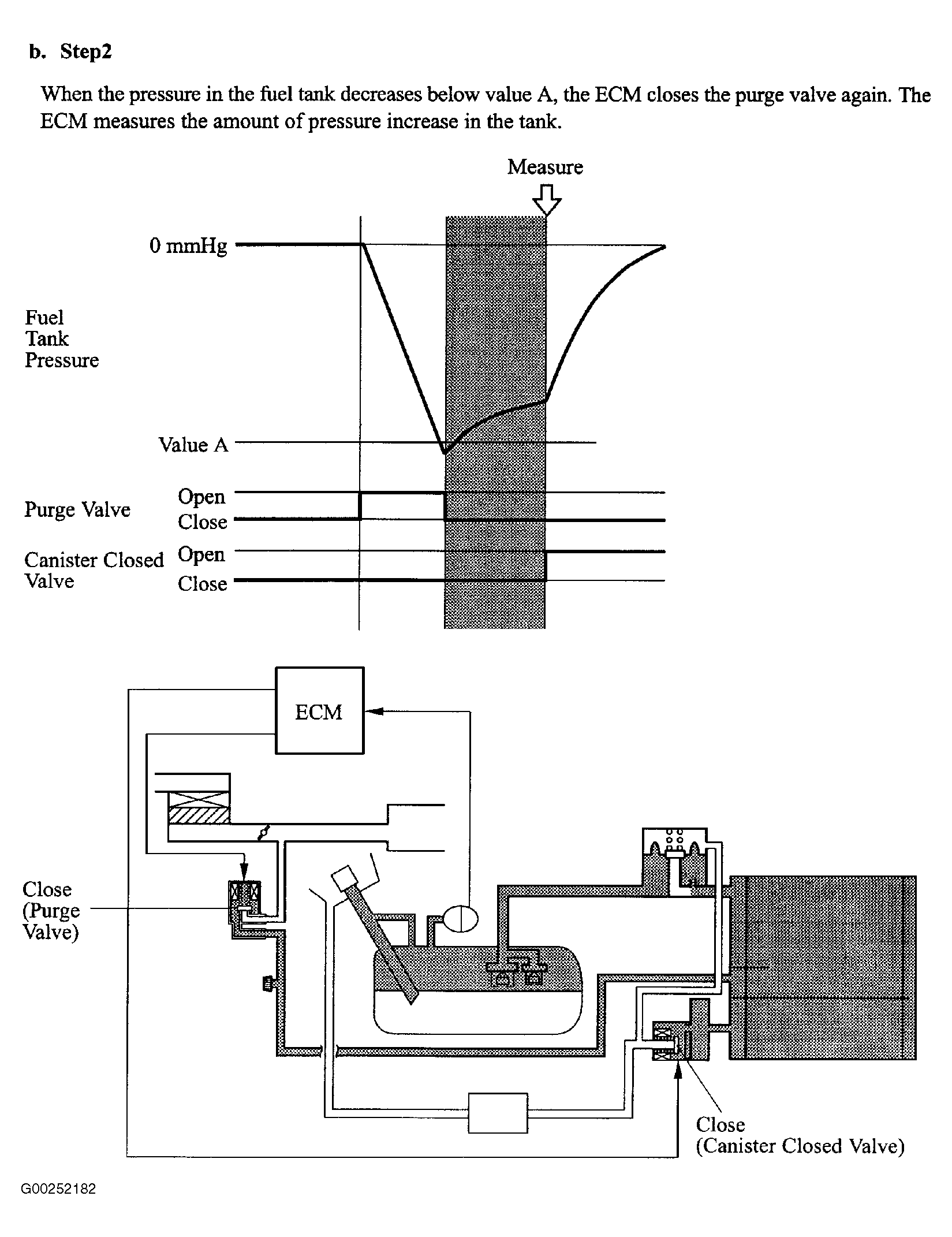

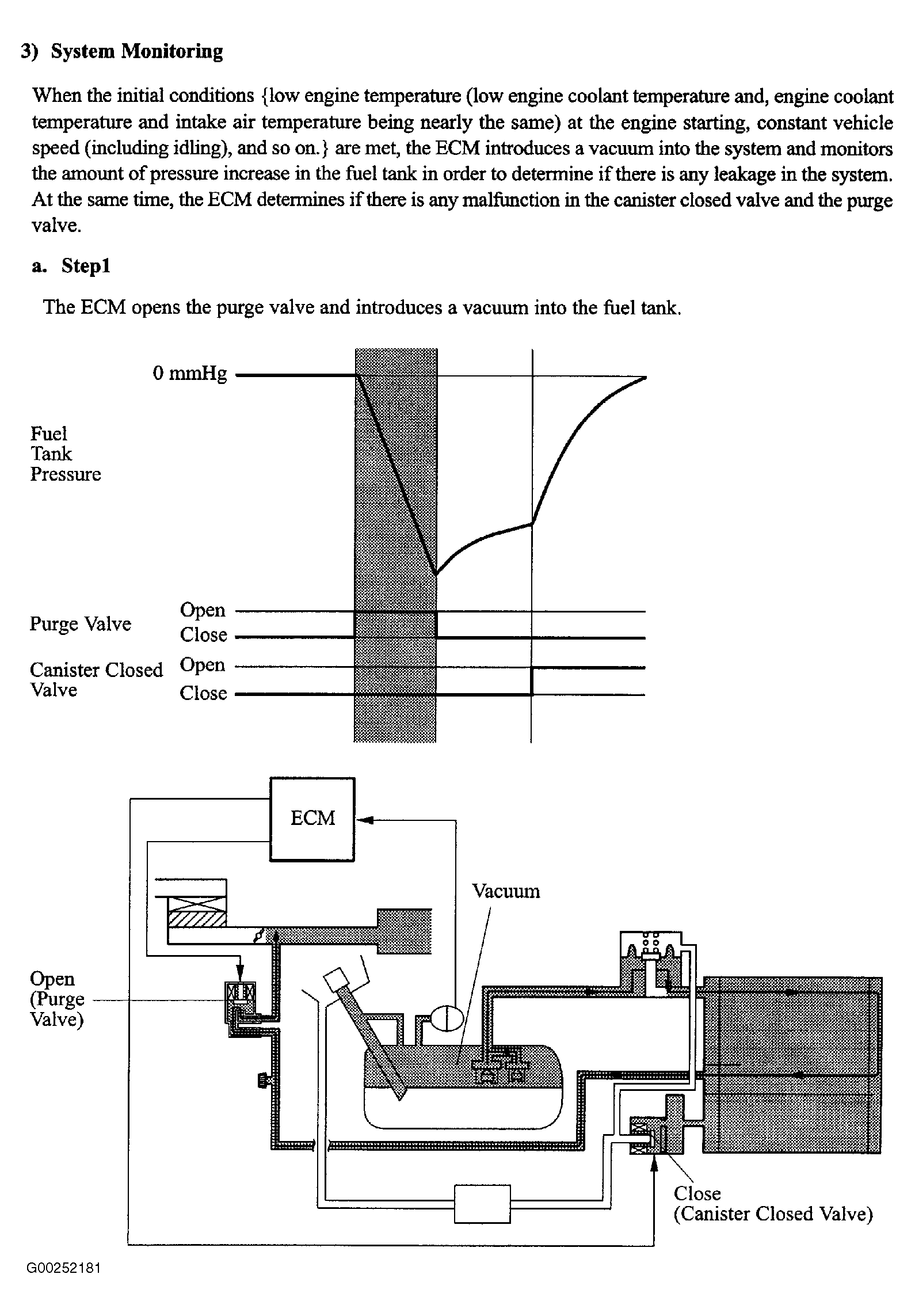

In this system, the ECM monitors the system for malfunctions and outputs DTCs (Diagnostic Trouble Codes) in the event of a malfunction. The detection method is basically the same as the conventional vacuum type that is used on other models. A vacuum is introduced into the system, and the amount of increase in the internal pressure of the fuel tank is monitored in order to detect any leakage in the system.
Listed below are the construction differences between this system and the conventional vacuum type:
- The air drain valve has been discontinued. The air that has been cleaned through the charcoal canister is discharged through the fresh air line. Accordingly, the fresh air inlet has been moved from the air cleaner to a location near the fuel inlet. Furthermore, the pipe diameter of the fresh air line and the flow rate of the canister closed valve have been increased.
- An ORVR (On-board Refueling Vapor Recovery) function has been provided in the refueling valve.

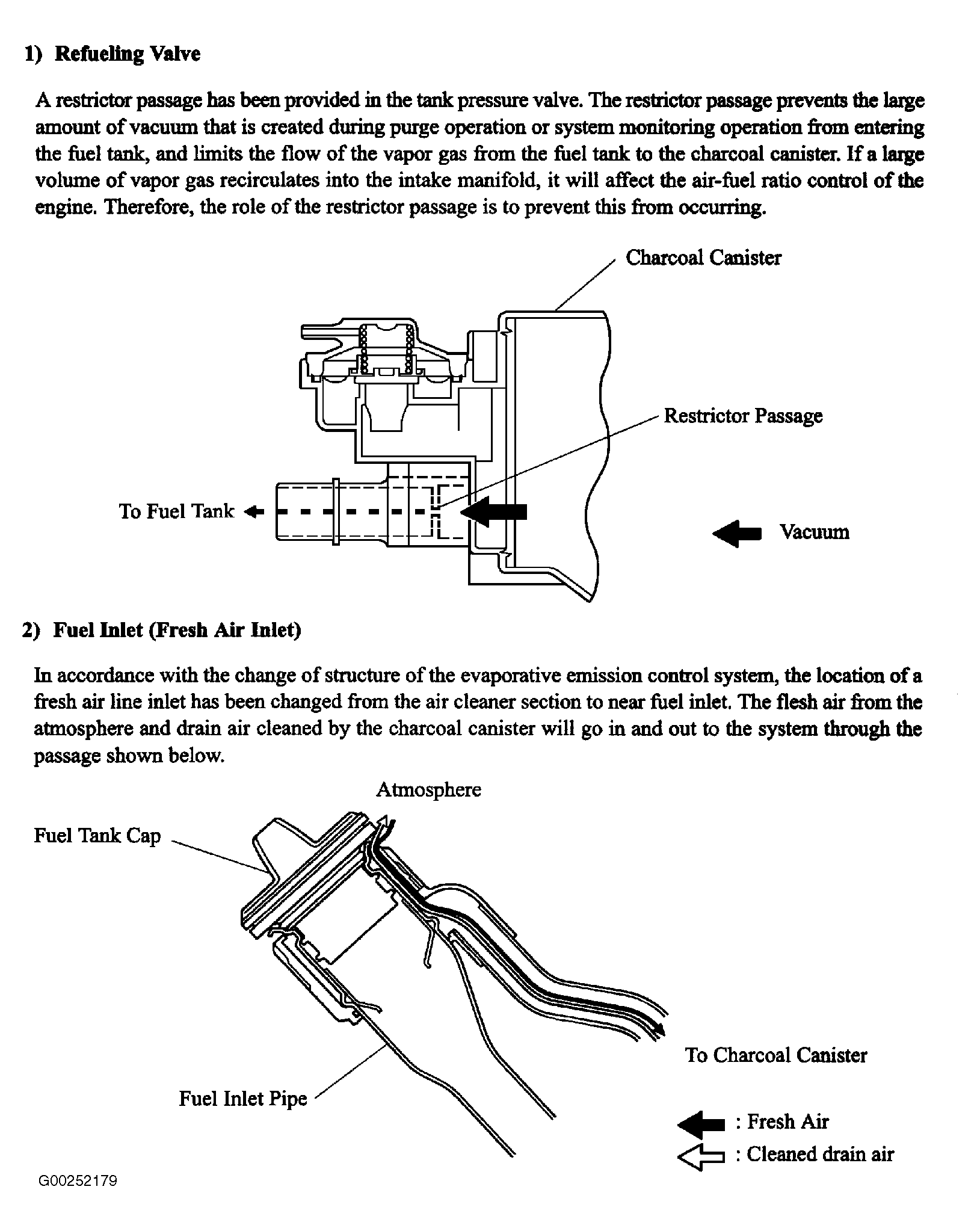

- A restrictor passage has been provided in the refueling valve to prevent the large amount of vacuum during purge operation or system monitoring operation from affecting the pressure in the fuel tank. As a result of this construction, the pressure switching valve has been discontinued.
- An air filter has been added to the fresh air line. See NOTE below.NOTE: The air filter is maintenance-free. If the filter becomes clogged, the ECM will illuminate the MIL (Malfunction Indicator Lamp) and record the DTC number P0446 in its memory.

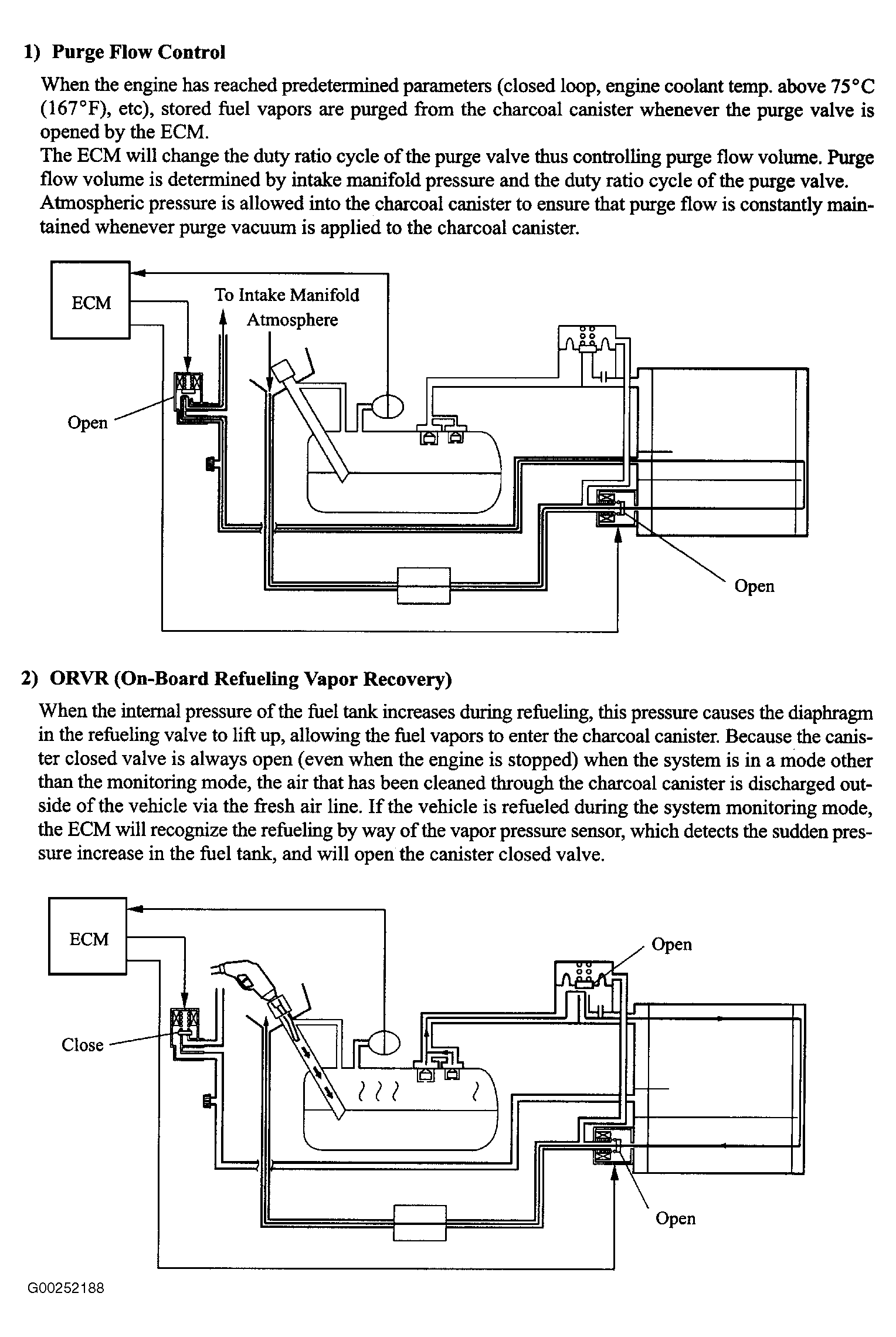

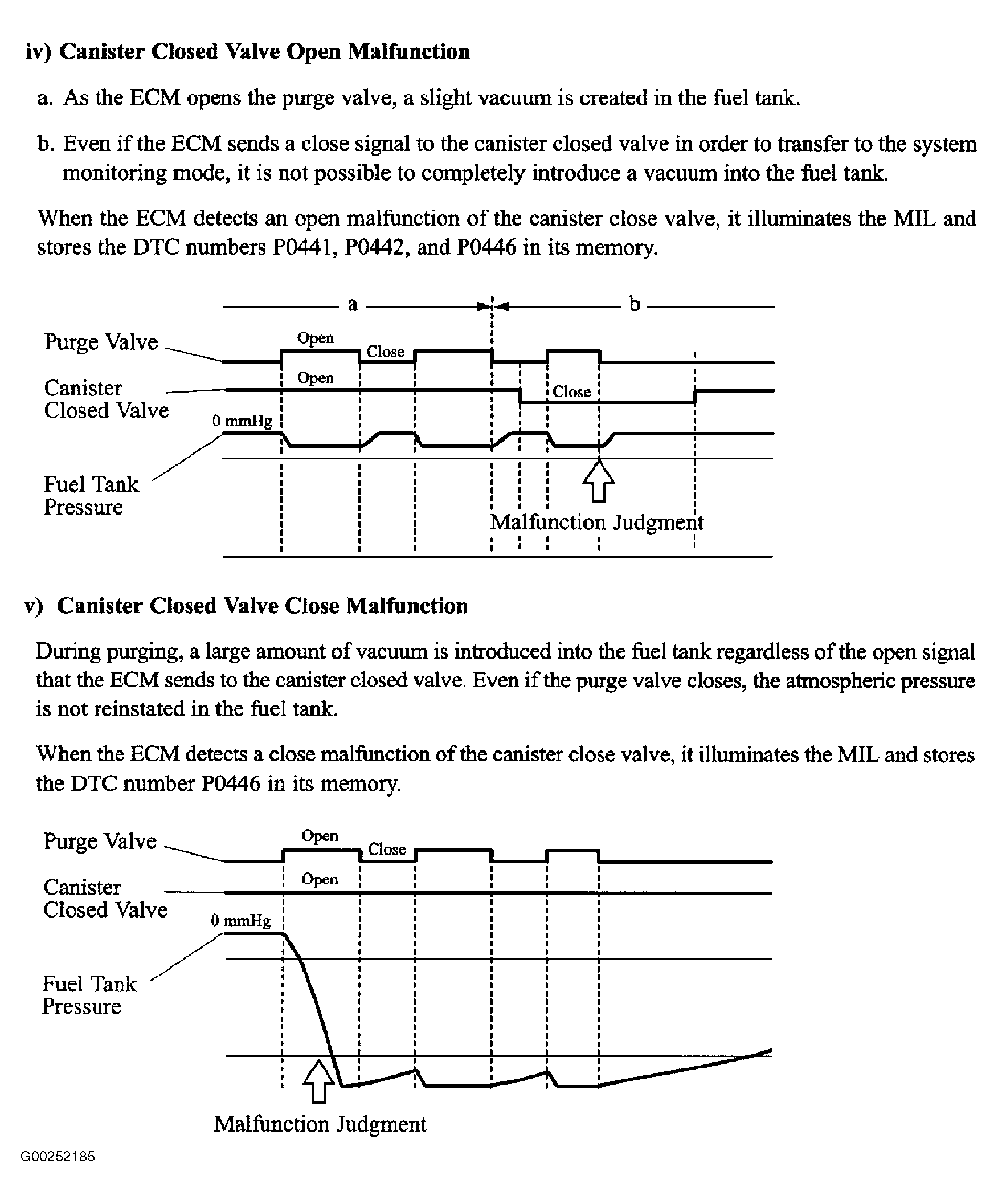

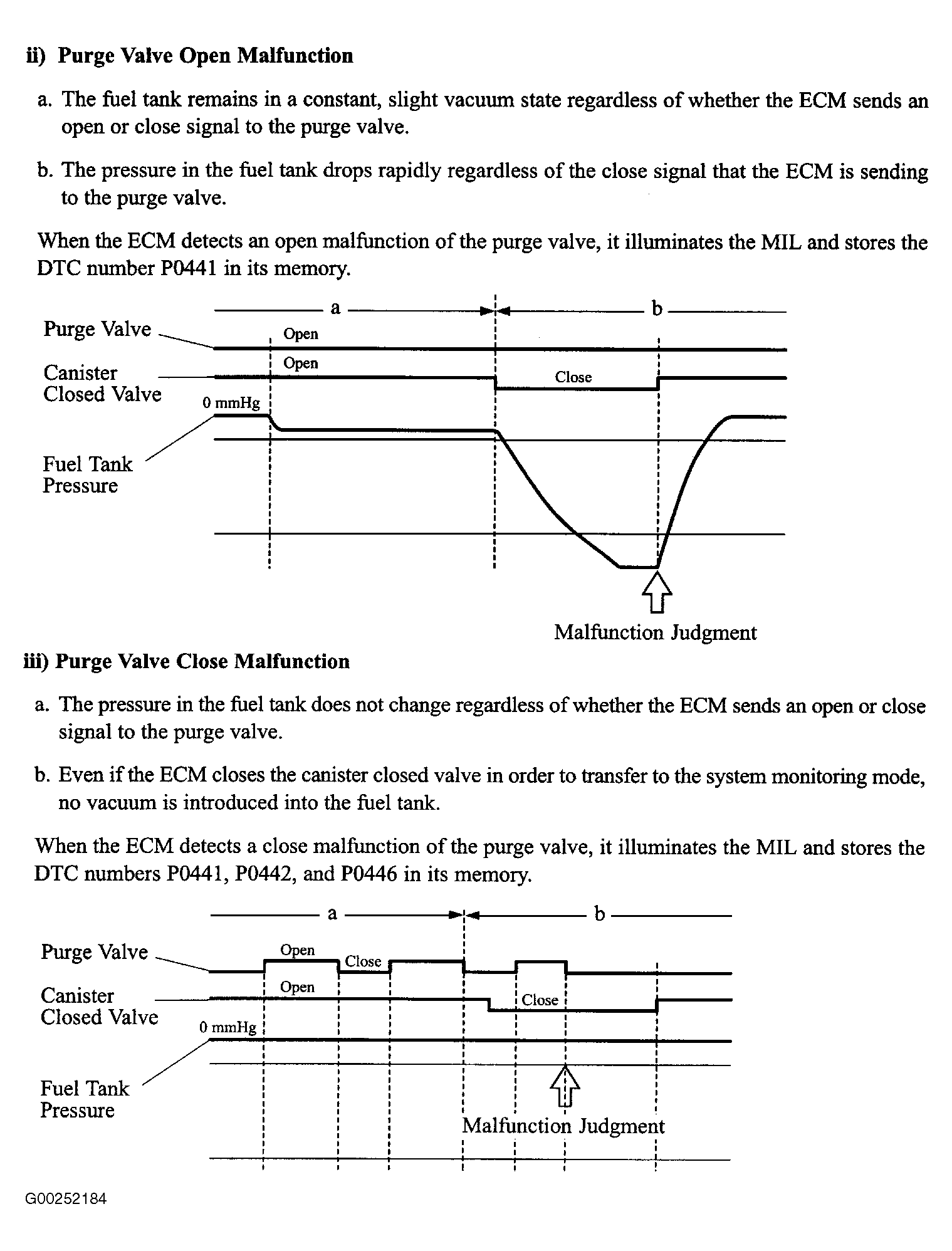

For construction and operation description, see Fig 3- .
For EVAP system and component testing, see FUEL EVAPORATIVE SYSTEM under EMISSION SYSTEMS & SUB-SYSTEMS in appropriate SYSTEM & COMPONENT TESTING - V6 & V8 article.
