Acoustic Control Induction System (ACIS): 4Runner
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2003 Toyota Tundra, 2003 Toyota Tacoma, 2003 Toyota Sienna, 2003 Toyota Sequoia, and 2003 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

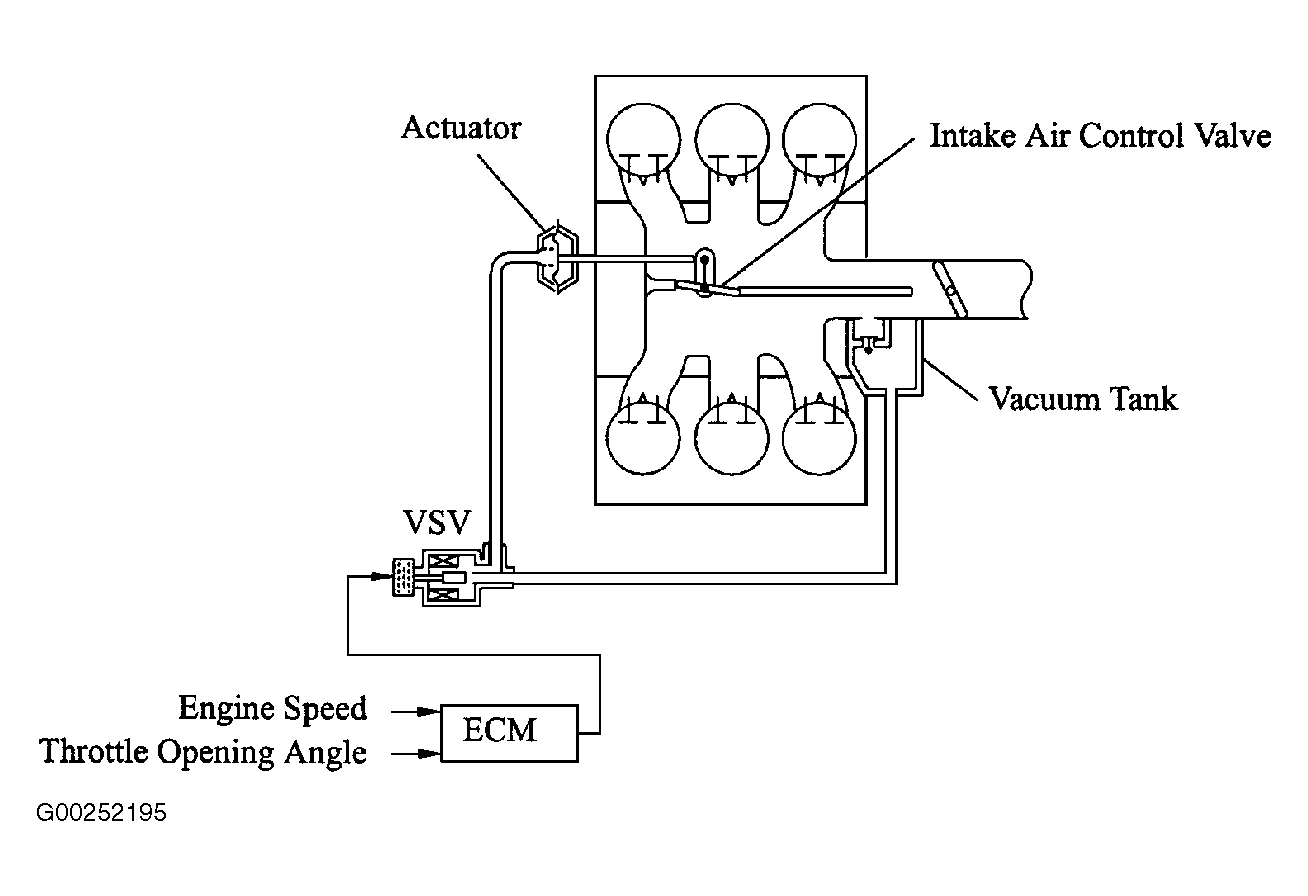

The Acoustic Control Induction System (ACIS) is realized by using a bulkhead to divide the intake manifold into 2 stages, with an intake air control valve in the bulkhead being opened and closed to vary the effective length of the intake manifold in accordance with the engine speed and throttle valve opening angle. See Fig 1. This increases the power output in all ranges from low to high speed.

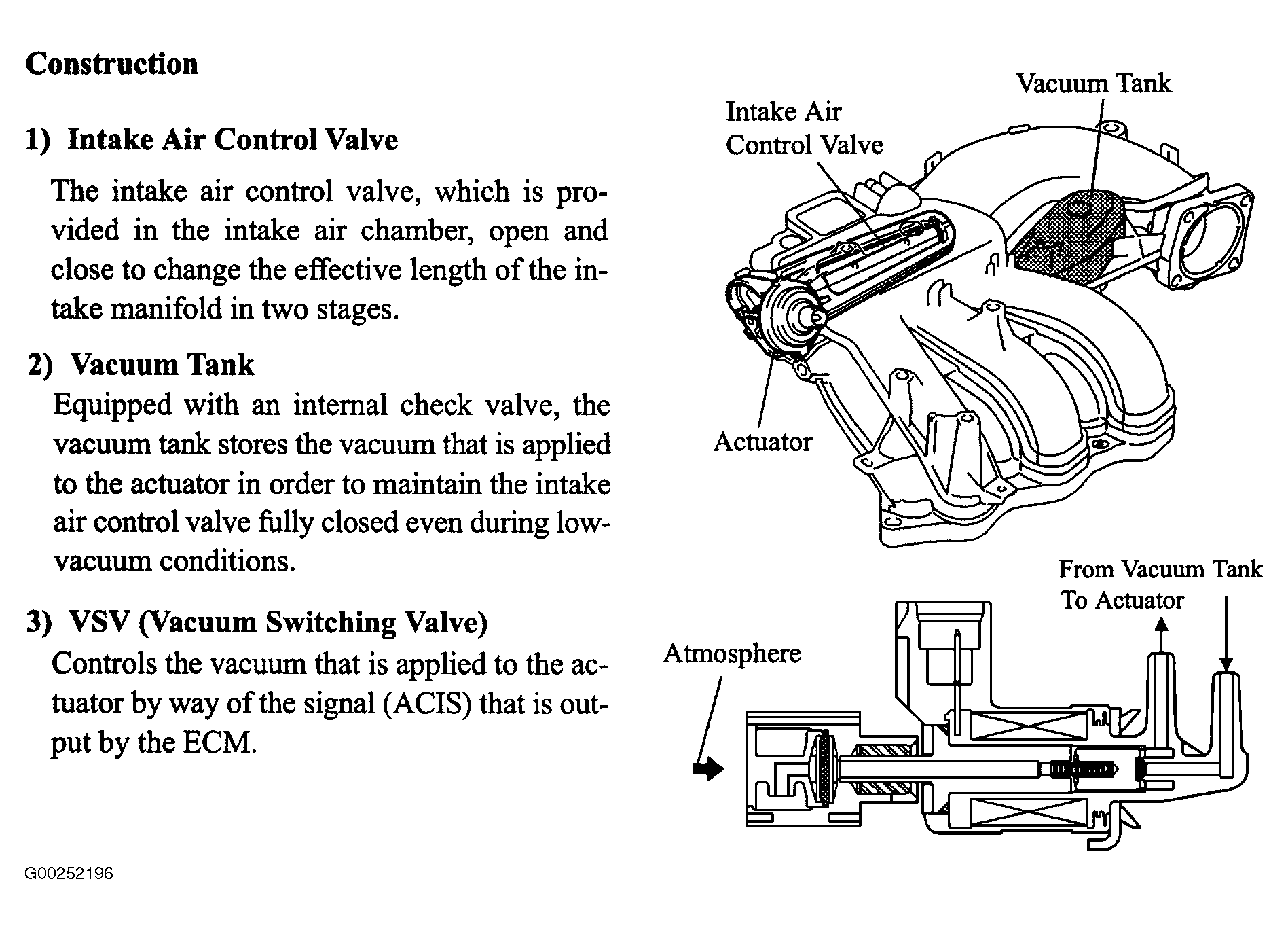

For components and construction of ACIS, see Fig 2.

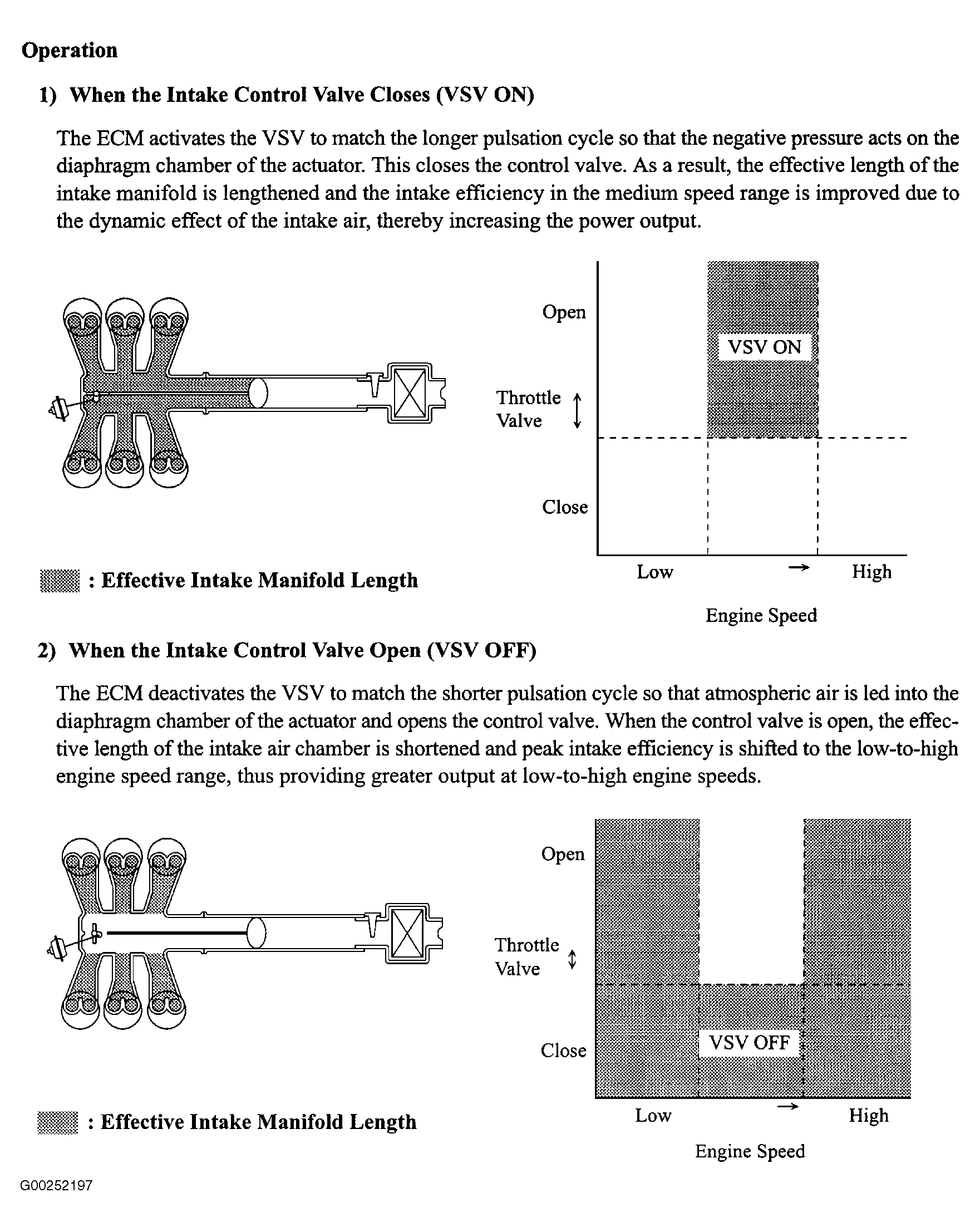

For description of operation, see Fig 3.
