Avalon, Camry Solara, Sienna, Tacoma & Tundra

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2003 Toyota Tundra, 2003 Toyota Tacoma, 2003 Toyota Sienna, 2003 Toyota Sequoia, and 2003 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
  1. Manufacturer does not list procedure for Throttle Position (TP) sensor adjustment. Only information available is for checking resistance of TP sensor.
  2. Disconnect electrical connector from TP sensor. Note electrical terminals on TP sensor. See Fig 1-Fig 4 . Apply vacuum to throttle opener.
  3. Using ohmmeter, check resistance between specified terminals in relation to throttle position. See THROTTLE POSITION SENSOR RESISTANCE  table. Replace components as necessary if resistance is not within specification.
THROTTLE POSITION SENSOR RESISTANCE (V6)

Application Throttle Position Terminals Ohms
Avalon (1)
Fully Closed VTA & E2 200-6300
Fully Open VTA & E2 2000-10,200
(2) VC & E2 2500-5900
Camry
Fully Closed VTA1 & E2 1800-10,500
Fully Open VTA2 & E2 1800-10,500
(2) VC & E2 1200-3200
Camry Solara (1)
Fully Closed VTA & E2 200-6300
Fully Open VTA & E2 2000-10,200
(2) VC & E2 2500-5900
Highlander
Fully Closed VTA & E2 200-5700
Fully Open VTA & E2 2000-10,200
(2) VC & E2 2500-5000
Sienna (1)
Fully Closed VTA & E2 200-6300
Fully Open VTA & E2 2000-10,200
(2) VC & E2 2500-5900
Tacoma (With ETCS-i) (1)
Fully Closed (3) (3)
Fully Open (3) (3)
(2) VC & E2 1200-3200
Tacoma (Without ETCS-i) (1)
Fully Closed VTA & E2 200-5700
Fully Open VTA & E2 2000-10,200
(2) VC & E2 2500-5900
Tundra (1)
Fully Closed VTA & E2 200-5700
Fully Open VTA & E2 2000-10,200
(2) VC & E2 2500-5900
(1) Apply vacuum to throttle opener before checking TP sensor.
(2) Manufacturer does not state position of throttle position sensor when measuring between terminals E2 and VC.
(3) For inspection of TP sensor on models with ETCS-i, see Fig 5-Fig 10 .
Fig 1: Identifying Throttle Position Sensor Terminals (Avalon)
G99A52829Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Throttle Position Sensor Terminals (Camry Solara)
G97C06282Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Throttle Position Sensor Terminals (Sienna)
G00011353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Identifying Throttle Position Sensor Terminals (Tacoma & Tundra V6)
G96F09531Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

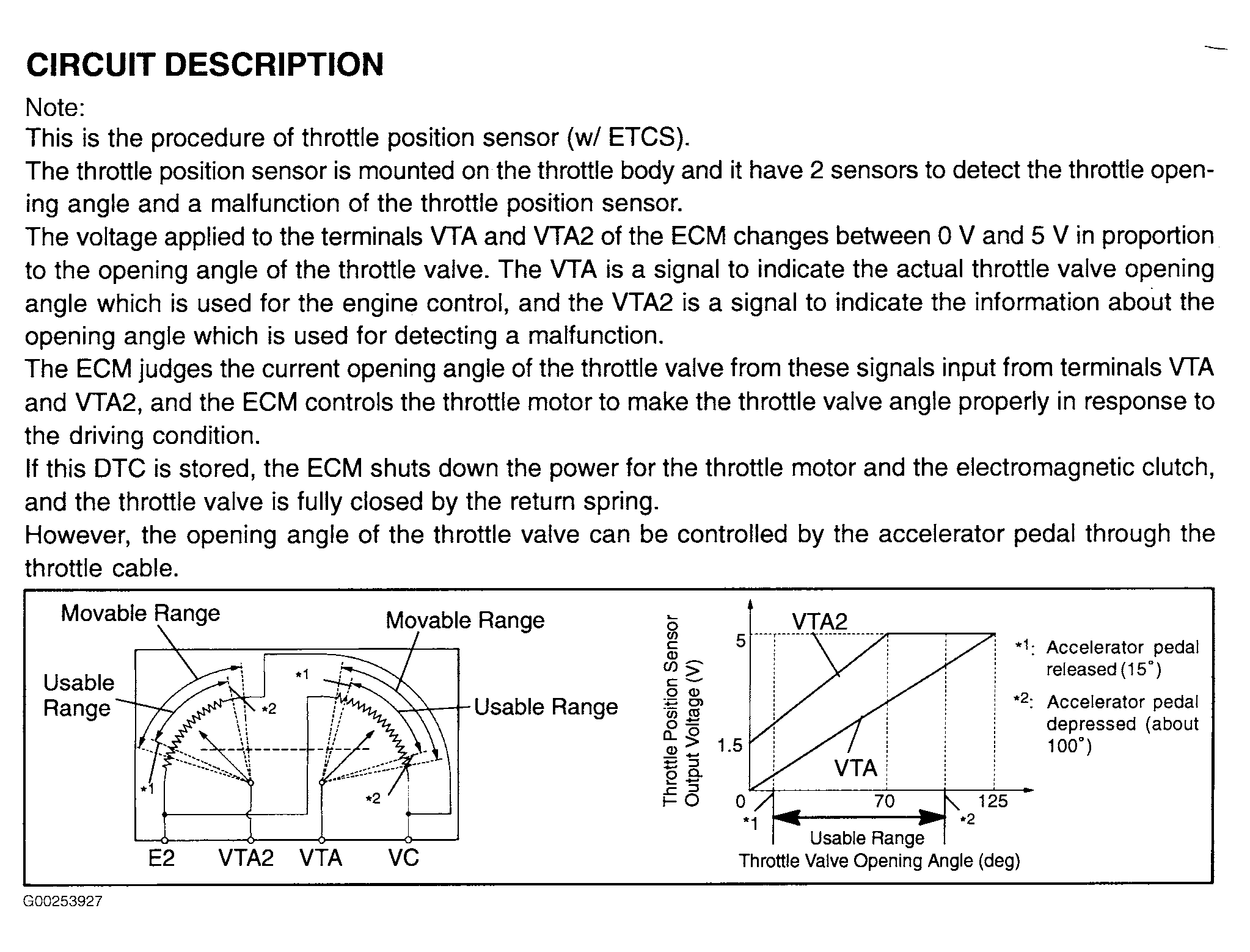

Fig 5: Inspecting Throttle Position Sensor (Tacoma With ETCS-i - Circuit Description)
G00253927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

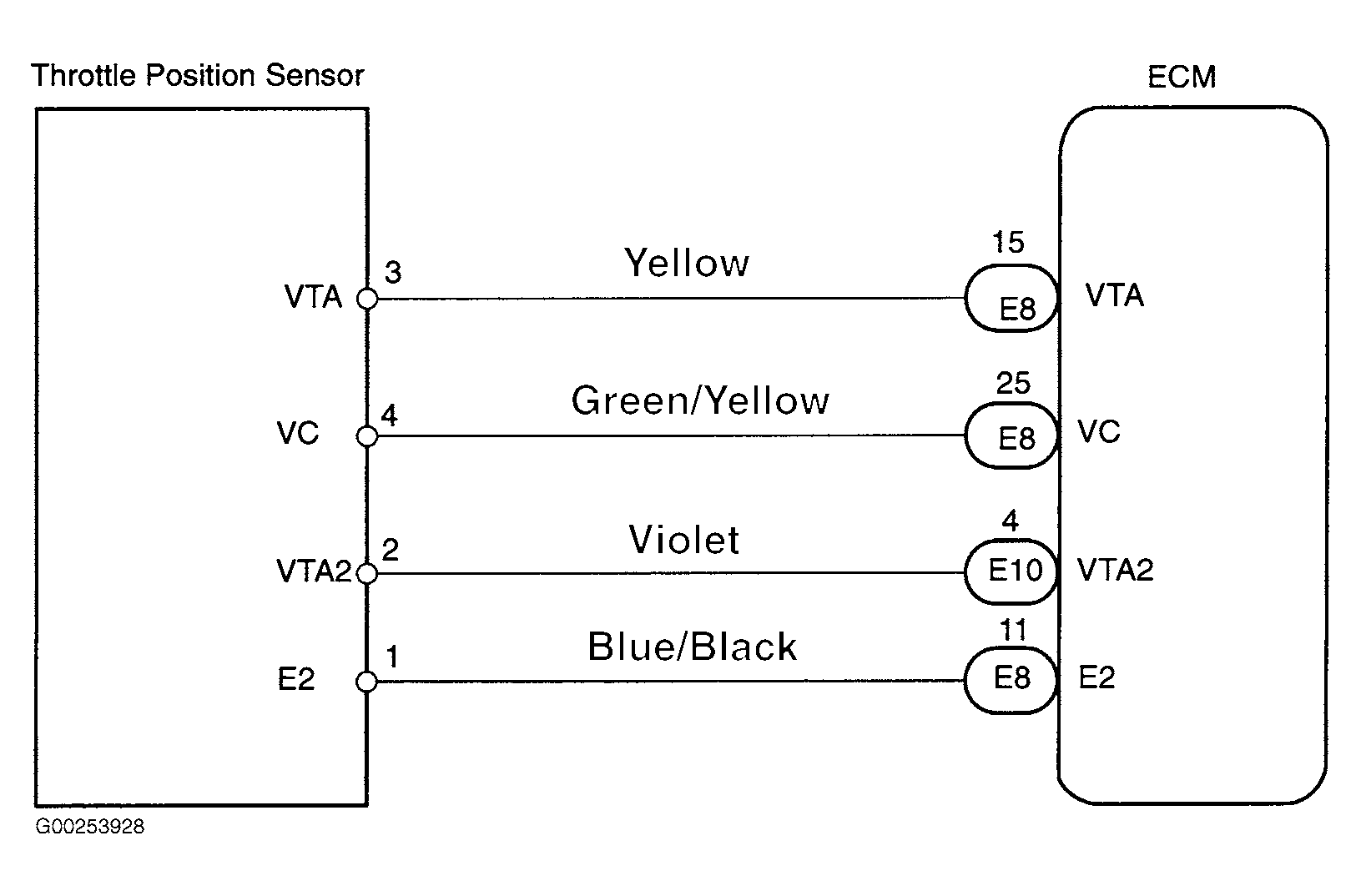

Fig 6: Inspecting Throttle Position Sensor (Tacoma With ETCS-i - Wiring Diagram)
G00253928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

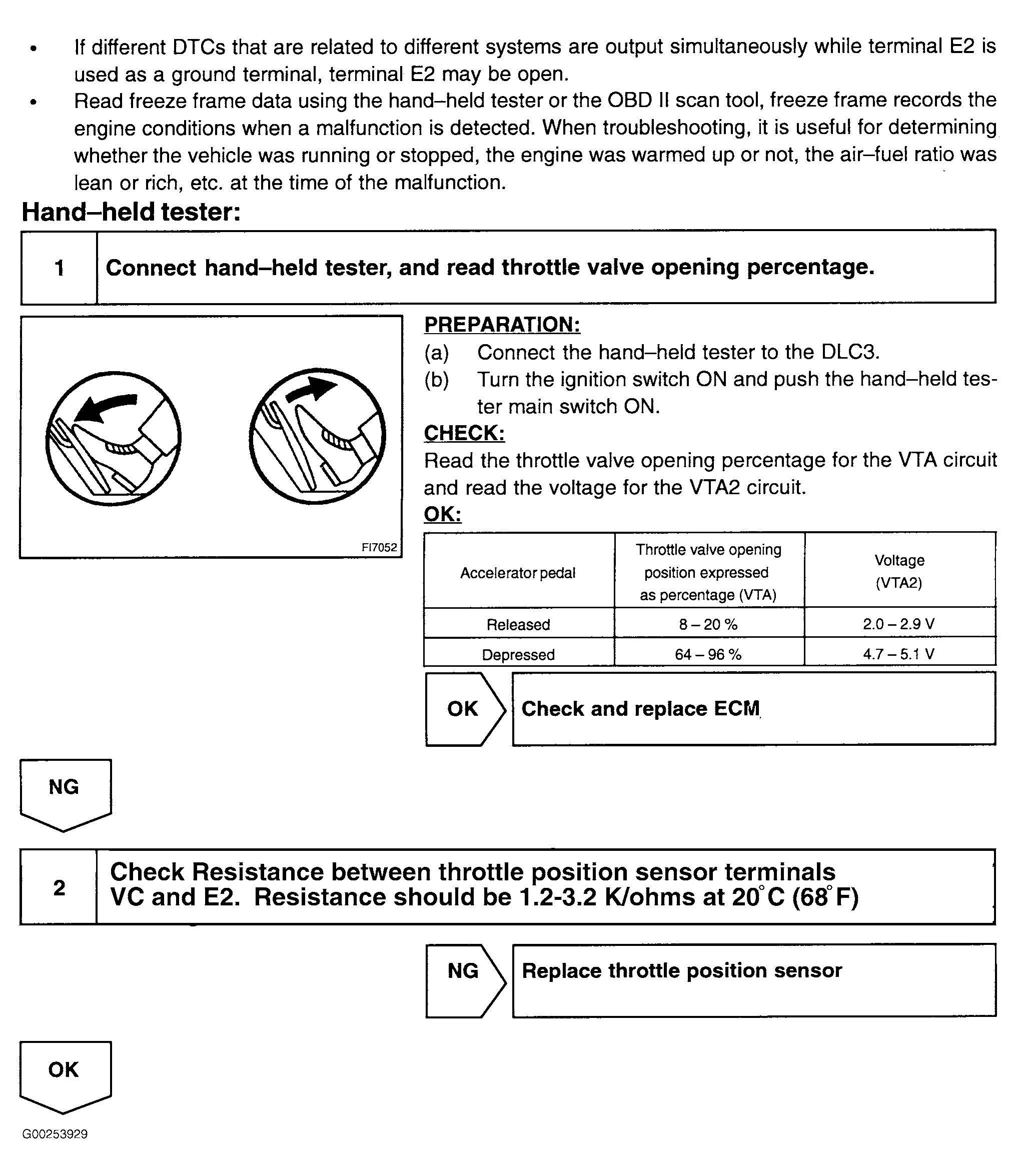

Fig 7: Inspecting Throttle Position Sensor (Tacoma With ETCS-i - Steps 1-2 With Hand-Held Tester)
G00253929Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

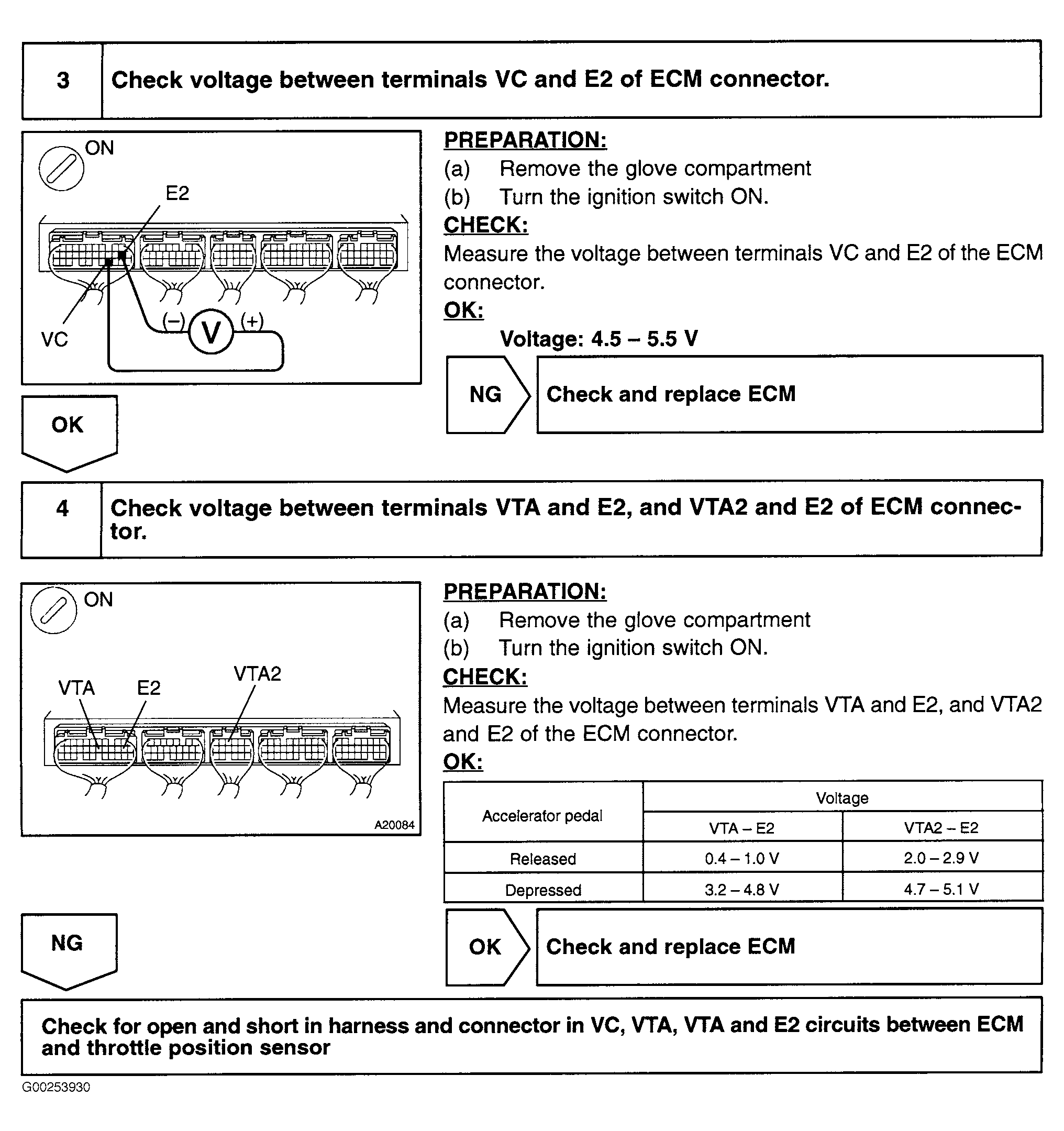

Fig 8: Inspecting Throttle Position Sensor (Tacoma With ETCS-i - Steps 3-4 With Hand-Held Tester)
G00253930Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

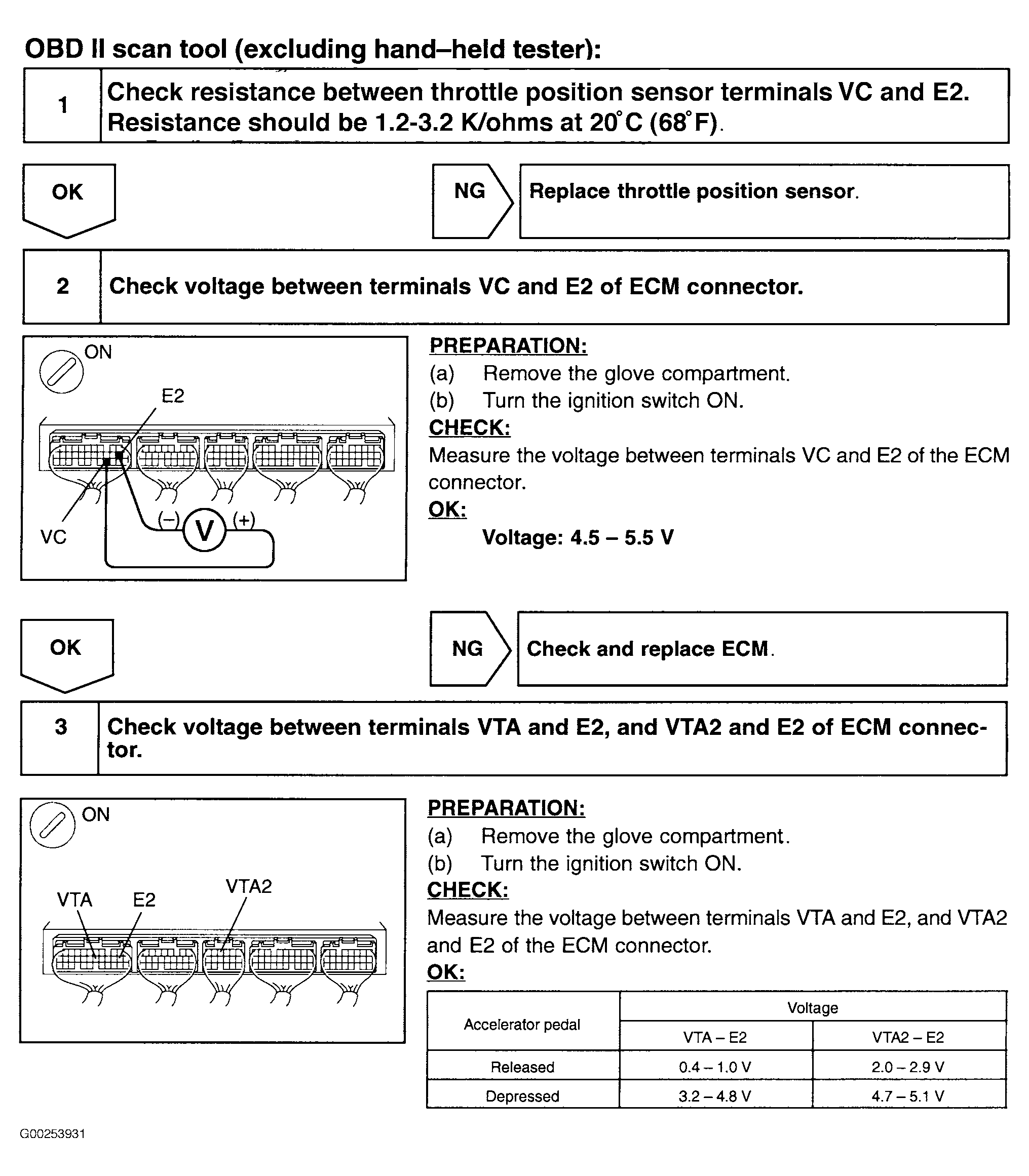

Fig 9: Inspecting Throttle Position Sensor (Tacoma With ETCS-i - Steps 1-3 Without Hand-Held Tester)
G00253931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

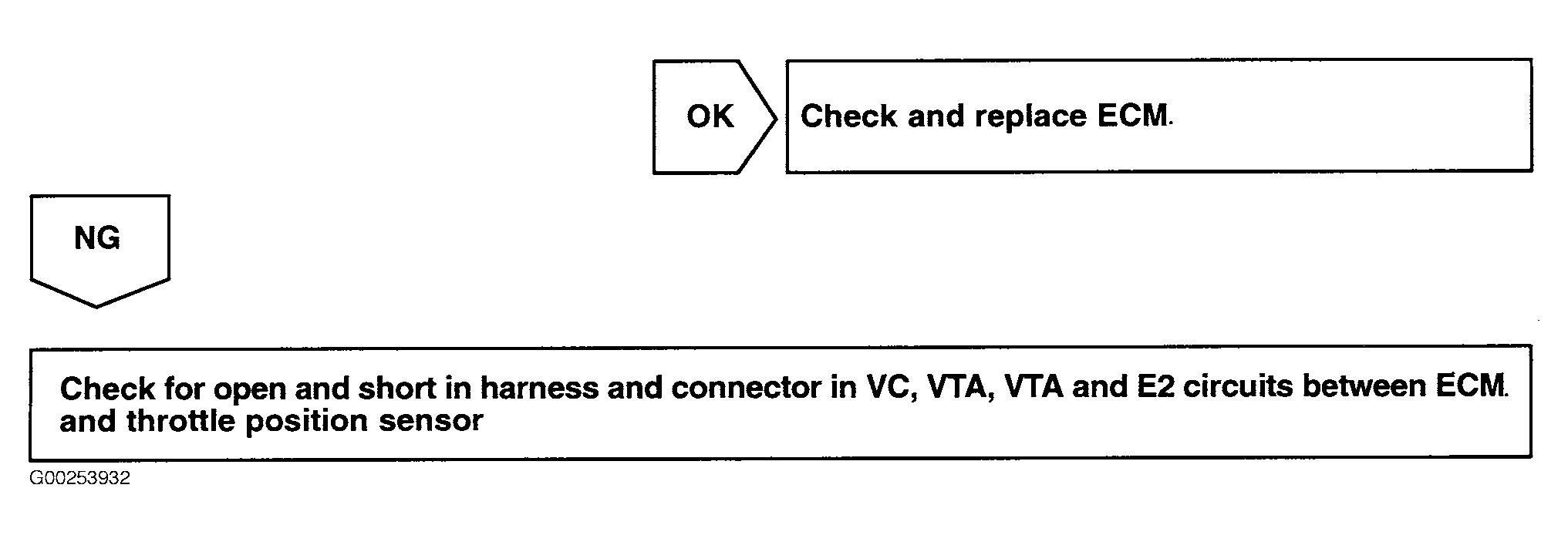

Fig 10: Inspecting Throttle Position Sensor (Tacoma With ETCS-i - Step 3 Cont. Without Hand-Held Tester)
G00253932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
