V8 Valve Clearance: 4Runner

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2003 Toyota Tundra, 2003 Toyota Tacoma, 2003 Toyota Sienna, 2003 Toyota Sequoia, and 2003 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

For valve clearance inspection and adjustment, see Fig 1-Fig 5 .

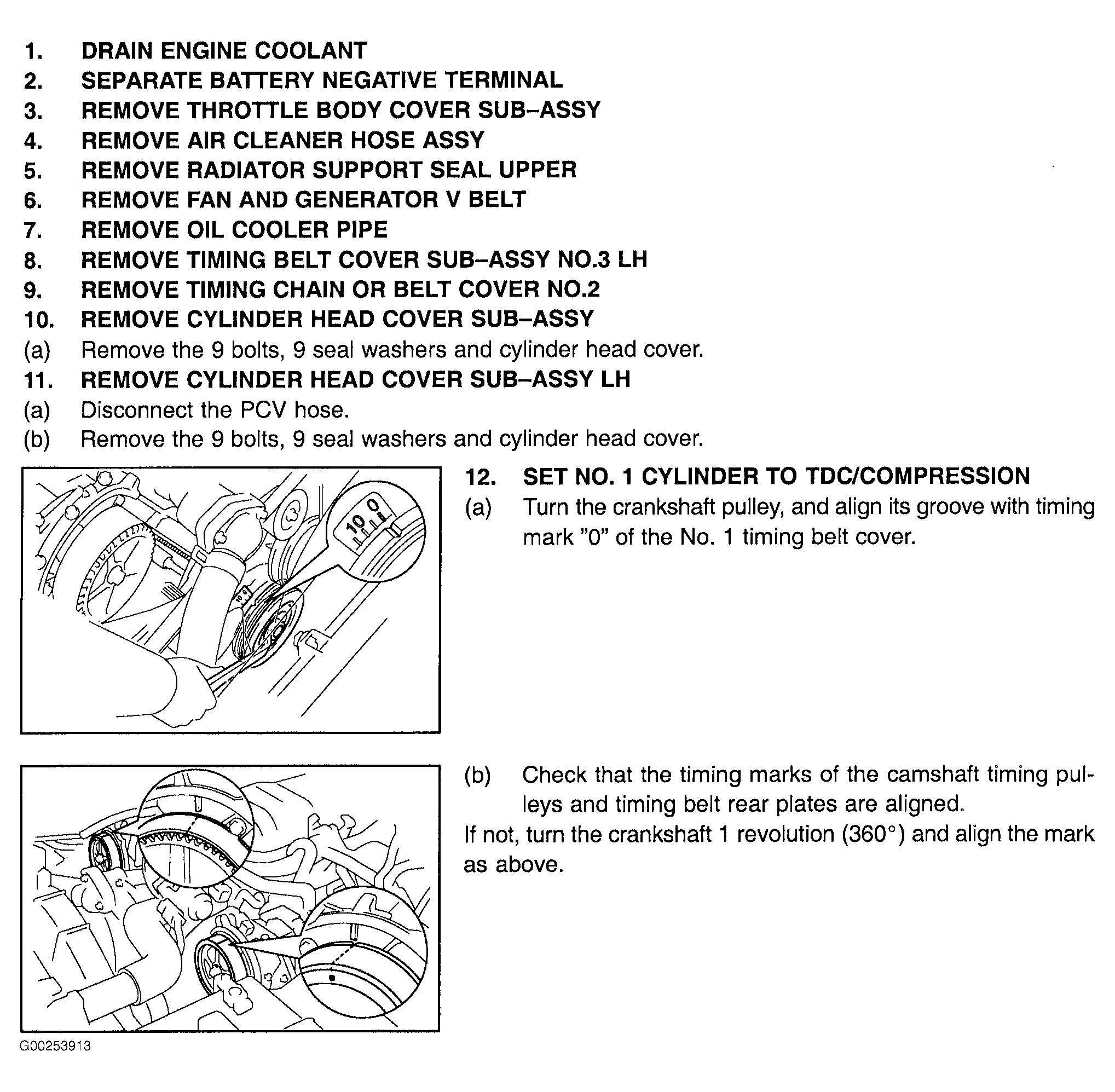

Fig 1: Adjusting Valve Clearance (4Runner V8 Steps 1-12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

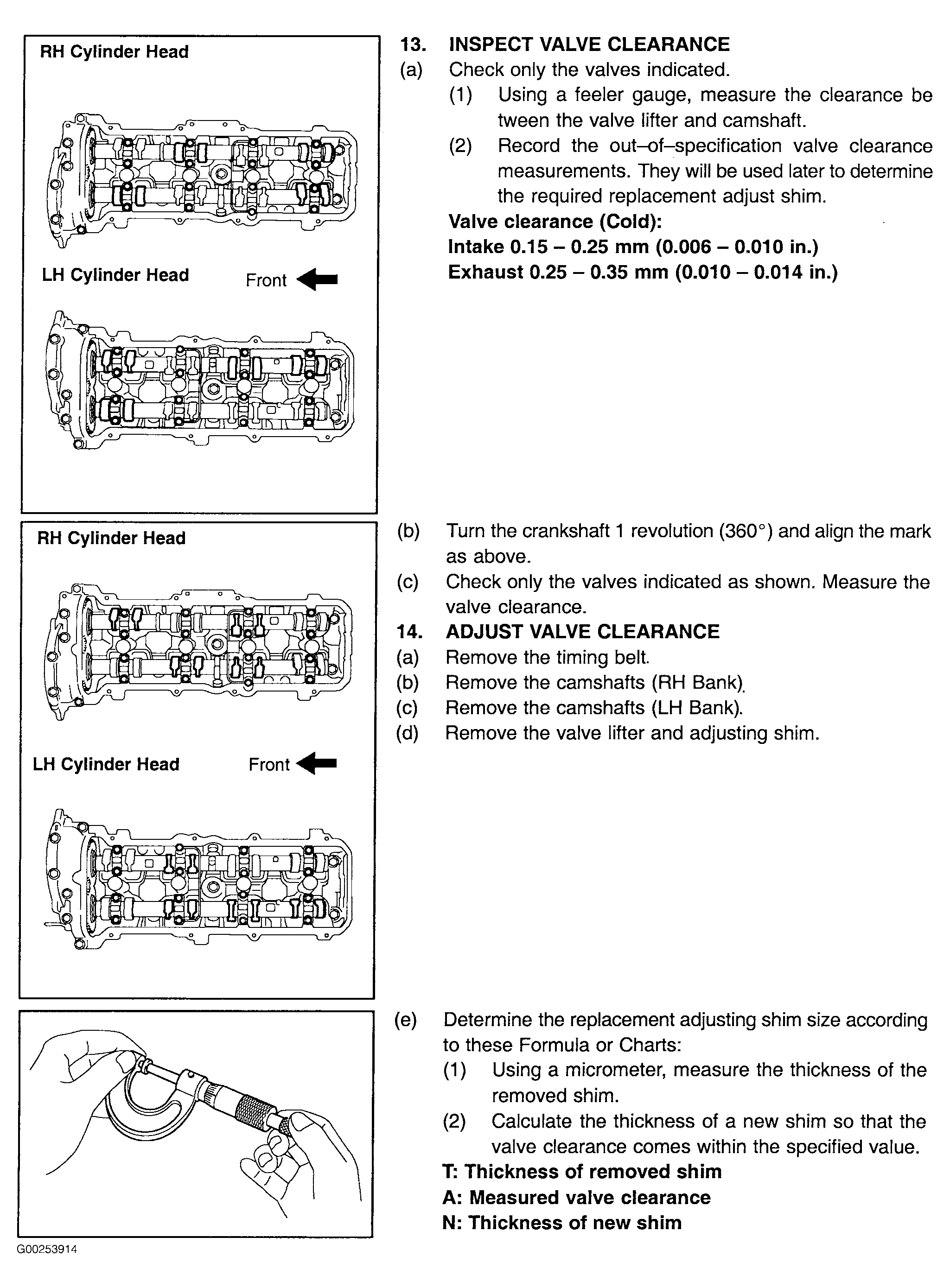

Fig 2: Adjusting Valve Clearance (4Runner V8 Step 13-14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

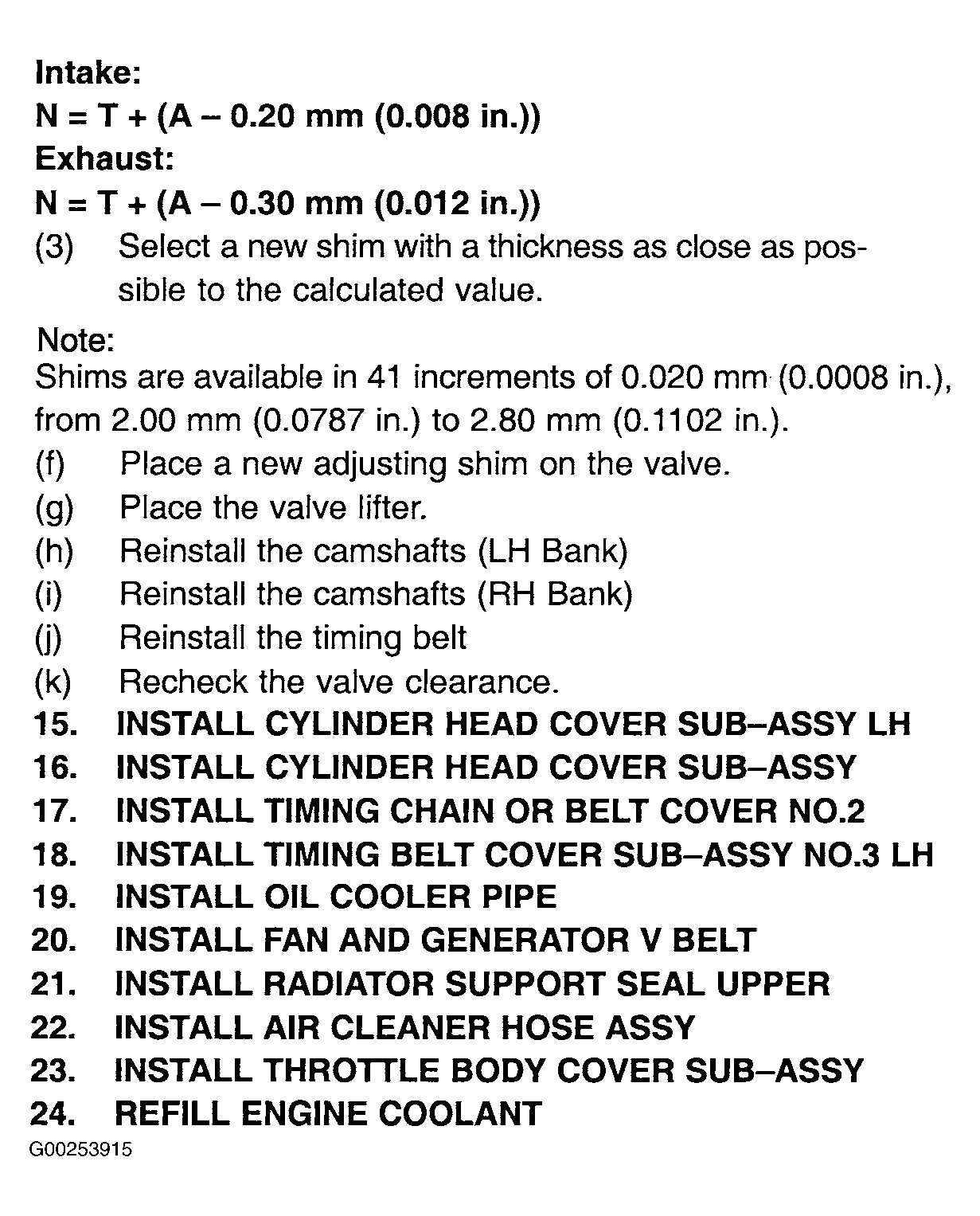

Fig 3: Adjusting Valve Clearance (4Runner V8 Step 15-24)

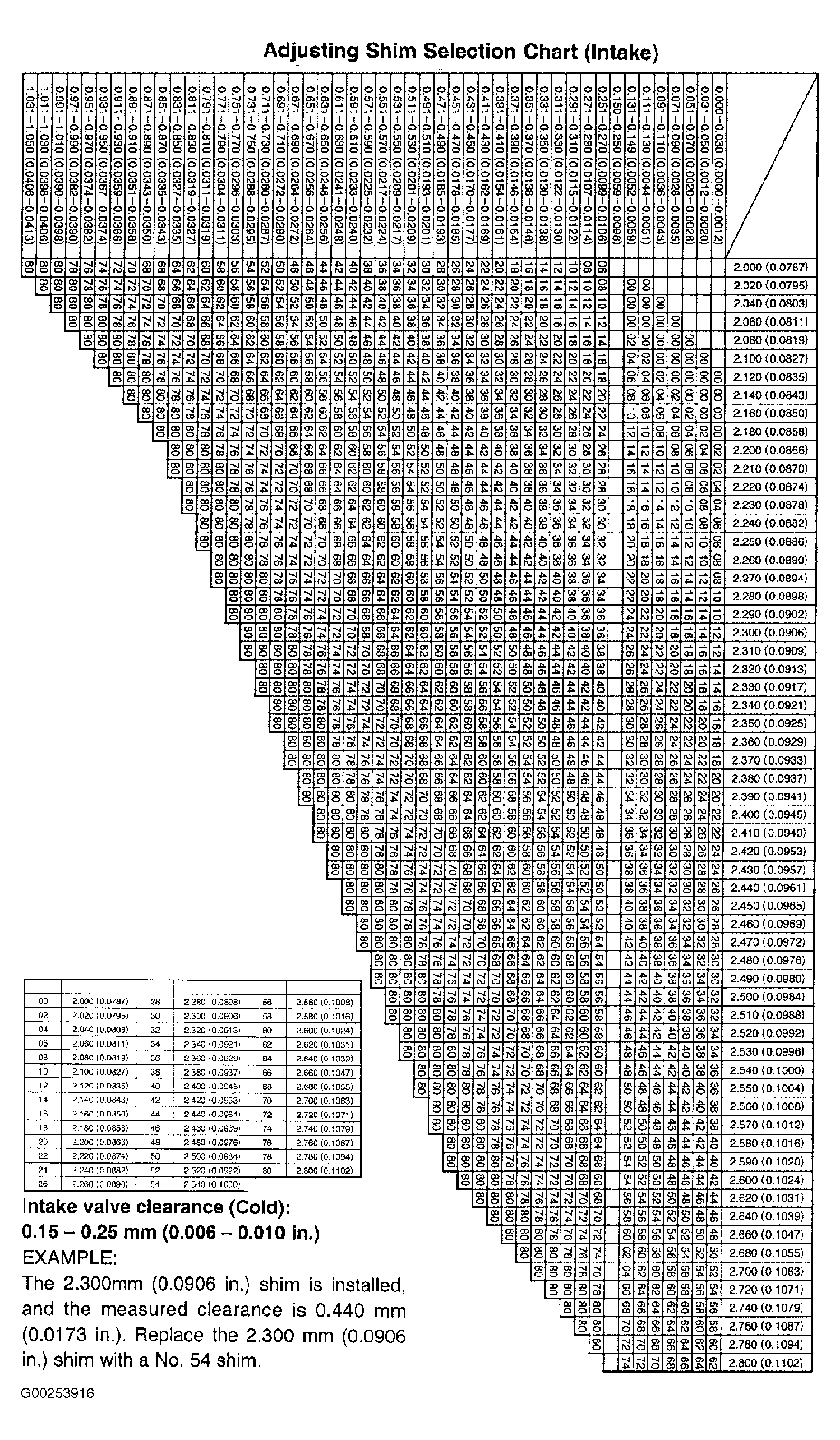

Fig 4: Intake Valve Adjusting Shim Selection Chart (4Runner V8)

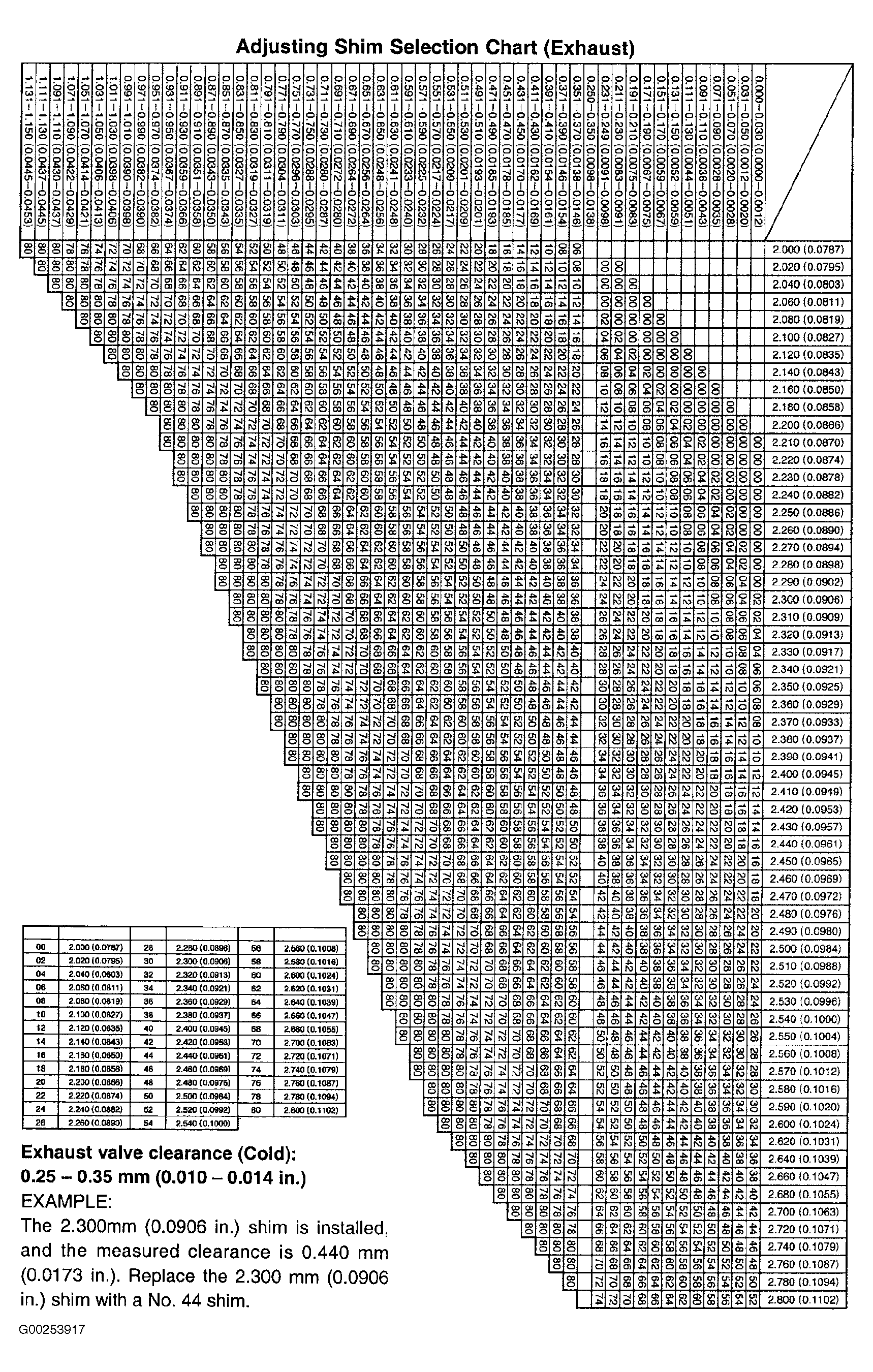

Fig 5: Exhaust Valve Adjusting Shim Selection Chart (4Runner V8)
