V6 Valve Clearance: Highlander

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2003 Toyota Tundra, 2003 Toyota Tacoma, 2003 Toyota Sienna, 2003 Toyota Sequoia, and 2003 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

For valve clearance inspection and adjustment, see Fig 1-Fig 6 .

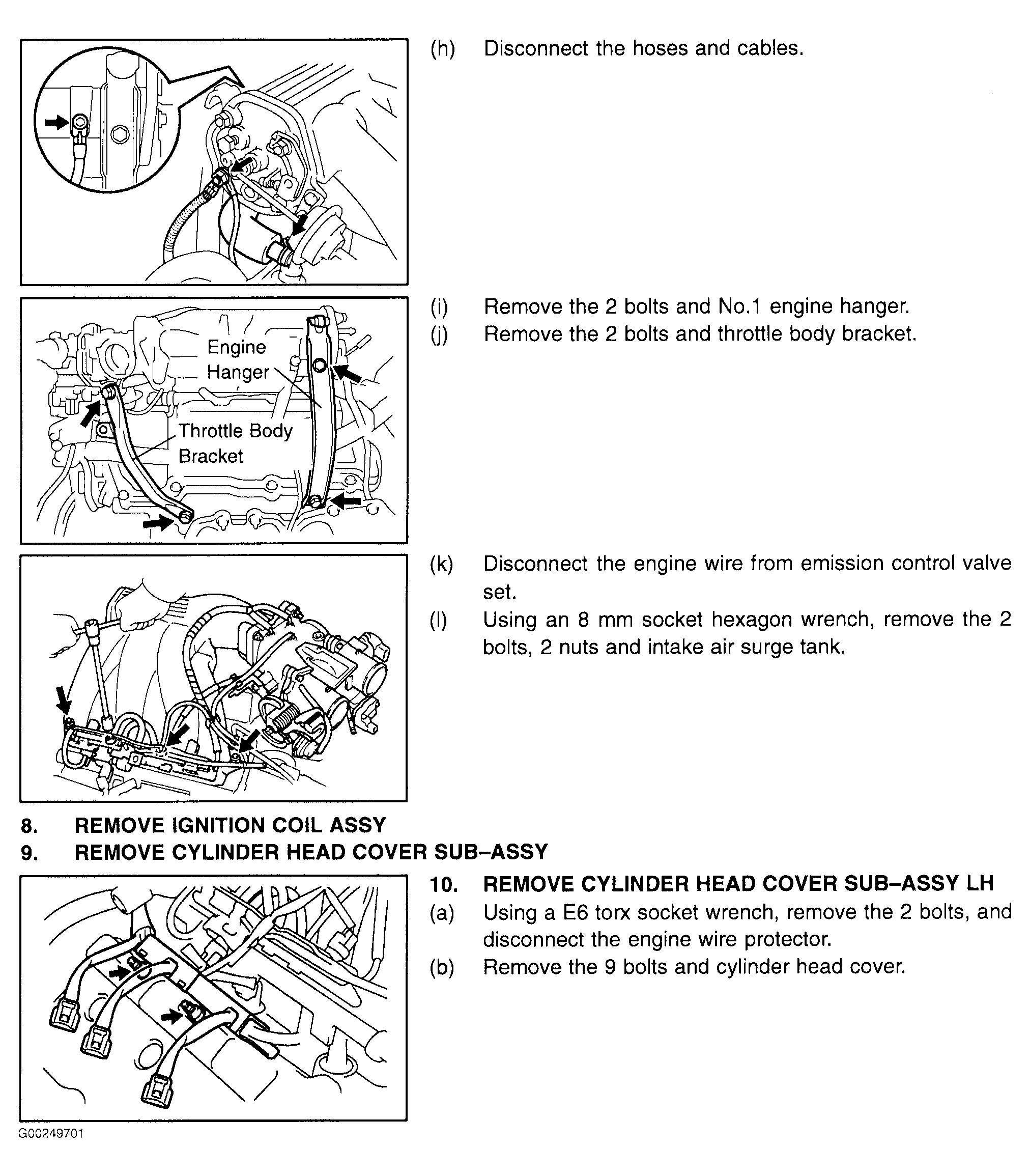

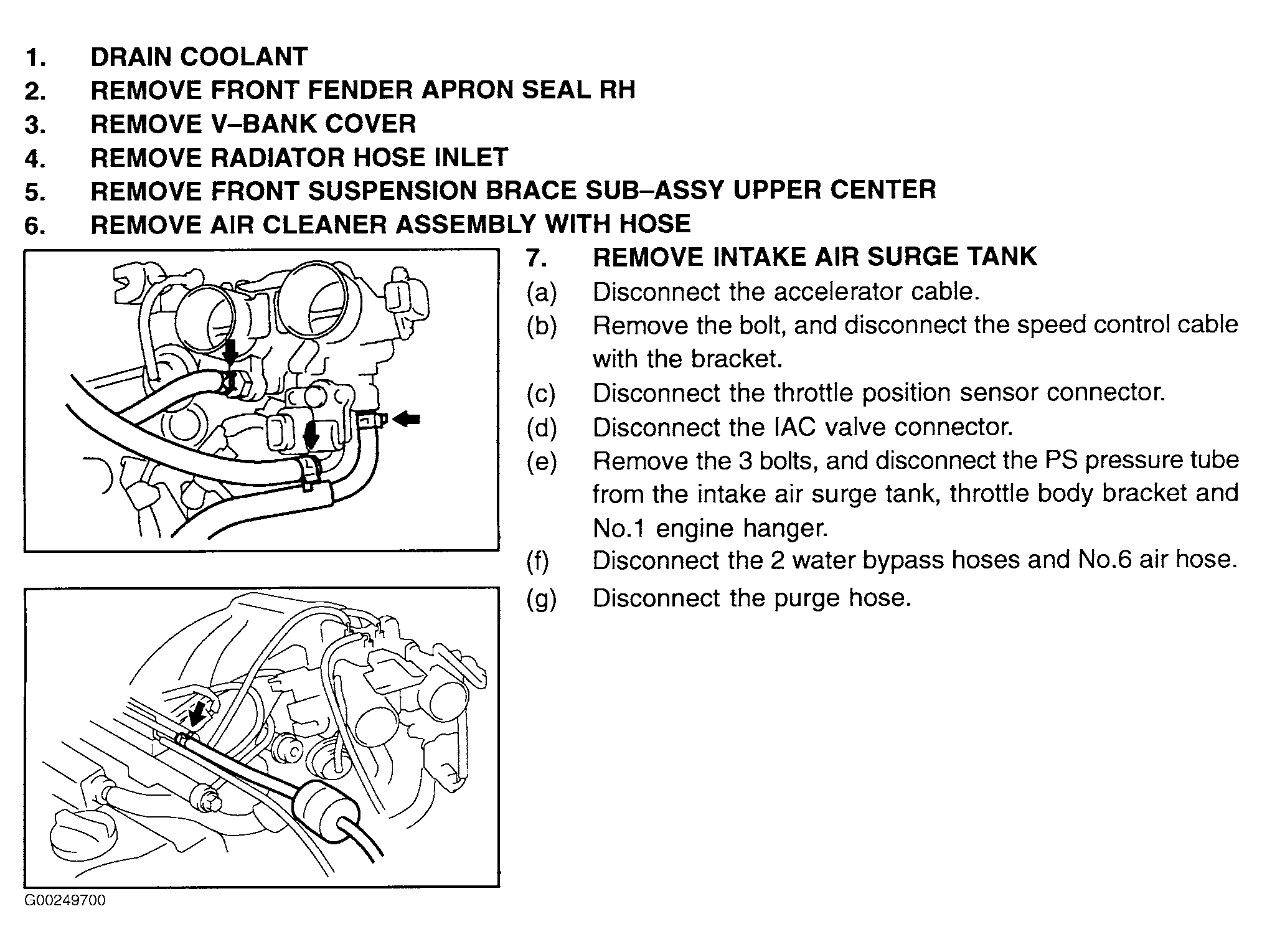

Fig 1: Adjusting Valve Clearance (Highlander Steps 1-7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

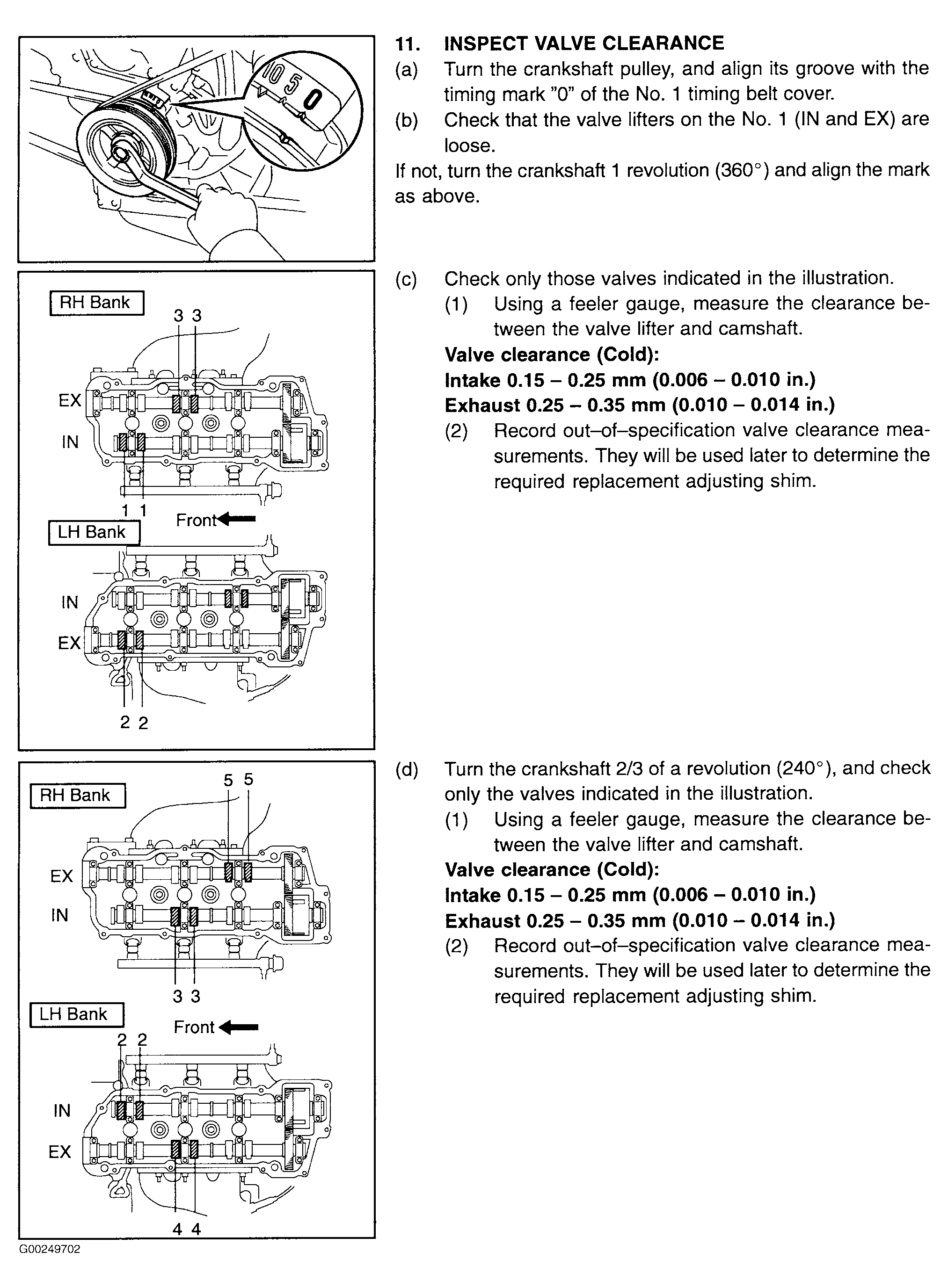

Fig 2: Adjusting Valve Clearance (Highlander Step 7 Cont.-10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

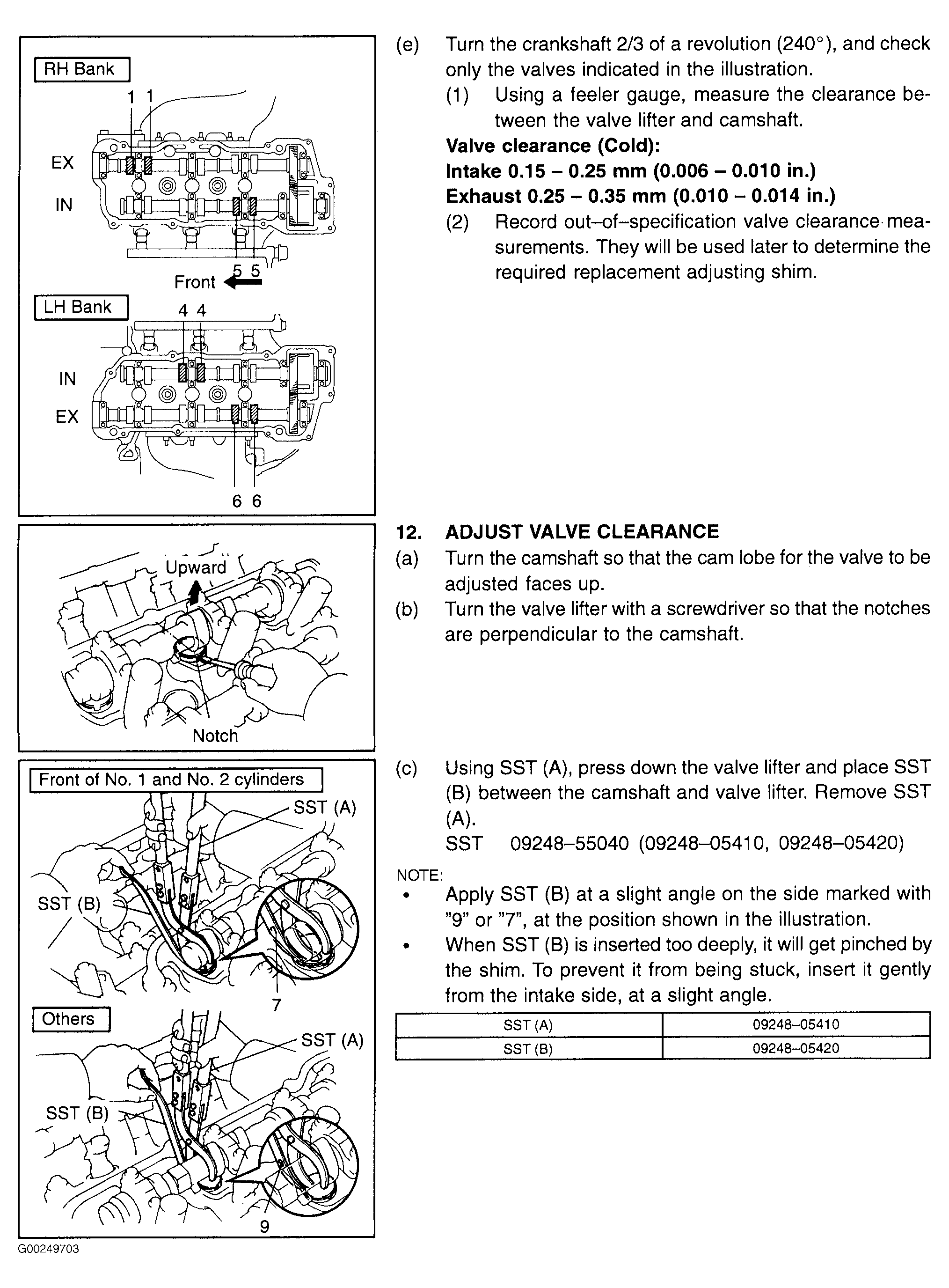

Fig 3: Adjusting Valve Clearance (Highlander Step 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

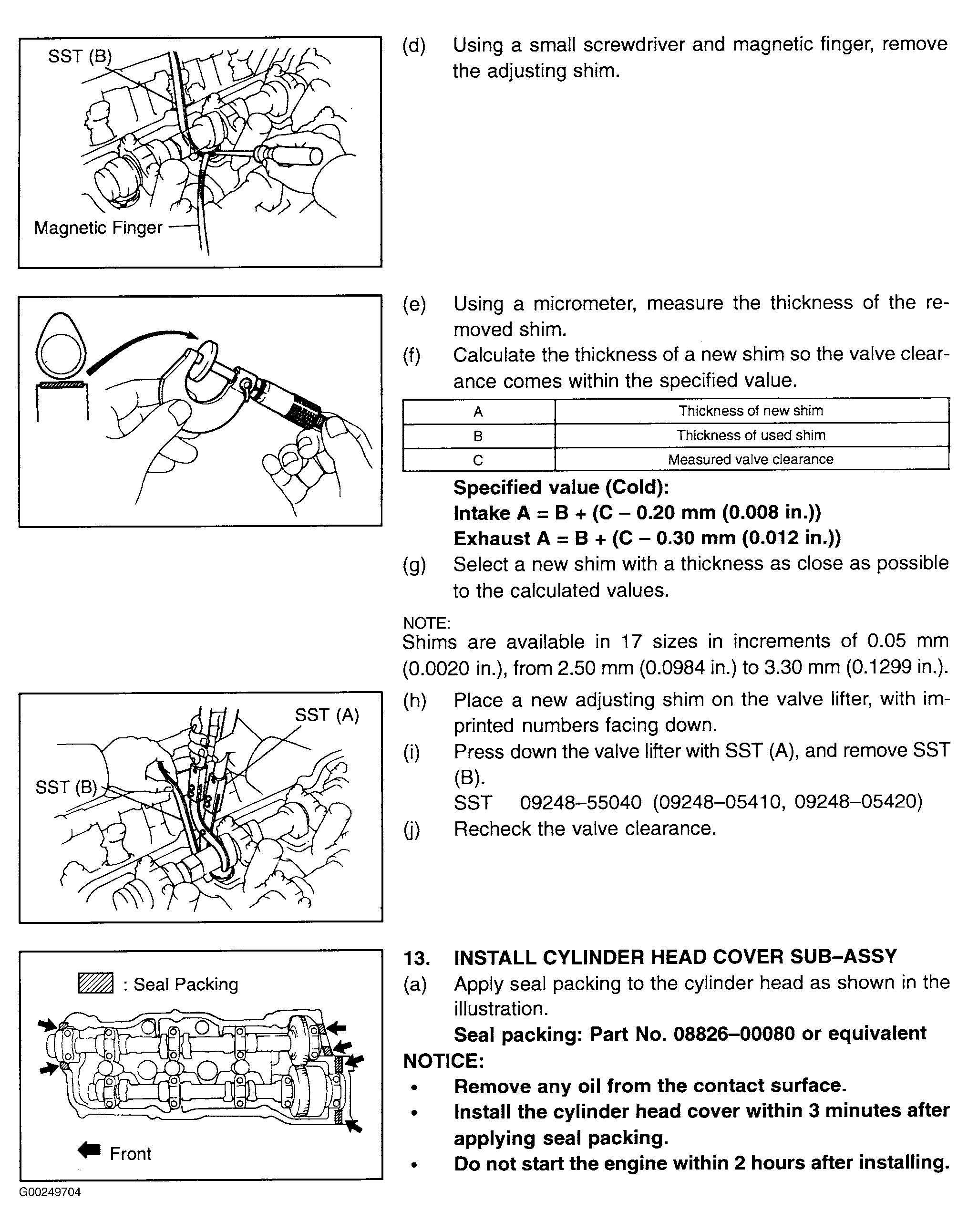

Fig 4: Adjusting Valve Clearance (Highlander Step 11 Cont.-12)

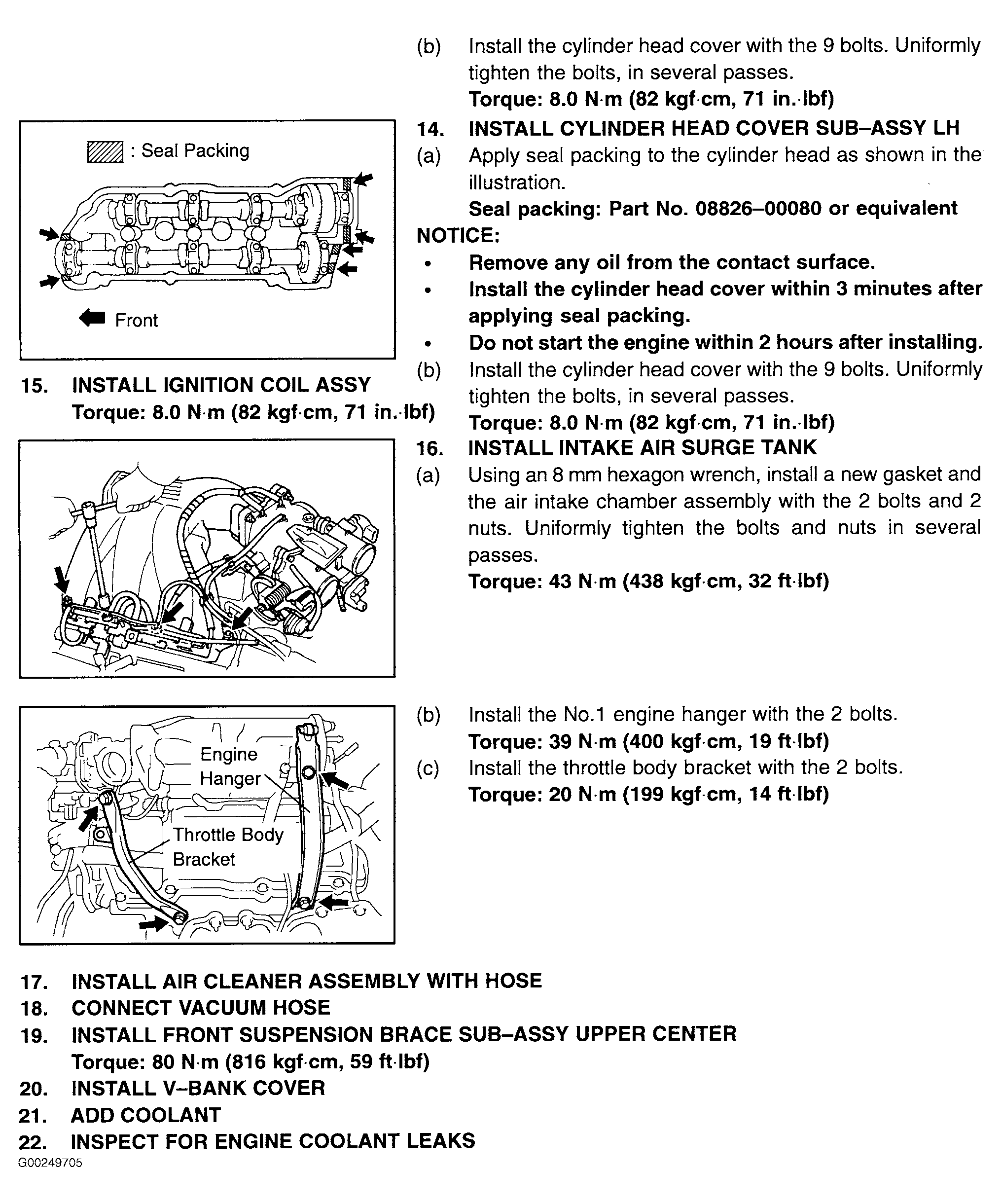

Fig 5: Adjusting Valve Clearance (Highlander Step 12 Cont.-13)

Fig 6: Adjusting Valve Clearance (Highlander Step 13 Cont.-22)
