V6 Valve Clearance: Camry

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2003 Toyota Tundra, 2003 Toyota Tacoma, 2003 Toyota Sienna, 2003 Toyota Sequoia, and 2003 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

For valve clearance inspection and adjustment, see Fig 1-Fig 10 .

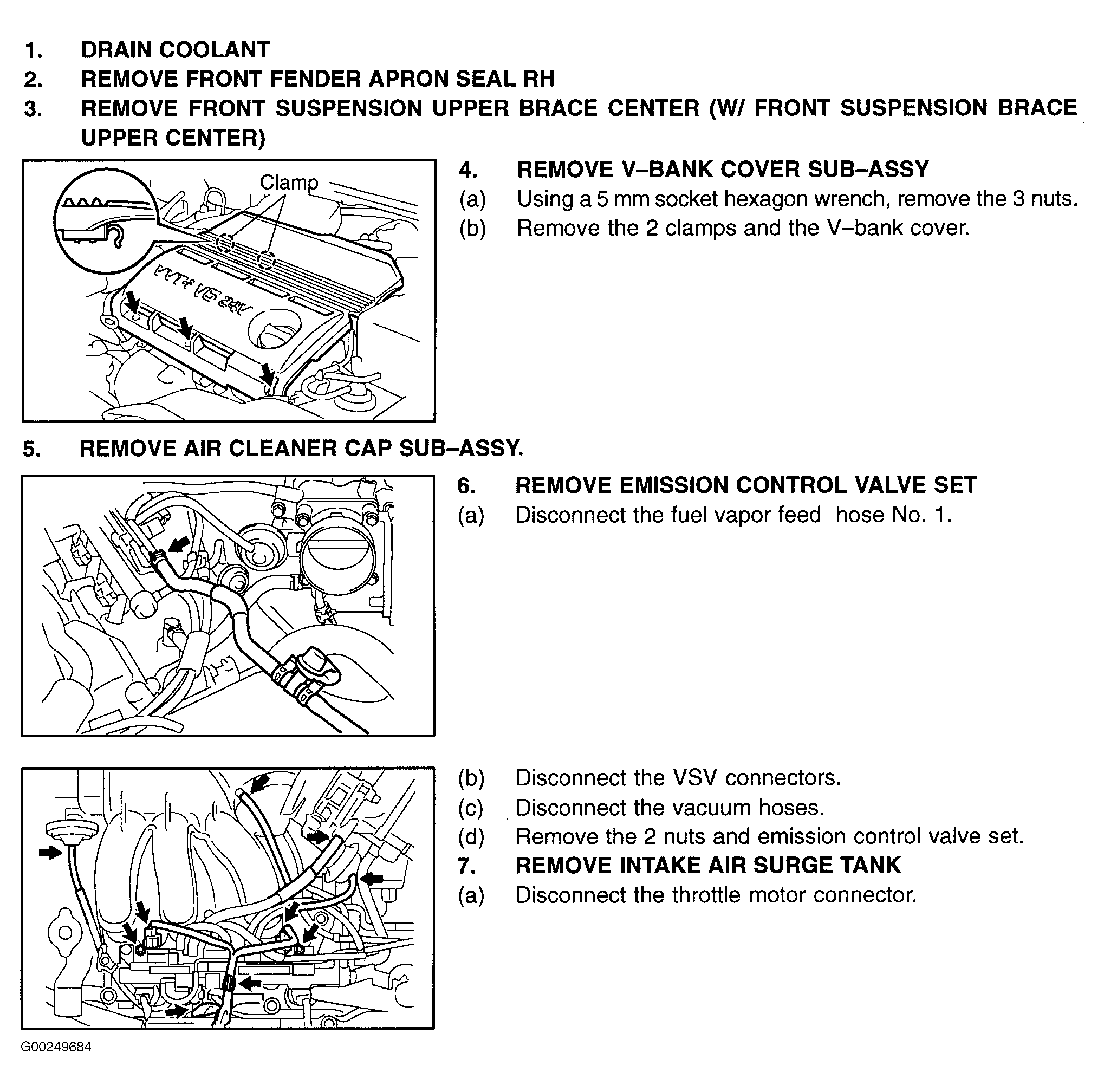

Fig 1: Adjusting Valve Clearance (Camry Steps 1-7)

G00249684

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

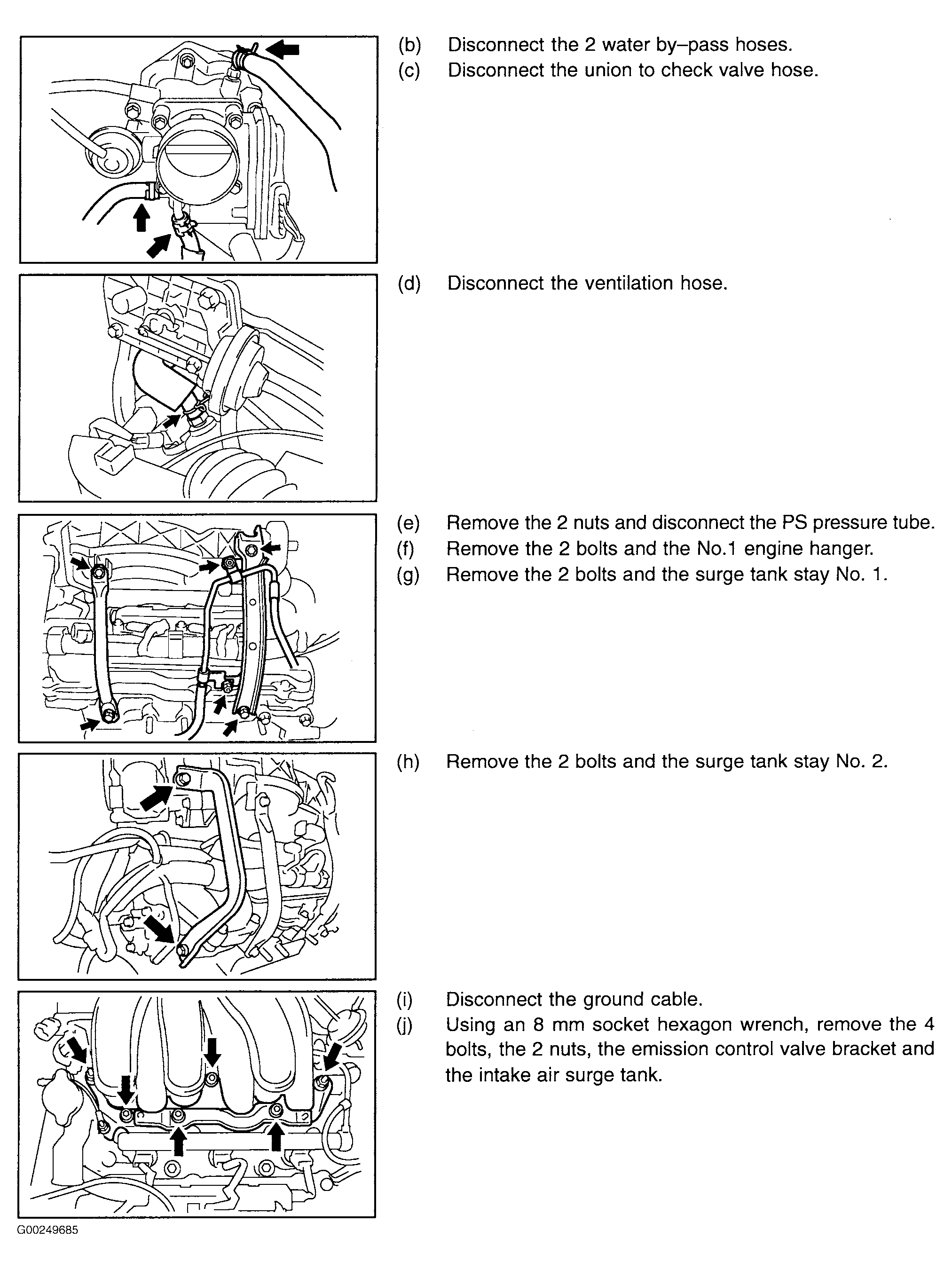

Fig 2: Adjusting Valve Clearance (Camry Step 7 Cont.)

G00249685

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

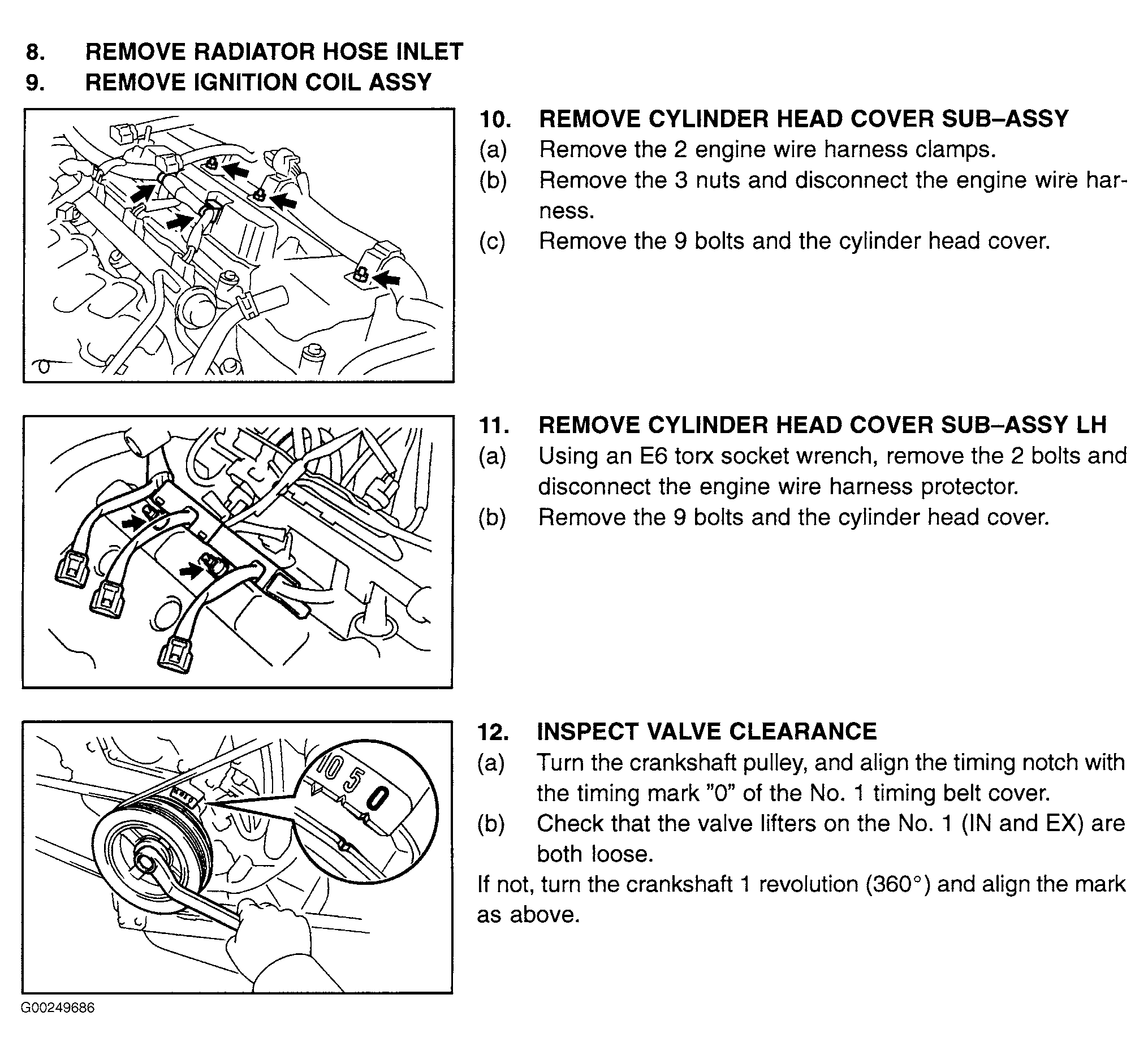

Fig 3: Adjusting Valve Clearance (Camry Steps 8-12)

G00249686

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

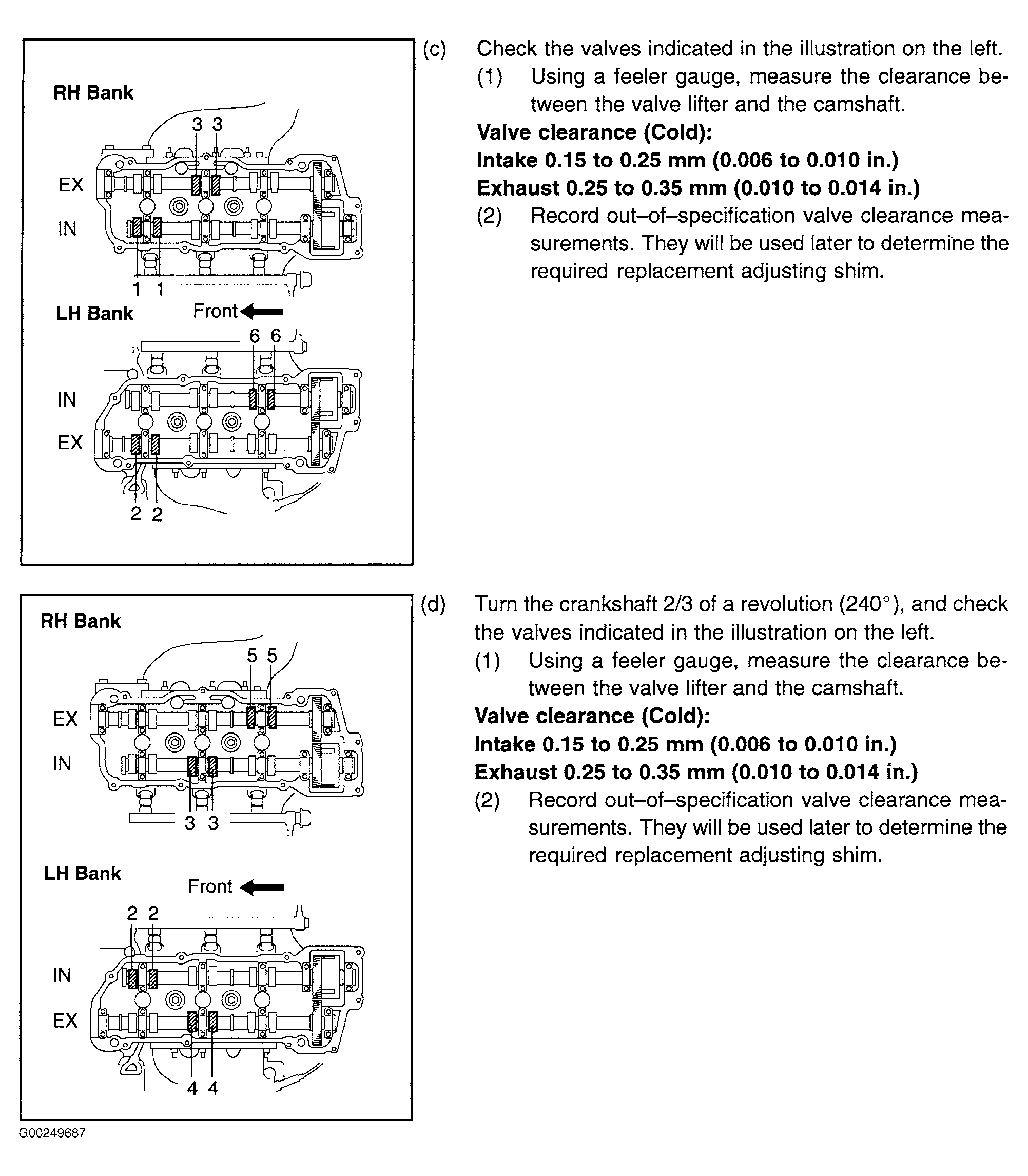

Fig 4: Adjusting Valve Clearance (Camry Step 12 Cont.)

G00249687

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

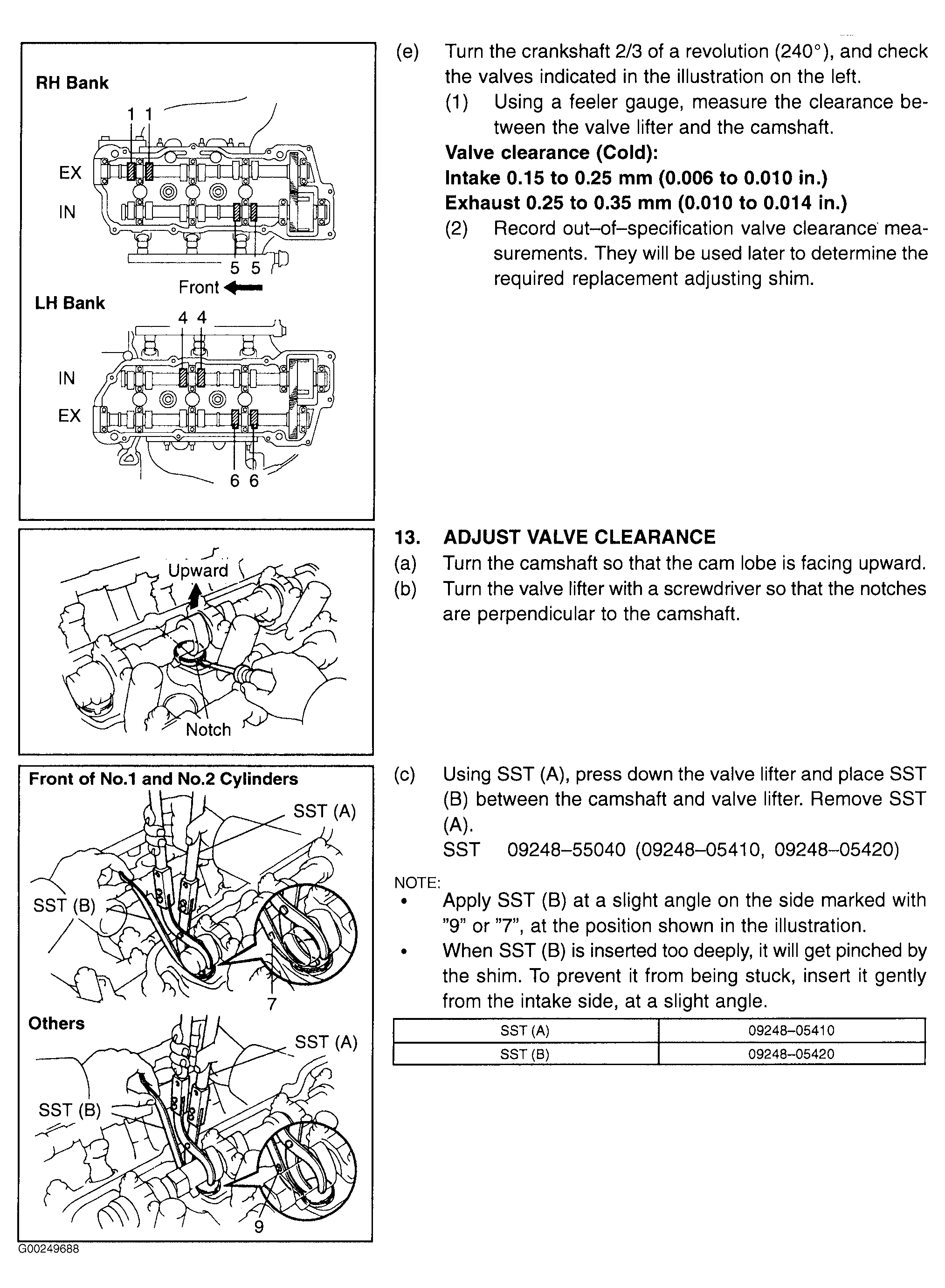

Fig 5: Adjusting Valve Clearance (Camry Step 12 Cont.-13)

G00249688

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

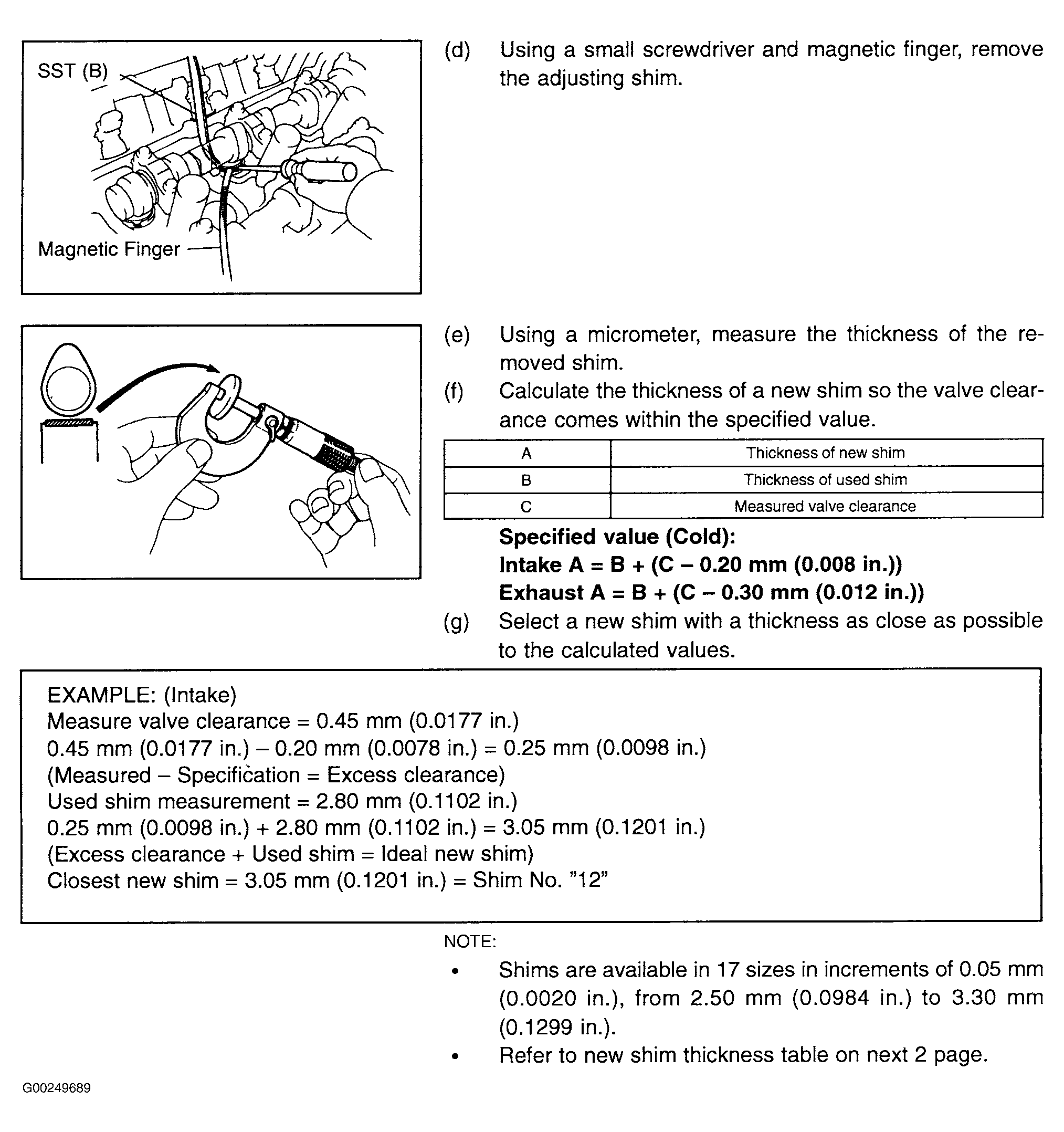

Fig 6: Adjusting Valve Clearance (Camry Step 13 Cont.)

G00249689

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

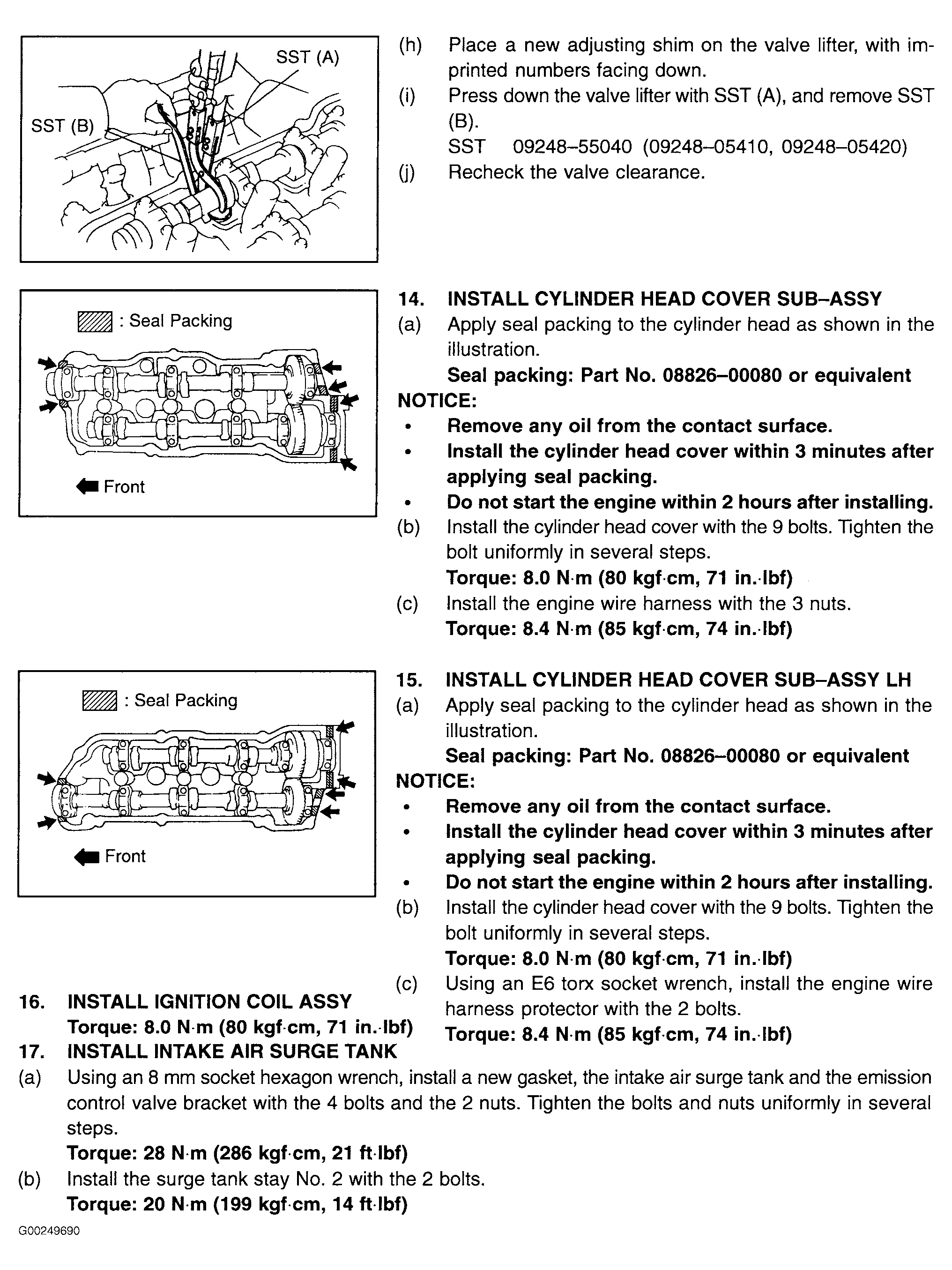

Fig 7: Adjusting Valve Clearance (Camry Step 13 Cont.-17)

G00249690

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

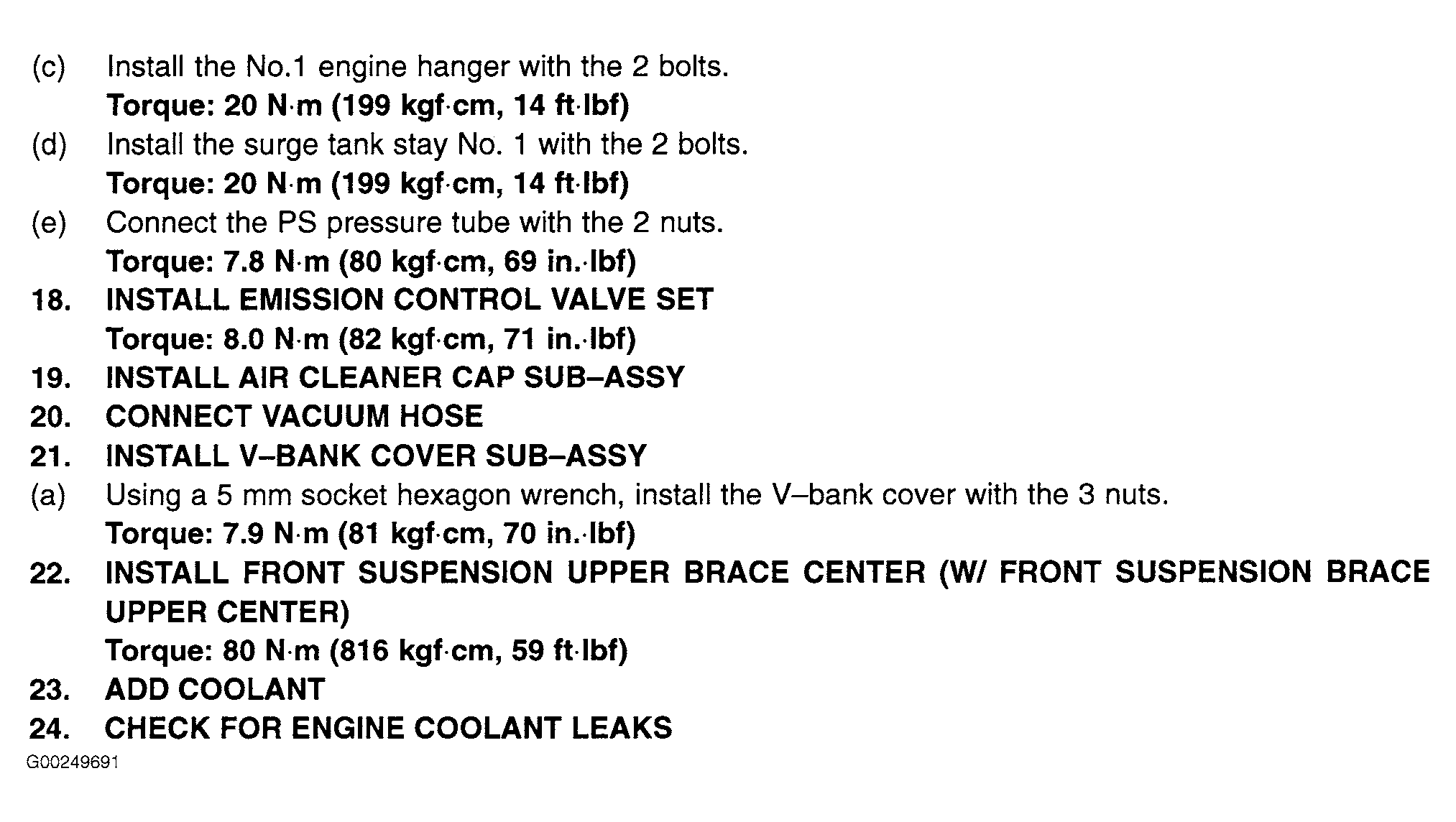

Fig 8: Adjusting Valve Clearance (Camry Step 17 Cont.-24)

G00249691

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

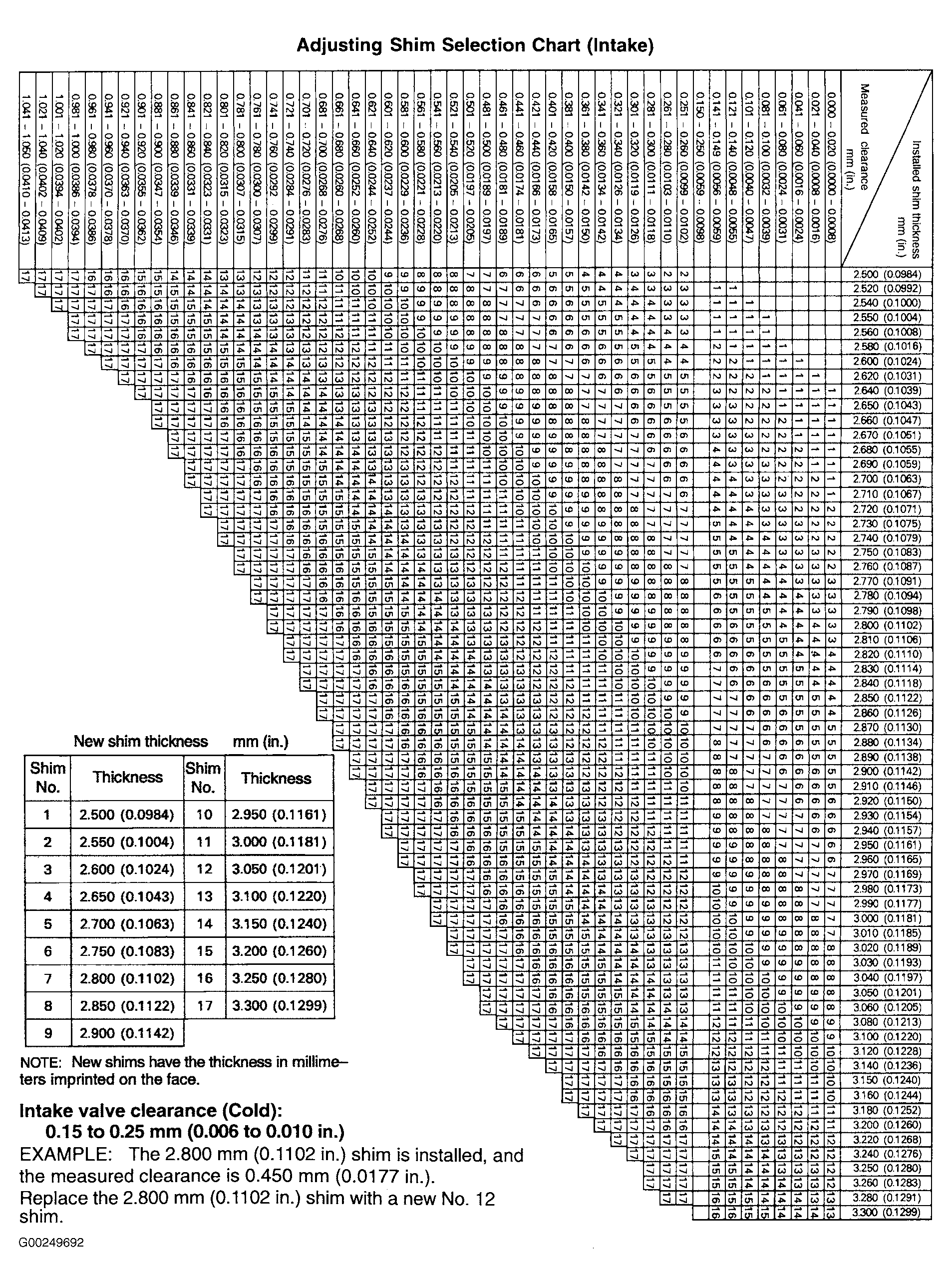

Fig 9: Intake Adjusting Shim Selection Chart (Camry)

G00249692

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

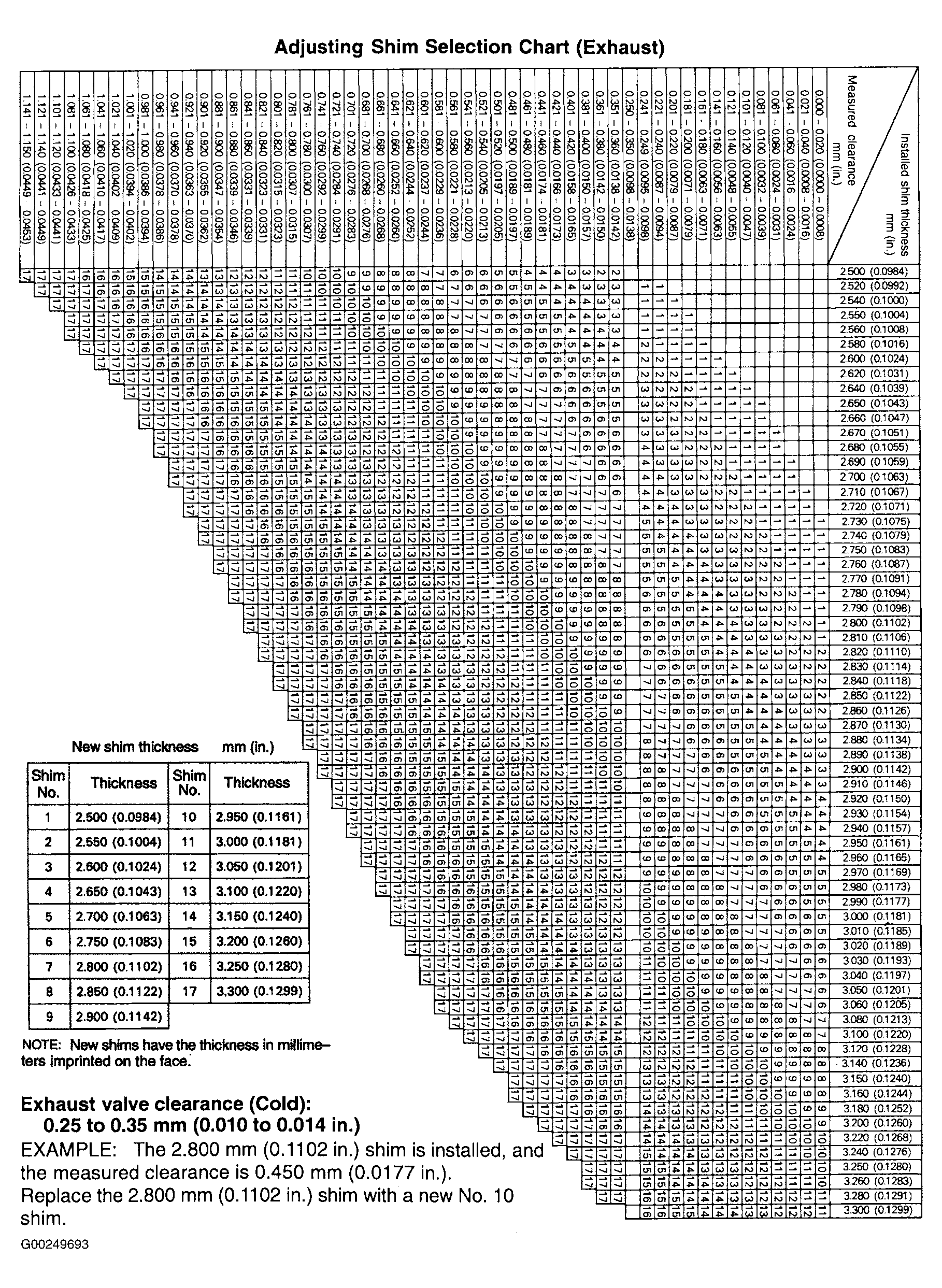

Fig 10: Exhaust Adjusting Shim Selection Chart (Camry)

G00249693

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
