Camry Solara

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2003 Toyota Tundra, 2003 Toyota Tacoma, 2003 Toyota Sienna, 2003 Toyota Sequoia, and 2003 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

For valve clearance inspection and adjustment, see Fig 1-Fig 6 .

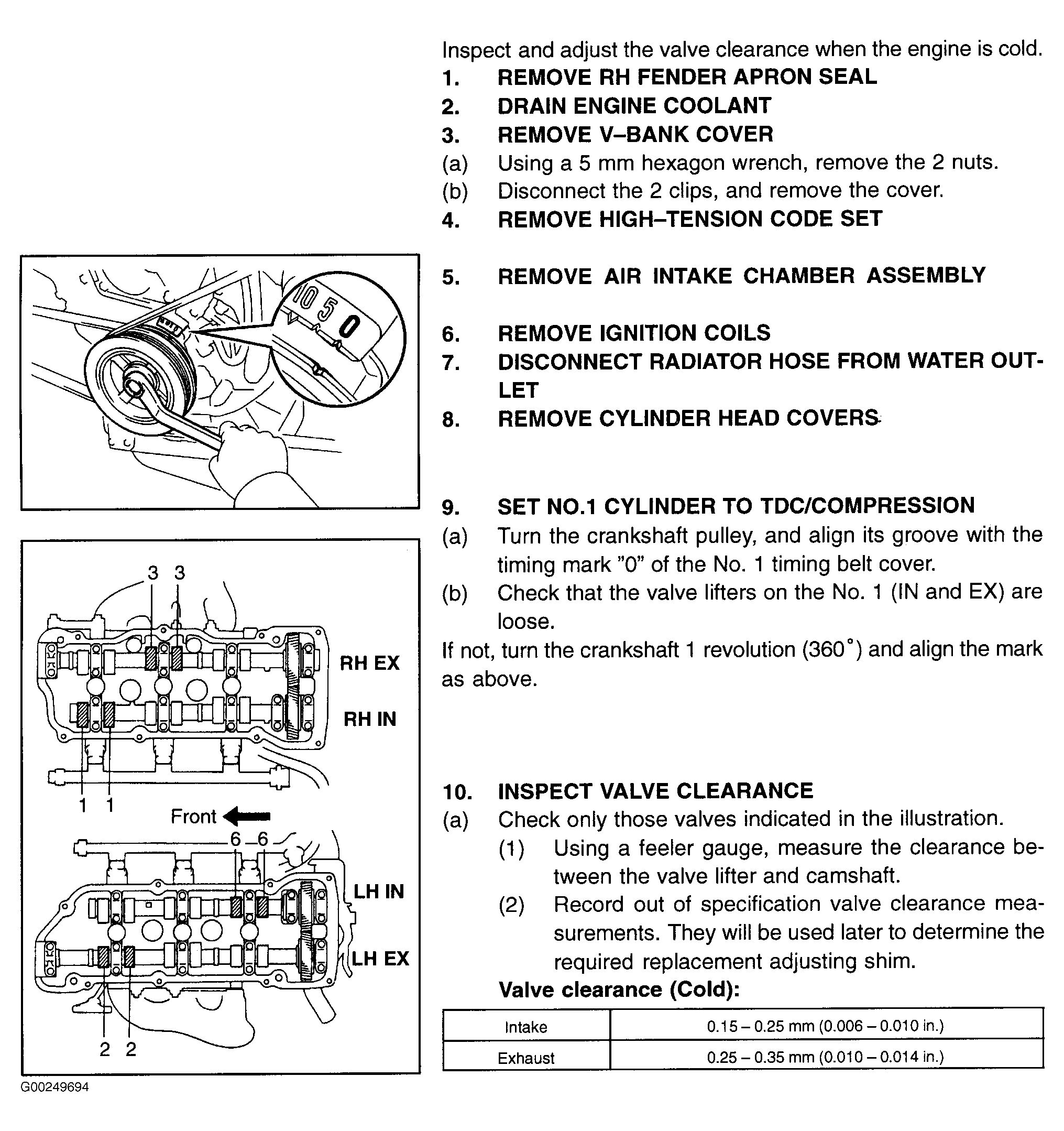

Fig 1: Adjusting Valve Clearance (Camry Solara Steps 1-10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

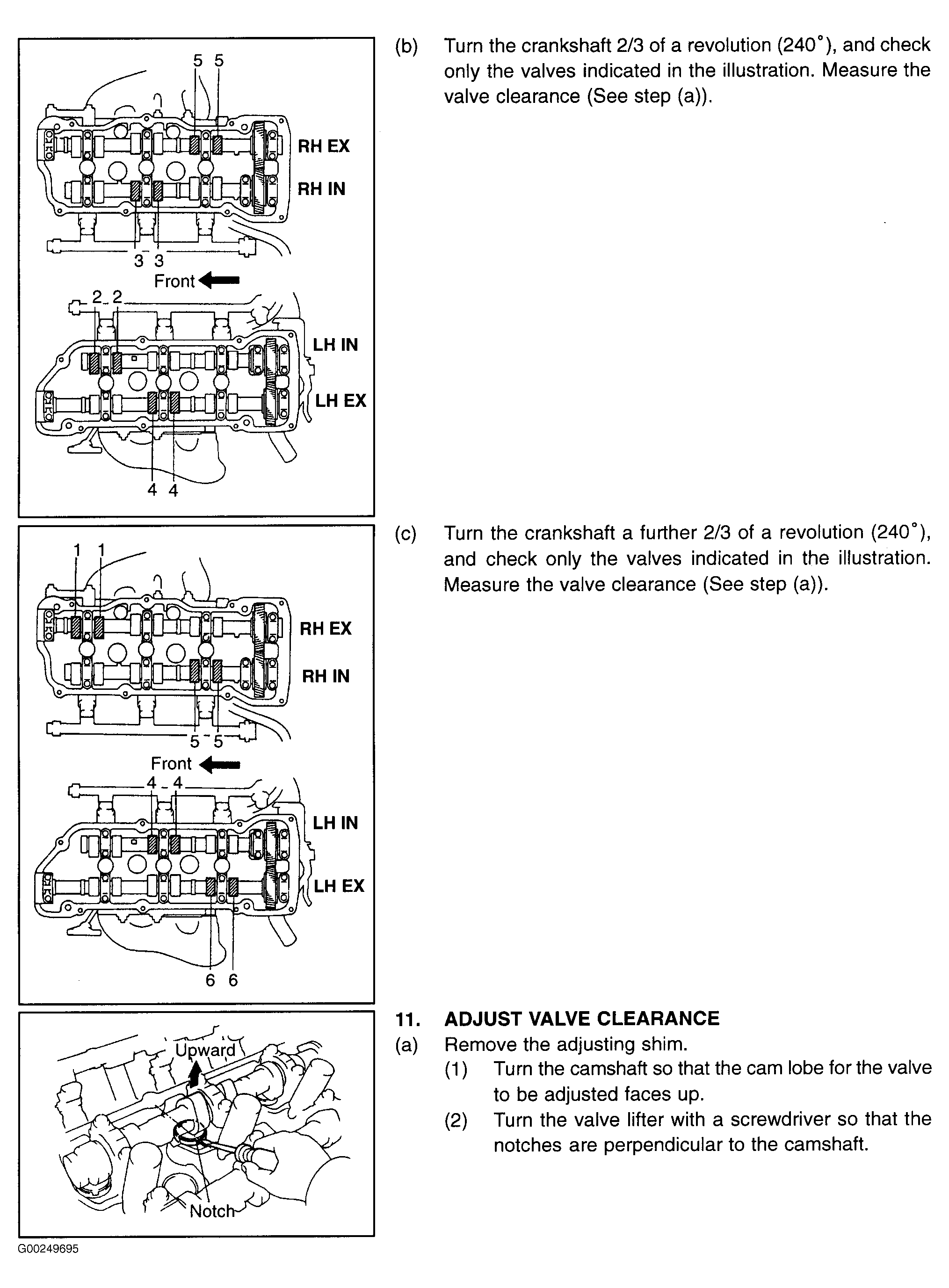

Fig 2: Adjusting Valve Clearance (Camry Solara Step 10 Cont.-11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

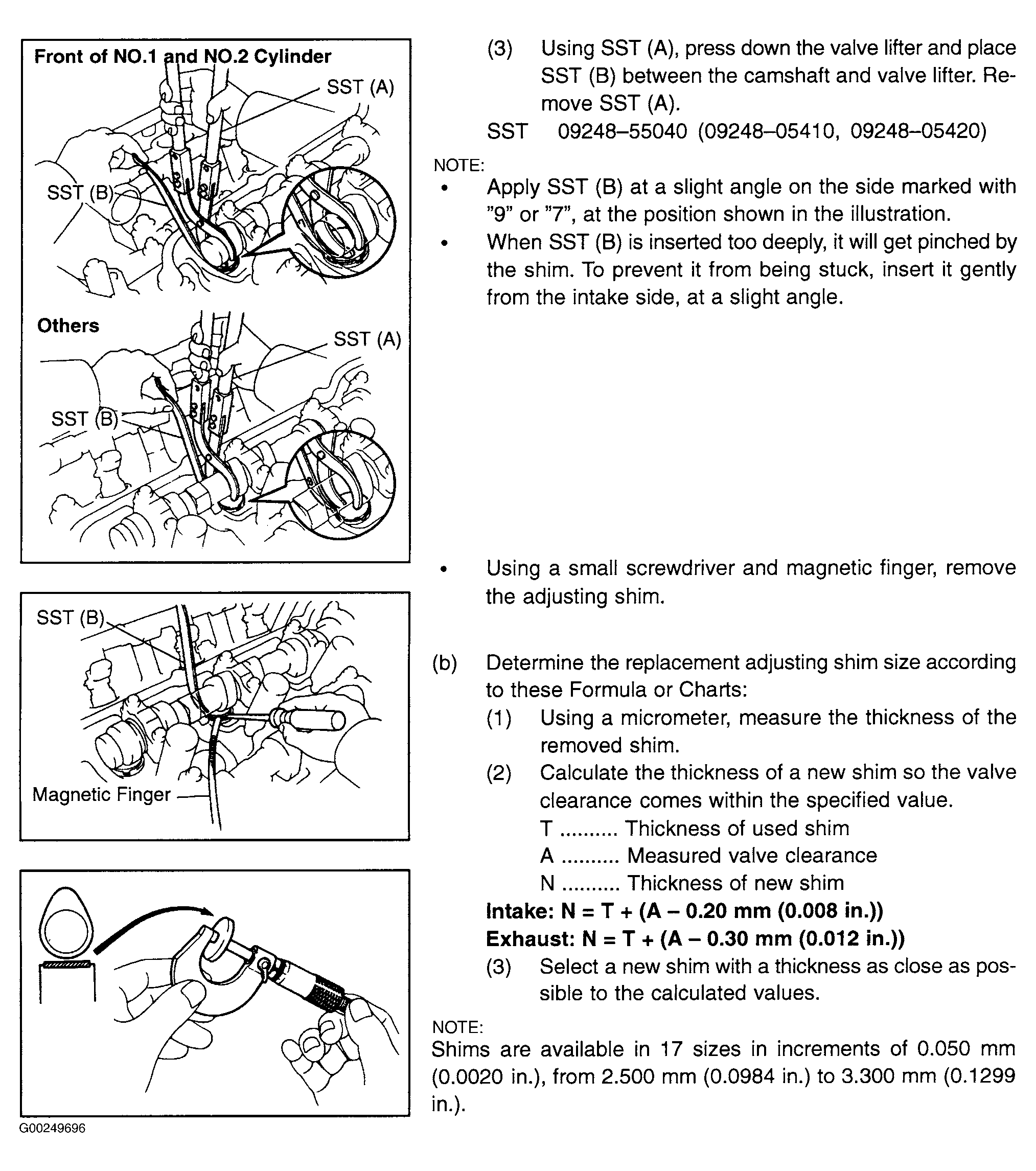

Fig 3: Adjusting Valve Clearance (Camry Solara Step 11 Cont.)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

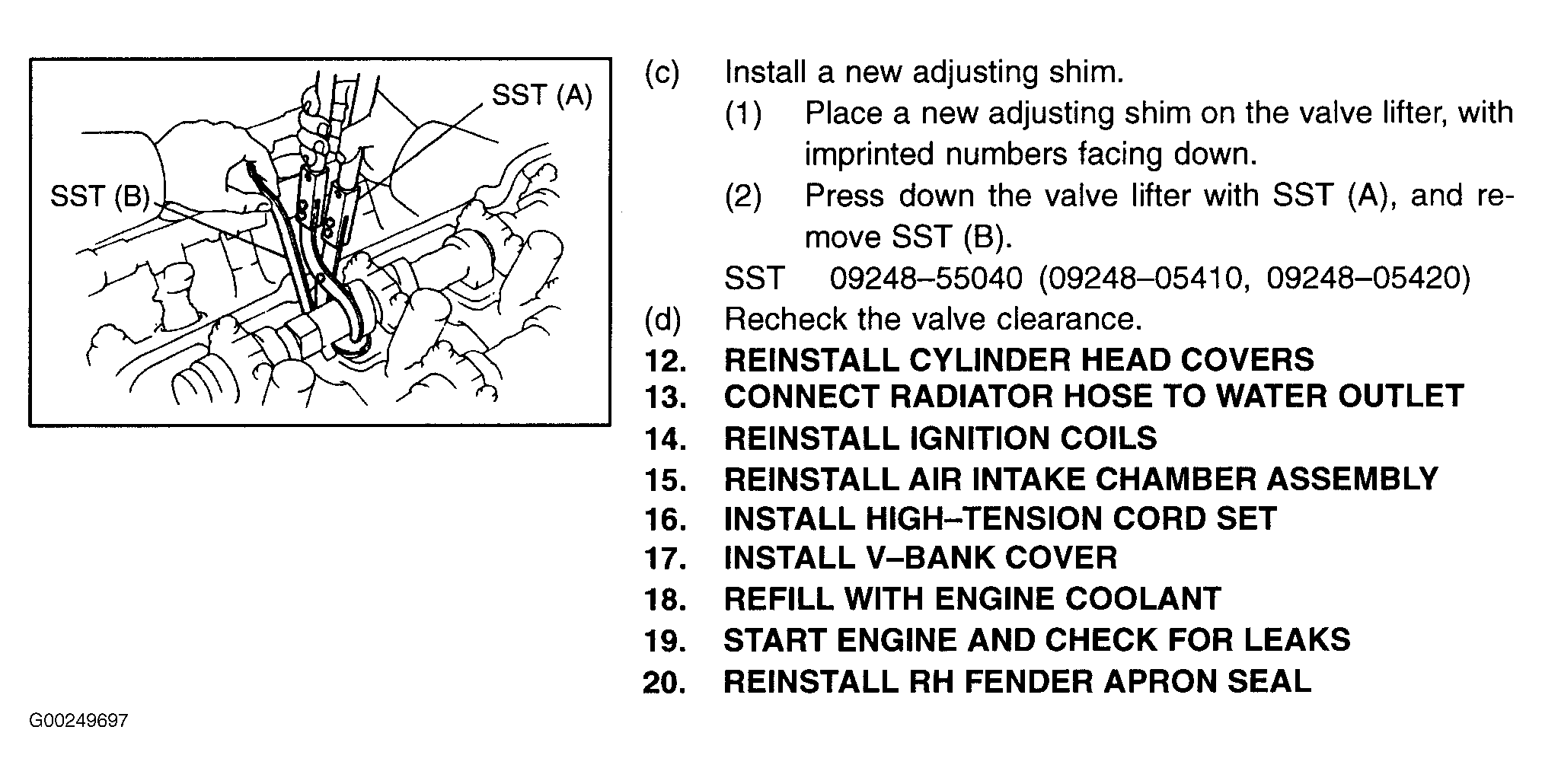

Fig 4: Adjusting Valve Clearance (Camry Solara Step 11 Cont.-20)

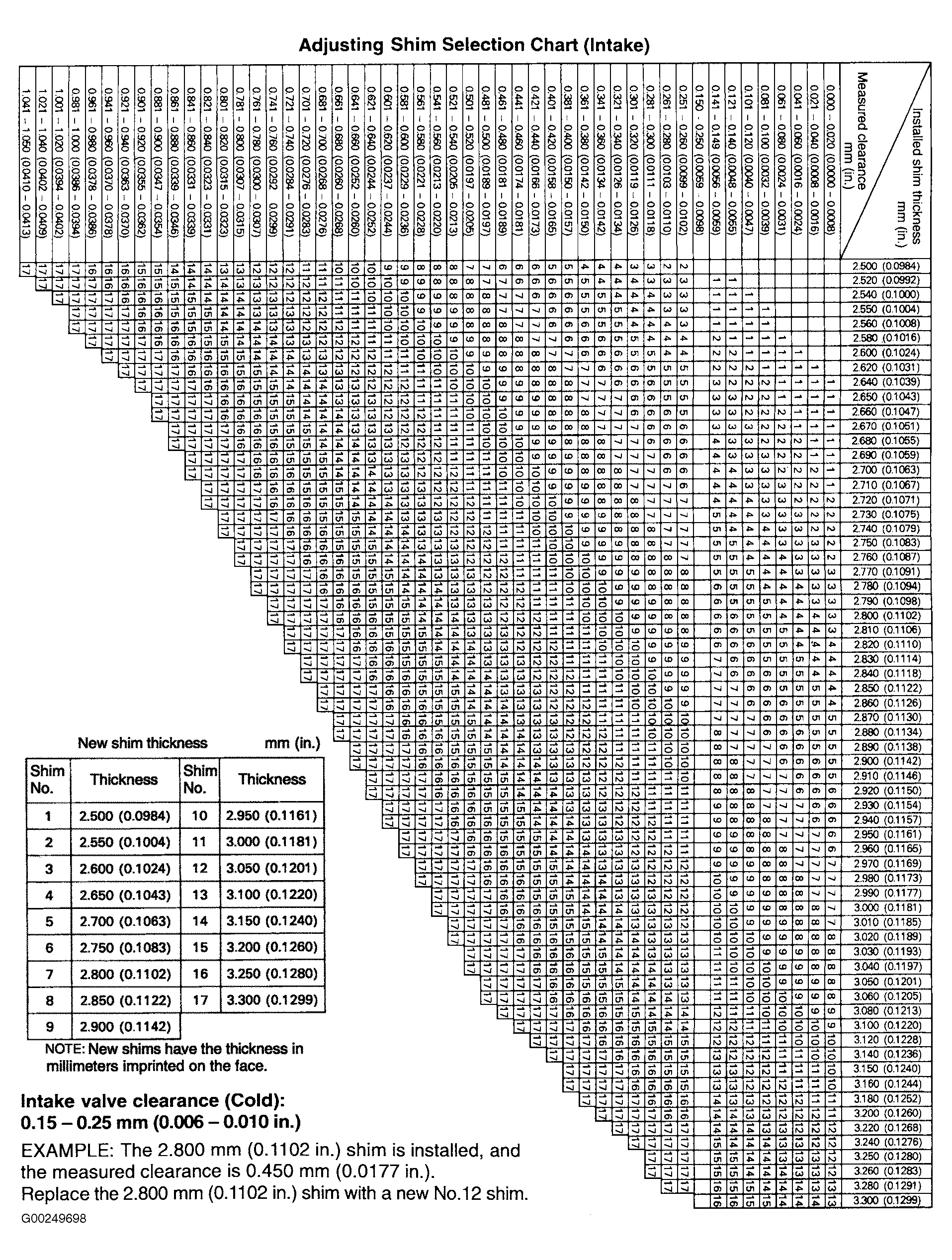

Fig 5: Intake Adjusting Shim Selection Chart (Camry Solara)

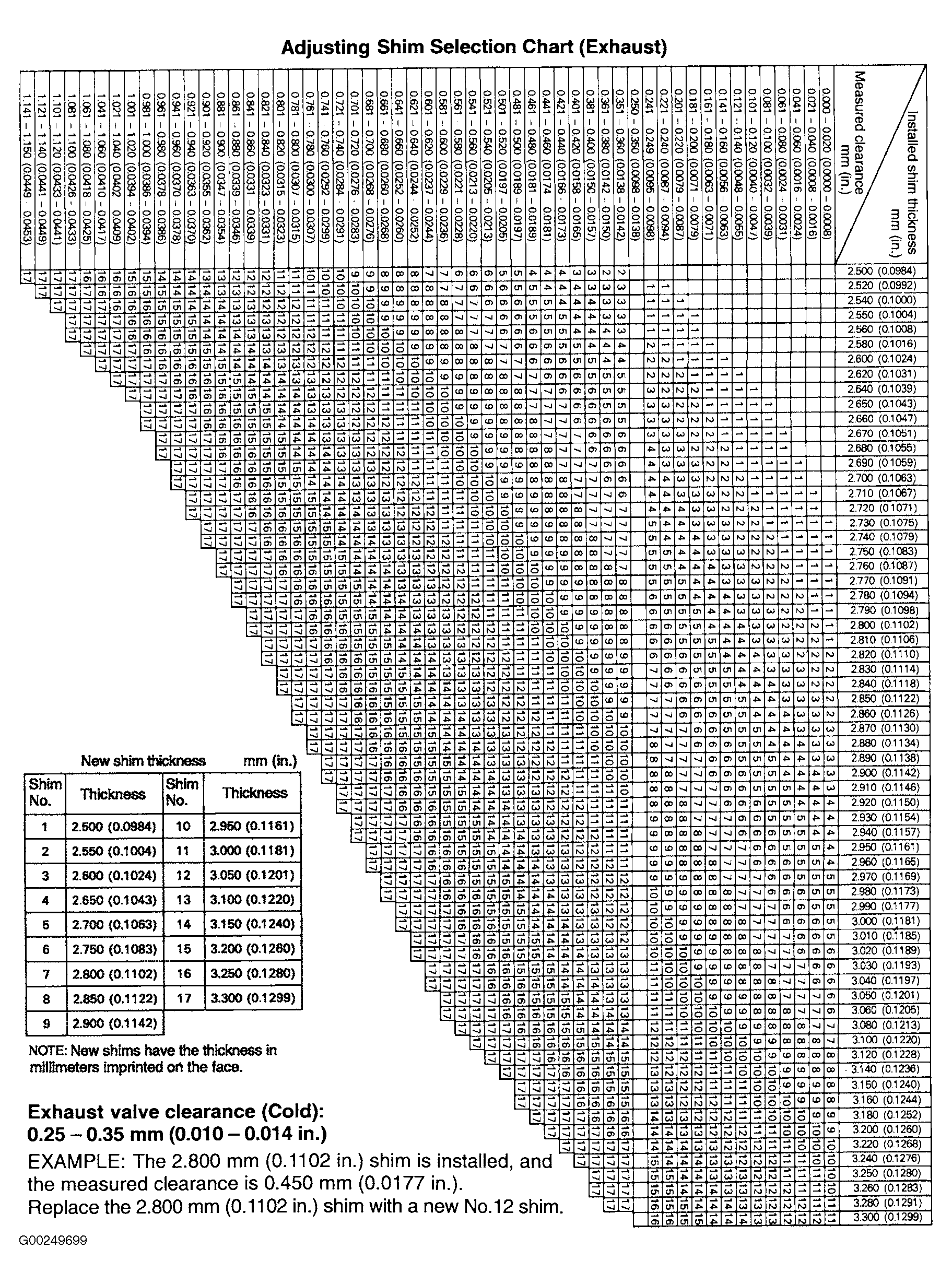

Fig 6: Exhaust Adjusting Shim Selection Chart (Camry Solara)
