Matrix (With 2ZZ-GE Engine)

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2003 Toyota Tacoma, 2003 Toyota RAV4, 2003 Toyota Prius, 2003 Toyota Matrix, and 2003 Toyota MR2. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Valve cover is also referred to as cylinder head cover sub-assembly.

For valve clearance adjustment procedures, see Fig 1-Fig 10 . To remove and install valve cover assembly, see appropriate article in ENGINES.

Fig 1: Adjusting Valve Clearance On 2ZZ-GE Engine - Steps 1-6 (Matrix)

G00249654

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

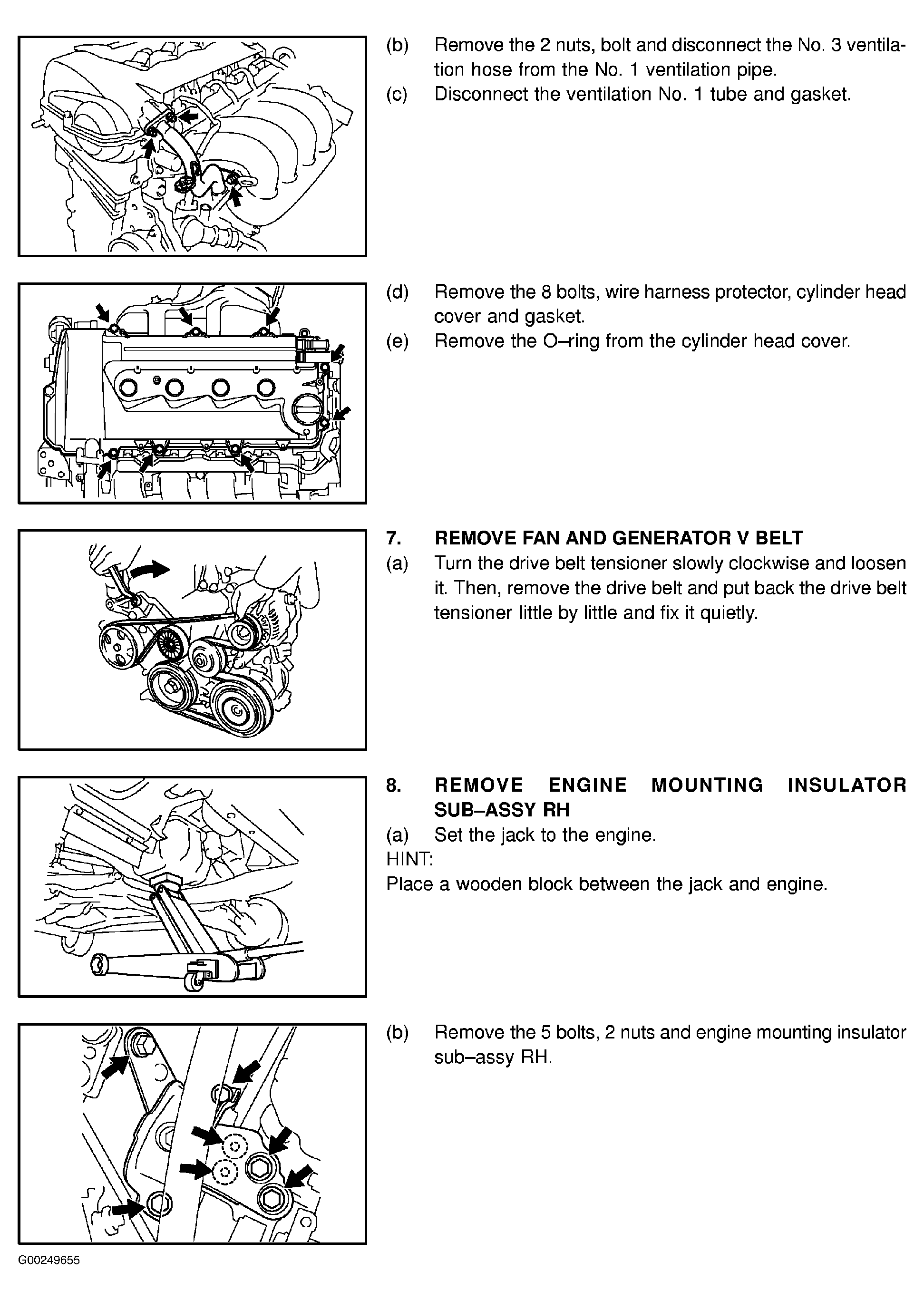

Fig 2: Adjusting Valve Clearance On 2ZZ-GE Engine - Step 6 Cont.-8 (Matrix)

G00249655

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

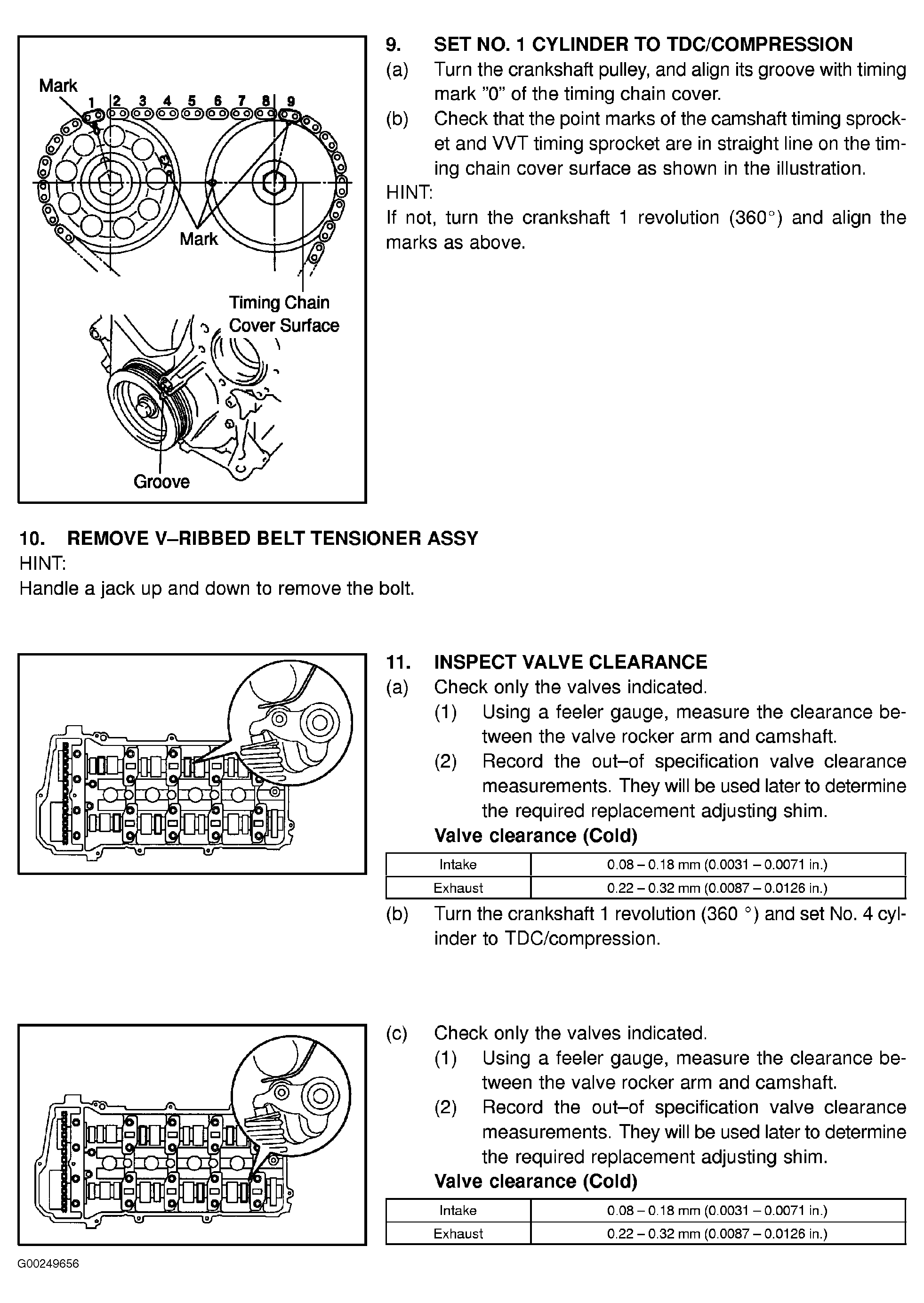

Fig 3: Adjusting Valve Clearance On 2ZZ-GE Engine - Steps 9-11 (Matrix)

G00249656

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

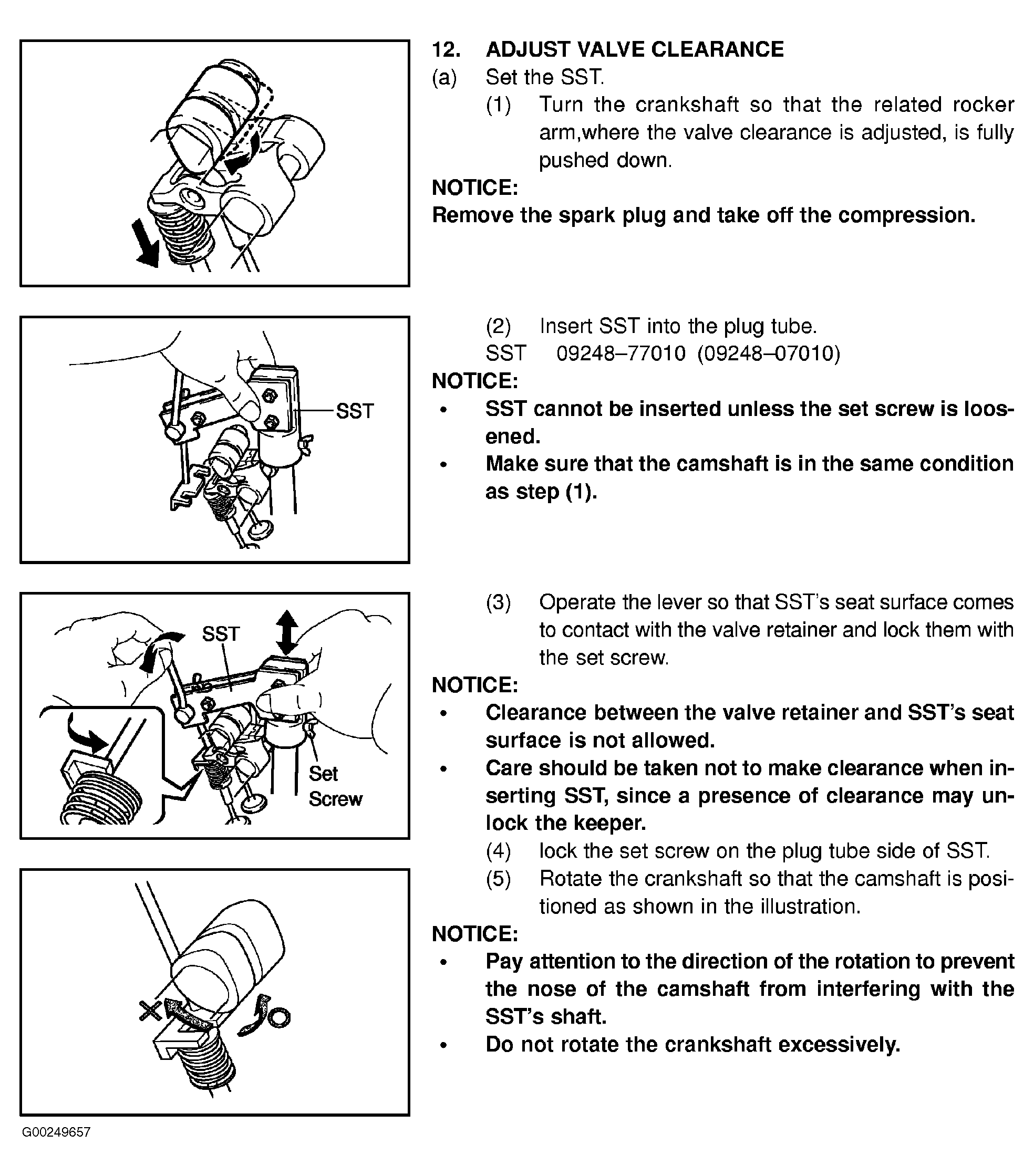

Fig 4: Adjusting Valve Clearance On 2ZZ-GE Engine - Step 12 (Matrix)

G00249657

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

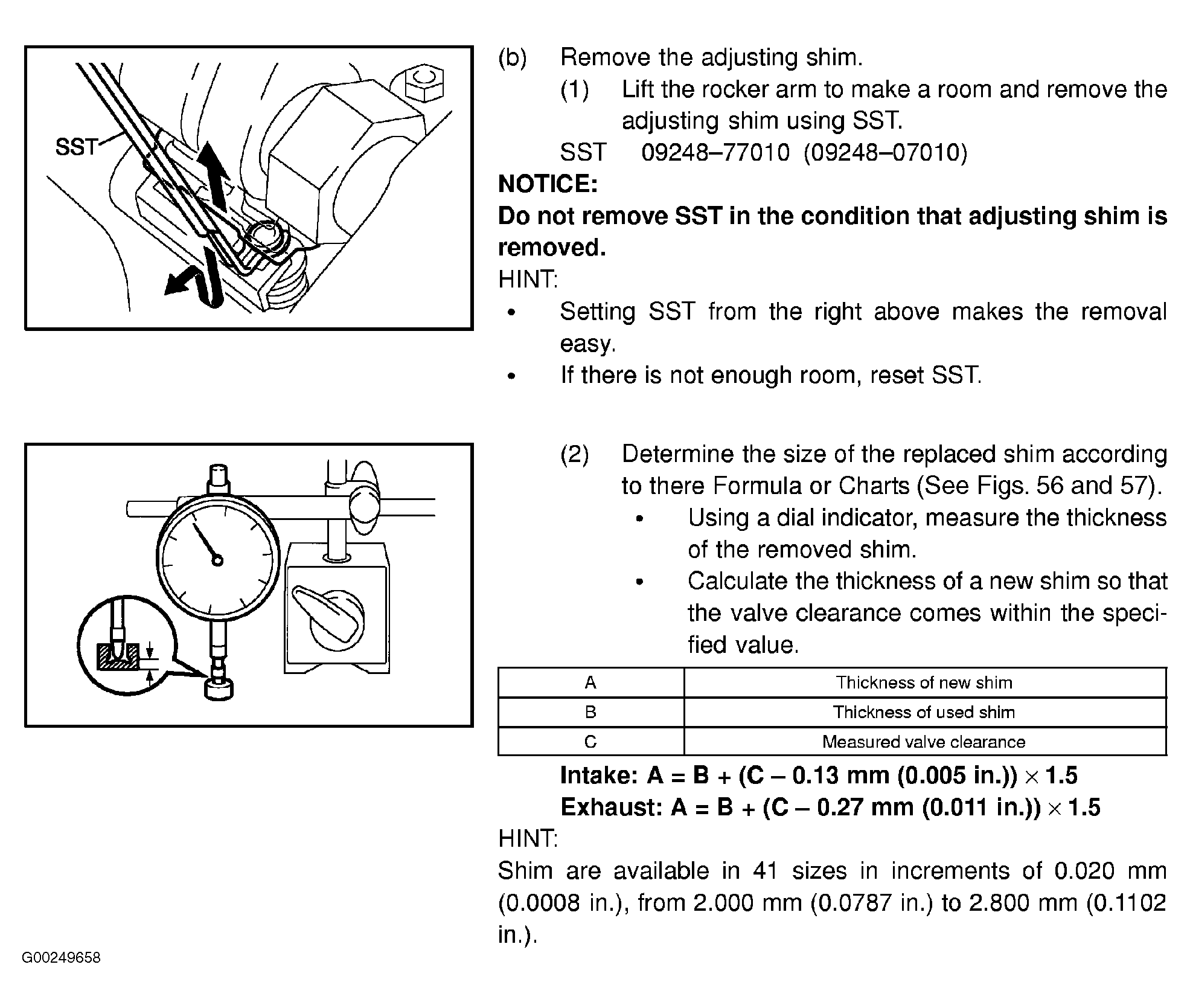

Fig 5: Adjusting Valve Clearance On 2ZZ-GE Engine - Step 12 Cont. (Matrix)

G00249658

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

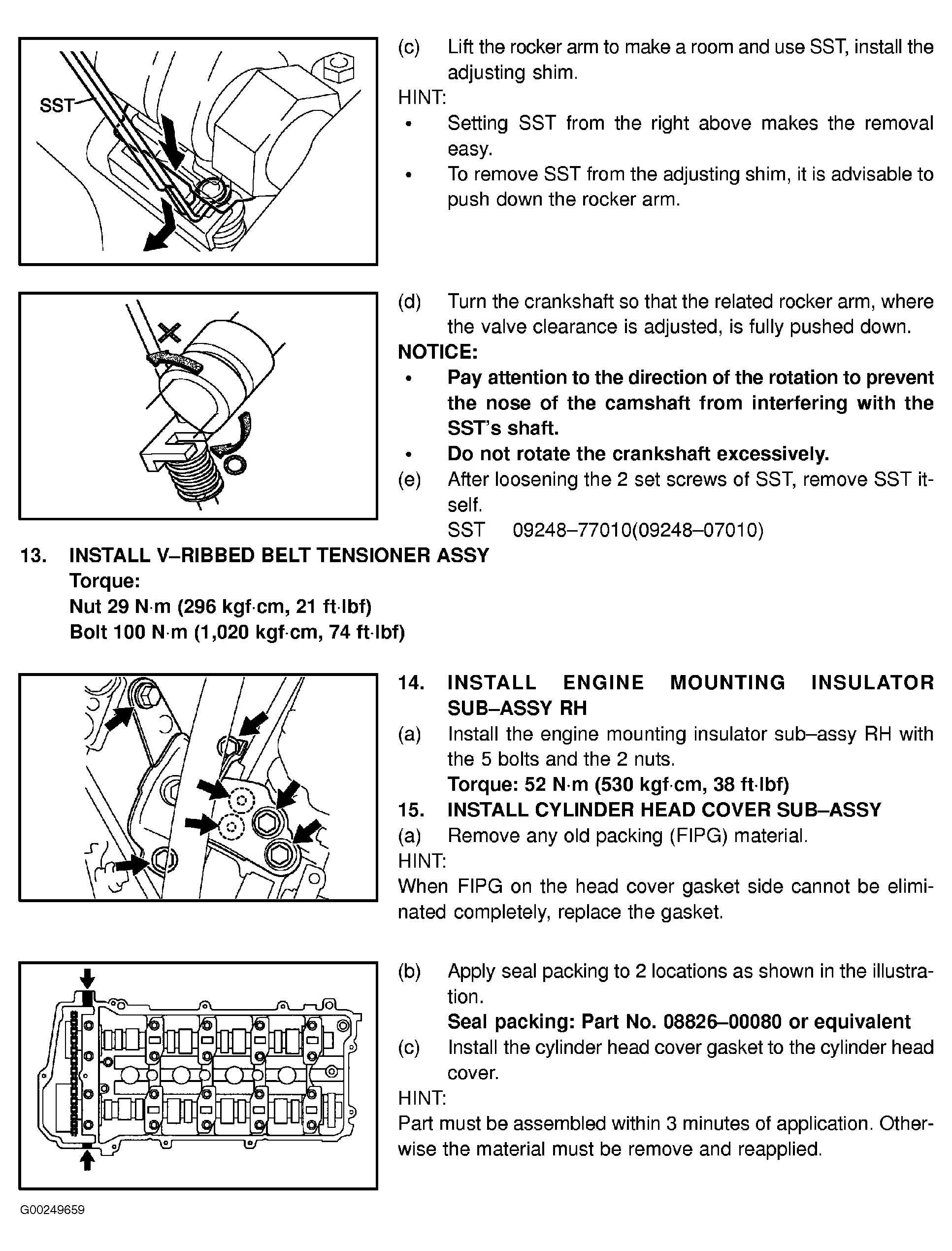

Fig 6: Adjusting Valve Clearance On 2ZZ-GE Engine - Step 12 Cont.-15 (Matrix)

G00249659

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

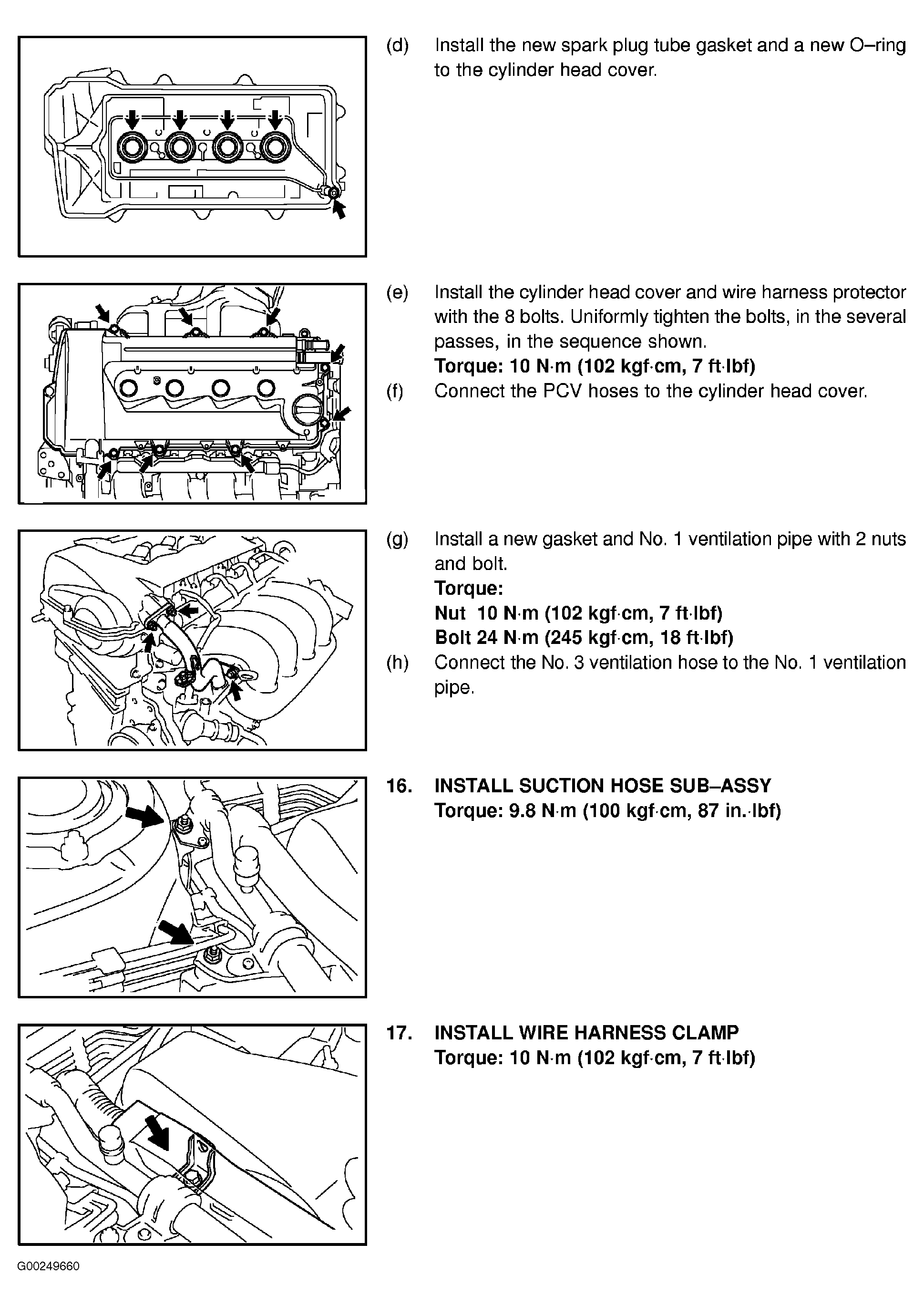

Fig 7: Adjusting Valve Clearance On 2ZZ-GE Engine - Step 15 Cont.-17 (Matrix)

G00249660

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

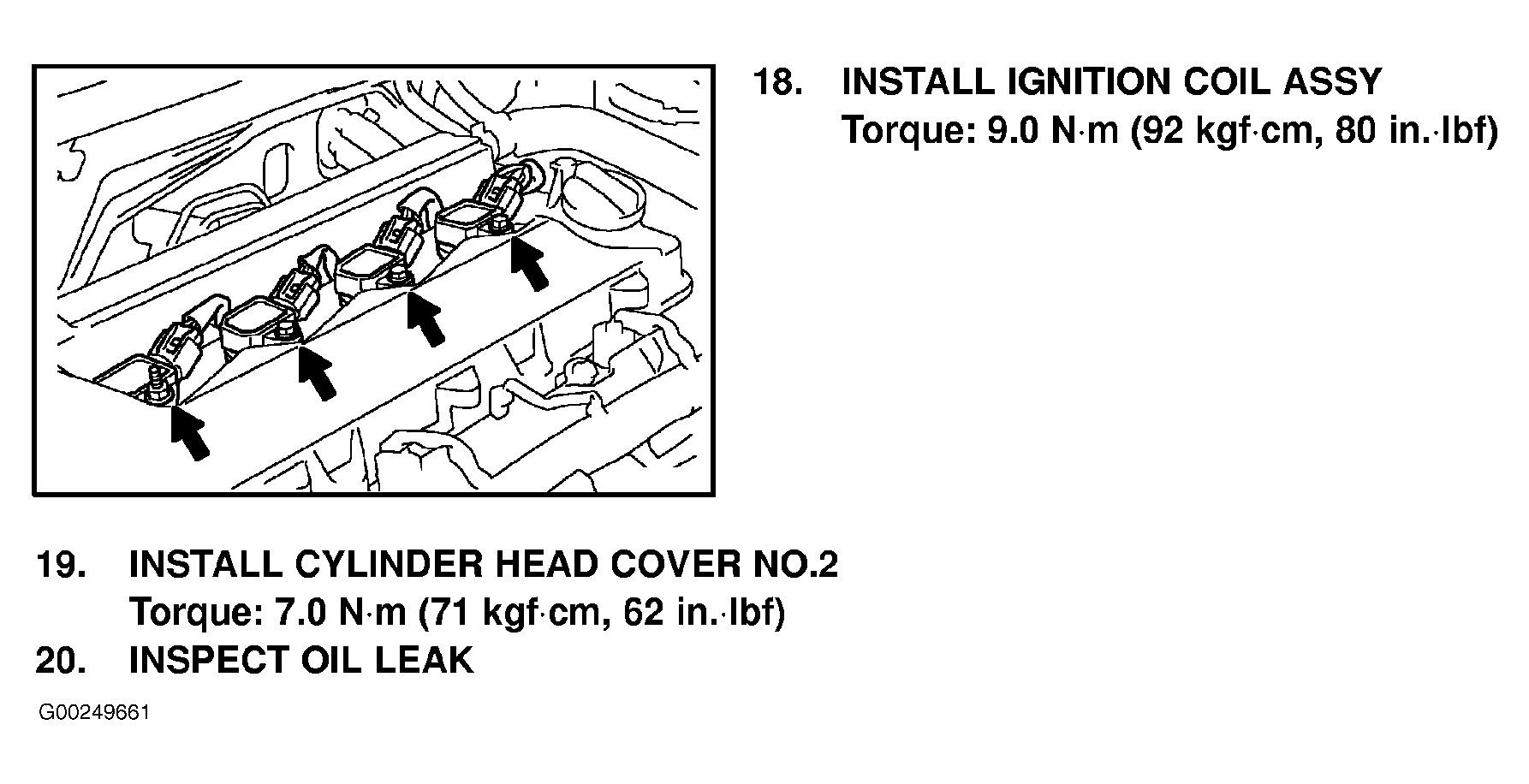

Fig 8: Adjusting Valve Clearance On 2ZZ-GE Engine - Steps 18-20 (Matrix)

G00249661

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

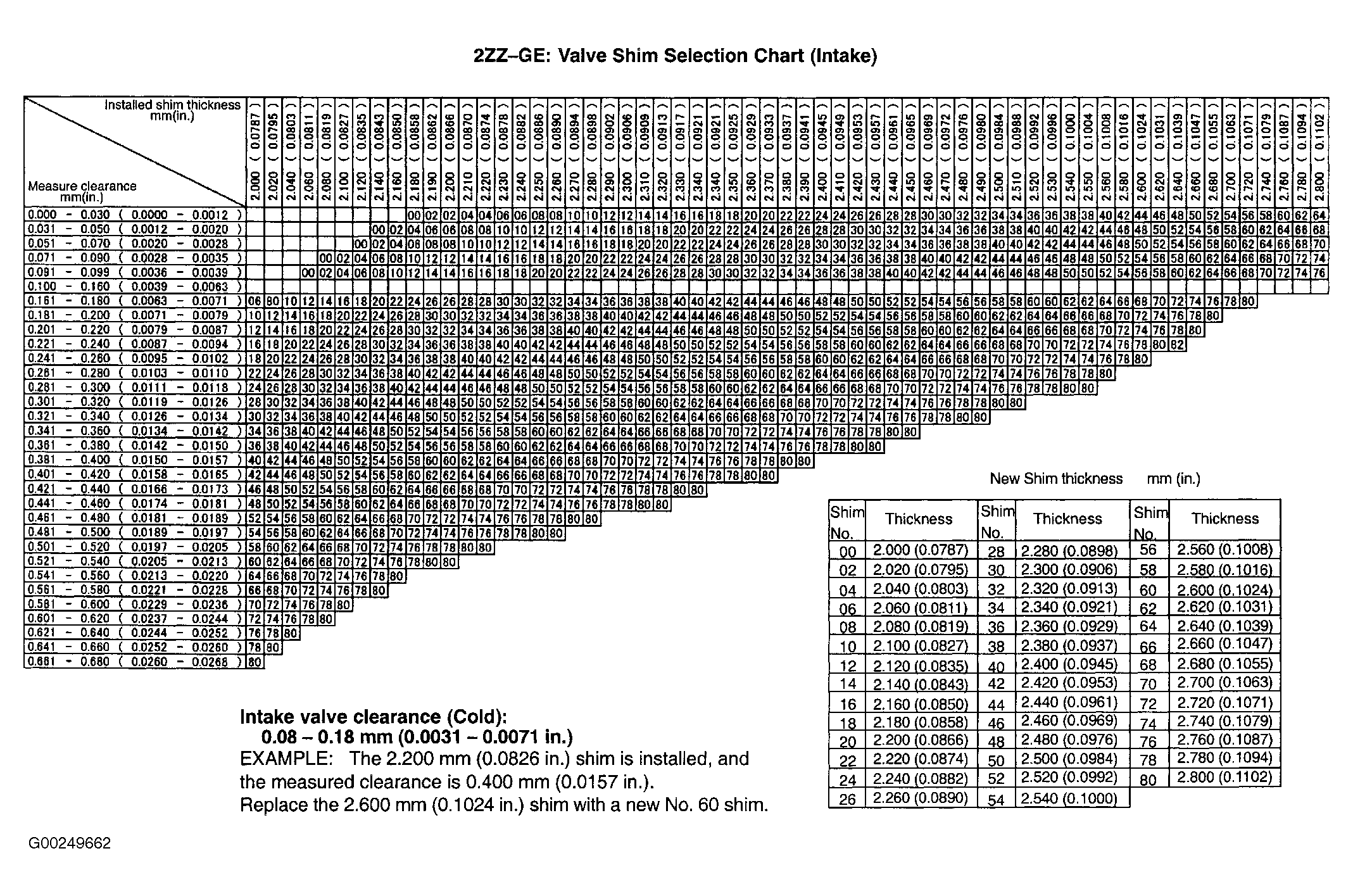

Fig 9: Intake Valve Lifter Selection Chart Clearance On 2ZZ-GE Engine (Matrix)

G00249662

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

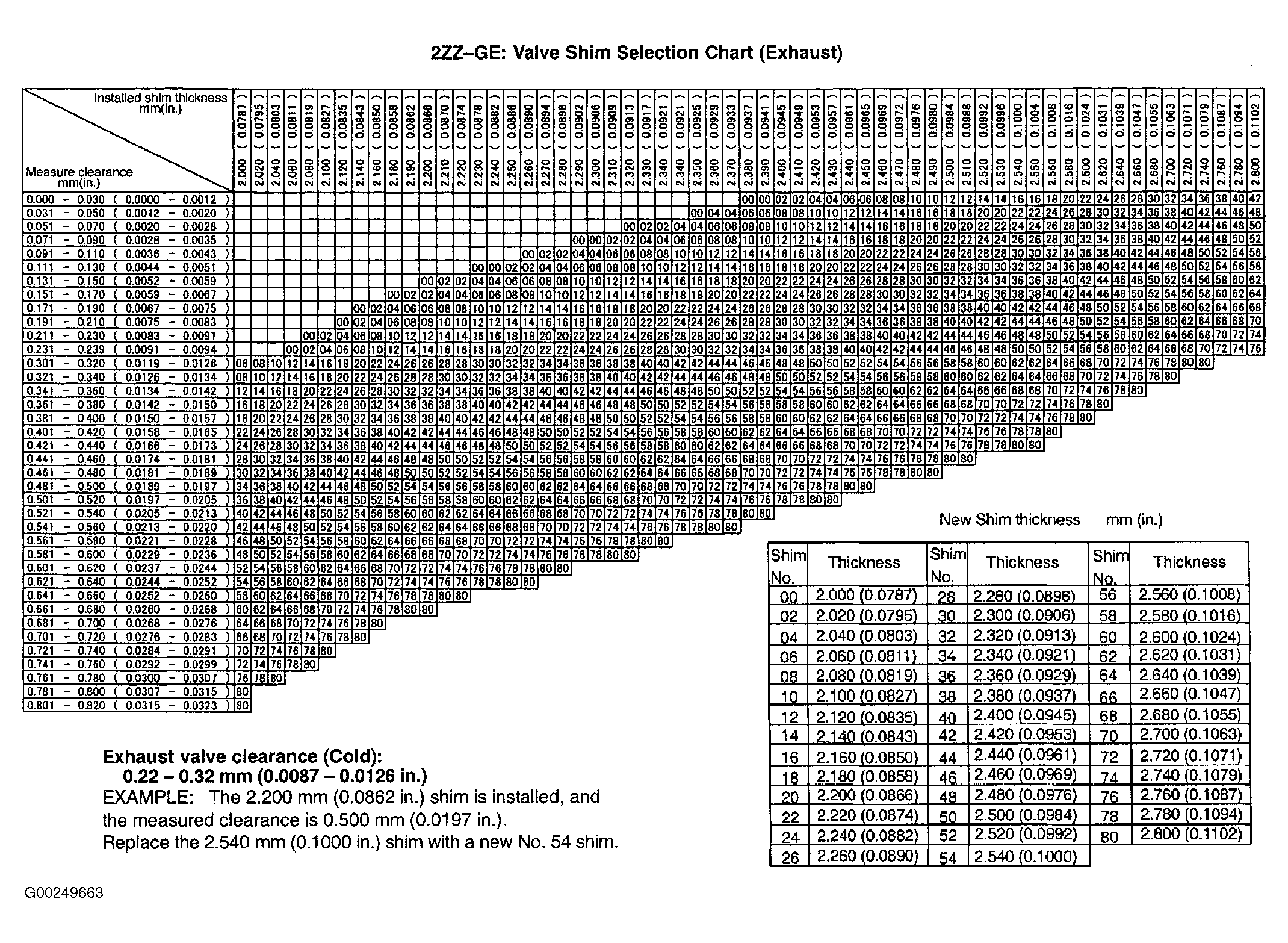

Fig 10: Exhaust Valve Lifter Selection Chart Clearance On 2ZZ-GE Engine (Matrix)

G00249663

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
