Matrix (With 1ZZ-FE Engine)

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2003 Toyota Tacoma, 2003 Toyota RAV4, 2003 Toyota Prius, 2003 Toyota Matrix, and 2003 Toyota MR2. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Valve cover is also referred to as cylinder head cover sub-assembly.

For valve clearance adjustment procedures, see Fig 1-Fig 10 . To remove and install valve cover assembly, see appropriate article in ENGINES.

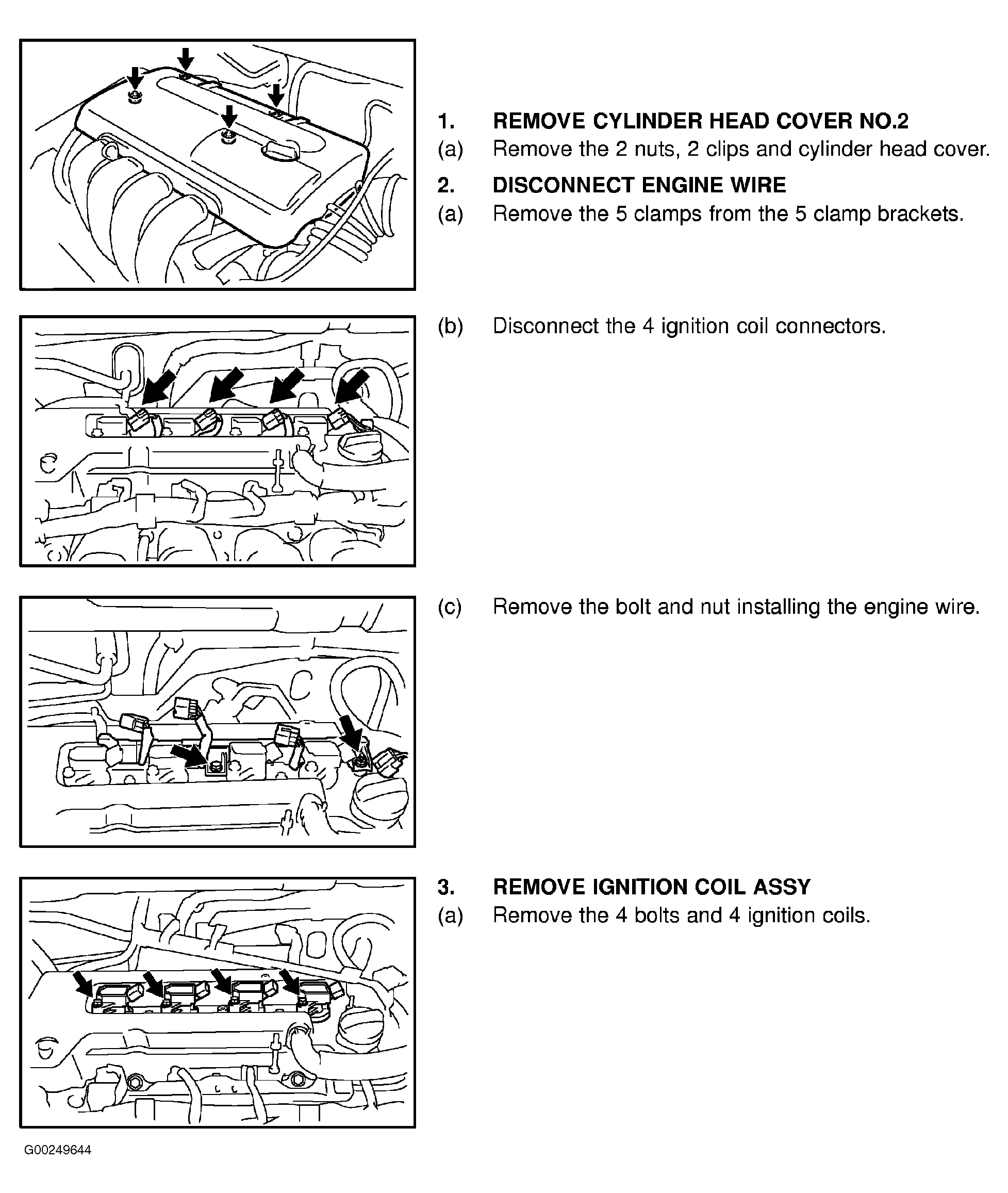

Fig 1: Adjusting Valve Clearance On 1ZZ-FE Engine - Steps 1-3 (Matrix)

G00249644

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

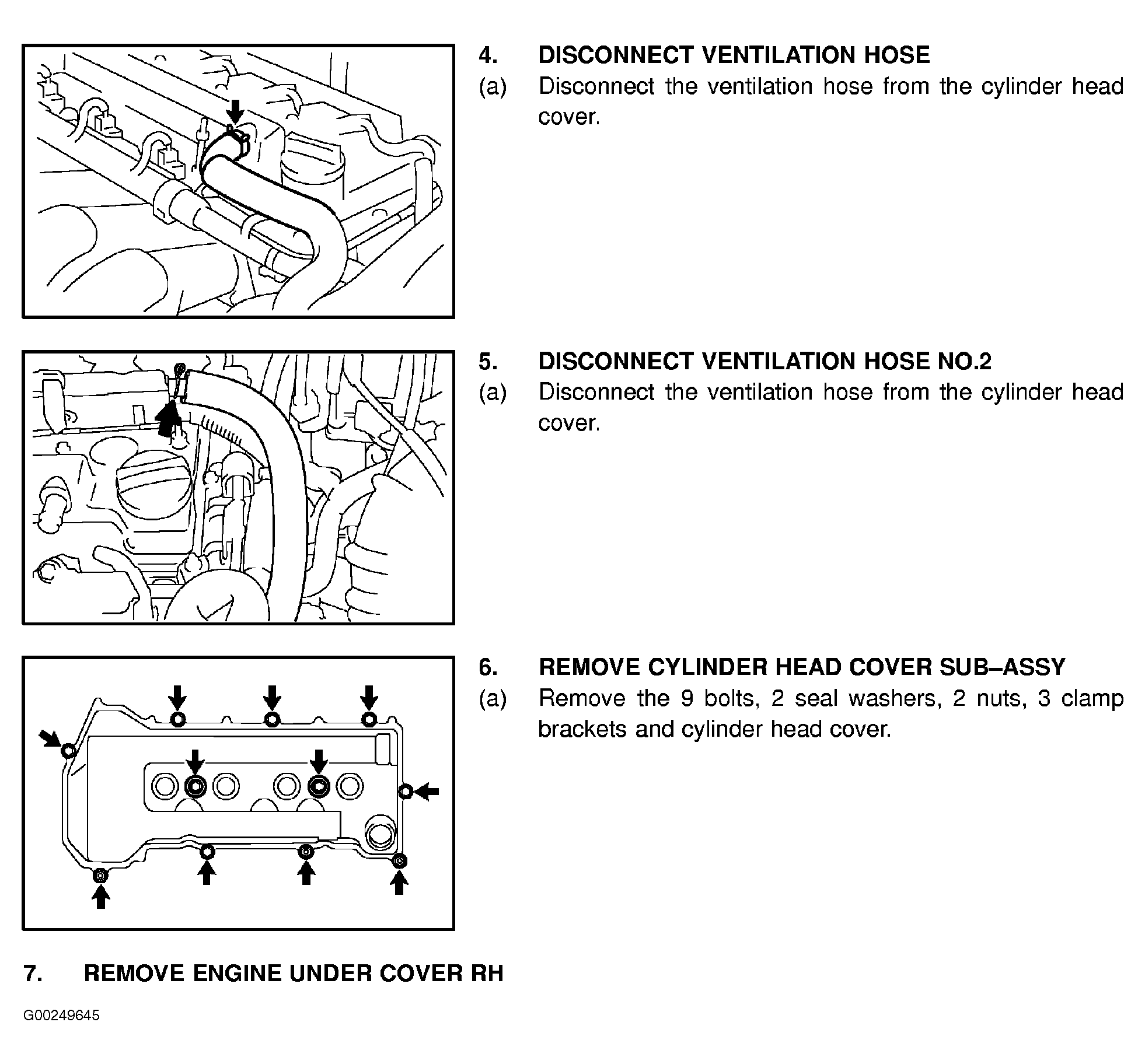

Fig 2: Adjusting Valve Clearance On 1ZZ-FE Engine - Steps 4-7 (Matrix)

G00249645

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

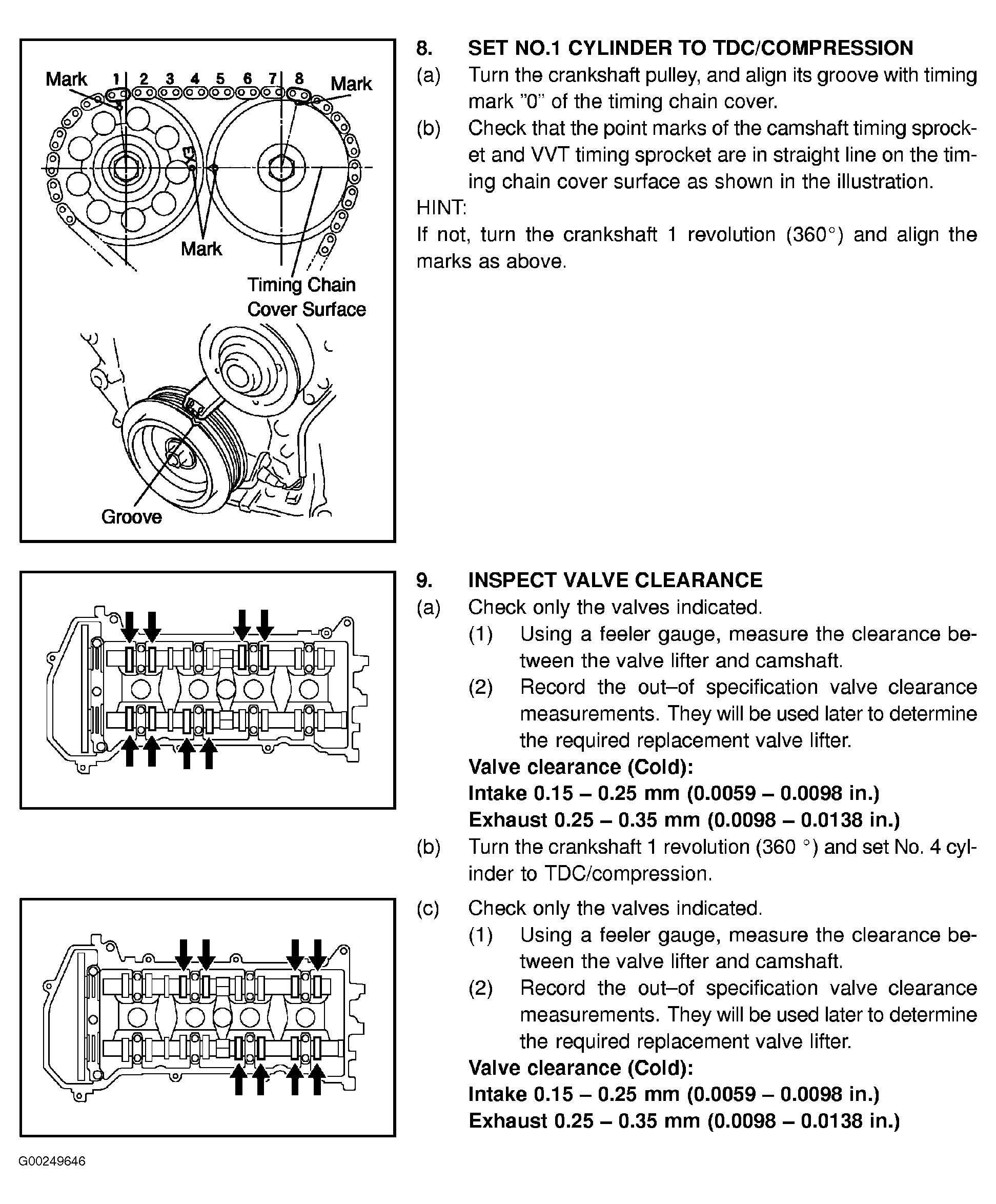

Fig 3: Adjusting Valve Clearance On 1ZZ-FE Engine - Steps 8-9 (Matrix)

G00249646

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

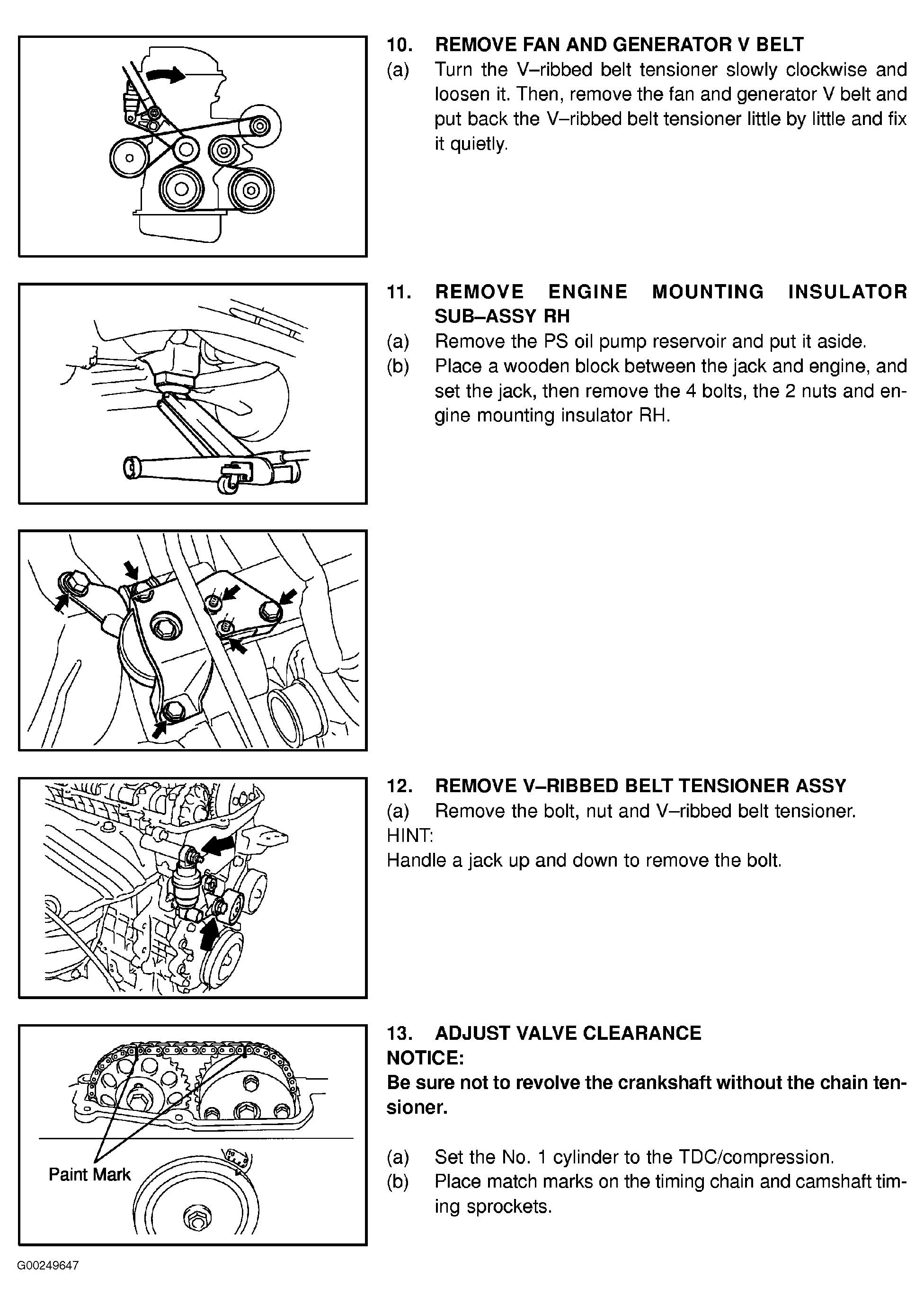

Fig 4: Adjusting Valve Clearance On 1ZZ-FE Engine - Steps 10-13 (Matrix)

G00249647

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

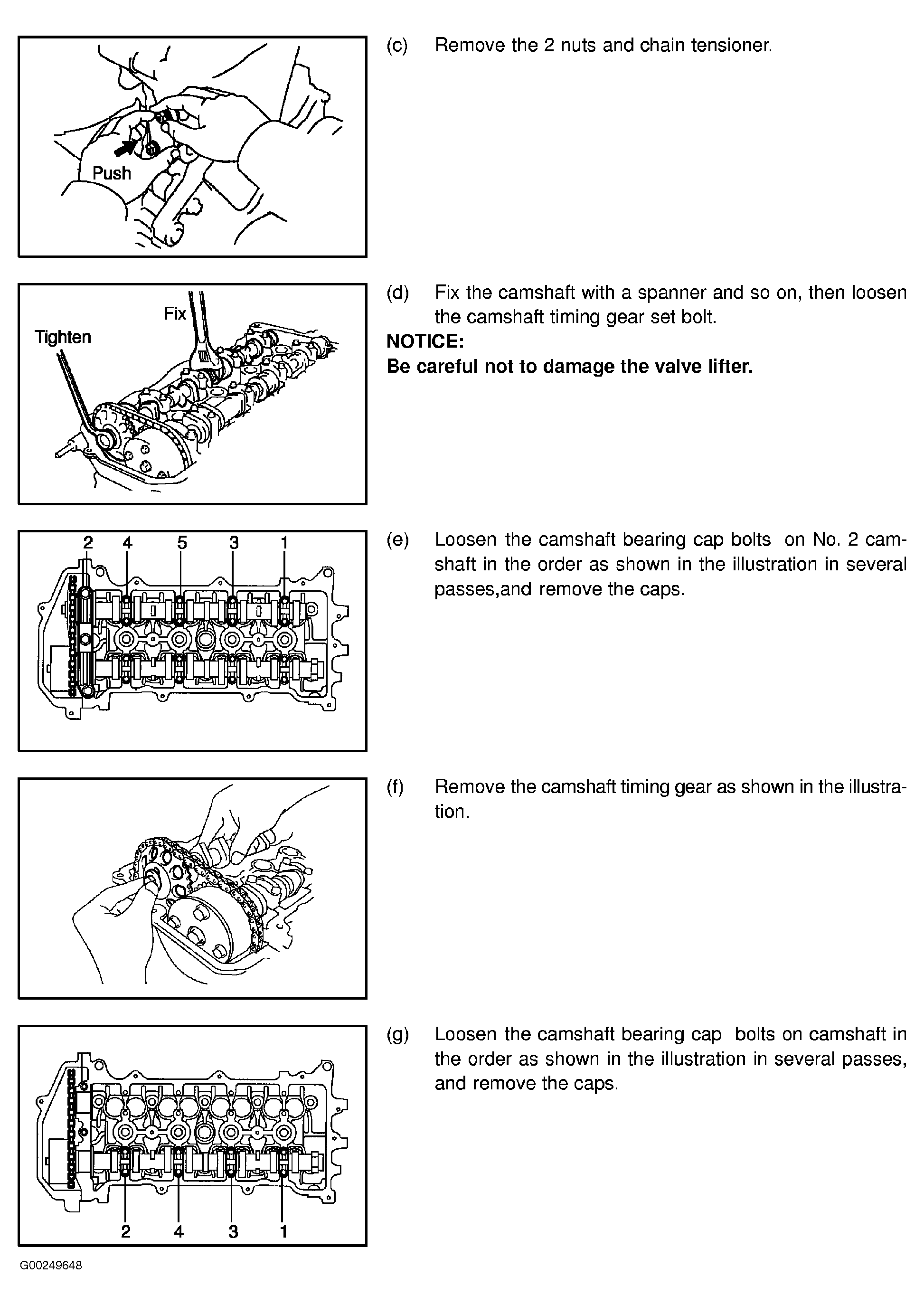

Fig 5: Adjusting Valve Clearance On 1ZZ-FE Engine - Step 13 Cont. (Matrix)

G00249648

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Adjusting Valve Clearance On 1ZZ-FE Engine - Step 13 Cont. (Matrix)

G00249649

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

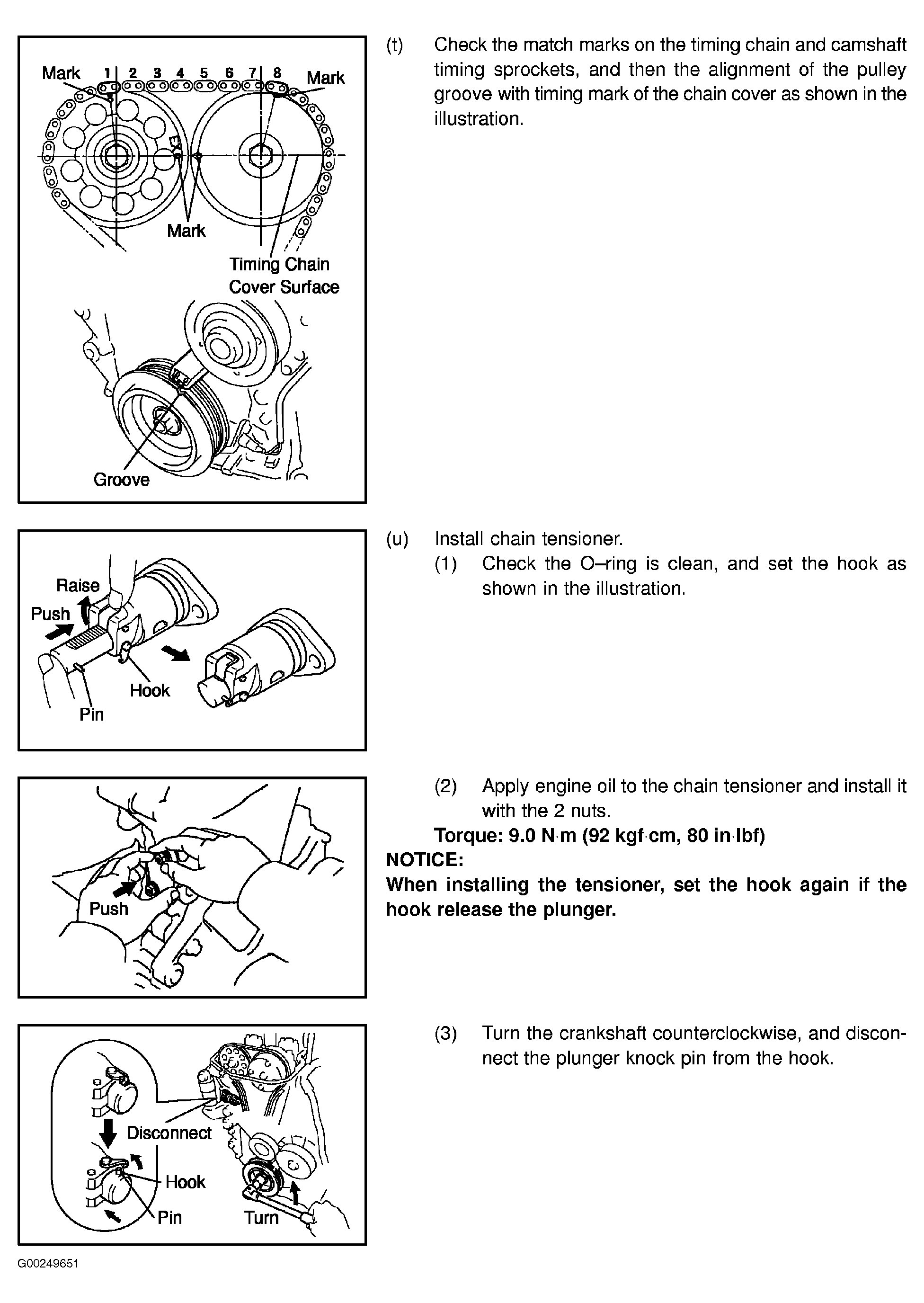

Fig 7: Adjusting Valve Clearance On 1ZZ-FE Engine - Step 13 Cont. (Matrix)

G00249650

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

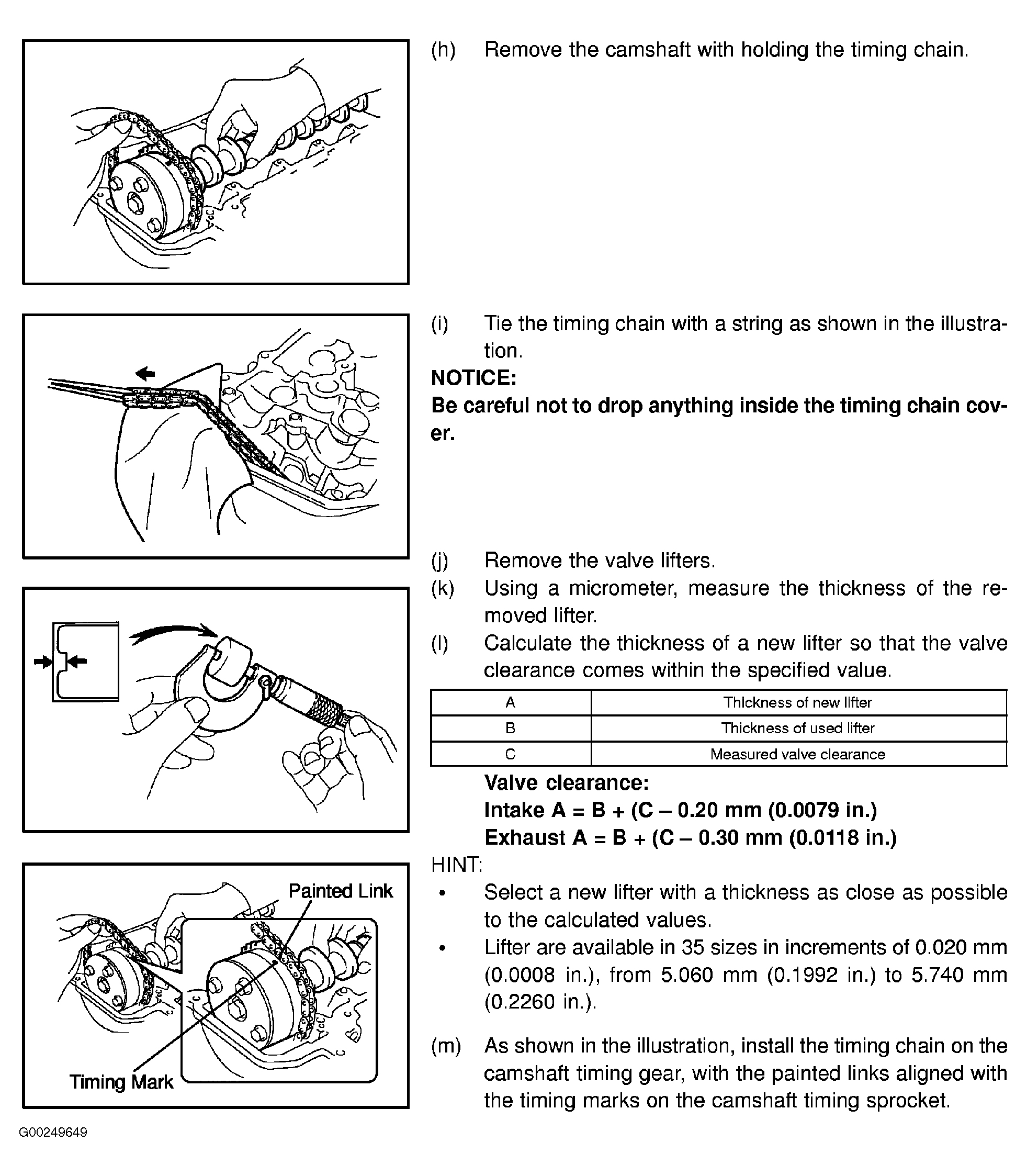

Fig 8: Adjusting Valve Clearance On 1ZZ-FE Engine - Step 13 Cont. (Matrix)

G00249651

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

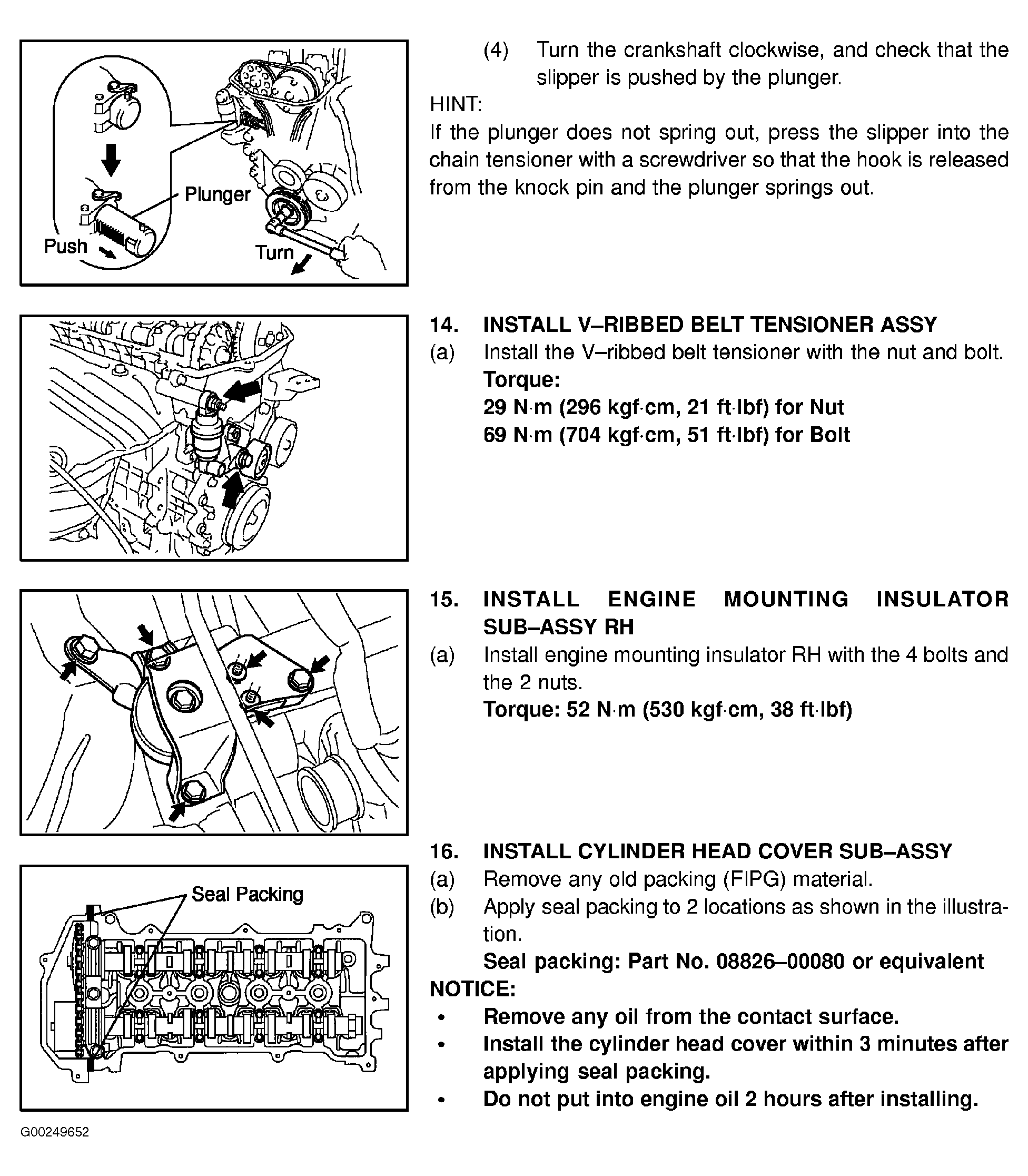

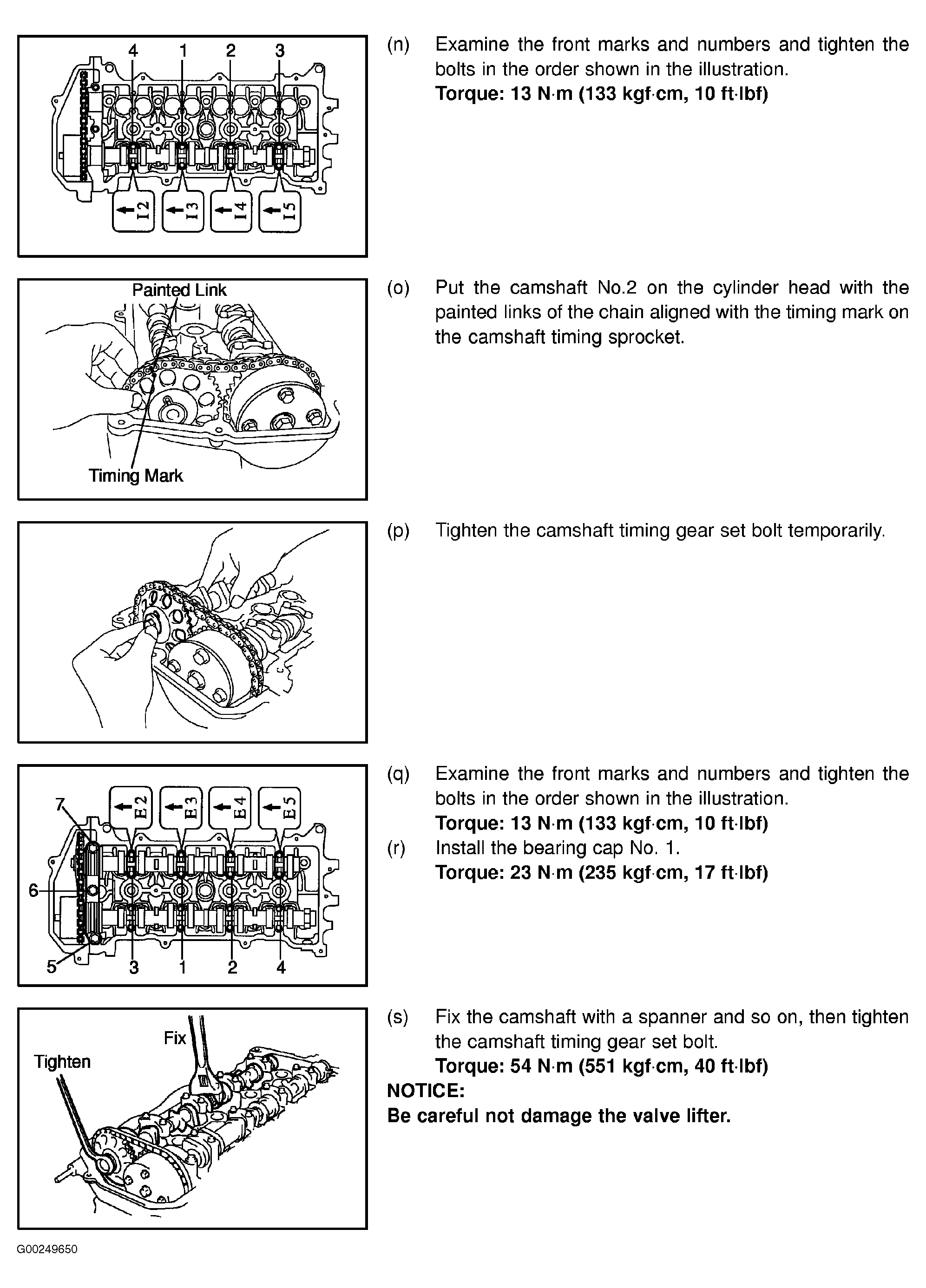

Fig 9: Adjusting Valve Clearance On 1ZZ-FE Engine - Step 13 Cont.-16 (Matrix)

G00249652

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

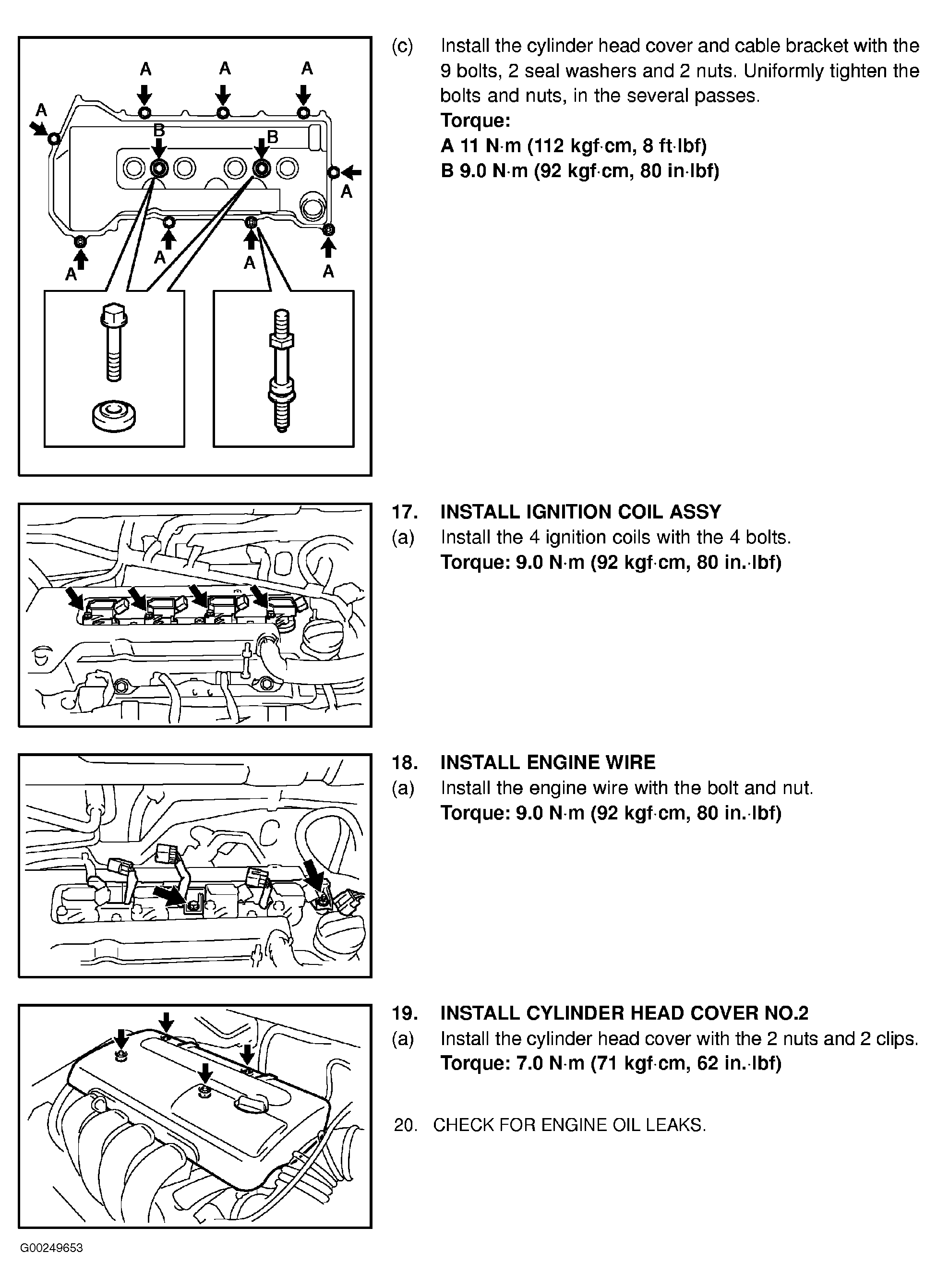

Fig 10: Adjusting Valve Clearance On 1ZZ-FE Engine - Step 16 Cont.-20 (Matrix)

G00249653

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
