ECHO & Prius

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2003 Toyota Tacoma, 2003 Toyota RAV4, 2003 Toyota Prius, 2003 Toyota Matrix, and 2003 Toyota MR2. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: On Prius, read service precautions before proceeding with service procedure. See SERVICE PRECAUTIONS .

For valve clearance adjustment procedures, see Fig 1-Fig 7 . To remove and install valve cover assembly, see appropriate article in ENGINES.

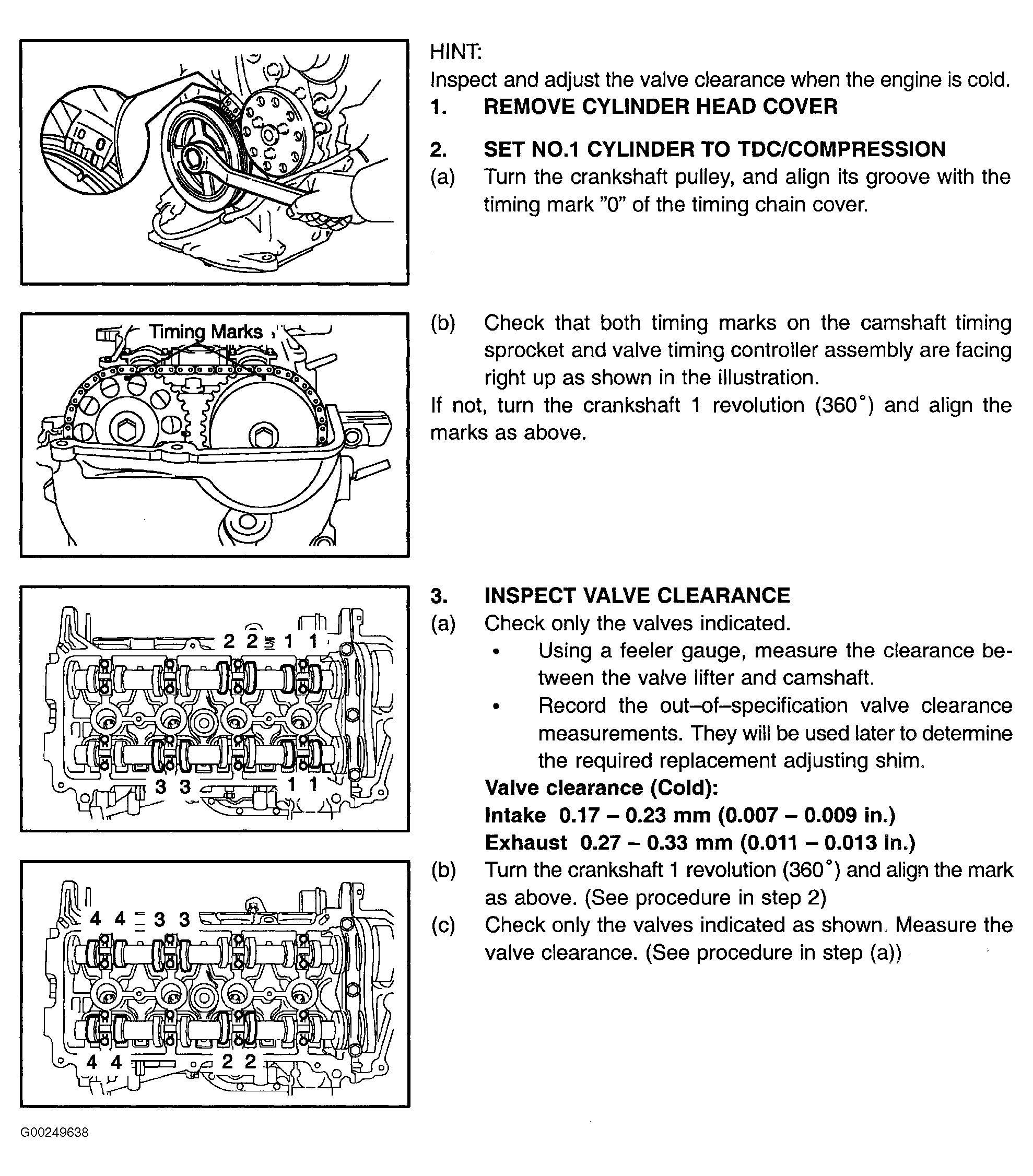

Fig 1: Adjusting Valve Clearance - Steps 1-3 (ECHO & Prius)
G00249638Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

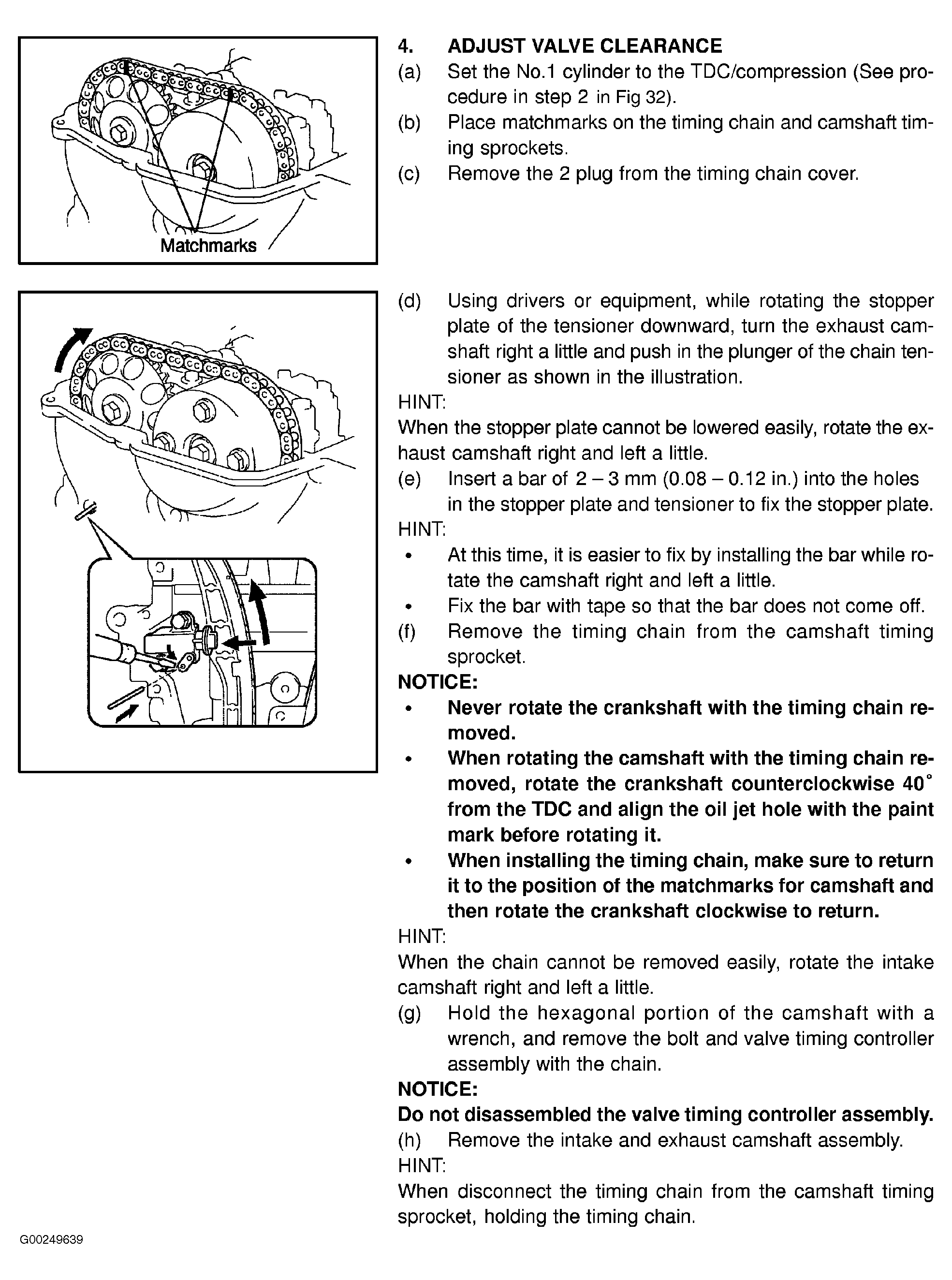

Fig 2: Adjusting Valve Clearance - Step 4 (ECHO & Prius)
G00249639Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

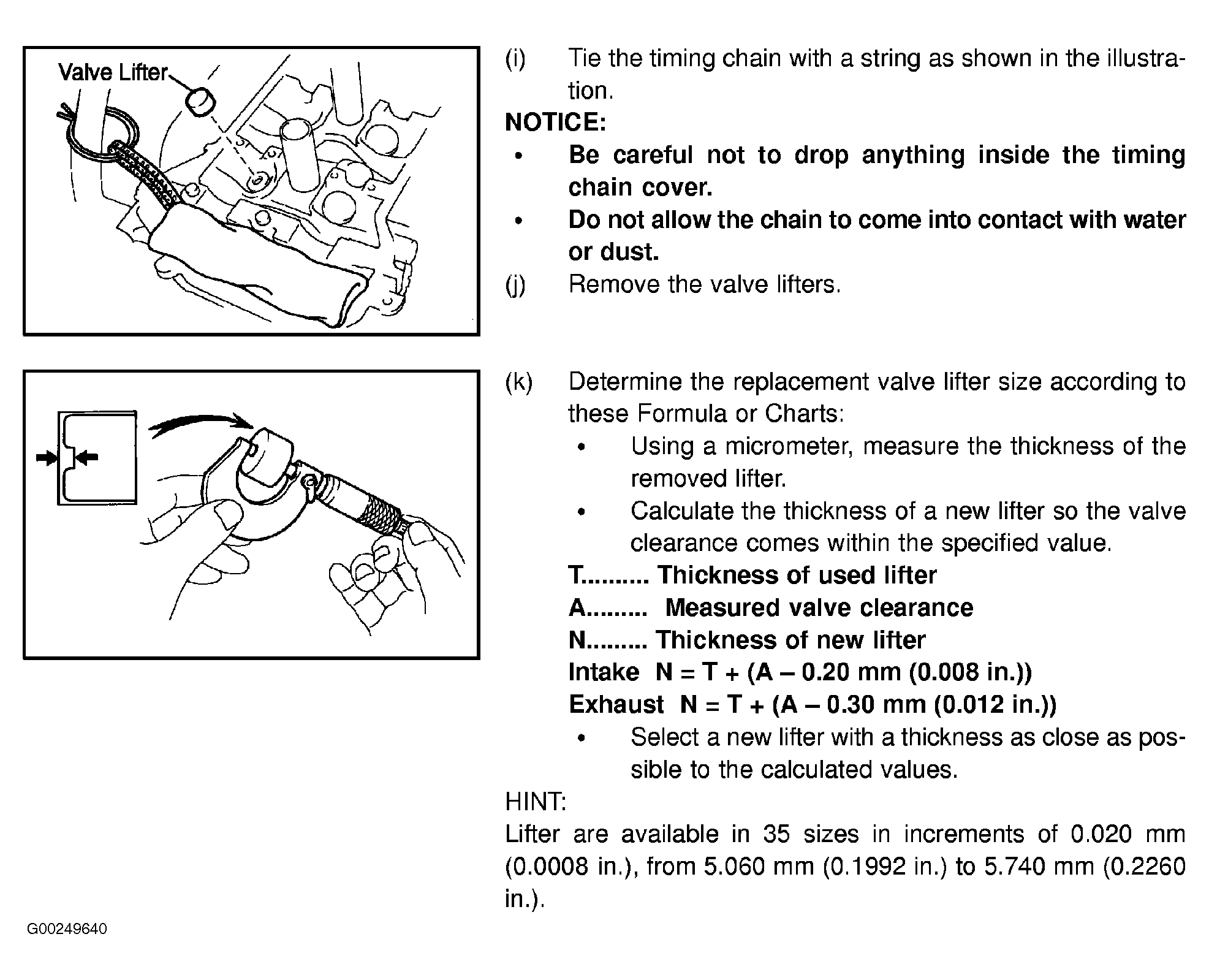

Fig 3: Adjusting Valve Clearance - Step 4 Cont. (ECHO & Prius)
G00249640Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

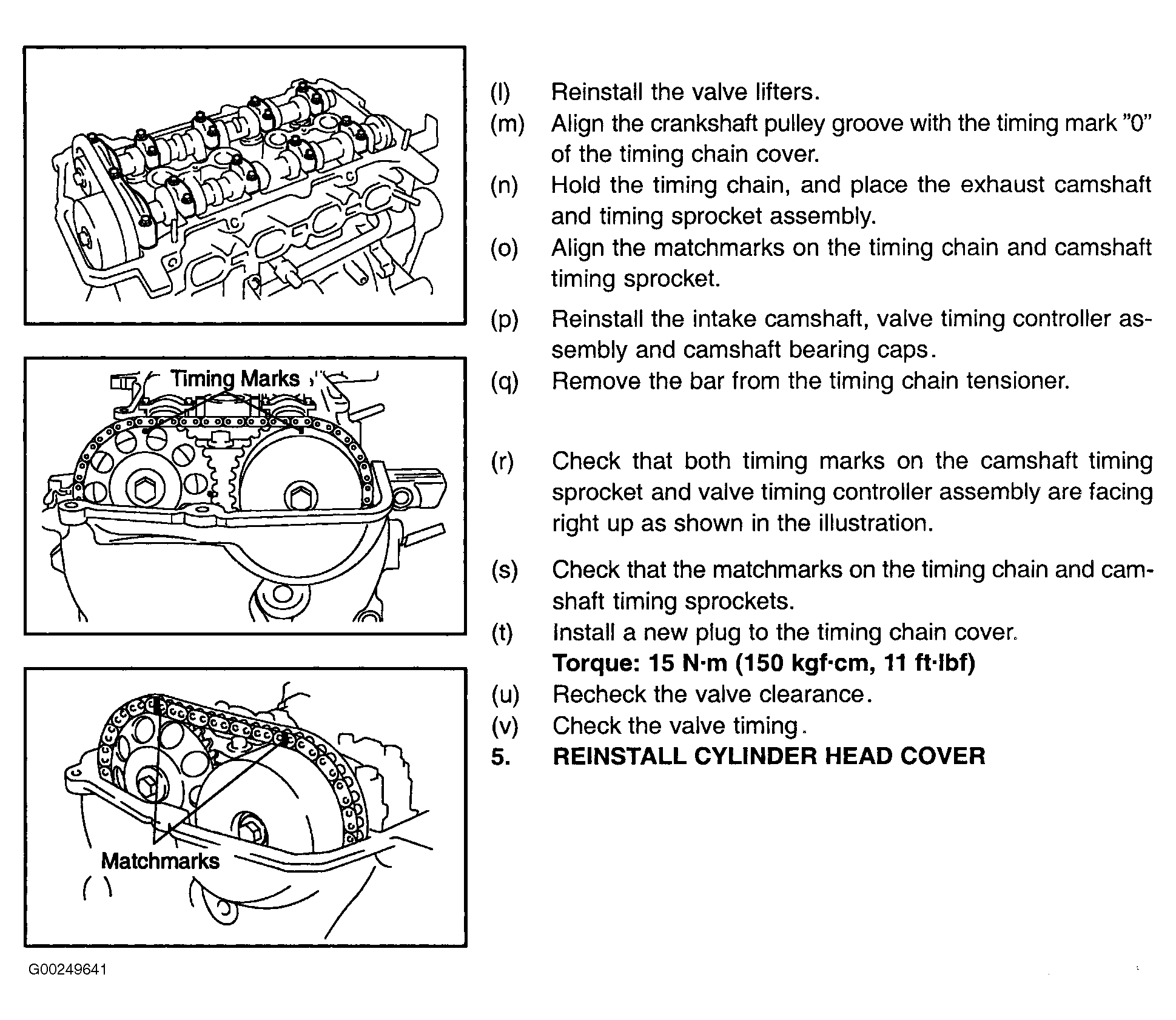

Fig 4: Adjusting Valve Clearance - Step 4 Cont.-5 (ECHO & Prius)
G00249641Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

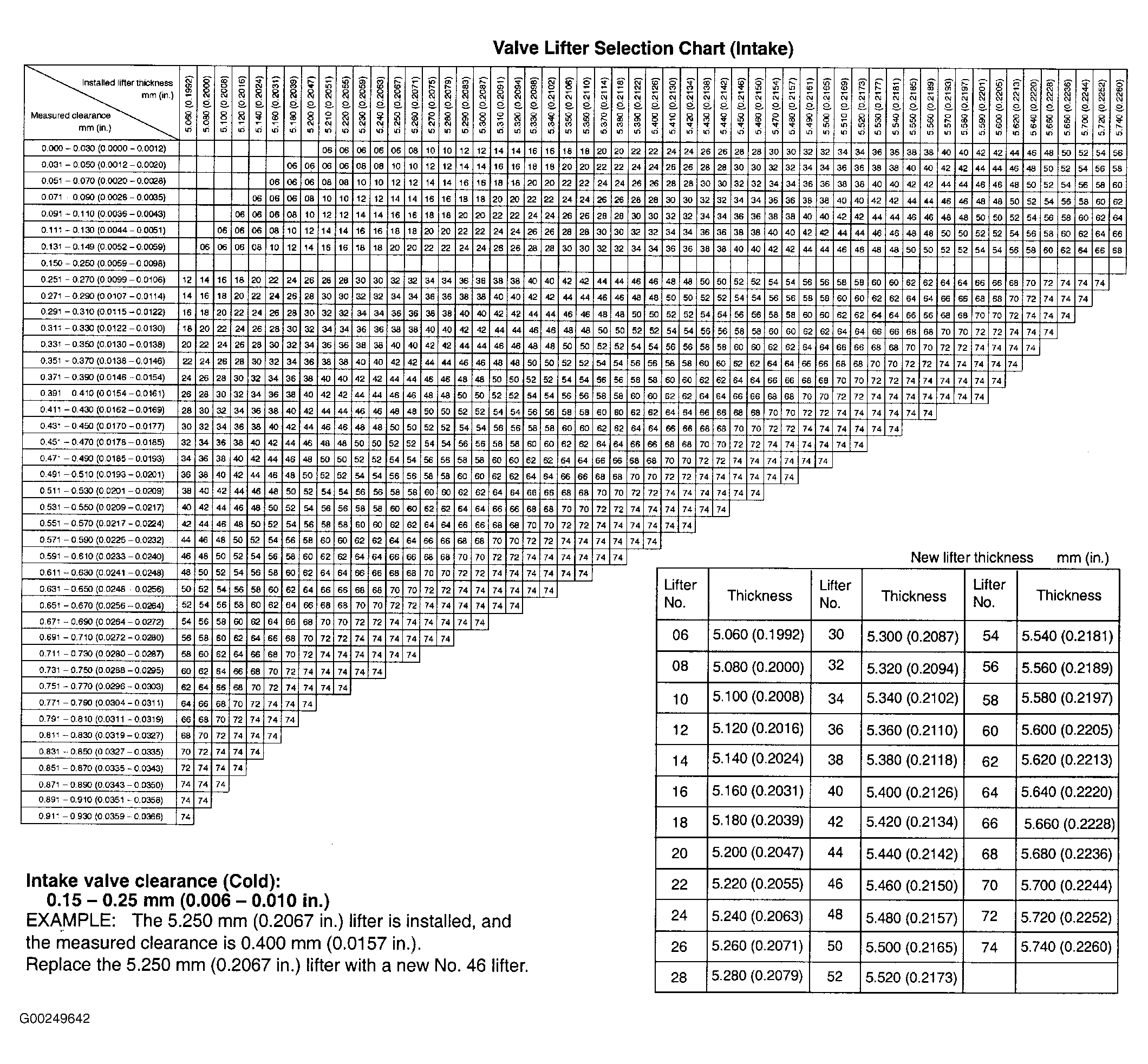

Fig 5: Intake Valve Lifter Selection Chart Clearance (ECHO & Prius)
G00249642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

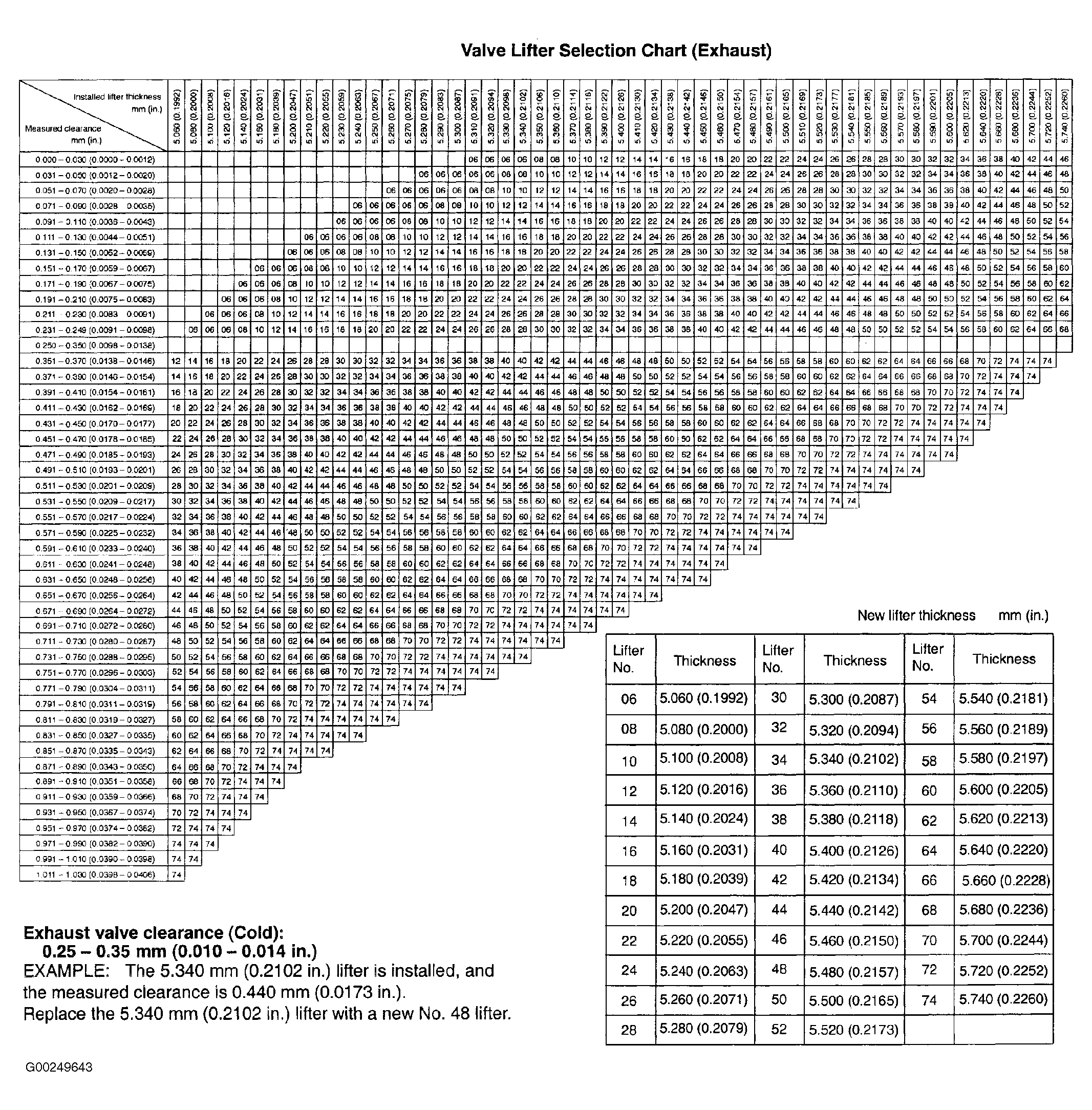

Fig 6: Exhaust Valve Lifter Selection Chart Clearance (ECHO & Prius)
G00249643Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 7: Valve Cover Bolt/Nut Tightening Sequence (ECHO & Prius)
G99A52860Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
