Valve Clearance: Corolla

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2003 Toyota Tacoma, 2003 Toyota RAV4, 2003 Toyota Prius, 2003 Toyota Matrix, and 2003 Toyota MR2. However, it is still accessible from the selected car via links, so may be relevant.

For valve clearance adjustment procedures, see Fig 1-Fig 10 .

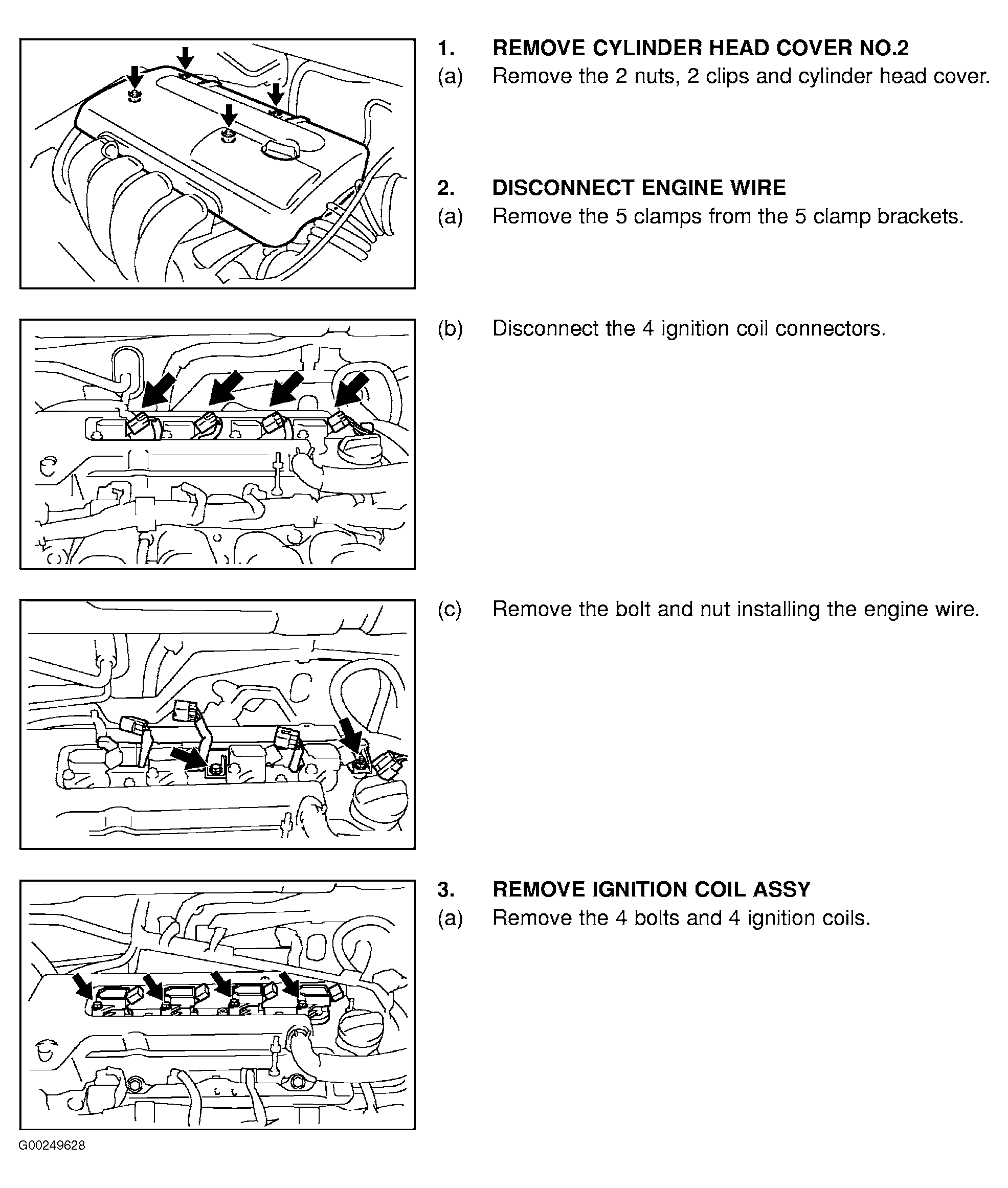

Fig 1: Adjusting Valve Clearance - Steps 1-3 (Corolla)

G00249628

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

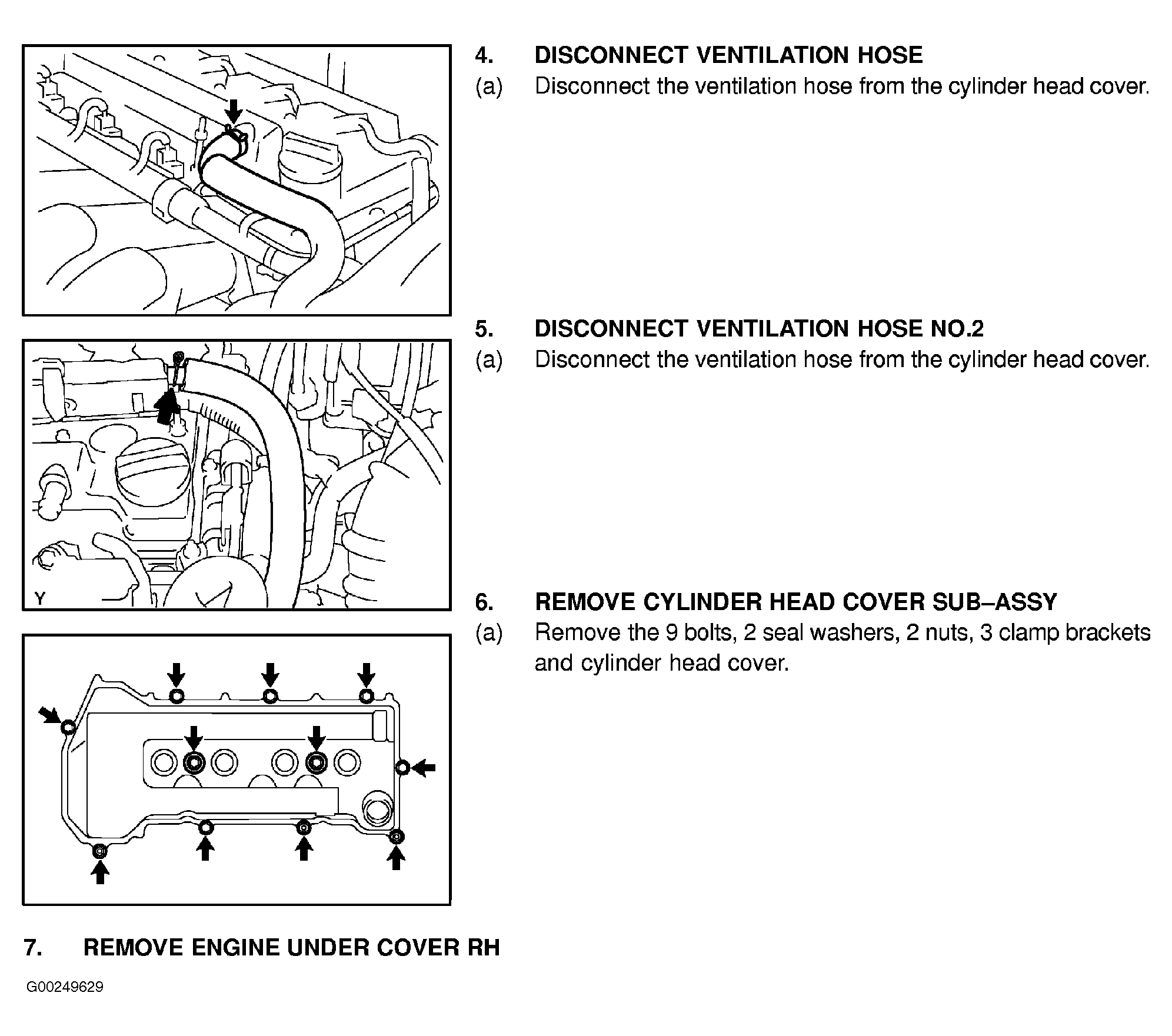

Fig 2: Adjusting Valve Clearance - Steps 4-7 (Corolla)

G00249629

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

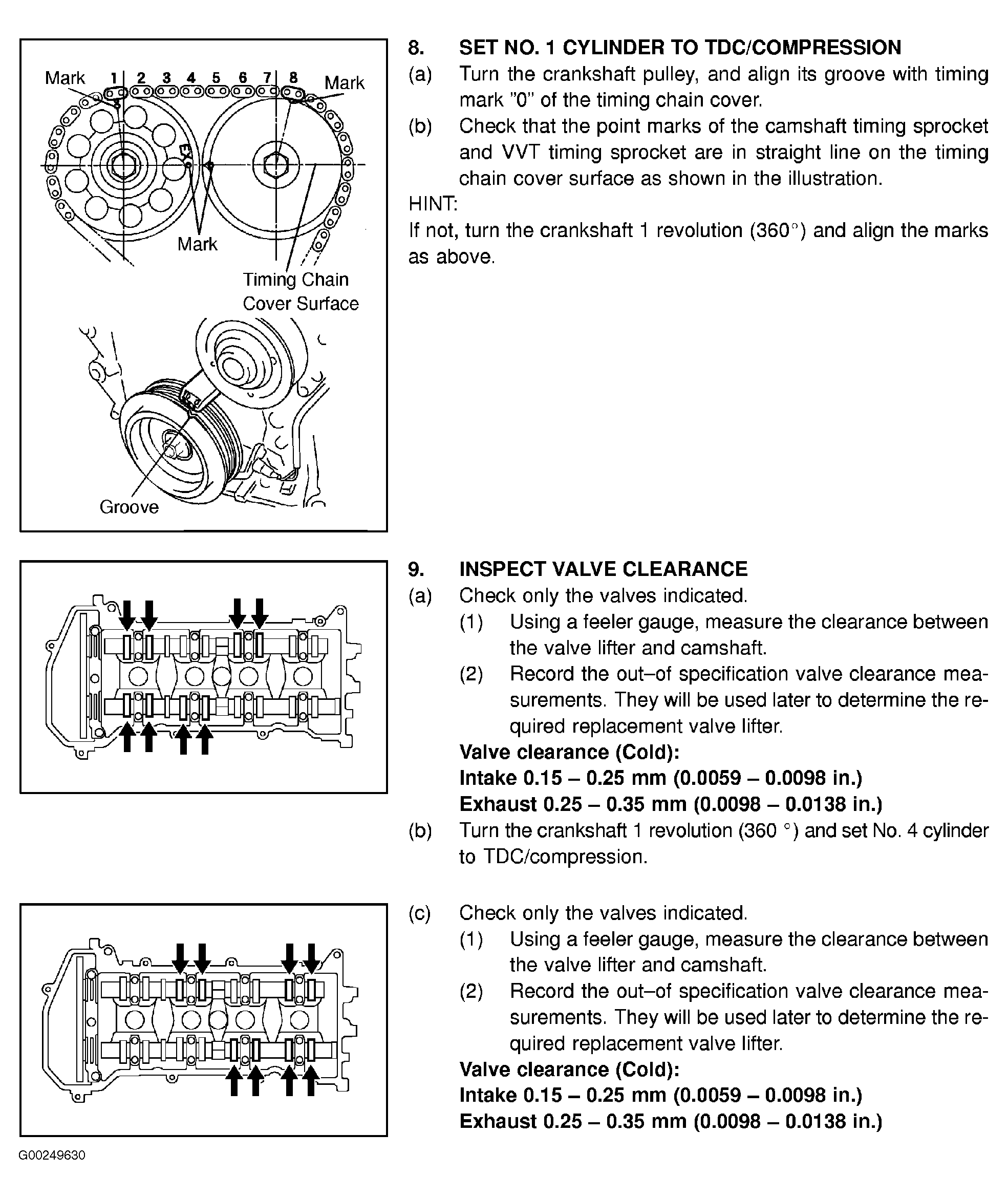

Fig 3: Adjusting Valve Clearance - Steps 8-9 (Corolla)

G00249630

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

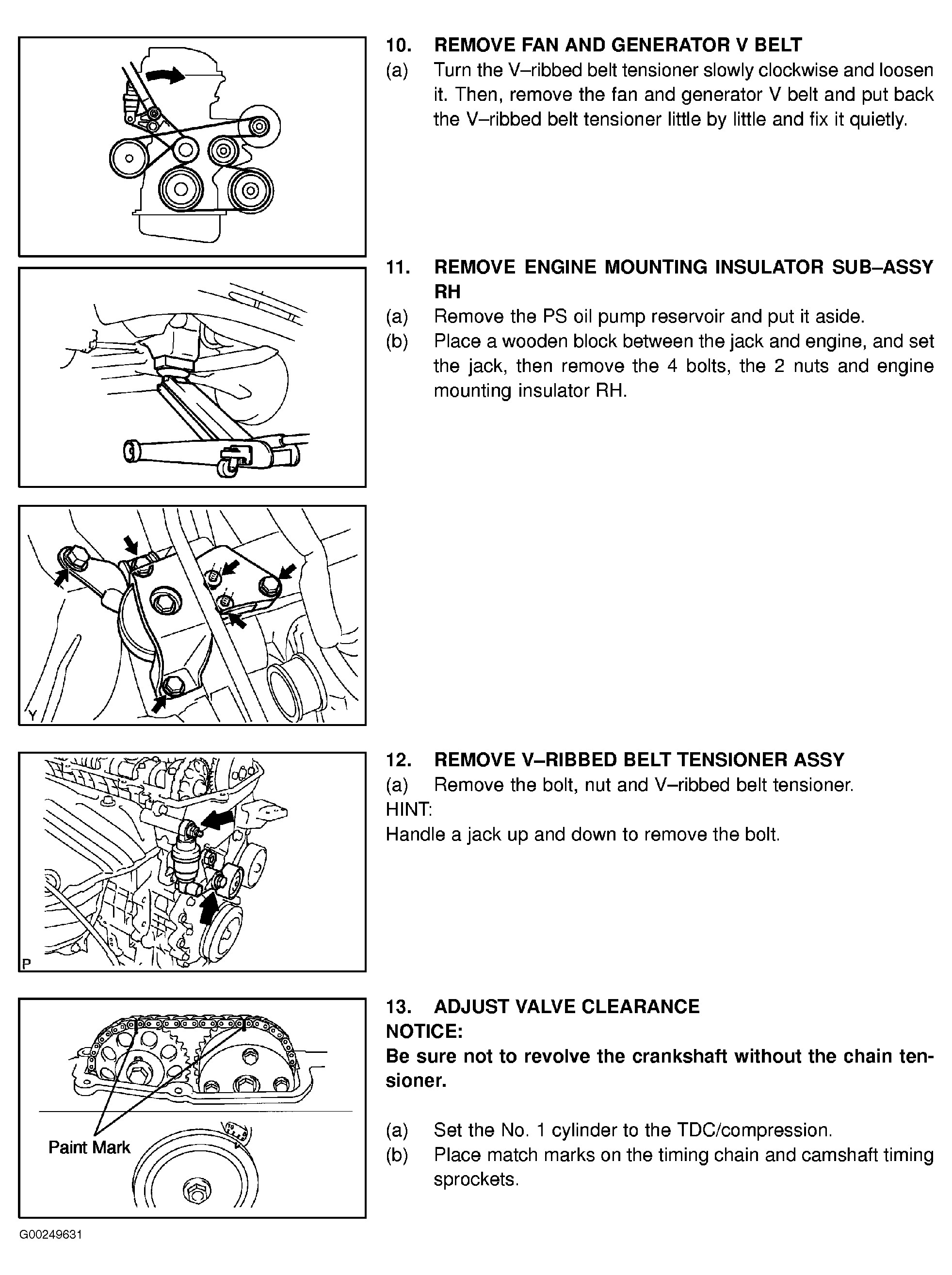

Fig 4: Adjusting Valve Clearance - Steps 10-13 (Corolla)

G00249631

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

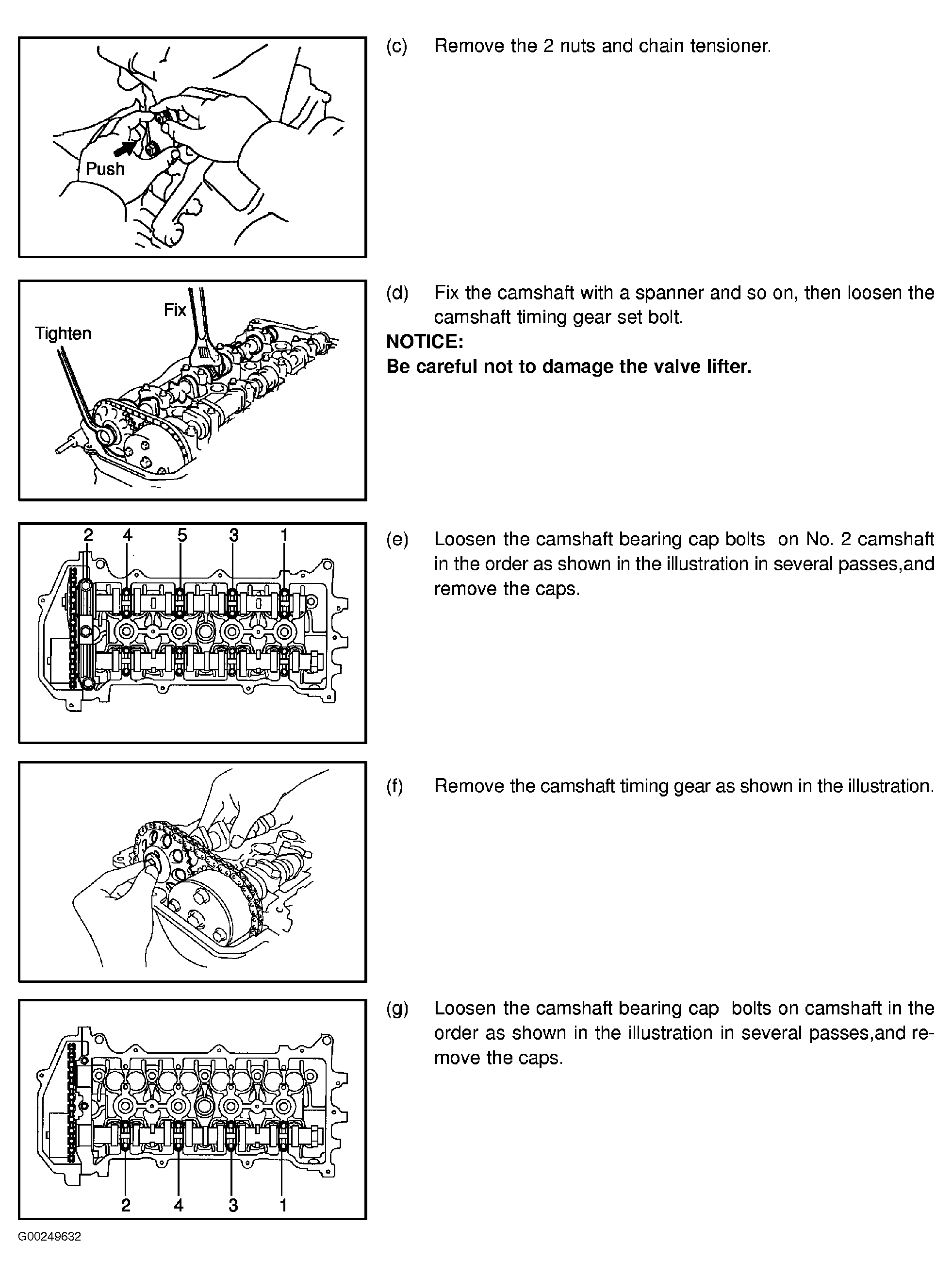

Fig 5: Adjusting Valve Clearance - Step 13 Cont. (Corolla)

G00249632

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

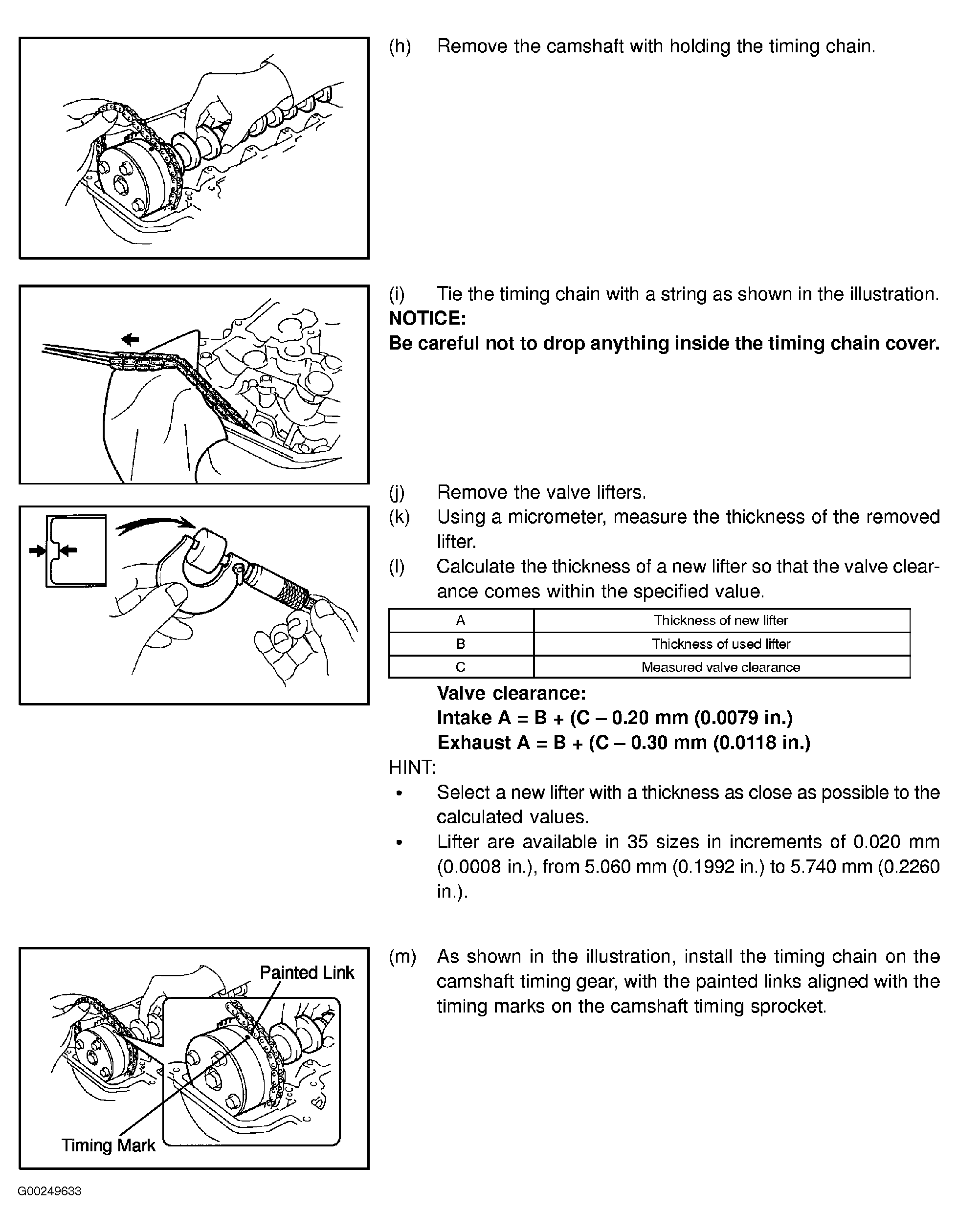

Fig 6: Adjusting Valve Clearance - Step 13 Cont. (Corolla)

G00249633

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

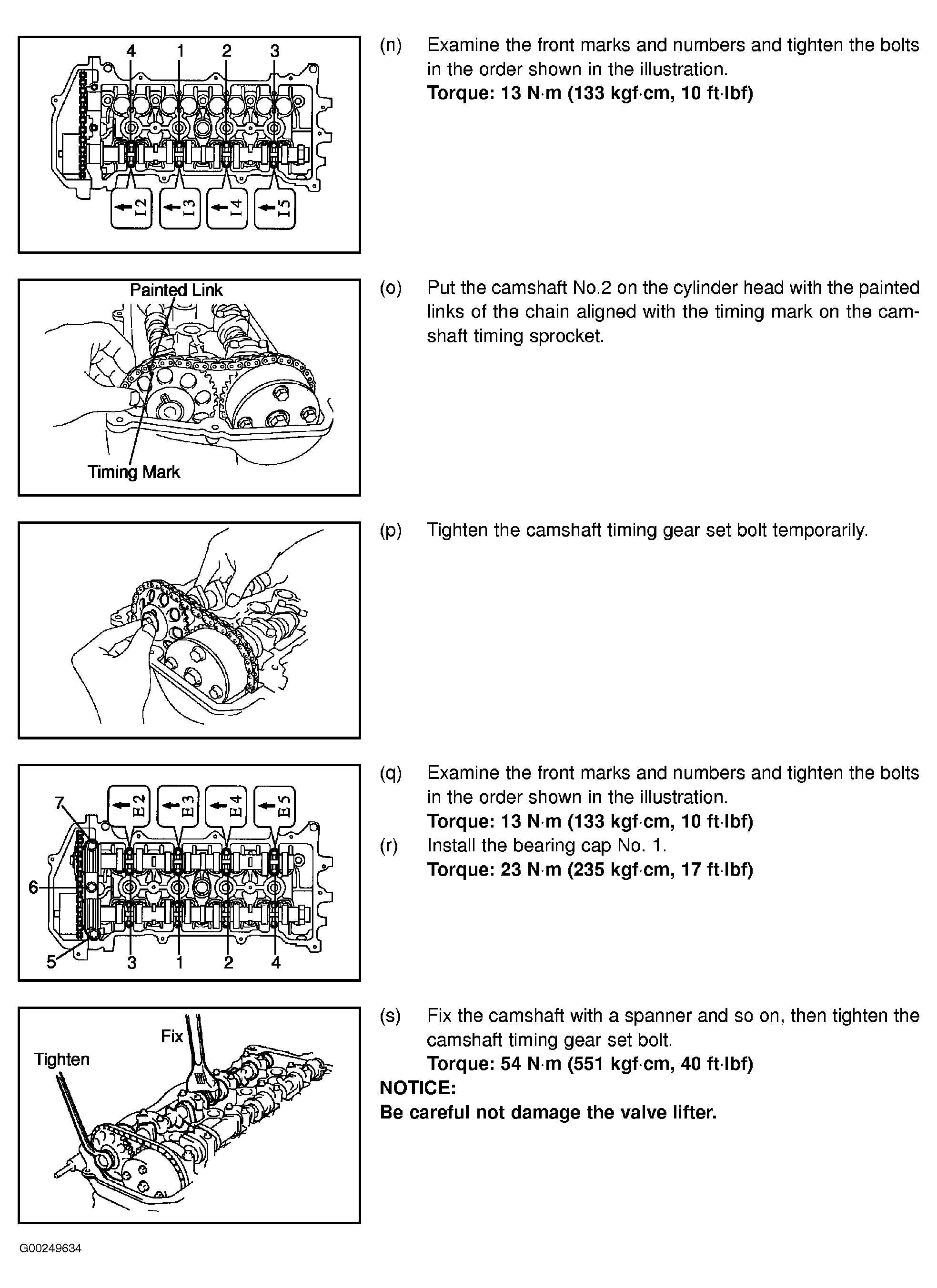

Fig 7: Adjusting Valve Clearance - Step 13 Cont. (Corolla)

G00249634

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

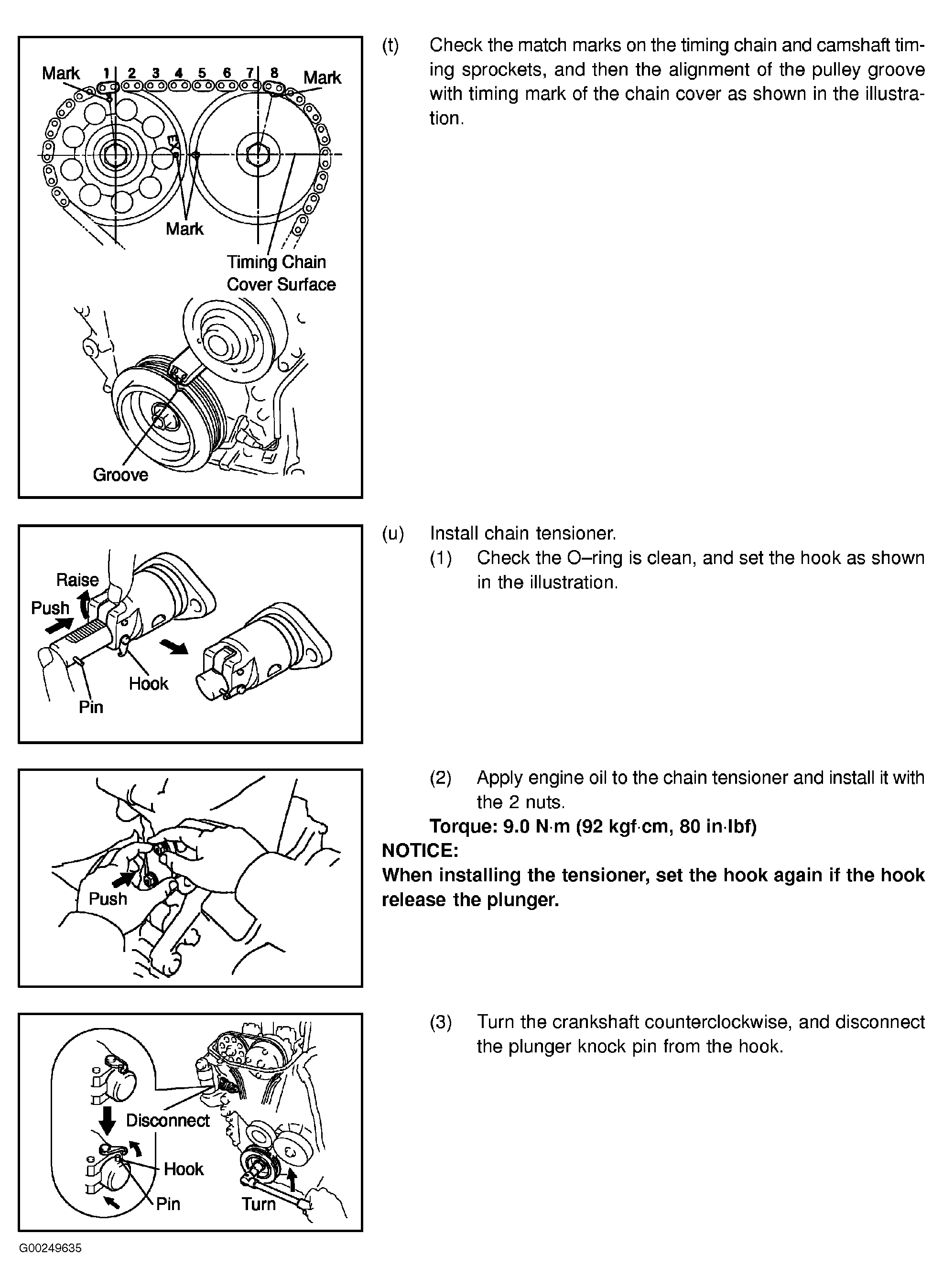

Fig 8: Adjusting Valve Clearance - Step 13 Cont. (Corolla)

G00249635

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

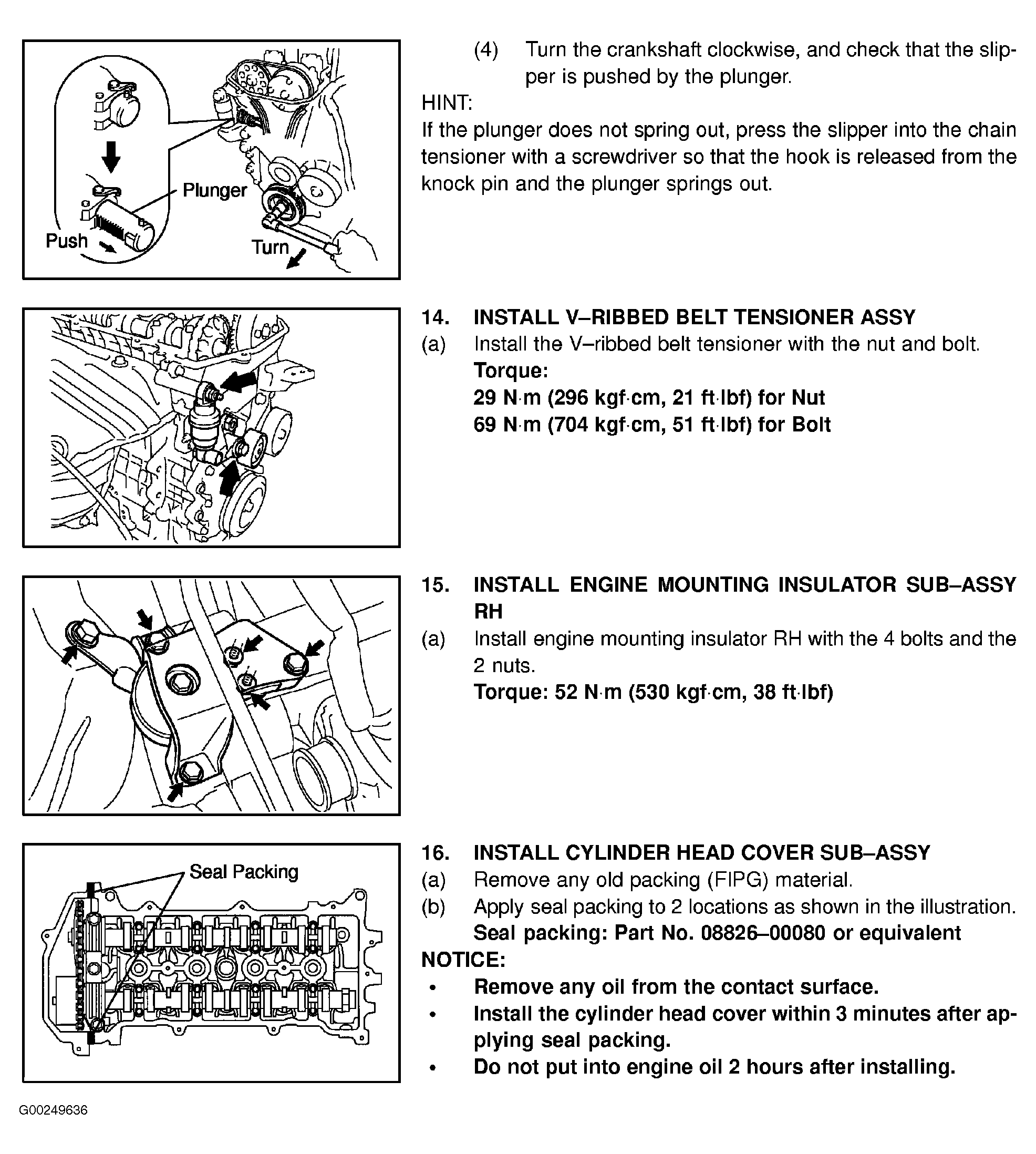

Fig 9: Adjusting Valve Clearance - Steps 13 Cont.-16 (Corolla)

G00249636

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

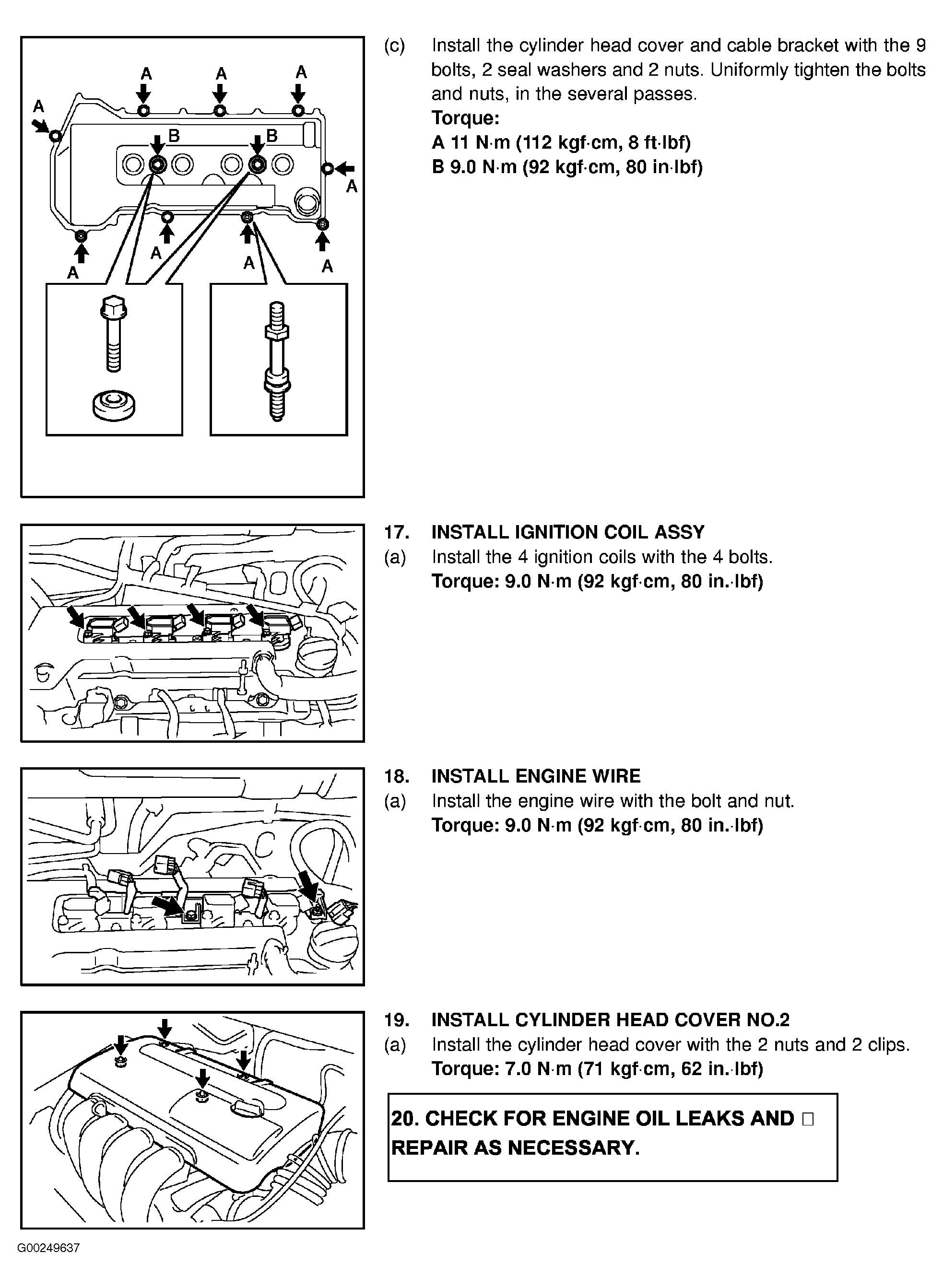

Fig 10: Adjusting Valve Clearance - Steps 16 Cont.-20 (Corolla)

G00249637

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
