Valve Clearance: Celica

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2003 Toyota Tacoma, 2003 Toyota RAV4, 2003 Toyota Prius, 2003 Toyota Matrix, and 2003 Toyota MR2. However, it is still accessible from the selected car via links, so may be relevant.

For valve clearance adjustment procedures, see Fig 1-Fig 10 .

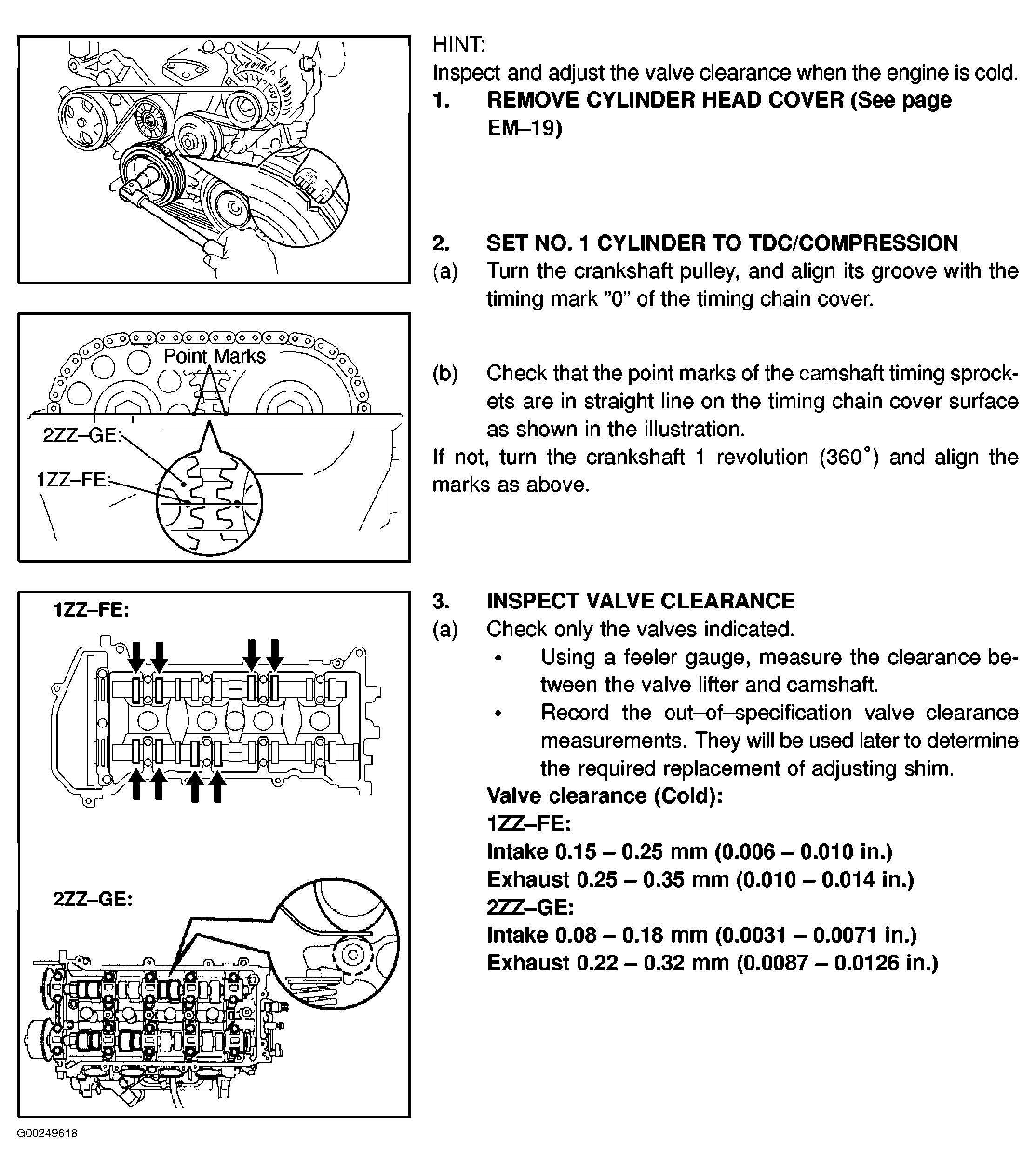

Fig 1: Adjusting Valve Clearance - Steps 1-3 (Celica)

G00249618

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

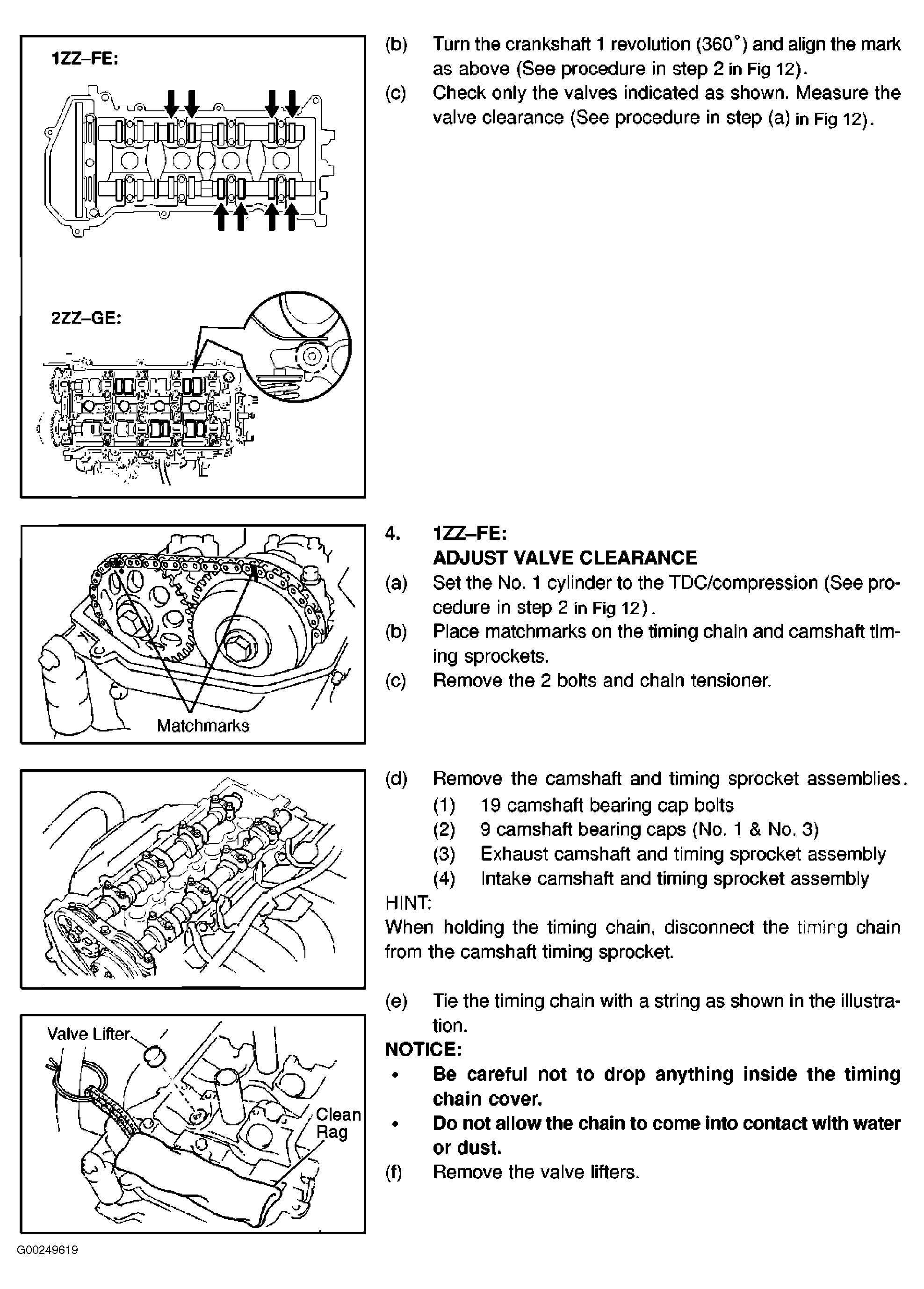

Fig 2: Adjusting Valve Clearance - Step 3 Cont.-4 (Celica)

G00249619

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

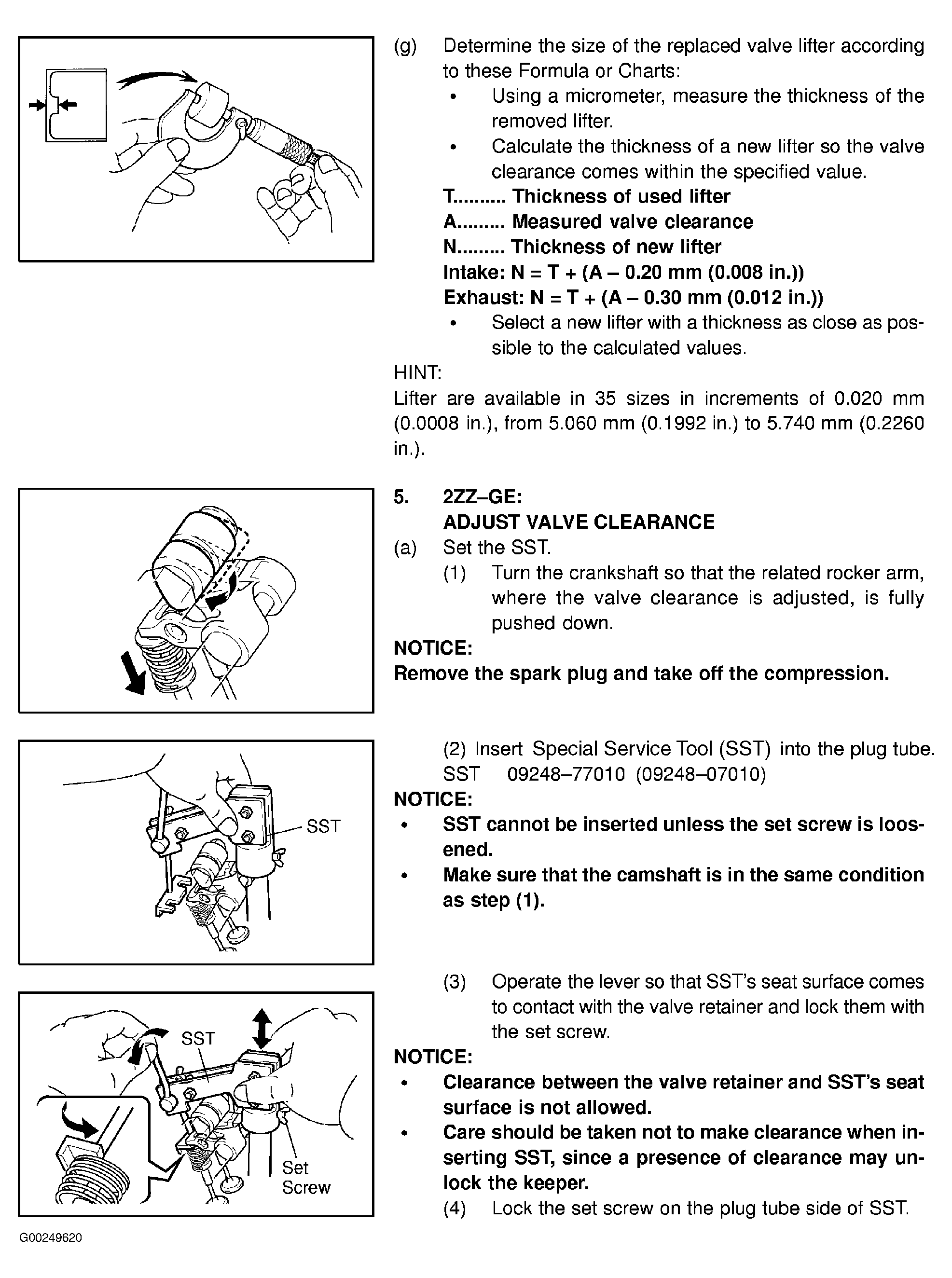

Fig 3: Adjusting Valve Clearance - Step 4 Cont.-5 (Celica)

G00249620

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

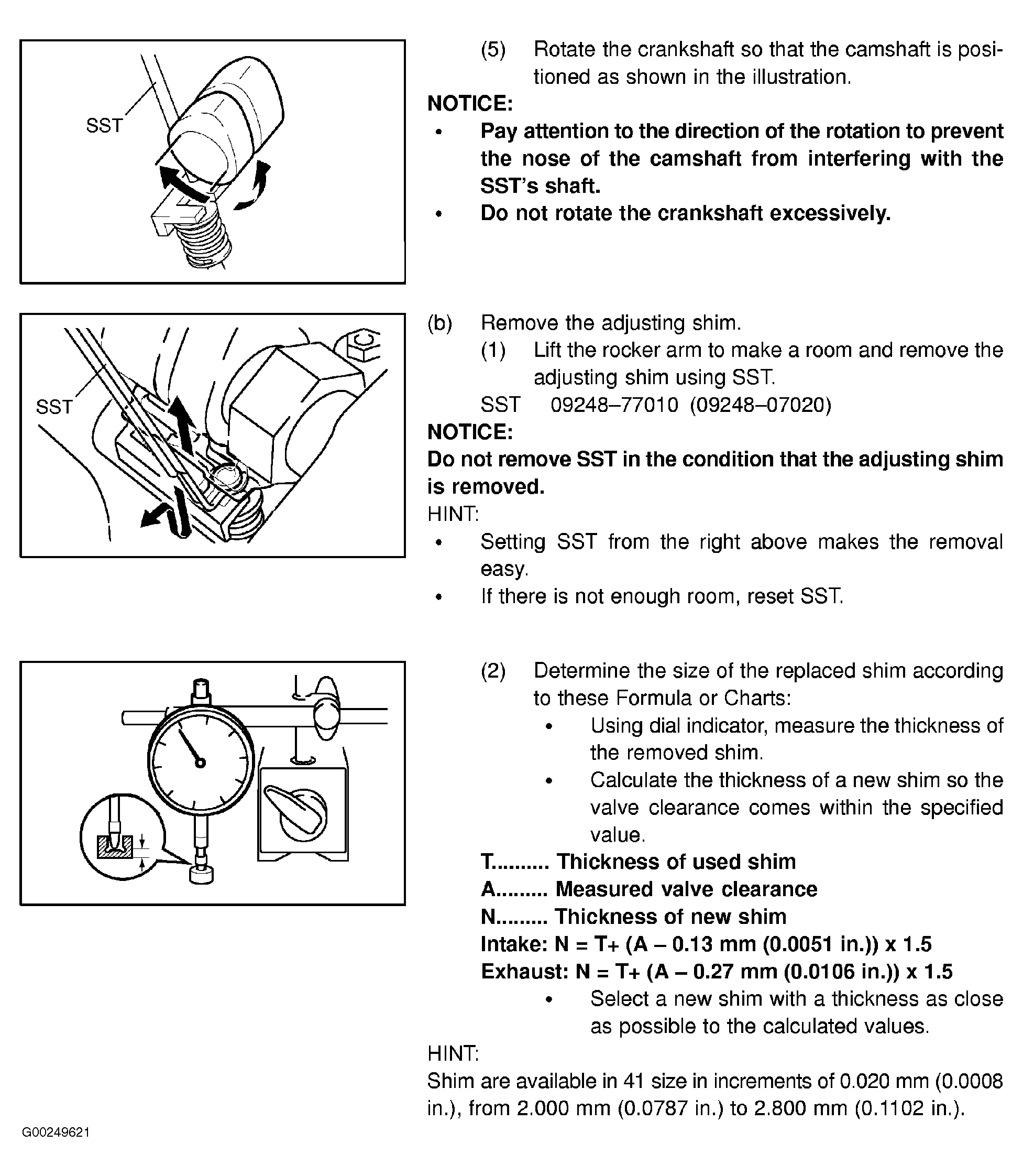

Fig 4: Adjusting Valve Clearance - Step 5 Cont. (Celica)

G00249621

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

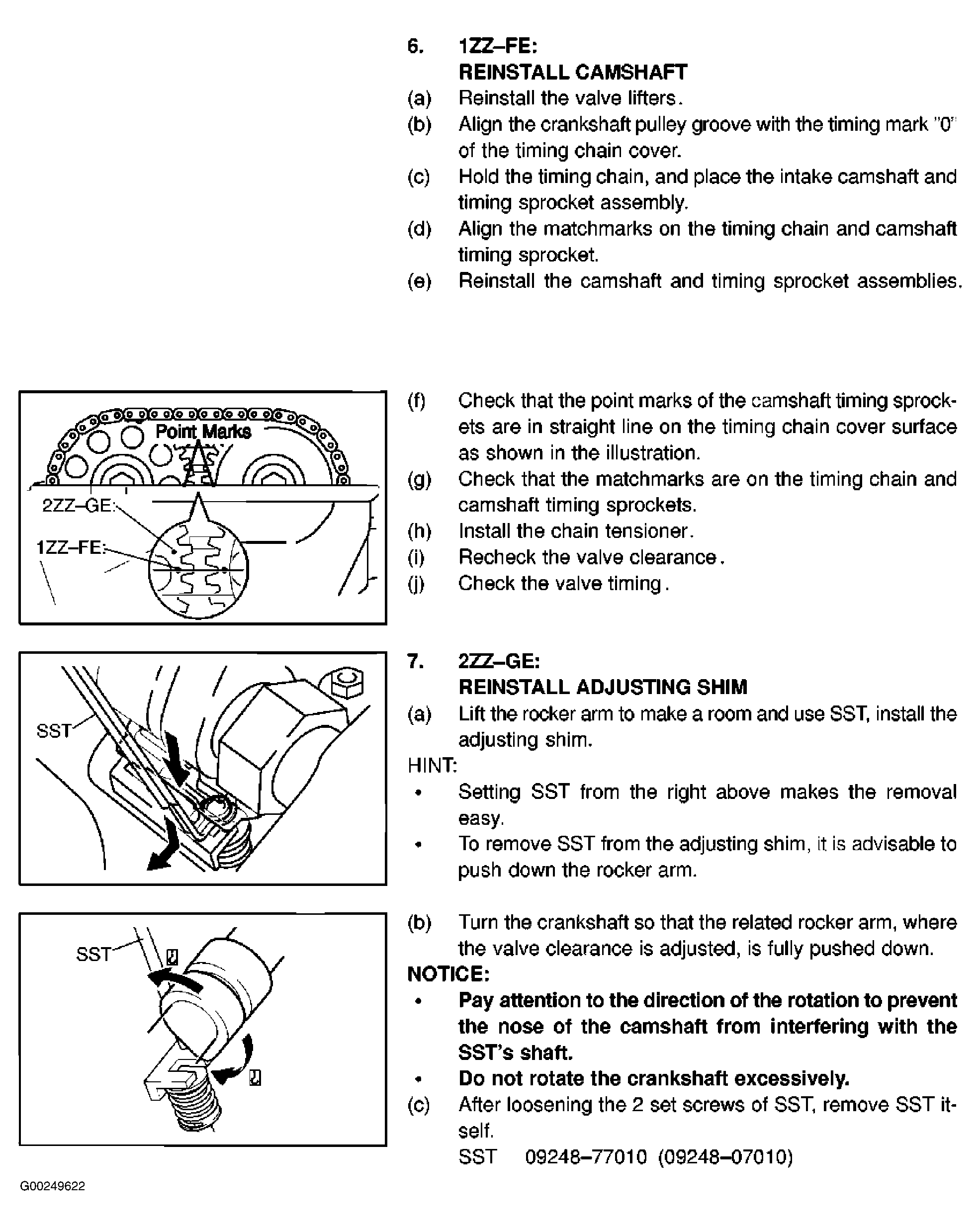

Fig 5: Adjusting Valve Clearance - Step 6-7 (Celica)

G00249622

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

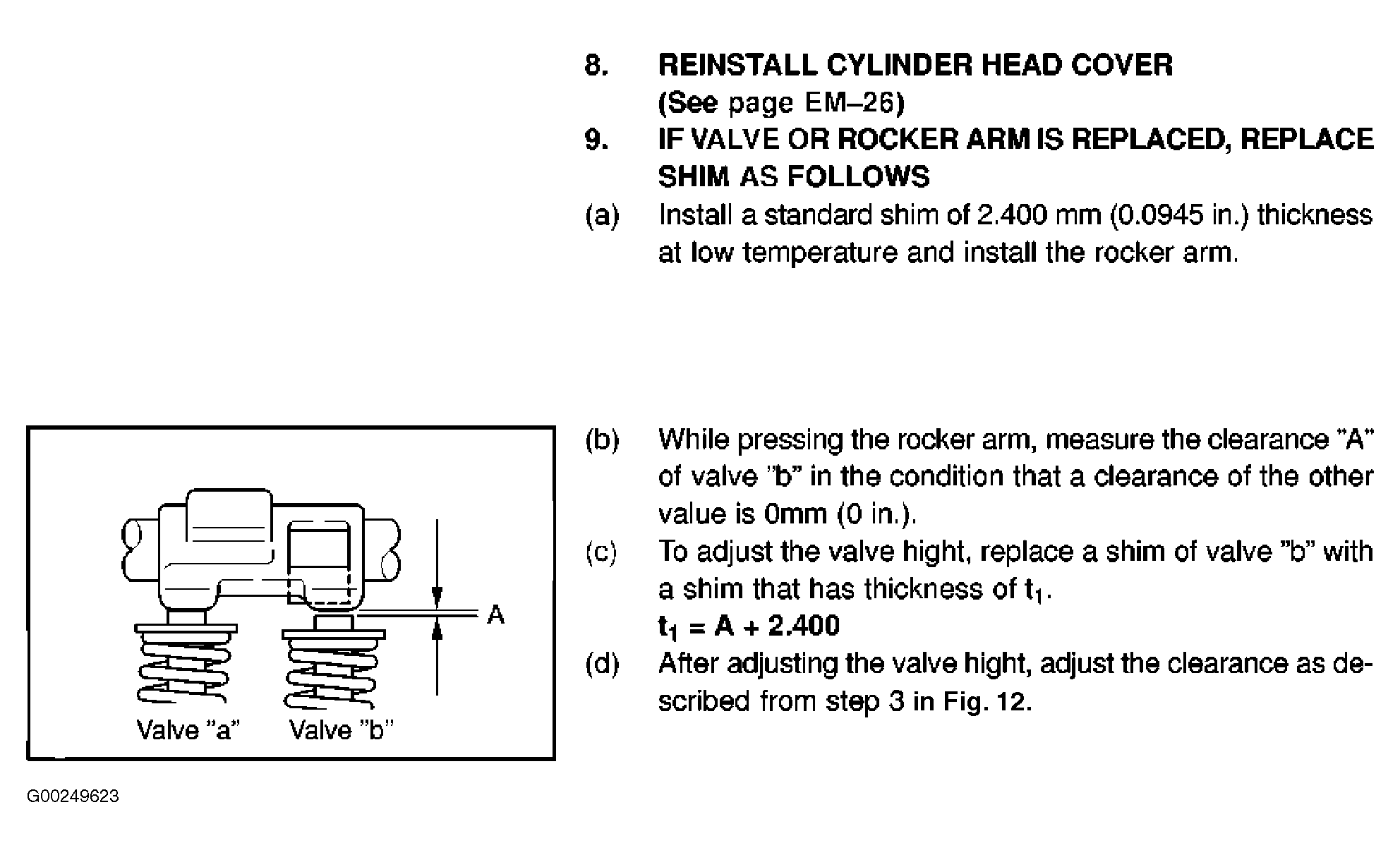

Fig 6: Adjusting Valve Clearance - Steps 8-9 (Celica)

G00249623

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

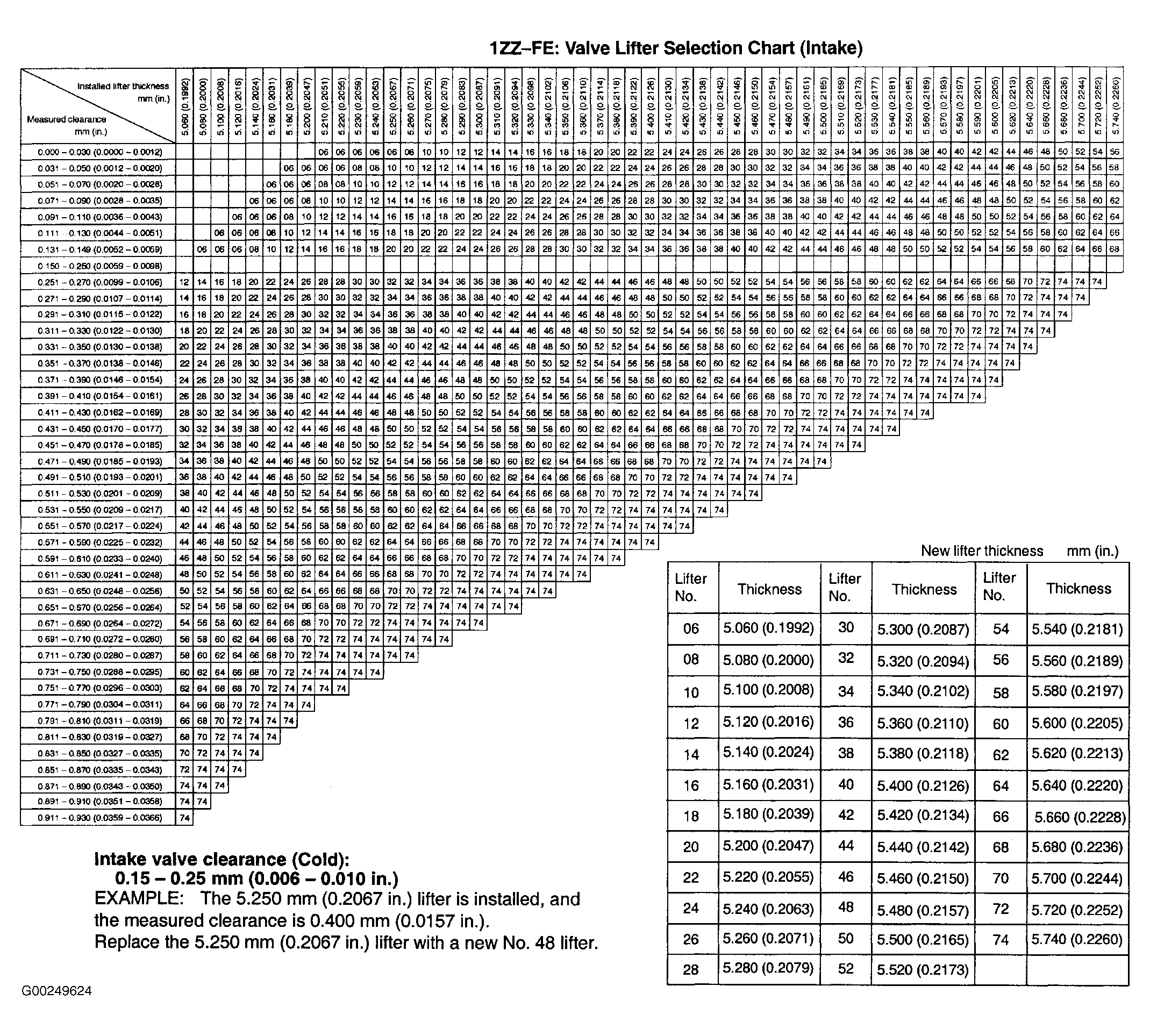

Fig 7: Intake Valve Lifter Selection Chart Clearance (Celica 1ZZ-FE Engine)

G00249624

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

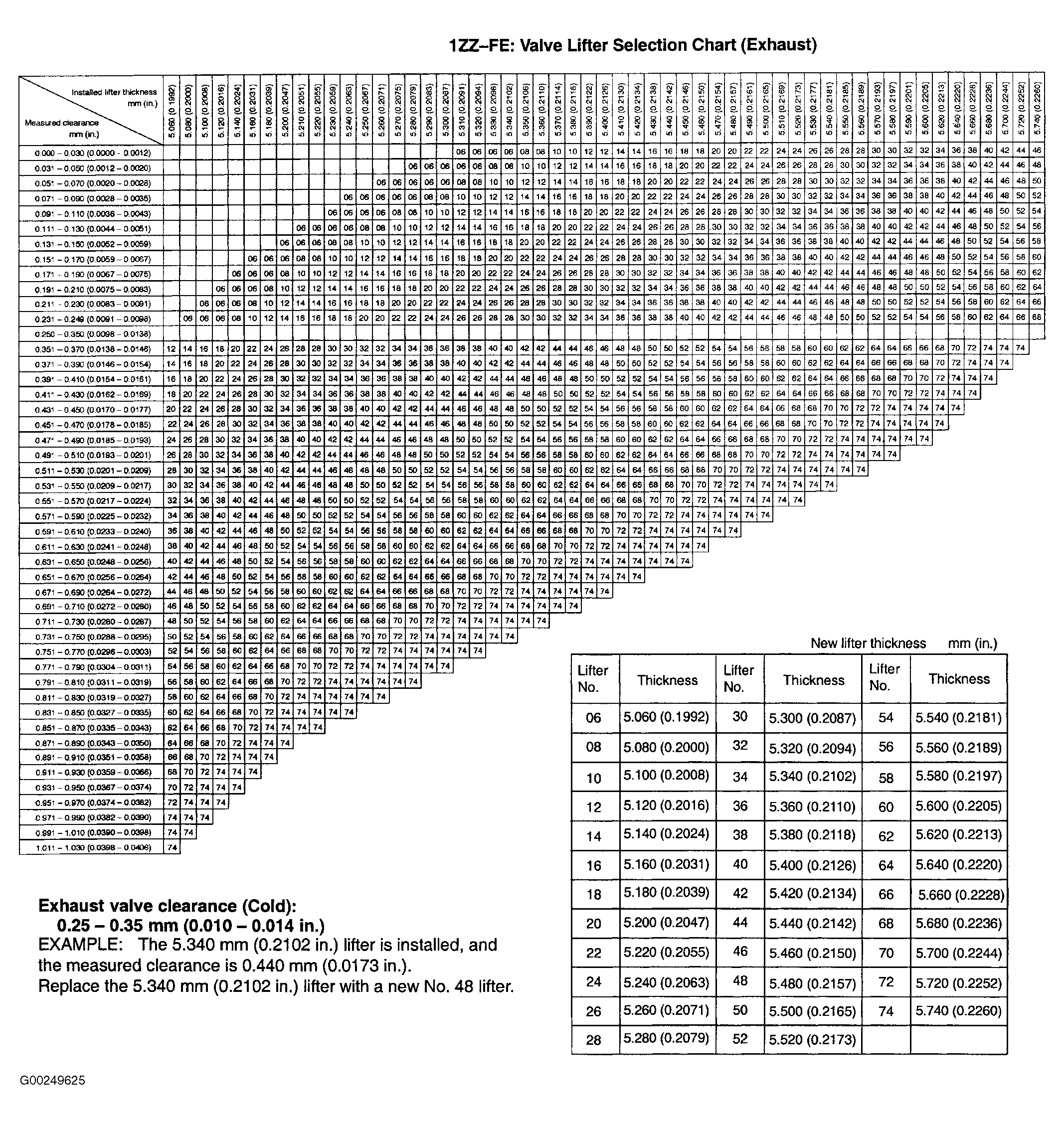

Fig 8: Exhaust Valve Lifter Selection Chart Clearance (Celica 1ZZ-FE Engine)

G00249625

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

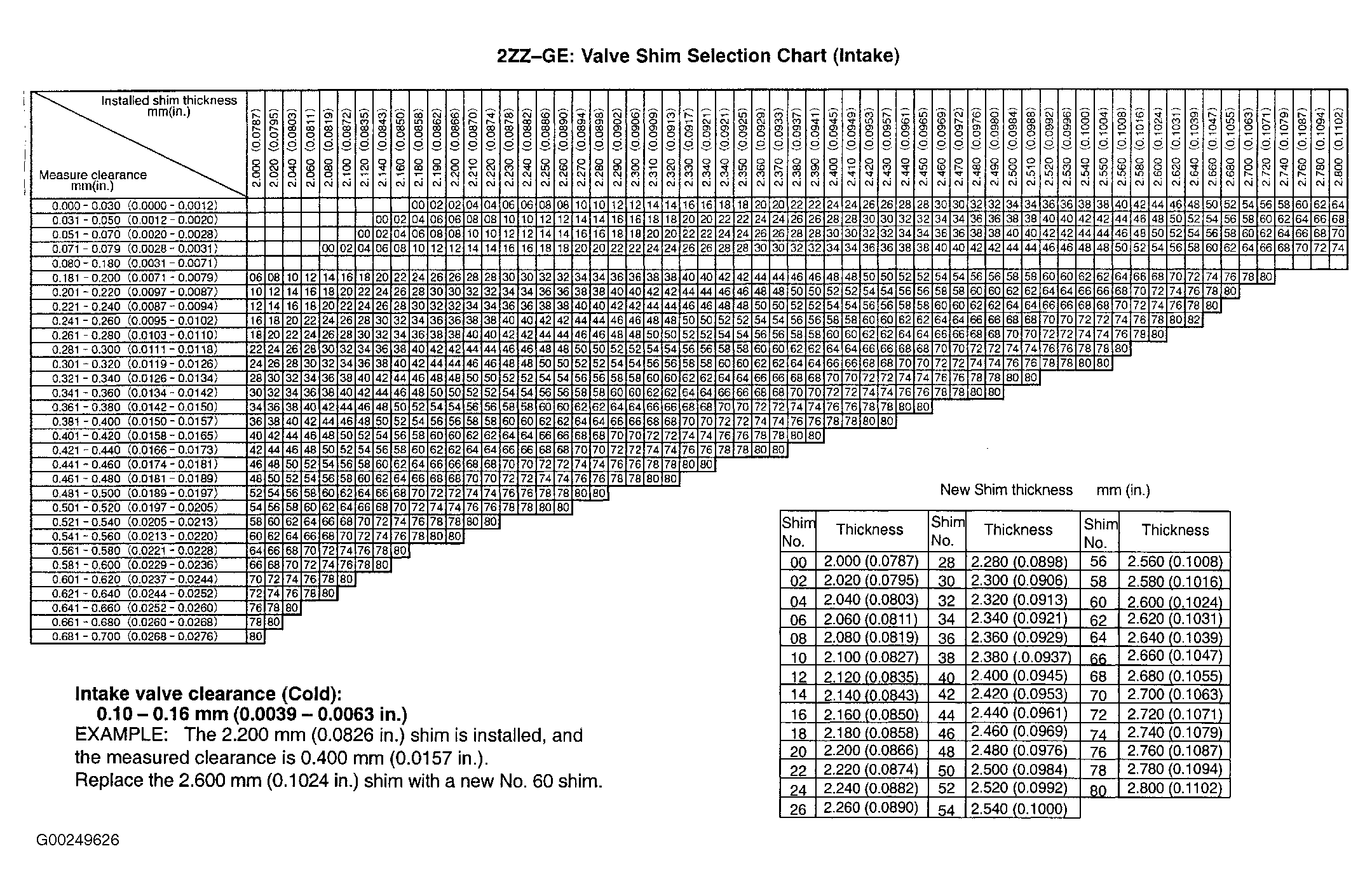

Fig 9: Intake Valve Lifter Selection Chart Clearance (Celica 2ZZ-GE Engine)

G00249626

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

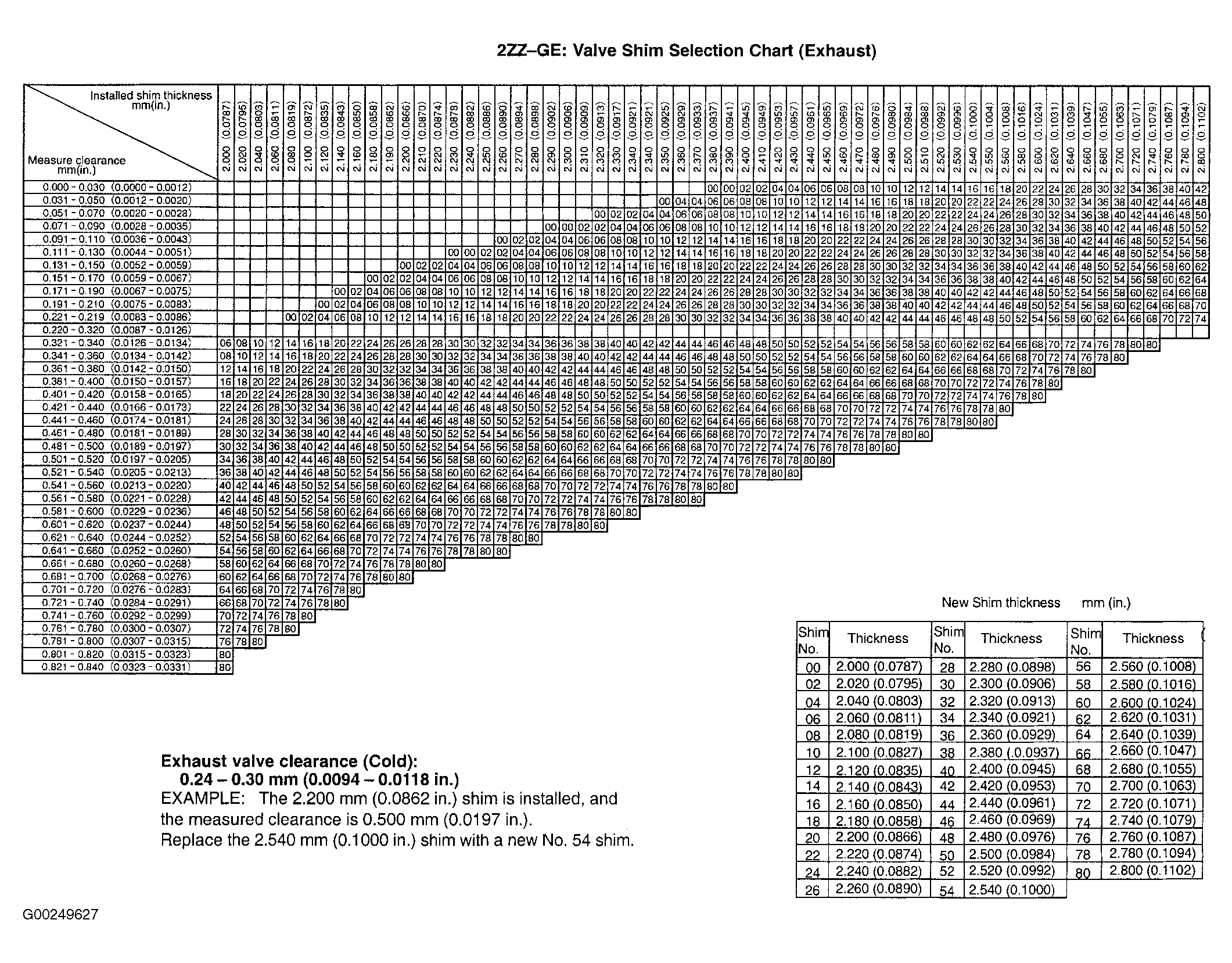

Fig 10: Exhaust Valve Lifter Selection Chart Clearance (Celica 2ZZ-GE Engine)

G00249627

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
