Es300 & RX300
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Lexus SC 430, 2003 Lexus RX 300, 2003 Lexus LX 470, 2003 Lexus LS 430, and 2003 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.
TORQUE SPECIFICATIONS (ES300 & RX300)
| Application |
Ft. Lbs. (N.m) |
| Air/Fuel Ratio Sensor |
32 (43) |
| Air Intake Chamber Bolts |
32 (43) |
| Engine Coolant Temperature Sensor |
14 (19) |
| Fuel Line-To-Intake Manifold Bolt |
14 (19) |
| Heated Oxygen Sensor |
32 (43) |
| IAC Valve No. 1 Bolts & Nut (ES300) |
15 (21) |

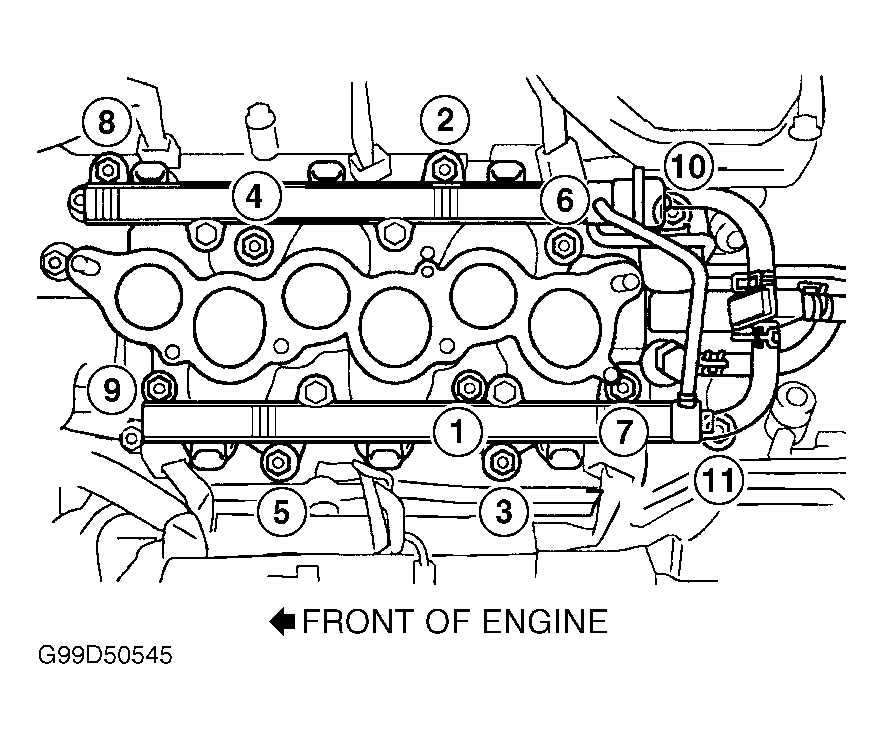

| Intake Manifold Bolts/Nuts |
11 (15) |
| Intake Air Control Valve Nuts (RX300) |
10 (14) |
| Knock Sensor |
29 (39) |
| No. 1 Engine Hanger Bolt |
29 (39) |
| Shift Cable-To-Control Lever Nut |
11 (15) |
| Spark Plug |
13 (18) |
| Throttle Body Bracket Bolt |
14 (19) |
| Vapor Canister |
29 (39) |
| Windshield Wiper Arm Nut (RX300) |
18 (24) |
| INCH Lbs. (N.m) |
| Crankshaft Position Sensor Bolt |
71 (8.0) |
| Fuel Filter (In Tank) |
18 (2.0) |
| Fuel Pressure Regulator Screw (In Tank) |
18 (2.0) |
| Fuel Pump Protector (ES300) |
35 (3.9) |
| Fuel Pump-To-Tank Bolts |
35 (3.9) |
| Fuel Rail Mounting Bolts |
89 (10.0) |
| Ignition Coil/Ignitor Bolt |
71 (8.0) |
| IAC Valve No. 2 Bolts & Nut (ES300) |
89 (10) |
| Park/Neutral Position Switch Bolt |
48 (5.4) |
| Throttle Body Screws |
| ES300 |
97 (11) |
| RX300 |
61 (6.9) |
| Variable Valve Timing Sensor |
71 (8.0) |
