Installation (RX300)
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Lexus SC 430, 2003 Lexus RX 300, 2003 Lexus LX 470, 2003 Lexus LS 430, and 2003 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.
- Using NEW lock plate, install PNP switch on transaxle. Install and tighten PNP switch retaining nut and PNP switch retaining bolts to specification. See TORQUE SPECIFICATIONS . Bend over tab on lock plate against PNP switching retaining nut.
- Reinstall shift control lever, washer and nut on PNP switch and tighten nut to specification. See TORQUE SPECIFICATIONS . Reconnect shift cable on control lever. Check that engine starts only with shift lever in Park and Neutral. If PNP switch adjustment is required, go to next step.

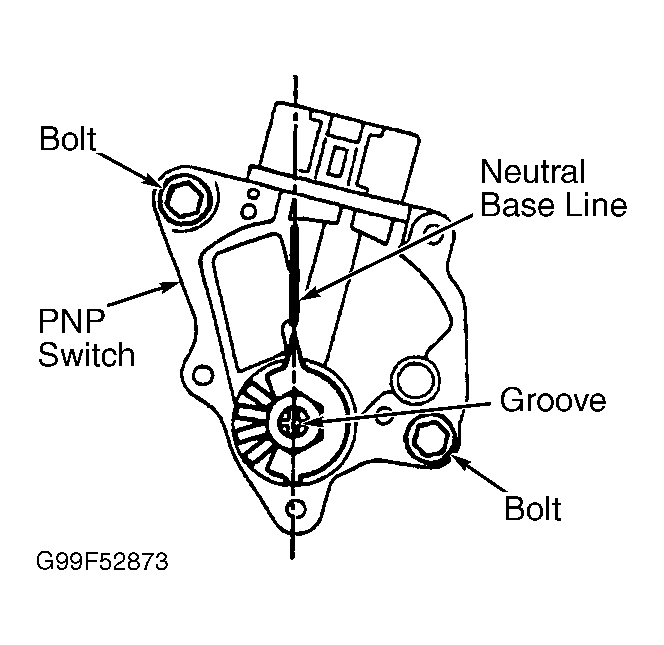

- Ensure parking brake is applied. Place shift lever in Neutral. Loosen PNP switch retaining bolts. Rotate PNP switch so neutral base line aligns with groove. See Fig 1. Tighten PNP switch retaining bolts to specification. See TORQUE SPECIFICATIONS .
- Reconnect PNP switch connector. Install engine splash shield. If PNP switch still does not function properly, test PNP switch. See appropriate SYSTEM & COMPONENT TESTING article.
