Installation (GS300 & IS300)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Lexus SC 430, 2003 Lexus RX 300, 2003 Lexus LX 470, 2003 Lexus LS 430, and 2003 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

To install, reverse removal procedure. Install coil wires and wire holders as illustrated. See Fig 2. Tighten all bolts and nuts to specification. See TORQUE SPECIFICATIONS .

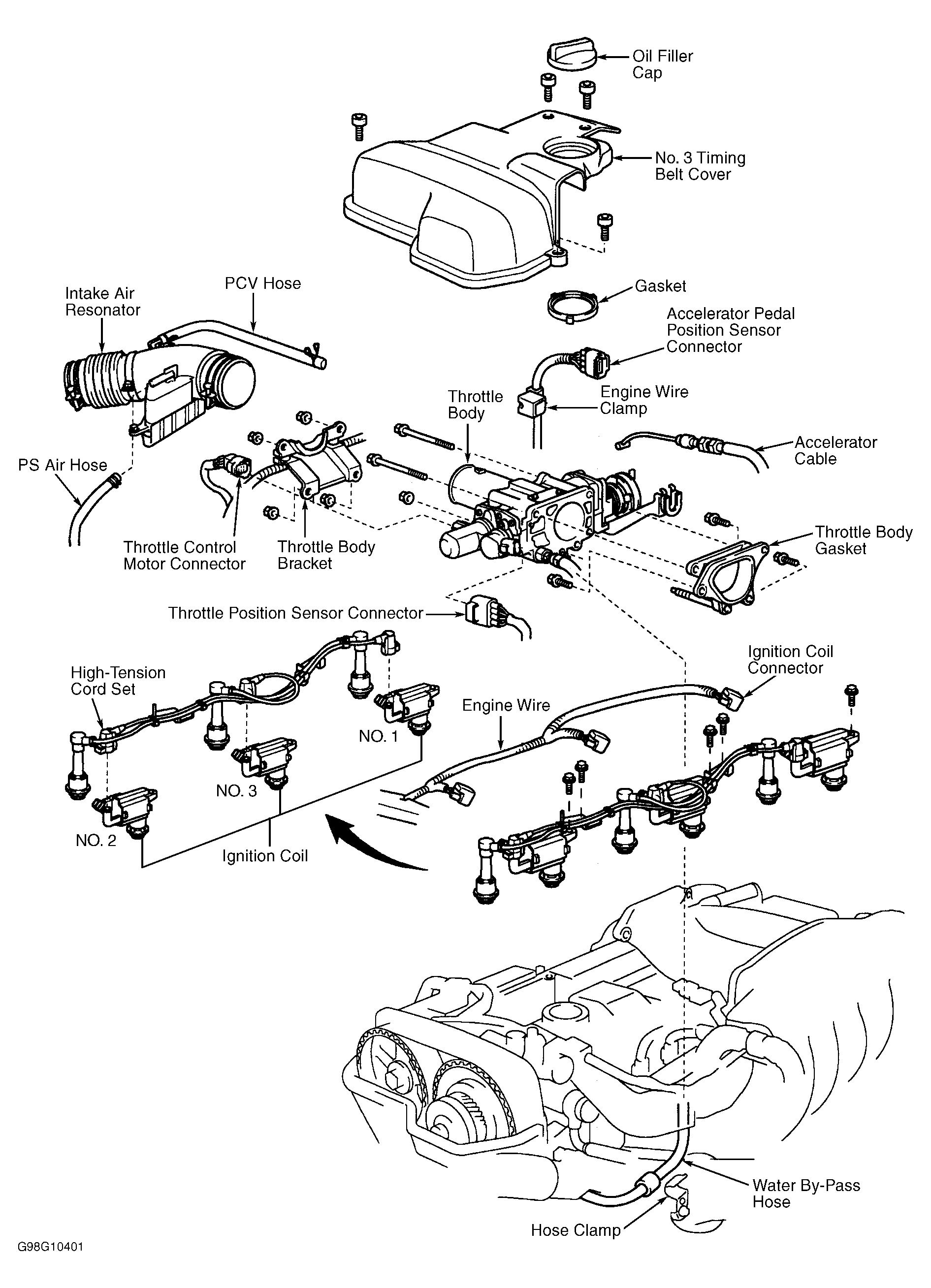

Fig 1: Removing Ignition Coils (GS300 & IS300)

Fig 2: Installing Coil Wire Holder (GS300 & IS300)
