Removal & Installation (GS300 & IS300)
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Lexus SC 430, 2003 Lexus RX 300, 2003 Lexus LX 470, 2003 Lexus LS 430, and 2003 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

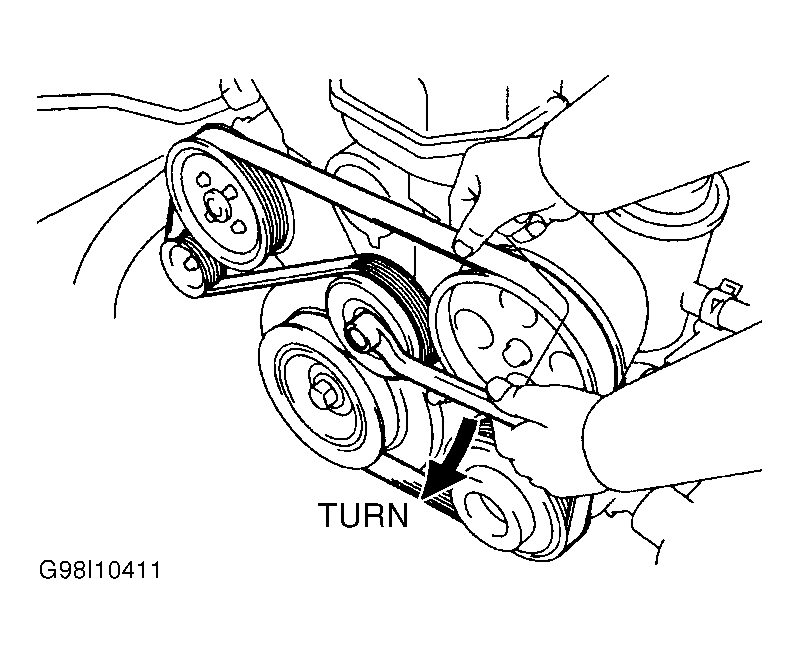

- Crankshaft Position (CKP) sensor is located at front of crankshaft, near crankshaft pulley. Remove engine undercover. Using a wrench, loosen belt tension by rotating serpentine belt tensioner bolt clockwise and remove serpentine belt. See Fig 1. Disconnect generator connector. Remove rubber cap and nut, and disconnect generator wire.
- Disconnect engine wiring harness clamp from generator wire clip. Remove bolt and pipe clamp, and disconnect A/T oil cooler pipes from generator. Remove bolt, nut, pipe bracket and generator. Disconnect Crankshaft Position (CKP) sensor connector. Remove connector bracket-to-water pump bolt. Remove bolt and CKP sensor. Remove connector bracket and connector.
- To install, reverse removal procedure. Tighten all nuts and bolts to specification. See TORQUE SPECIFICATIONS .
