Removal (ES300)
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Lexus SC 430, 2003 Lexus RX 300, 2003 Lexus LX 470, 2003 Lexus LS 430, and 2003 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.
- Release fuel pressure. See FUEL SYSTEM PRESSURE RELEASE . Drain coolant. Remove engine cover. Remove air cleaner assembly with hose. Remove front suspension upper center brace. Remove intake air surge tank.

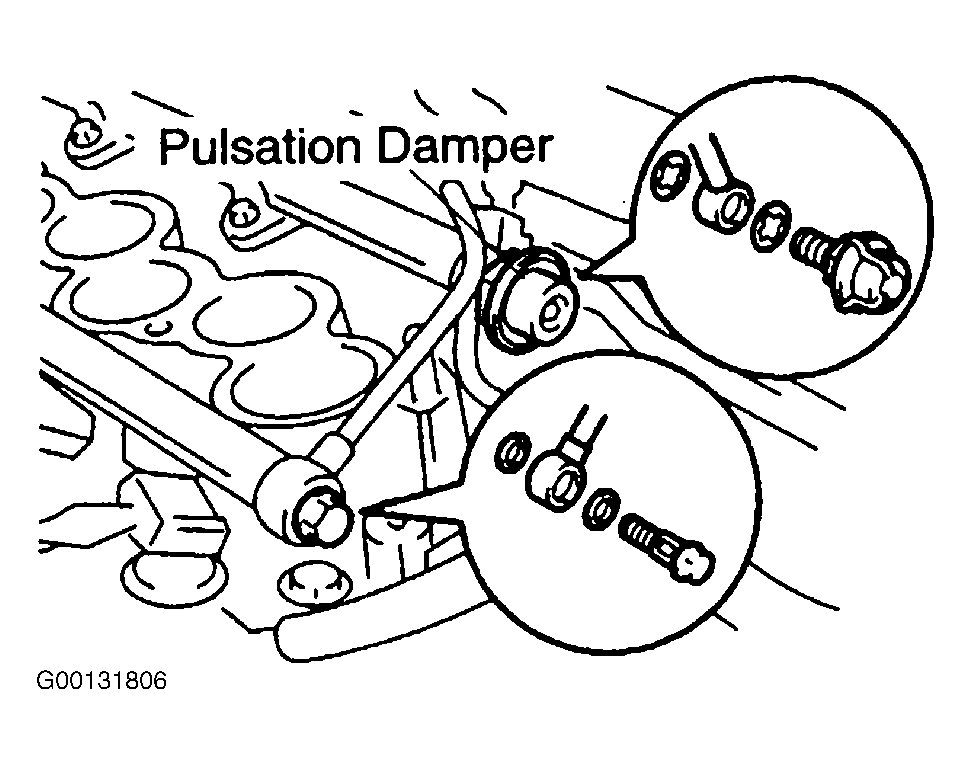

- Remove pulsation damper and 2 gaskets. See Fig 1. Remove bolt and 2 gaskets. Remove bolt and disconnect fuel pipe sub-assembly No. 1 from intake manifold. Disconnect injector connectors. Remove 2 bolts and fuel delivery pipe, while pulling out both ends of fuel delivery pipe equally. While turning injector clockwise and counterclockwise, pull out injector from delivery pipe.
