Removal (ES300)
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Lexus SC 430, 2003 Lexus RX 300, 2003 Lexus LX 470, 2003 Lexus LS 430, and 2003 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

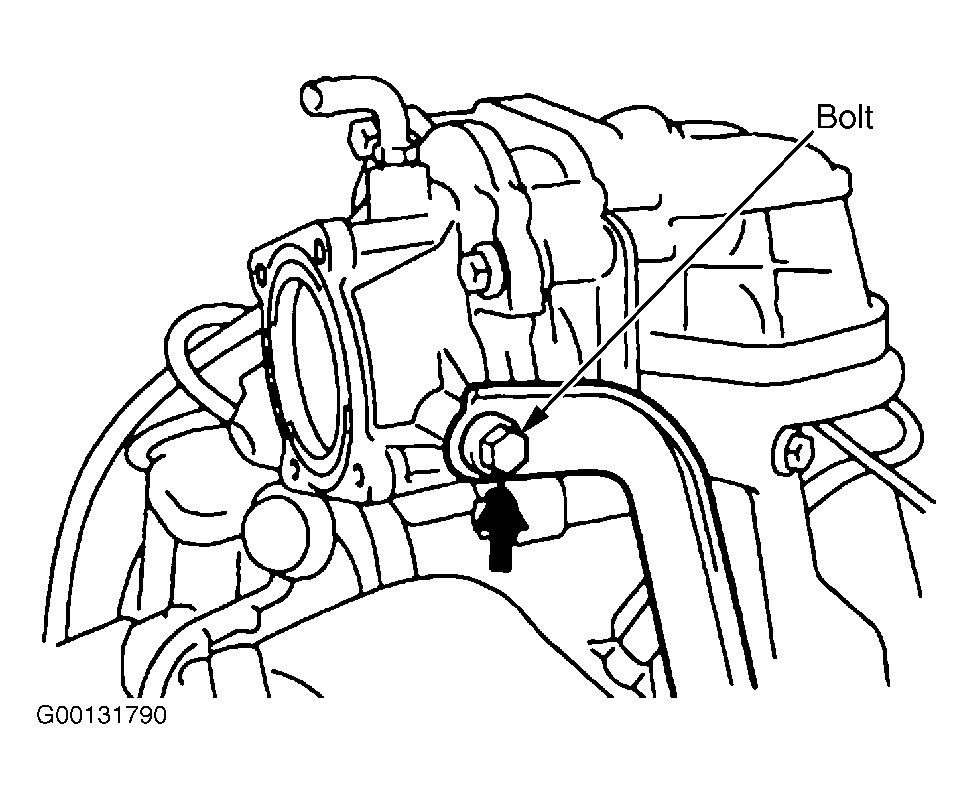

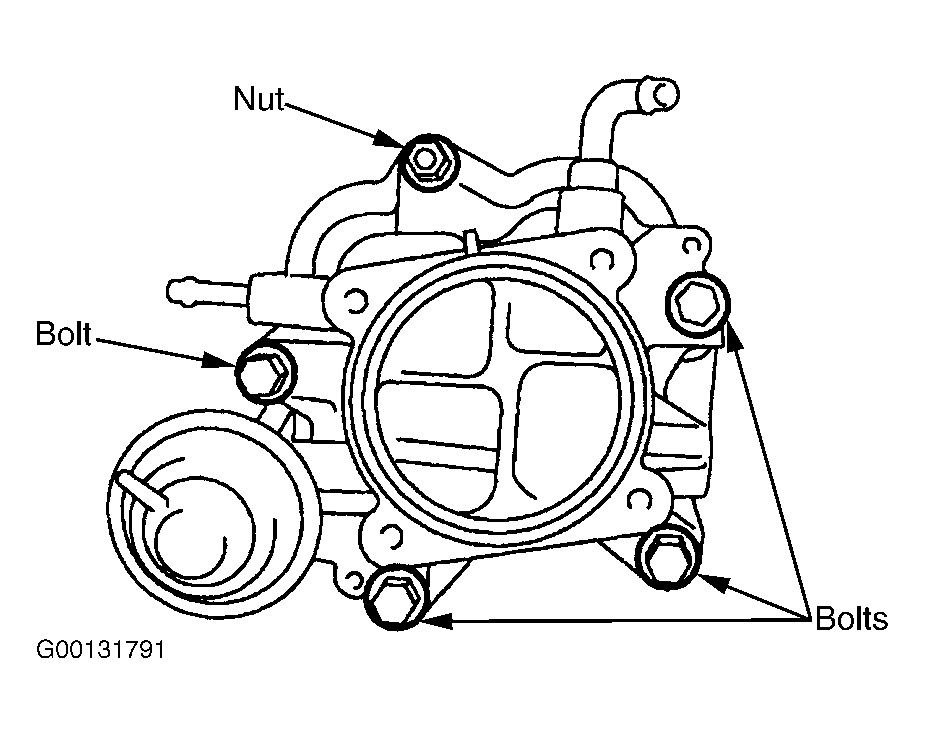

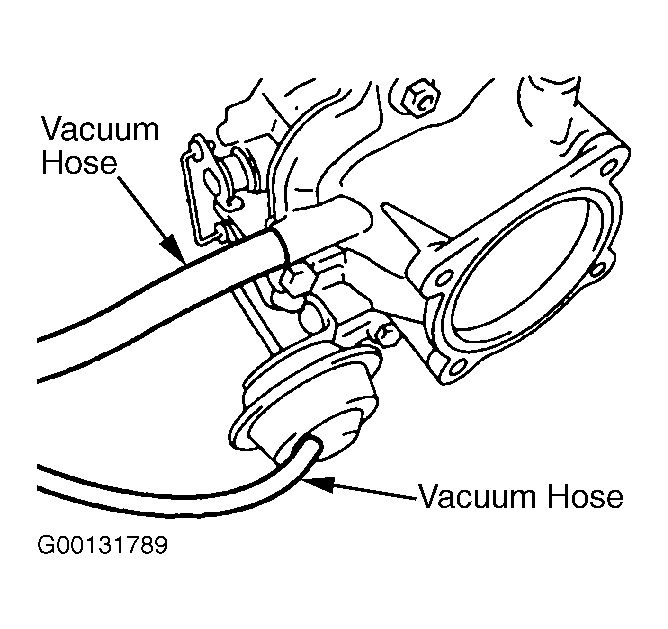

- To remove air control valve assembly No. 1, disconnect negative battery cable. Drain coolant. Remove air cleaner cap with air cleaner hose. Remove front suspension upper center brace. Remove throttle body assembly. See THROTTLE BODY under FUEL SYSTEM. Remove intake air control valve assembly. Disconnect vacuum hoses. See Figure. Remove bolt. See Figure. Remove 4 bolts and nut. See Figure. Remove intake air control valve.

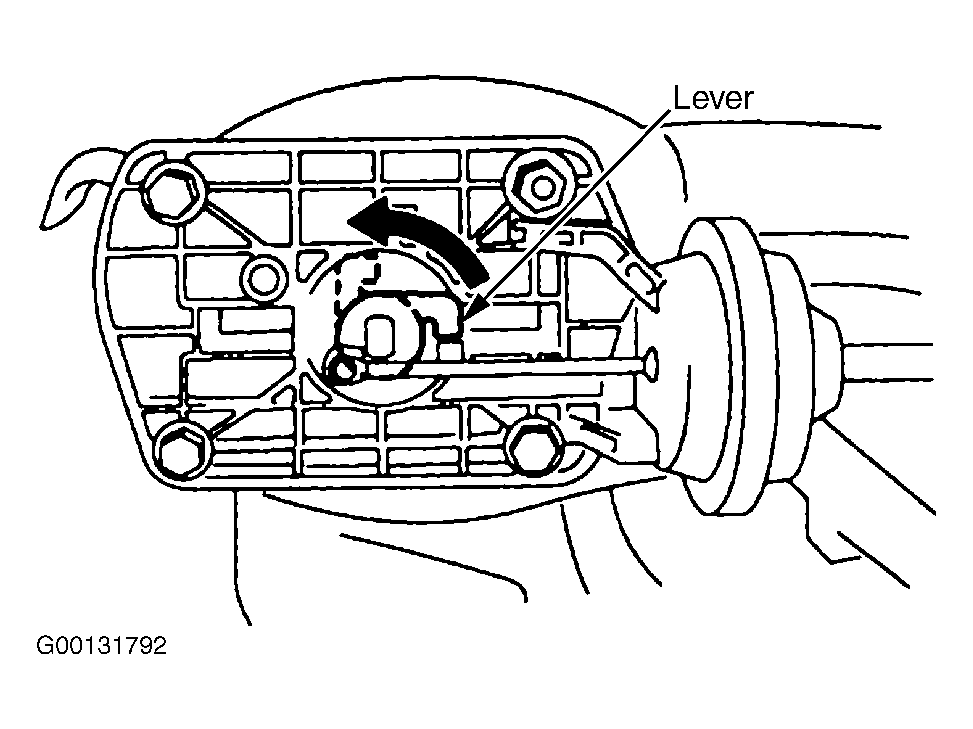

- To remove intake air control valve assembly No. 2, disconnect vacuum hose. Remove 3 bolts and nut. Rotate lever to closed position and pull out intake air control valve No. 2. See Figure.
