Diagnosis & Repair (Using Hand-Held Tester)

WARNING: This page is about a different car, the 2003 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the ignition switch ON. Read the voltage for the accelerator pedal position sensor data. With pedal released, VPA voltage should be .5-1.1 volts and VPA2 voltage should be .9-2.3 volts. With pedal depressed, VPA should be 3-4.6 volts and VPA2 should be 3.4-5.5 volts. If okay, replace ECM. If not okay, go to next step.
  2. Disconnect the accelerator pedal position sensor connector. Measure resistance between the terminals of the accelerator pedal position sensor. See Fig 1. See ACCELERATOR PEDAL POSITION SENSOR RESISTANCE  table. If resistance is to specification, go to next step. If resistance is not to specification, replace accelerator pedal rod assembly.

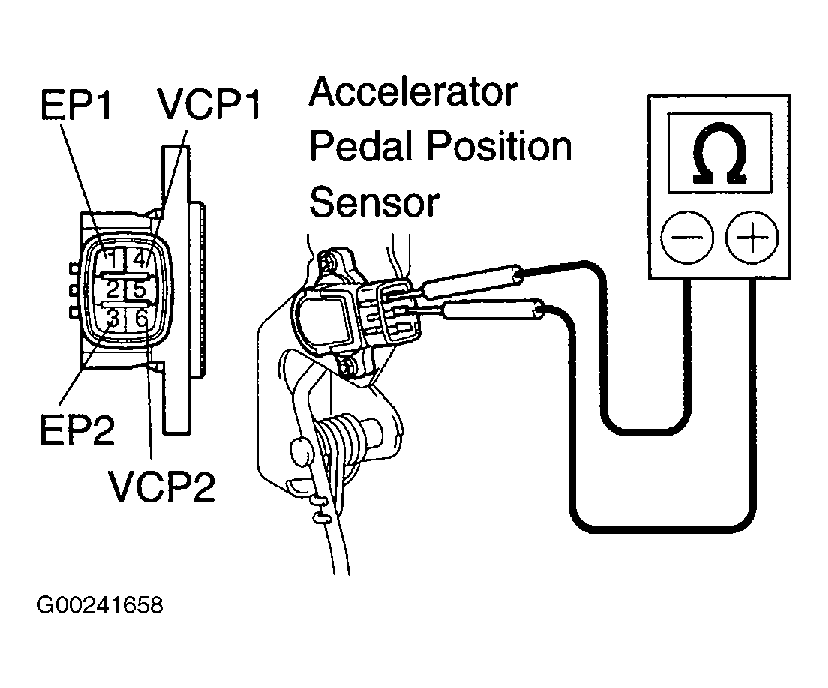

    Fig 1: Checking Resistance Between Terminals Of Accelerator Pedal Position Sensor
    G00241658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    ACCELERATOR PEDAL POSITION SENSOR RESISTANCE

    Terminals No. Ohms @ 68°F (20°C)
    EP1 (1) - VCP1 (4) 1.5-60
    EP2 (3) - VCP2 (6) 1.5-60
  3. Turn the ignition switch ON. Measure the voltage between the terminals of the ECM E5 connector. See VPTK & VCPA VOLTAGE CHECK  table. See Fig 2. If voltage is to specification, go to next step. If voltage is not to specification, replace ECM.
    Fig 2: Checking ECM VPTK & VCPA Voltage
    G00241659Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    VPTK & VCPA VOLTAGE CHECK

    Terminals No. Specification
    VCPA (E5-35) - EPA (E5-34) 4.5-5.5 Volts
    VPTK (E5-27) - EPTK (E5-26) 4.5-5.5 Volts
  4. Turn the ignition switch ON. Measure the voltage between the terminals of the E5 ECM connector. See VPA & VPA2 VOLTAGE CHECK  table. See Fig 3. If voltage is to specification, go to next step. If voltage is not to specification, replace ECM.
    Fig 3: Checking ECM VPA & VPA2 Voltage
    G00241660Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    VPA & VPA2 VOLTAGE CHECK

    Accelerator Pedal Position VPA (E5-33) - EPTK (E5-26) VPA2 (E5-32) - EPTK (E5-26)
    Released .5-1.1 Volts .9-2.3 Volts
    Depressed 3-4.6 Volts 3.4-5.5 Volts
  5. Disconnect the A14 accelerator pedal position sensor 6-pin connector. See Figure. Disconnect the ECM E5 connector. Check the continuity between the wire harness side connectors. See ACCELERATOR PEDAL POSITION SENSOR/ECM CONTINUITY CHECK  table. See Figure. If continuity is to specification, replace ECM. If continuity is not to specification, repair or replace harness or connector as necessary.
ACCELERATOR PEDAL POSITION SENSOR/ECM CONTINUITY CHECK

Terminals No. Specification
EP1 (A14-1) - EPA (E5-34) Continuity
VCP1 (A14-4) - VCPA (E5-35) Continuity
VPA1 (A14-5) - VPA (E5-33) Continuity
EP2 (A14-3) - EPTK (E5-26) Continuity
VCP2 (A14-6) - VPTK (E5-27) Continuity
VPA2 (A14-2) - VPTA (E5-32) Continuity
EP1 (A14-1) Or EPA (E5-34) - E1 (E3-7) No Continuity
VCP1 (A14-4) Or VCPA (E5-35) - E1 (E3-7) No Continuity
VPA1 (A14-5) Or VPA (E5-33) - E1 (E3-7) No Continuity
EP2 (A14-3) Or EPTK (E5-26) - E1 (E3-7) No Continuity
VCP2 (A14-6) Or VPTK (E5-27) - E1 (E3-7) No Continuity
VPA2 (A14-2) Or VPTA (E5-32) - E1 (E3-7) No Continuity
