Diagnosis & Repair

WARNING: This page is about a different car, the 2003 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect CKP sensor connector. Using ohmmeter, measure resistance between CKP sensor terminals. Resistance should be 1630-2740 ohms with engine temperature at 14-122°F (-10-50°C) or 2065-3225 ohms with engine temperature at 122-212°F (50-100°C). See Fig 1. If resistance is as specified, go to next step. If resistance is not as specified, replace CKP sensor.

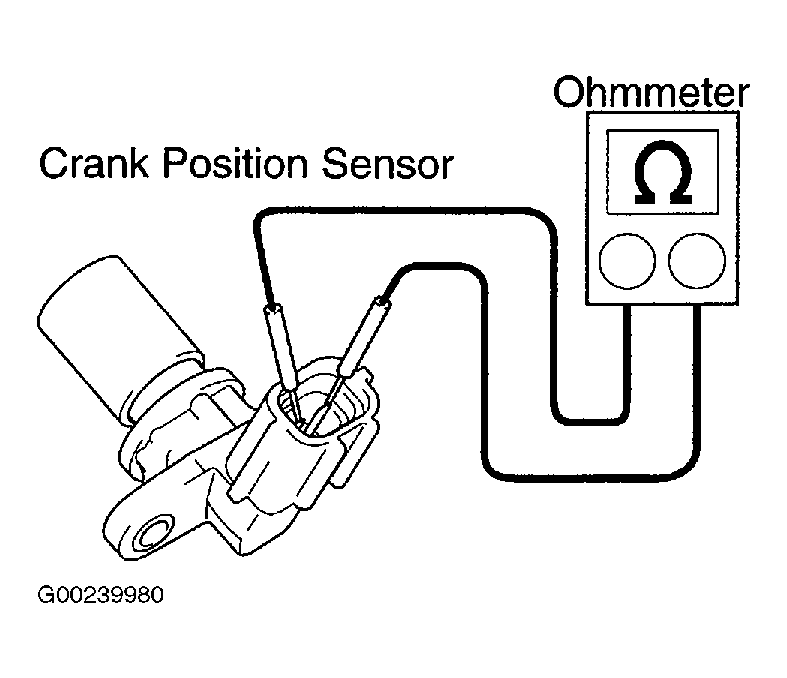

    Fig 1: Checking Crankshaft Position Sensor Resistance
    G00239980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Check for short or open circuit in wiring harness between ECM E2 connector and CKP sensor. See Figure-Fig 3 . See ENGINE PERFORMANCE in SYSTEM WIRING DIAGRAMS article in ELECTRICAL. Repair wiring as necessary. If wiring harness is okay, go to next step.

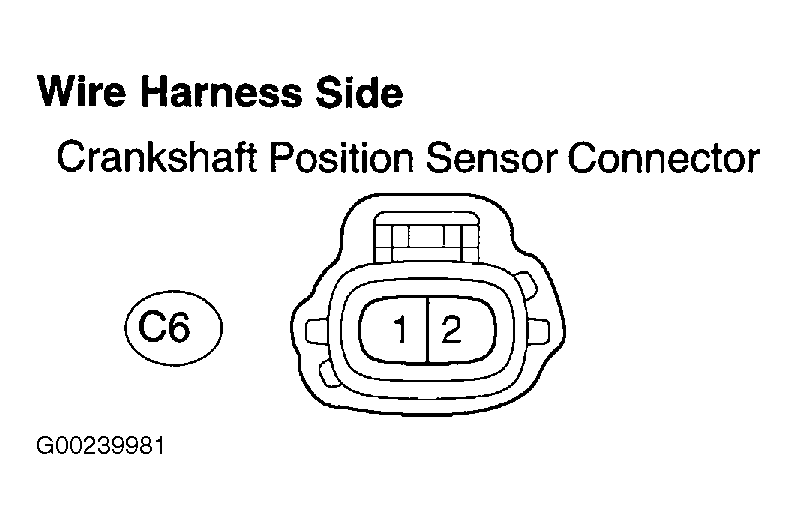

    Fig 2: Identifying Crankshaft Position Sensor Connector Terminals
    G00239981Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

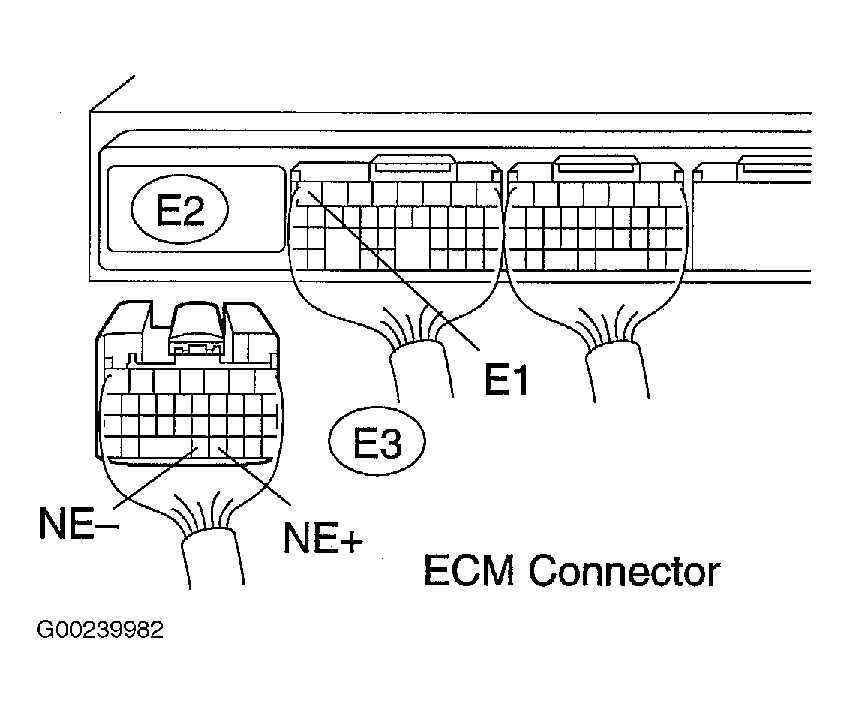

    Fig 3: Identifying ECM E2 Connector Terminals
    G00239982Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Check CKP sensor for proper installation. Also inspect signal plate. Repair or replace as necessary. If CKP sensor and signal plate are okay, replace ECM and retest.
