Abs With EBD & BA & TRAC & VSC System - Diagnostics
>>
Terminals Of Ecu
>>
Translate Ecu
Translate Ecu

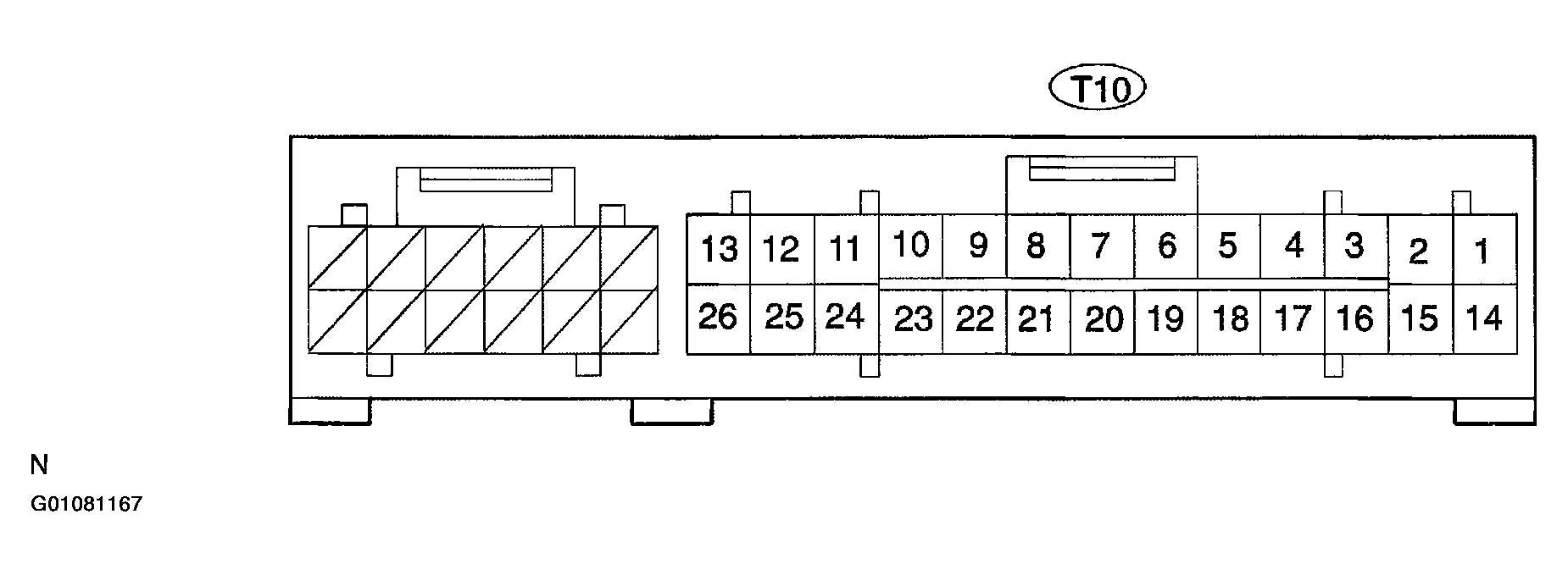

Fig 1: Locating Translate ECU Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

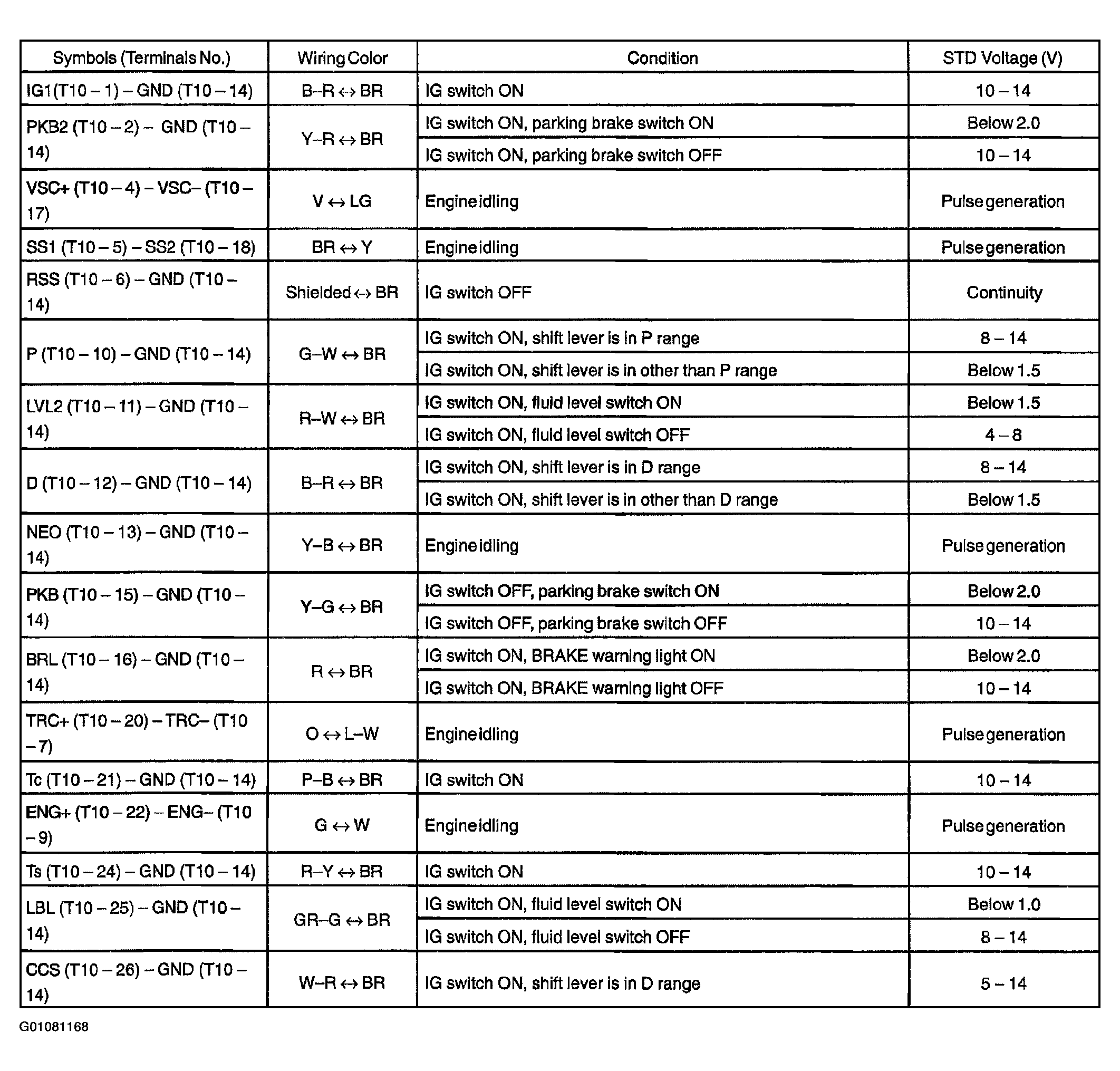

Fig 2: Translate ECU Terminal Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
