Skid Control Ecu

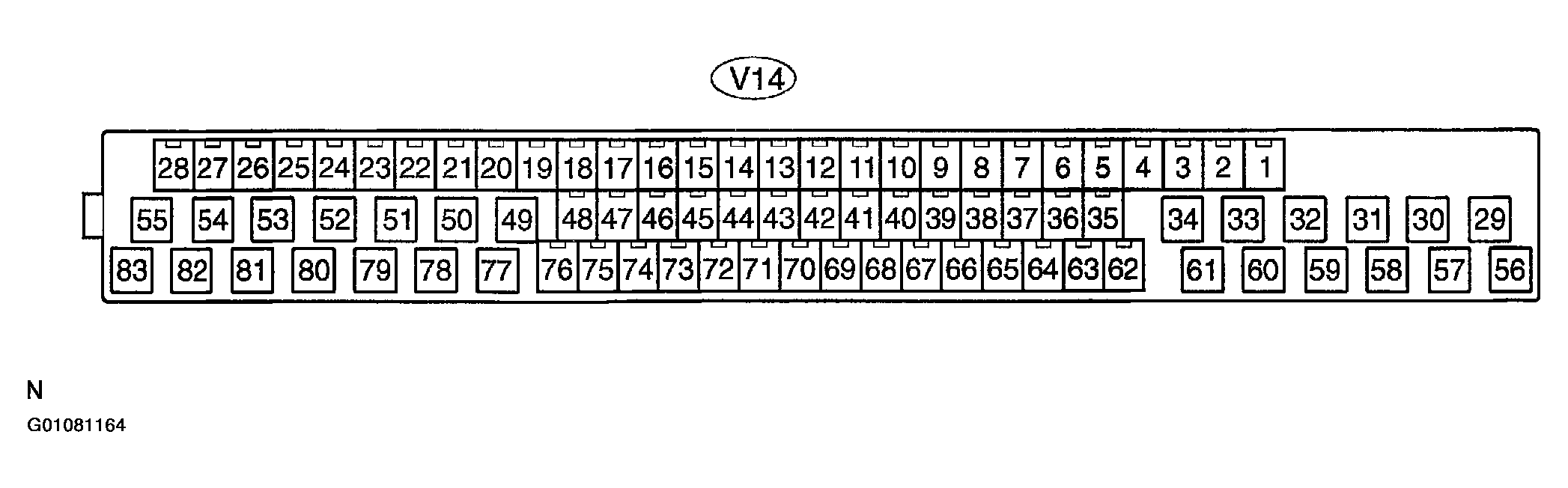

Fig 1: Locating Skid Control ECU Terminals
G01081164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

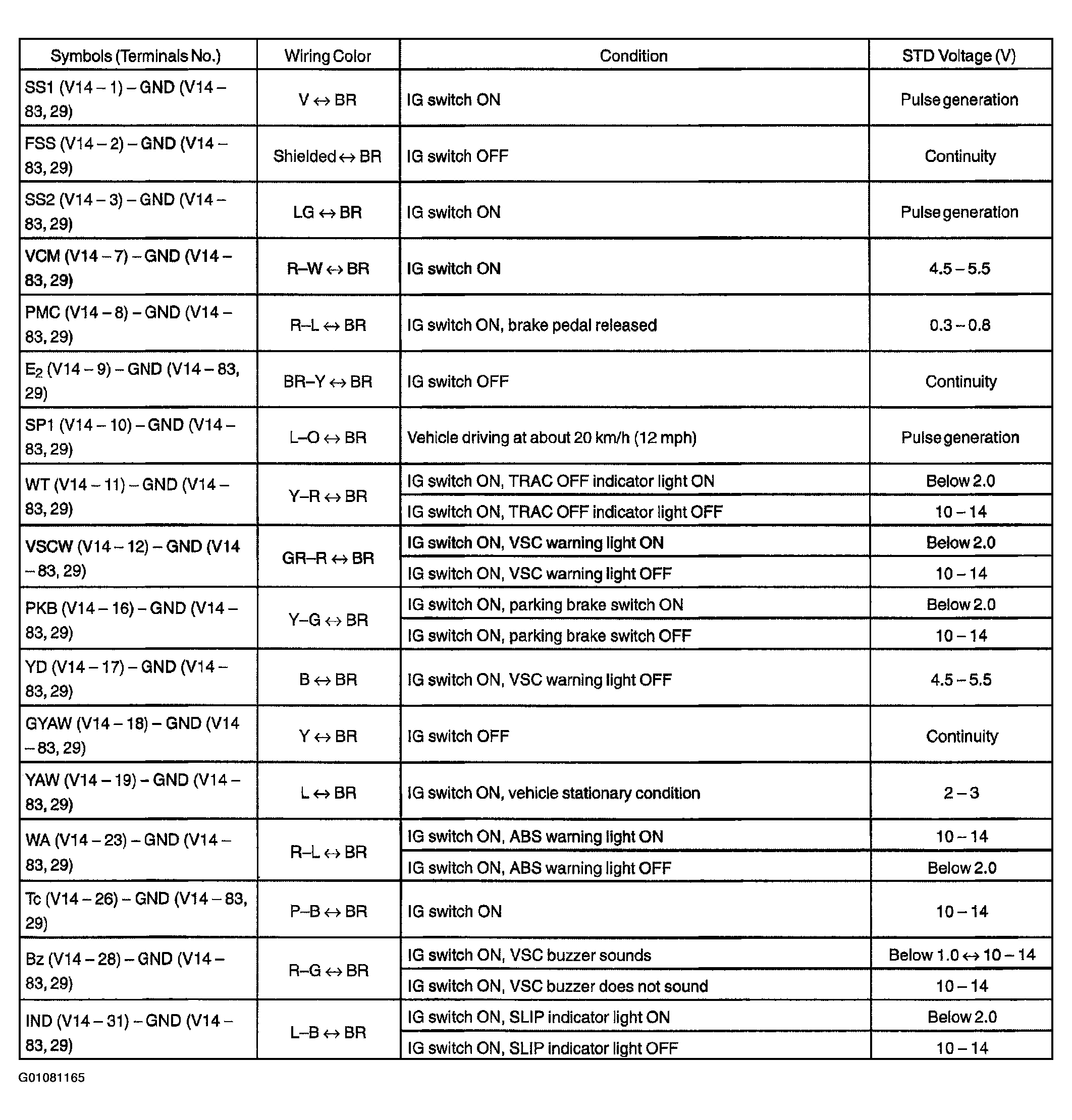

Fig 2: Skid Control ECU Terminal Specifications (1 Of 2)
G01081165Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

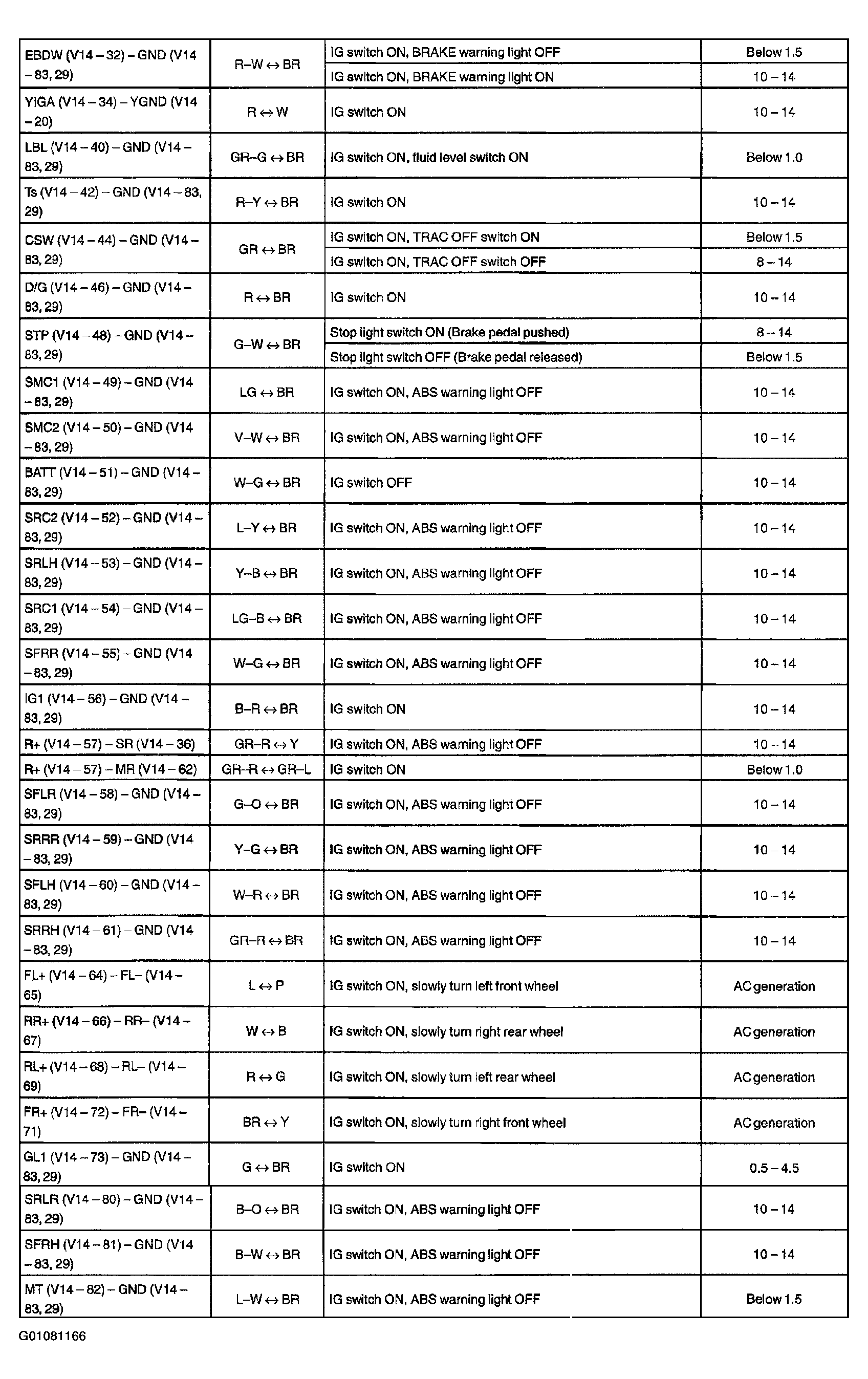

Fig 3: Skid Control ECU Terminal Specifications (2 Of 2)
G01081166Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
