Problem Symptoms

If a normal code is displayed during the DTC check but the problem still occurs, check the circuits for each problem symptom in the order given in the table below and proceed to the relevant procedure.

NOTE: When replacing Skid Control ECU, sensor, etc., turn the ignition switch OFF.

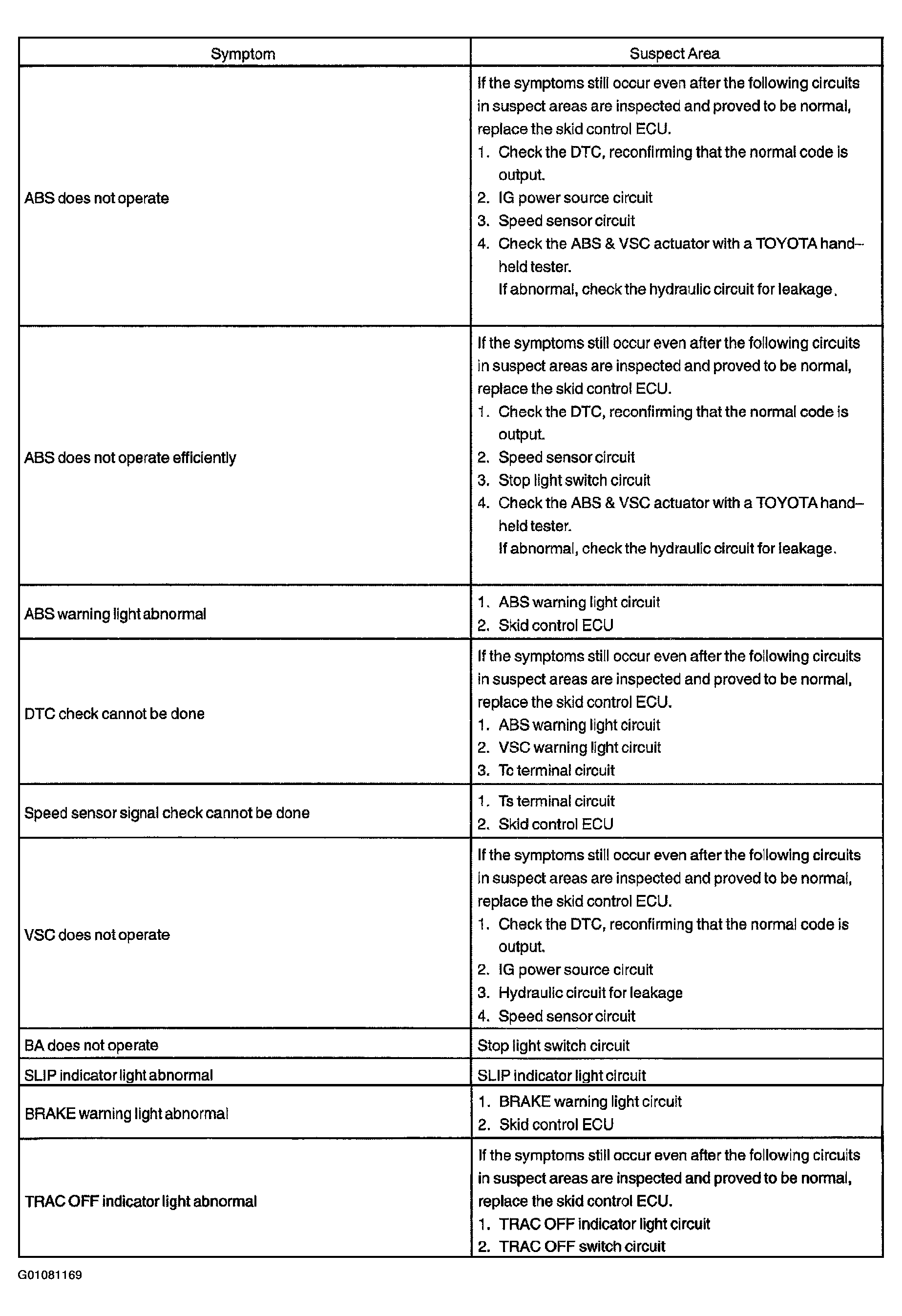

Fig 1: Isolating Problem Symptoms
G01081169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
