How To Proceed With Troubleshooting

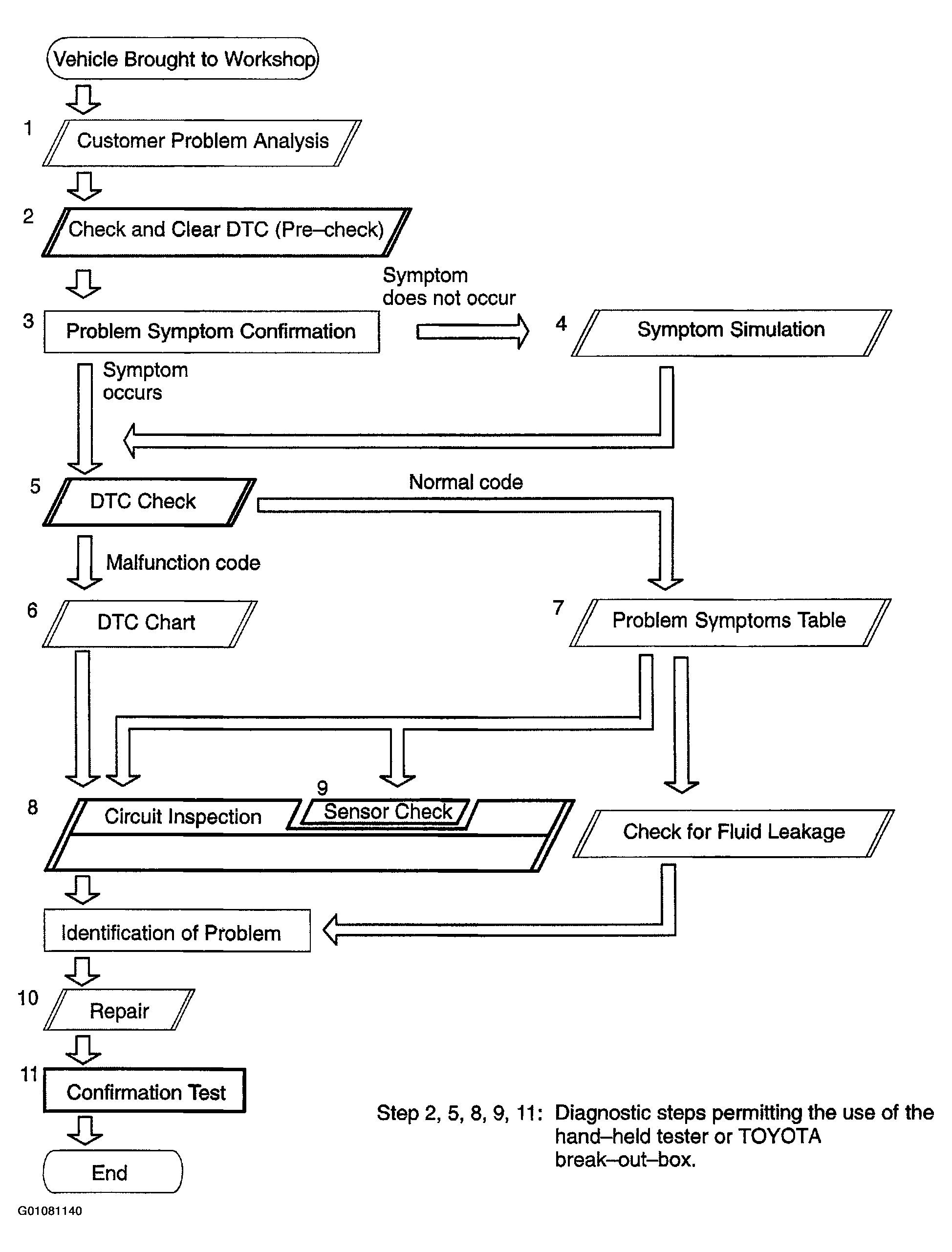

Troubleshoot in accordance with the procedure in Fig 1.
Fail Safe Function
When a failure occurs in the ABS & BA & TRAC & VSC system, the respective warning light (ABS, VSC) is lit and the operation of ABS & BA & TRAC & VSC is prohibited. In addition to this, when the failure which disables the EBD operation occurs, the brake warning light is lit as well and the EBD operation is prohibited.
