VSC Warning Light Circuit: Wiring Diagram

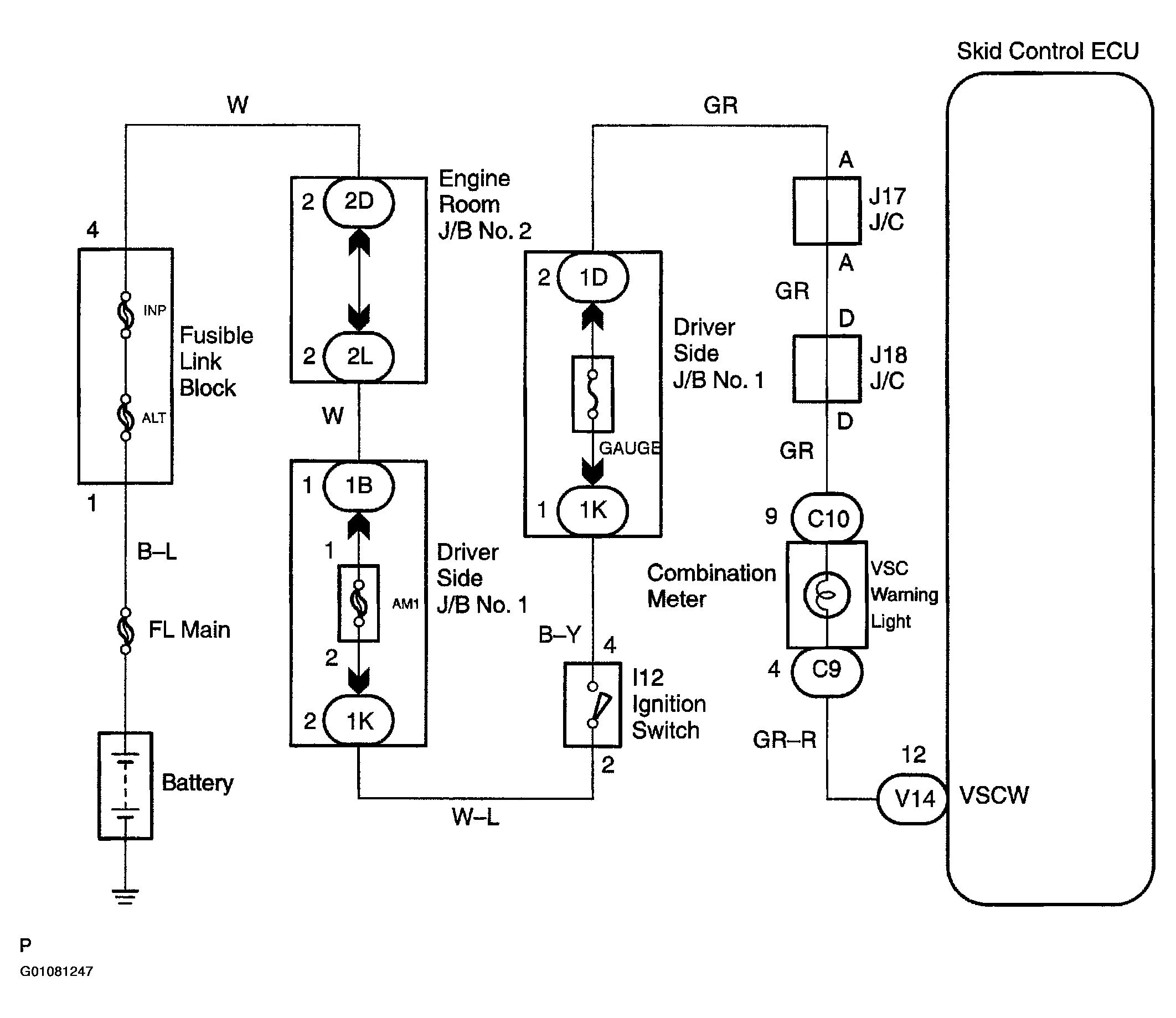

Fig 1: VSC Warning Light Circuit

G01081247

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
