TRAC Off Indicator Light, TRAC Off Switch Circuit: Wiring Diagram

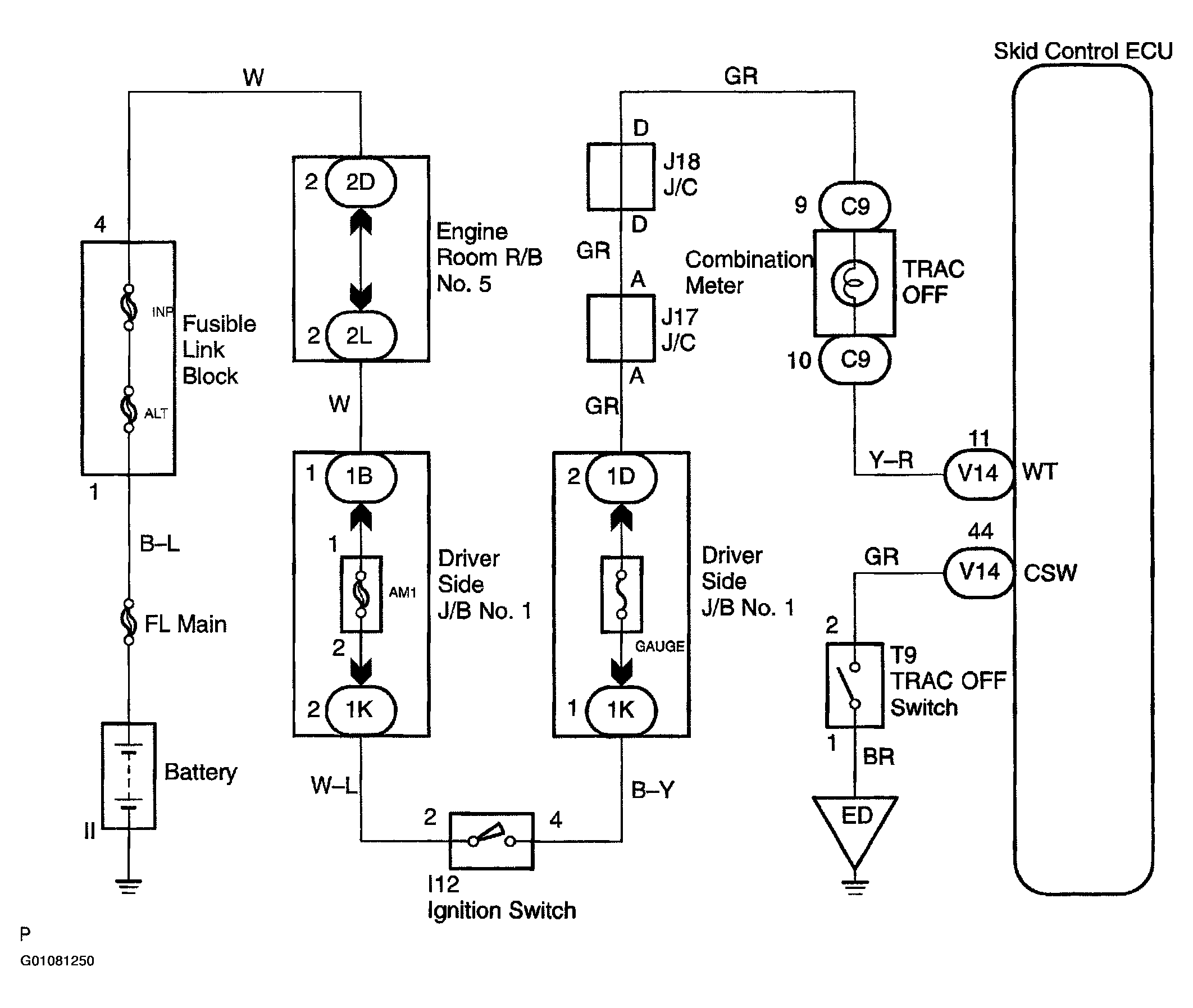

Fig 1: TRAC OFF Indicator Light & Switch Circuit

G01081250

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
